(switches, covers, trim), mask off areas where tools ( re‐

moval wedge -VAS 3409- , screwdriver) are used to lever

out those components using commercially available

masking tape.

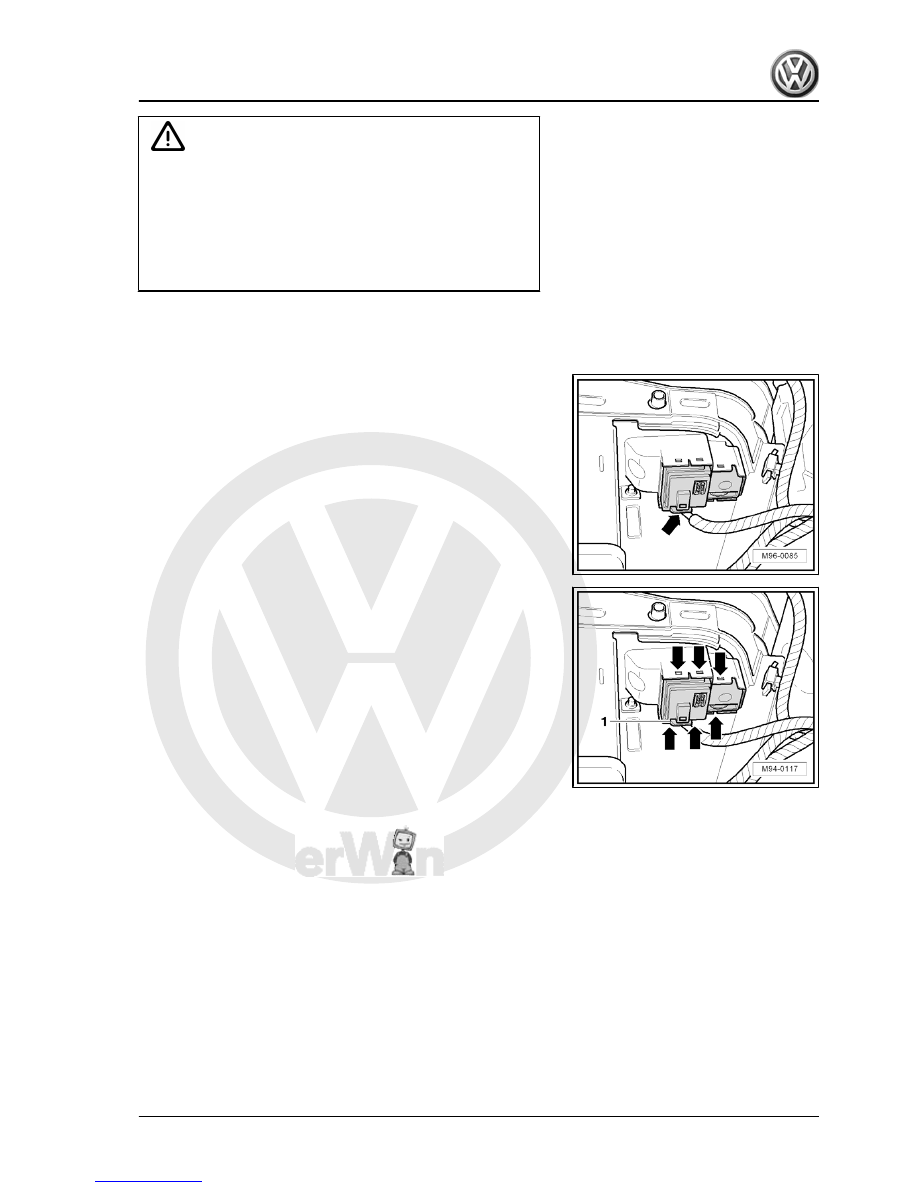

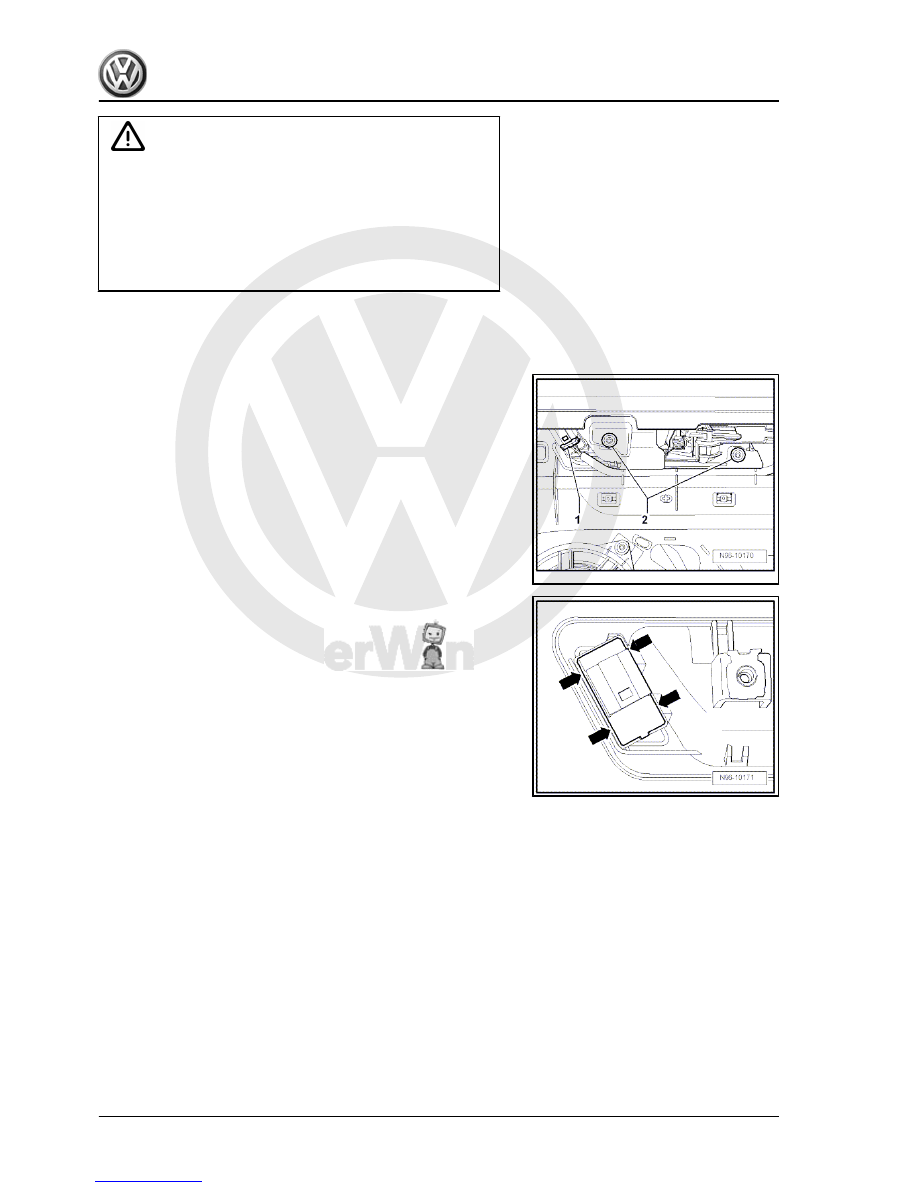

Removing
– Remove door trim ⇒  General body repairs, interior; Rep. gr.

70 .

– Detach connector -1- and remove bolts -2-.
– Remove inside door handle together with driver side interior

locking button for central locking system -E308- out of door

trim.

– Release locking lugs -arrows- and remove driver side interior

central locking button -E308- from installation frame.

Installing
Installation is carried out in reverse order of removal.

3.4

Components - front door locks

Door lock - driver side (depending on equipment)
♦ Driver door contact switch -F2-
♦ Driver side central locking lock unit -F220-
♦ Driver door central locking motor -V56-
♦ Driver door central locking deadlock function motor -V161-
Door lock - front passenger side (depending on equipment)
♦ Front passenger door contact switch -F3-
♦ Front passenger side central locking lock unit -F221-
♦ Front passenger side central locking motor -V57-
♦ Front passenger door central locking deadlock function motor

-V162-

394



body repairs, exterior; Rep. gr.  57 .

3.5

Removing and installing switch module

for driver side window regulator

Window regulator components - driver page (4 doors)
♦ Front left window regulator switch -E40-
♦ Rear left window regulator switch, in driver door -E53-
♦ Rear right window regulator switch, in driver door -E55-
♦ Front right window regulator switch, in driver door -E81-
♦ Childproof lock button -E318-
♦ Button illumination bulb -L76-
Window regulator components - driver page (2 doors)
♦ Front left window regulator switch -E40-
♦ Front right window regulator switch, in driver door -E81-
♦ Button illumination bulb -L76-
The above mentioned components cannot be renewed individu‐

ally.
– In case of a defect, renew corresponding switch module.

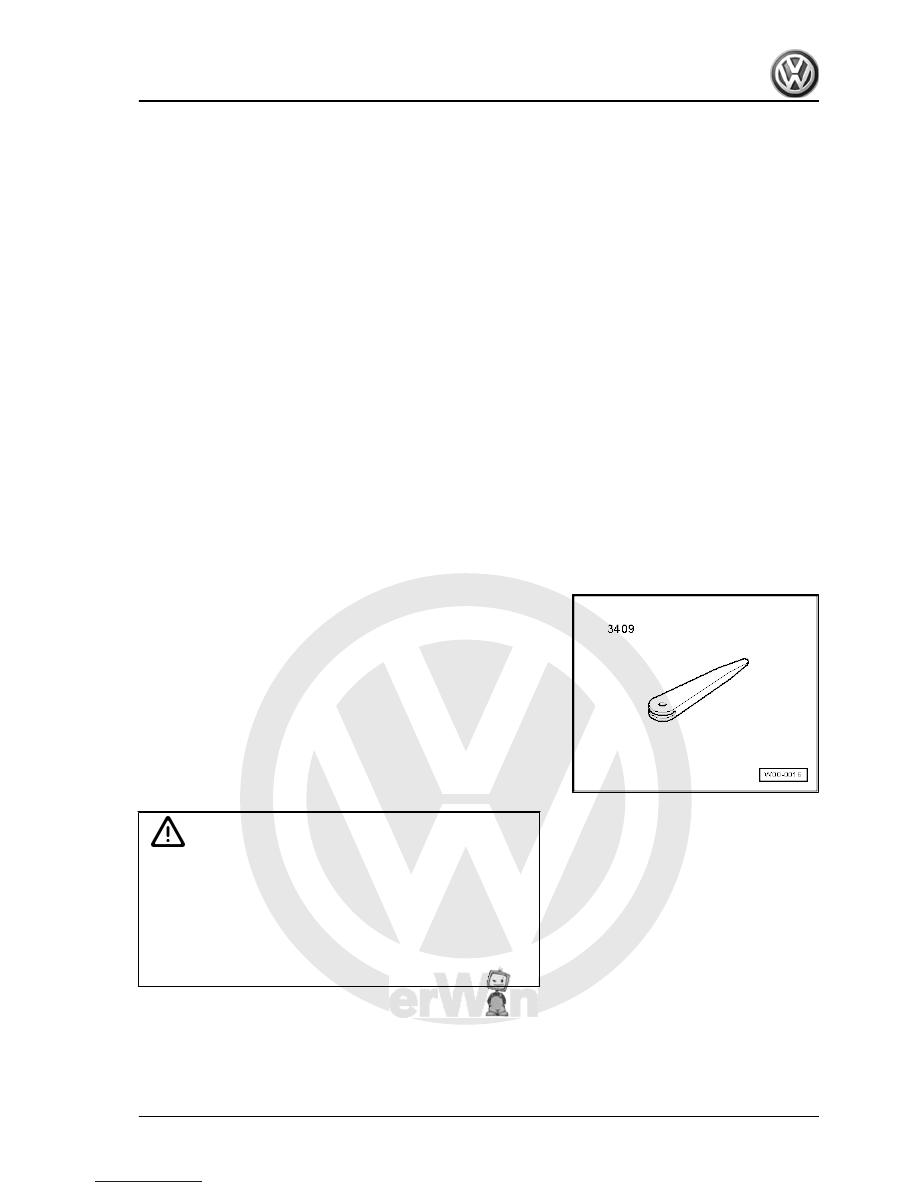

Special tools and workshop equipment required
♦ Removal wedge -VAS 3409-

Caution

♦ Switch off ignition and all electrical consumers.
♦ Remove the ignition key.
♦ When removing and installing components that are in view

(switches, covers, trim), mask off areas where tools ( re‐

moval wedge -VAS 3409- , screwdriver) are used to lever

out those components using commercially available

masking tape.

3. Lights and switches in front doors and B-pillar

395



(in area of switches) from door trim. This will damage switches!

Prise or lever installation frame from behind only, as shown by

-arrow-.

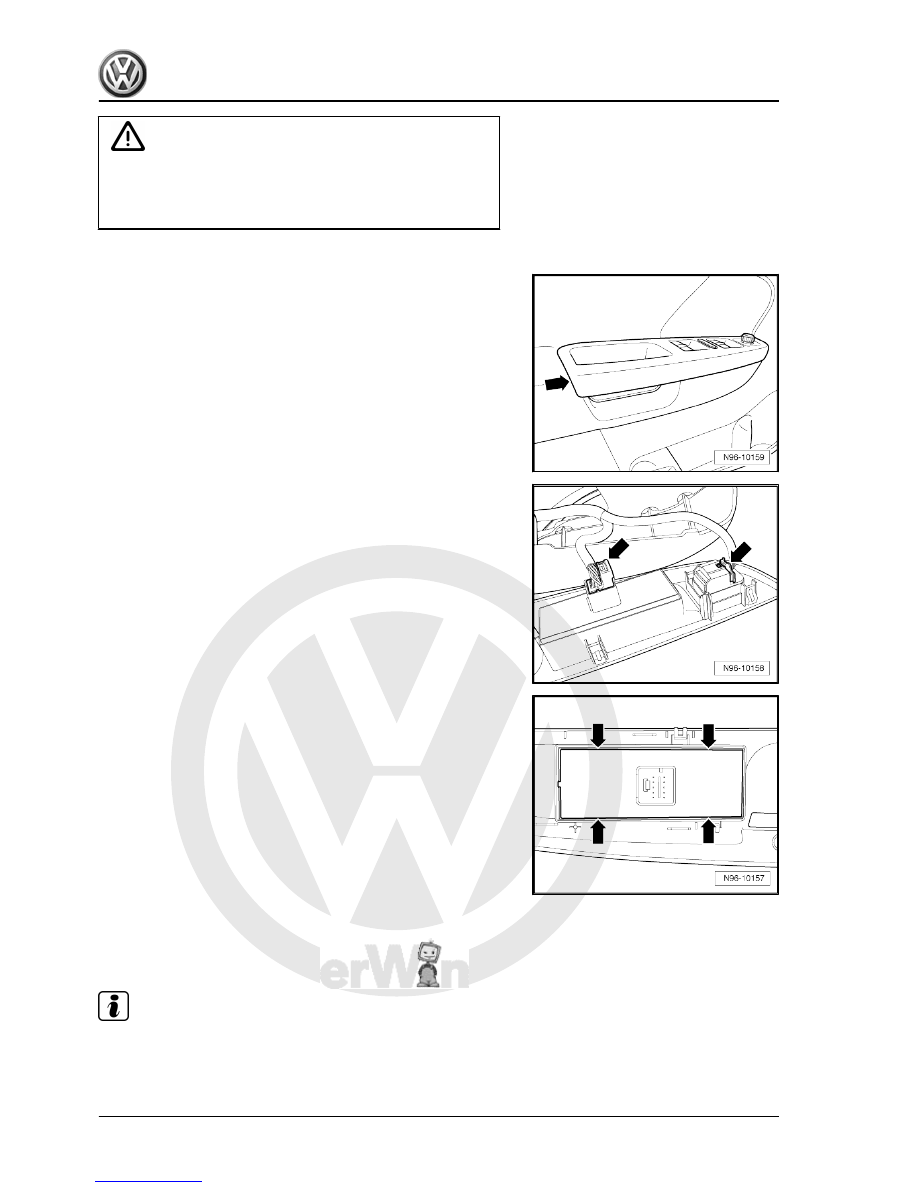

Removing
– Use removal wedge -VAS 3409- to carefully prise mounting

frame out of door trim -arrow-.

– Disconnect connectors -arrows-.

– Release locking lugs -arrows- and remove the switch module

from the installation frame.

Installing
Installation is carried out in reverse order of removal.

3.6

Removing and installing remote release

button for fuel filler flap and rear lid -

E463-

Note

The remote release button for fuel filler flap and rear lid -E463-

has an integrated button illumination bulb -L76- , which cannot be

replaced separately.

396



(switches, covers, trim), mask off areas where tools ( re‐

moval wedge -VAS 3409- , screwdriver) are used to lever

out those components using commercially available

masking tape.

Removing
– Remove door trim ⇒  General body repairs, interior; Rep. gr.

70 .

– Disconnect connector -arrow-.

– Release locking lugs -arrows- and remove remote release

button for fuel filler flap and rear lid -E463- from door trim pan‐

el.

Installing
Installation is carried out in reverse order of removal.

3.7

Removing and installing interior moni‐

toring/vehicle inclination deactivation

switch

The interior monitoring deactivation switch -E267- / deactivation

button for vehicle inclination sender -E360- are combined in one

unit and installed in trim of B-pillar at bottom.
The shape of the switch has been changed from model year 2007

onwards.
Special tools and workshop equipment required

3. Lights and switches in front doors and B-pillar

397
