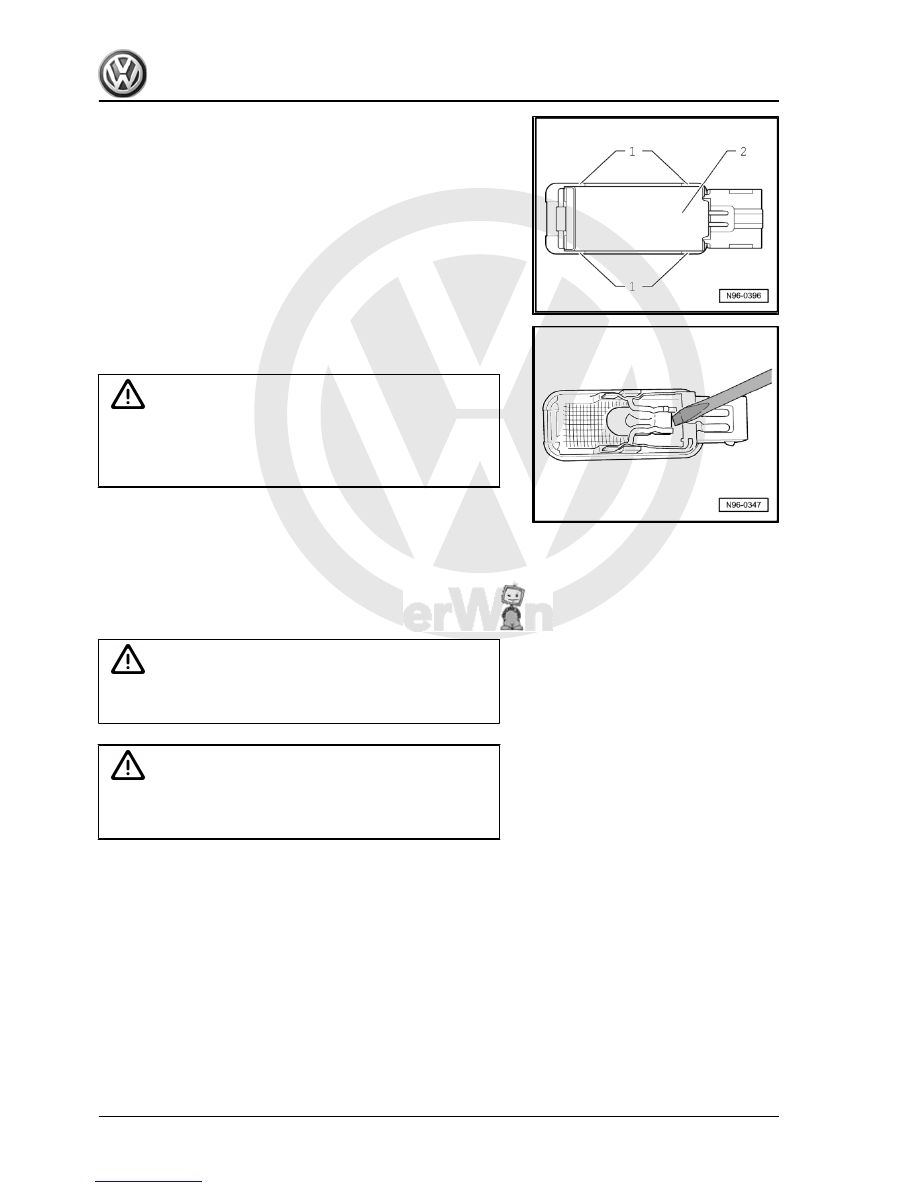

– Carefully lever bulb out of holder.
– Renew glass-base bulb (12 V/5 W).

Caution

♦ Do not touch glass envelope when fitting bulb. Fingers

leave traces of grease on the glass envelope, which evap‐

orate when the bulb is switched on and cause the glass

envelope to cloud over.

Installing
Installation is carried out in reverse order of removal.

2.8

Removing and installing key operated

switch to deactivate front passenger

side airbag -E224-

WARNING

Comply with the safety precautions when working on the airbag

⇒  General body repairs, interior; Rep. gr.  69 .

Caution

♦ Switch off ignition and all electrical consumers.
♦ Remove the ignition key.

Removing
– Remove glove compartment ⇒  General body repairs, interior;

Rep. gr.  68 .

390



side airbag deactivation key switch -E224- .

Installing
Installation is carried out in reverse order of removal.

2. Lights and switches in dash panel

391



B-pillar

3.1

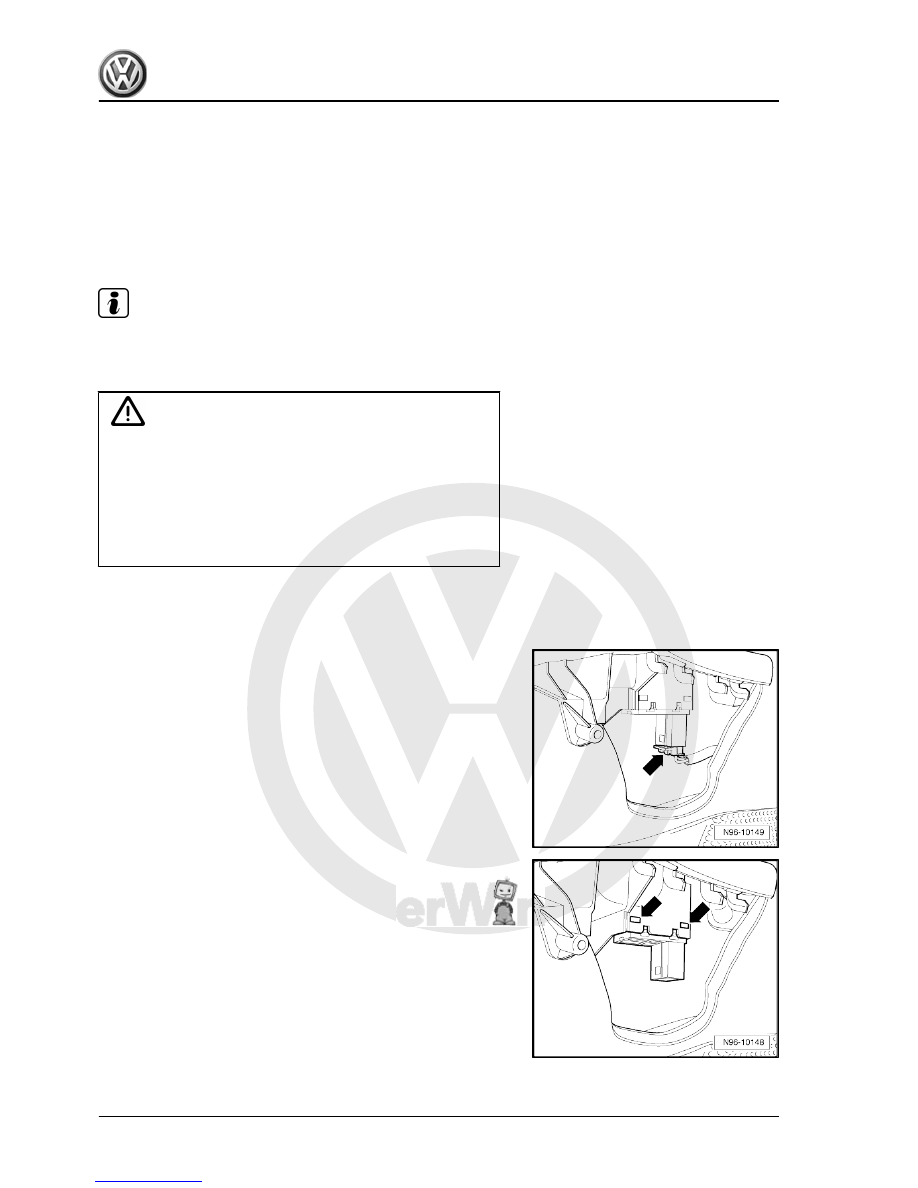

Removing and installing window regula‐

tor switch in front passenger door -

E107-

Note

The window regulator switch in front passenger door -E107- has

an integrated button illumination bulb -L76- , which cannot be re‐

placed separately.

Caution

♦ Switch off ignition and all electrical consumers.
♦ Remove the ignition key.
♦ When removing and installing components that are in view

(switches, covers, trim), mask off areas where tools ( re‐

moval wedge -VAS 3409- , screwdriver) are used to lever

out those components using commercially available

masking tape.

Removing
– Remove upper part of handle recess from door handle ⇒

General body repairs, interior; Rep. gr.  70 .

– Disconnect connector -arrow-.

– Release the four locking lugs -arrows- and remove window

regulator switch in front passenger door -E107- from installa‐

tion frame.

Installing
Installation is carried out in reverse order of removal.
– When installing, make sure you hear the four locking lugs click

into place.

392



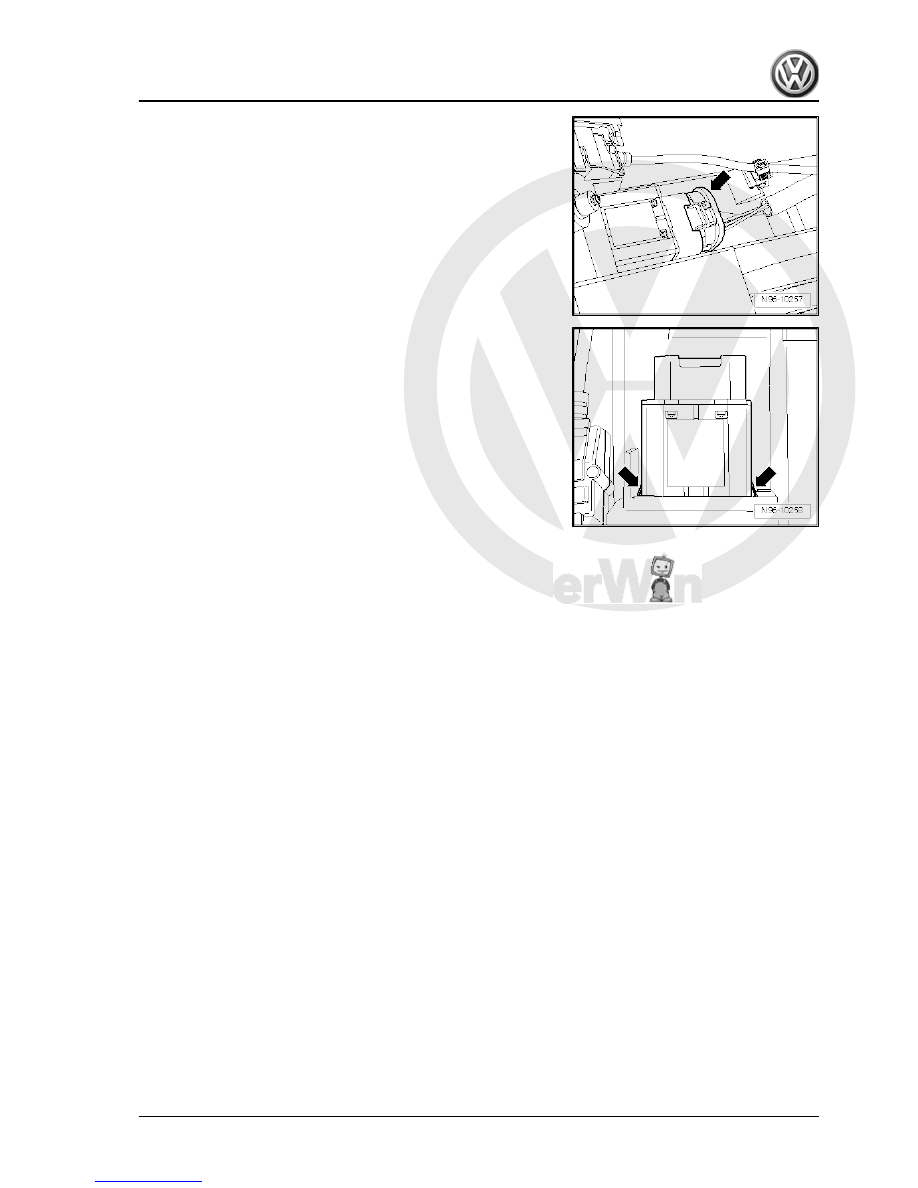

for mirror adjustment on driver side

Mirror adjustment switch module - driver side (depending on

equipment)
♦ Mirror adjustment switch -E43-
♦ Mirror adjustment changeover switch -E48-
♦ Exterior mirror heater button -E231-
♦ Fold-in mirror switch -E263-
♦ Mirror adjustment switch illumination bulb -L78-
The above mentioned components cannot be renewed individu‐

ally.
– In case of a defect, renew switch module for mirror adjustment

- driver side.

Caution

♦ Switch off ignition and all electrical consumers.
♦ Remove the ignition key.
♦ When removing and installing components that are in view

(switches, covers, trim), mask off areas where tools ( re‐

moval wedge -VAS 3409- , screwdriver) are used to lever

out those components using commercially available

masking tape.

Removing
– Remove switch module for window regulator - driver side

⇒ page 395

 .

– Unclip installation frame of switch out of trim.
– Release locking lugs -arrows- and remove the switch module

from the installation frame.

Installing
Installation is carried out in reverse order of removal.

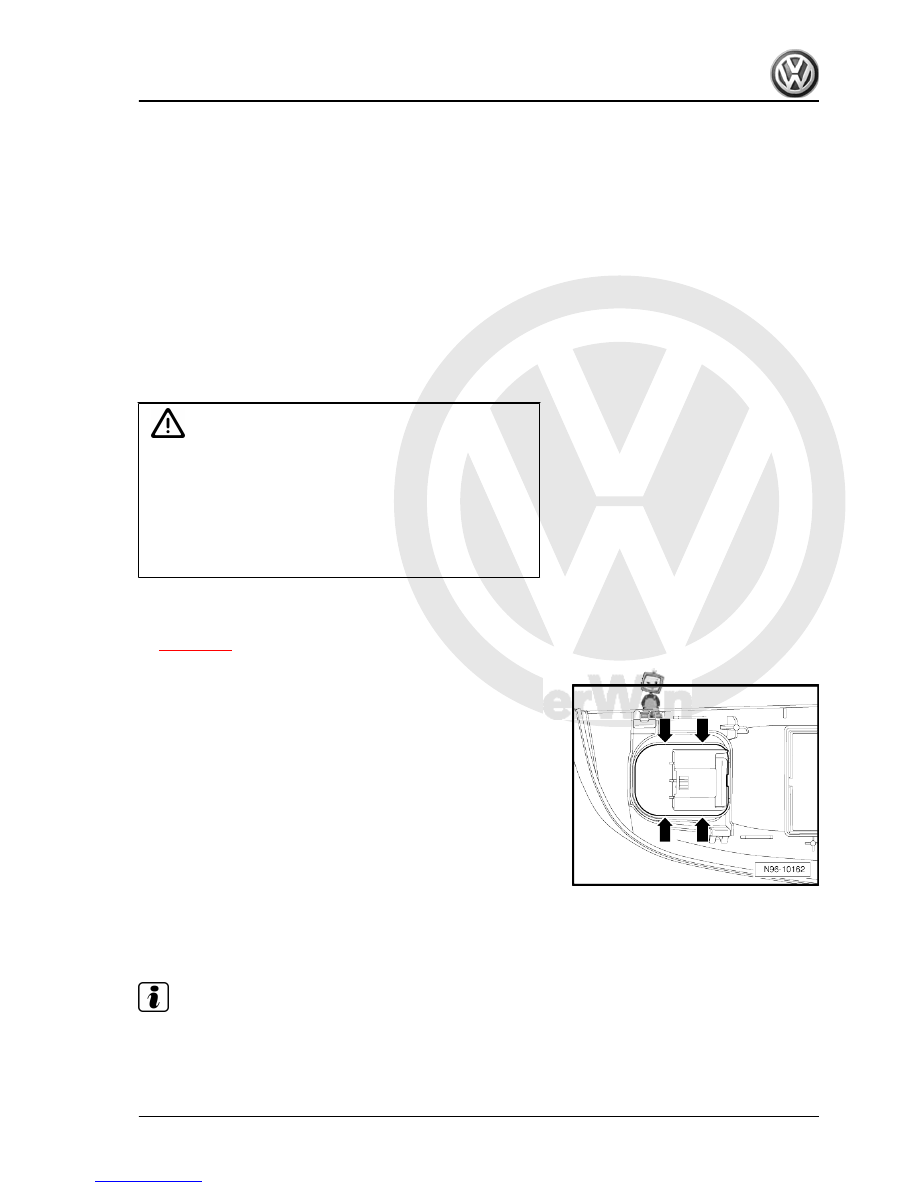

3.3

Removing and installing driver side in‐

terior locking button for central locking

system -E308-

Note

The driver side interior locking button for central locking system -

E308- has an integrated button illumination bulb -L76- , which

cannot be replaced separately.

3. Lights and switches in front doors and B-pillar

393
