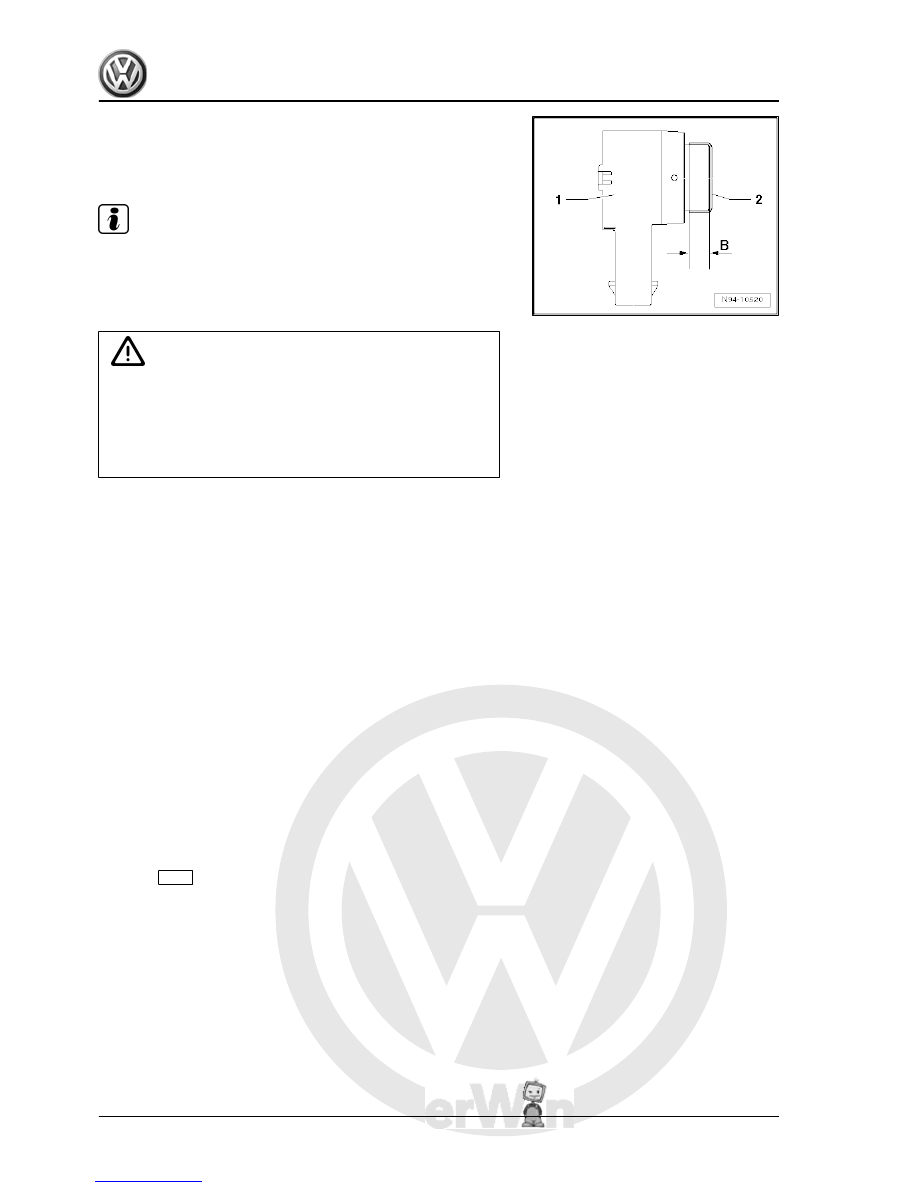

– Paint sender in area to be painted -2- in colour of bumper cov‐

er.

Note

Dimension -B- for the painted area must not exceed 3 mm (plus

maximum 2 mm).

– Fit isolation ring (black silicone ring) on sender head again

once paint has dried.

Caution

♦ Expanding the isolation ring must be avoided under all

circumstances.

♦ Function problems may occur if a damaged isolation ring

is used.

♦ Renew damaged isolation rings.

14.13

Testing parking aid senders

This function can be used to check the following components via

the parking aid control unit -J446- :
♦ Front left parking aid sender -G255-
♦ Front centre left parking aid sender -G254-
♦ Front centre right parking aid sender -G253-
♦ Front right parking aid sender -G252-
♦ Rear left parking aid sender -G203-
♦ Rear centre left parking aid sender -G204-
♦ Rear centre right parking aid sender -G205-
♦ Rear right parking aid sender -G206-
Procedure
– Connect vehicle diagnosis, testing and information system -

VAS 5051B- .

– In vehicle diagnosis, testing and information system -VAS

5051B- , select „Guided fault finding“.

– Using

GoTo

 button, select „Functions/component“ and the fol‐

lowing menu options in succession:

♦ Body
♦ General body repairs
♦ Parking aid
♦ Electrical components
♦ Parking aid senders

350



warning buzzer -H15- - saloon

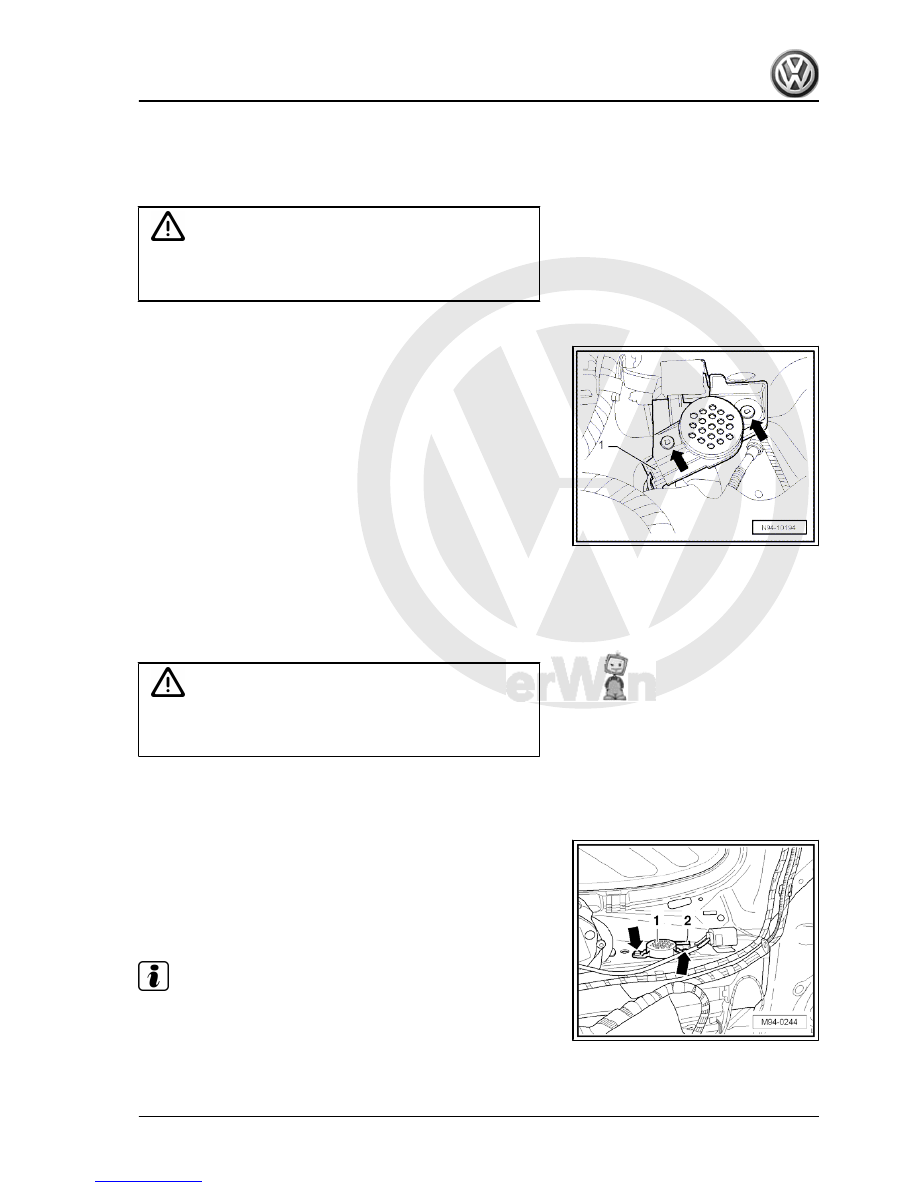

Rear parking aid warning buzzer -H15- is attached to panel of rear

shelf. It is accessible from the luggage compartment.

Caution

♦ Switch off ignition and all electrical consumers.
♦ Remove the ignition key.

Removing
– Disconnect connector -1-.
– Loosen expansion rivet -arrows- and remove rear parking aid

warning buzzer -H15- from bracket.

Installing
Installation is carried out in reverse order of removal.

14.15

Removing and installing rear parking aid

warning buzzer -H15- - estate

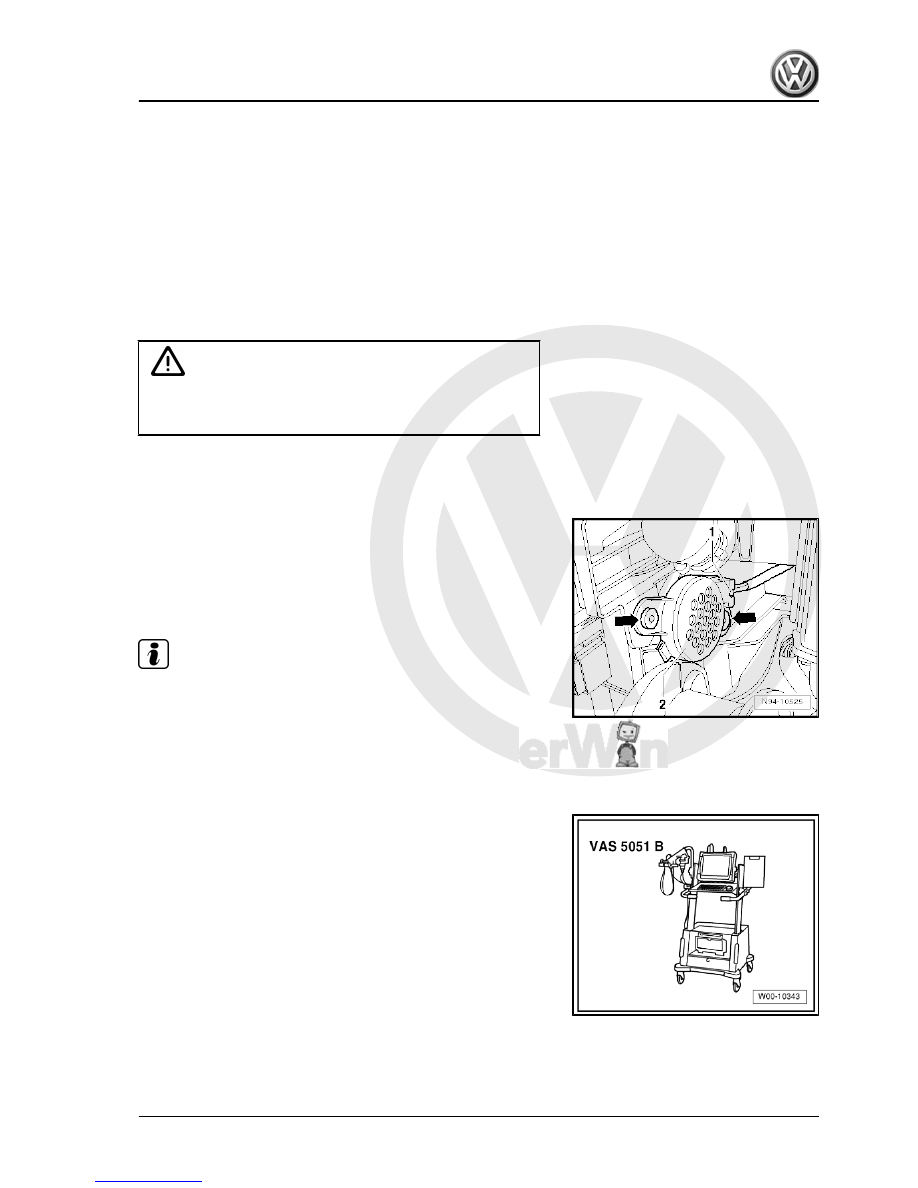

The rear parking aid warning buzzer -H15- is located behind the

rear right luggage compartment side panel trim near the seat belt

mounting.

Caution

♦ Switch off ignition and all electrical consumers.
♦ Remove the ignition key.

Removing
– Remove right luggage compartment side trim panel ⇒  General

body repairs, interior; Rep. gr.  70 .

– Disconnect connector -2-.
– Remove spreader rivet -arrows- and remove rear parking aid

warning buzzer -H15- -1-.

Installing
Installation is carried out in reverse order of removal.

Note

Coding, basic setting and adaptation are not necessary if the rear

parking aid warning buzzer -H15- is renewed.

14. Parking aid

351



zer -H15- volume

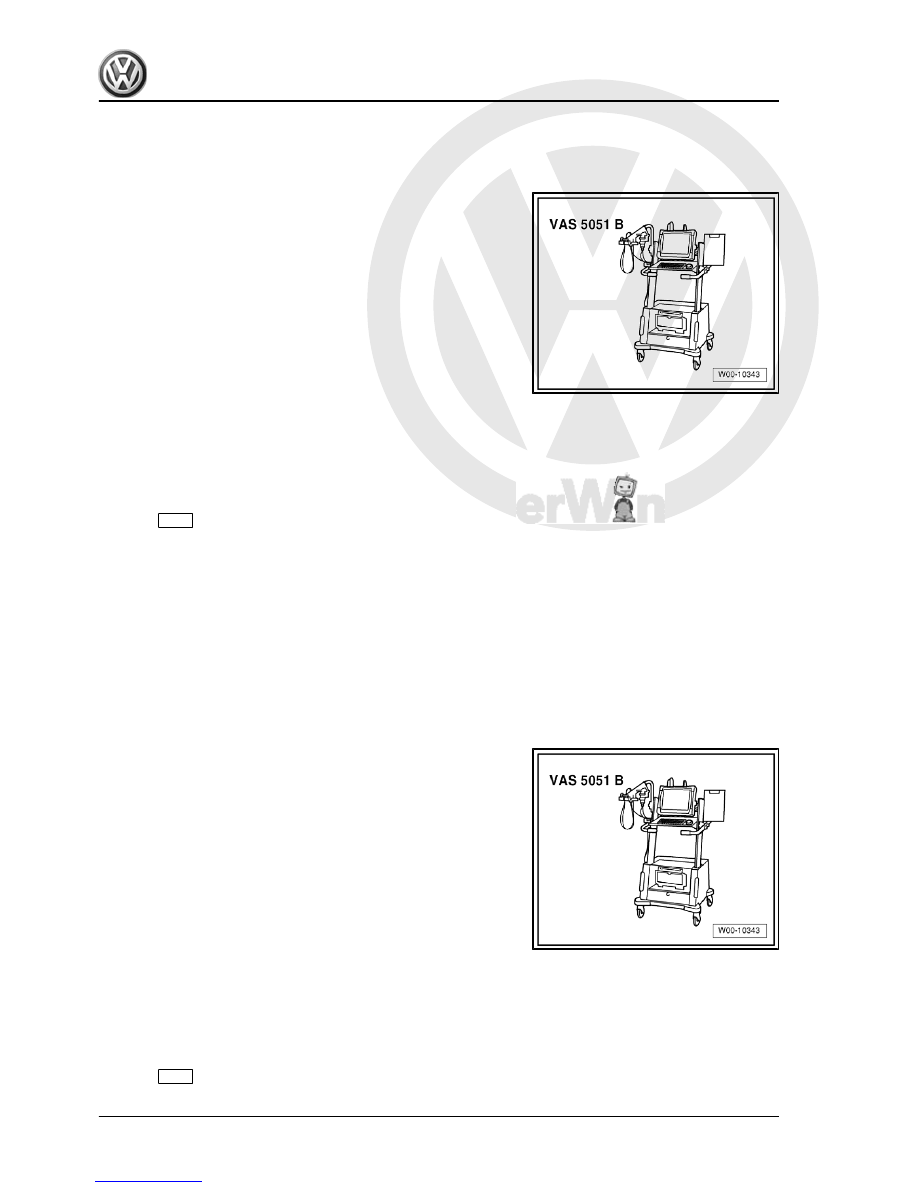

Special tools and workshop equipment required
♦ Vehicle diagnosis, testing and information system -VAS

5051B-

Procedure
– Connect vehicle diagnosis, testing and information system -

VAS 5051B- .

– In vehicle diagnosis, testing and information system -VAS

5051B- , select „Guided fault finding“.

– Using

GoTo

 button, select „Functions/component“ and the fol‐

lowing menu options in succession:

♦ Body
♦ General body repairs
♦ Parking aid
♦ Parking aid functions
♦ Adjusting volume of rear parking aid warning buzzer

14.17

Adjusting rear parking aid warning buz‐

zer pitch -H15-

Special tools and workshop equipment required
♦ Vehicle diagnosis, testing and information system -VAS

5051B-

Procedure
– Connect vehicle diagnosis, testing and information system -

VAS 5051B- .

– In vehicle diagnosis, testing and information system -VAS

5051B- , select „Guided fault finding“.

– Using

GoTo

 button, select „Functions/component“ and the fol‐

lowing menu options in succession:

352



Removing and installing front parking

aid warning buzzer -H22-

The front parking aid warning buzzer -H22- is located under the

dash panel in the driver's footwell and is secured on the console

for relay carrier.

Caution

♦ Switch off ignition and all electrical consumers.
♦ Remove the ignition key.

Removing
– Remove trim in driver's footwell ⇒  General body repairs, in‐

terior; Rep. gr.  68 .

– Release both spreader rivets -arrows-.
– Detach connector -1- and remove front parking aid warning

buzzer -H22- -2- from vehicle.

Installing
Installation is carried out in reverse order of removal.

Note

Coding, basic setting and adaption are not necessary if the front

parking aid warning buzzer -H22- is renewed.

14.19

Adjusting front parking aid warning buz‐

zer -H22- volume

Special tools and workshop equipment required
♦ Vehicle diagnosis, testing and information system -VAS

5051B-

This function can be used to adjust the volume of the front parking

aid warning buzzer -H22- .

14. Parking aid

353
