Procedure

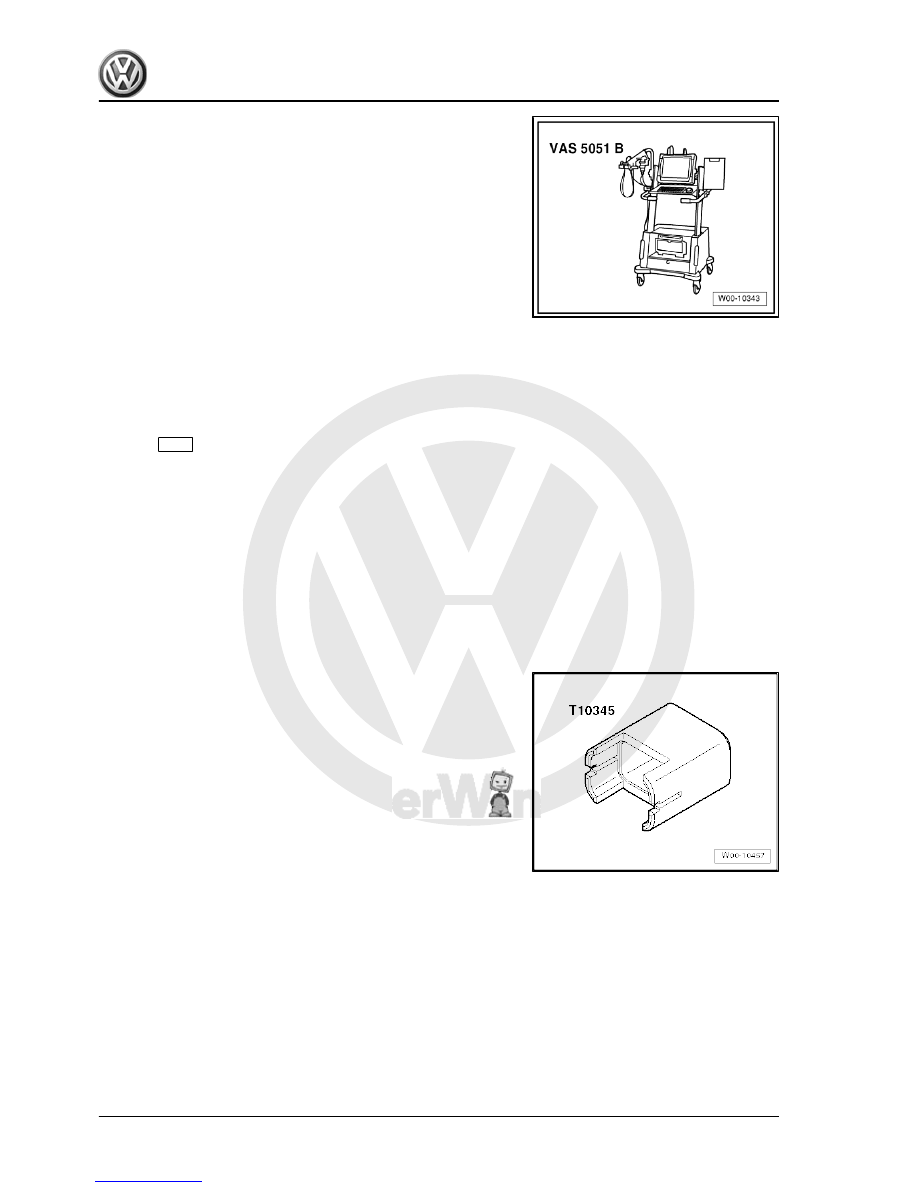

– Connect vehicle diagnosis, testing and information system -

VAS 5051B- .

– In vehicle diagnosis, testing and information system -VAS

5051B- , select „Guided fault finding“.

– Using

GoTo

 button, select „Functions/component“ and the fol‐

lowing menu options in succession:

♦ Body
♦ General body repairs
♦ Parking aid
♦ Parking aid functions
♦ Adjust optical display

14.9

Removing and installing rear parking aid

senders

Special tools and workshop equipment required
♦ Release tool -T10345-

Senders in rear bumper cover:
♦ Rear left centre parking aid sender -G204-
♦ Parking aid sender, rear left, inner -G334-
♦ Parking aid sender, rear right, inner -G335-
♦ Rear right centre parking aid sender -G205-

342



It is possible that the first software version of the parking aid

control unit -J446- may display various sender designations

due to the various levels of software. In this case allocation is

as follows:

Rear centre left parking aid sender -G204- is rear left parking

aid sender -G203-

Rear left inner parking aid sender -G334- is rear centre left

parking aid sender -G204-

Rear right inner parking aid sender -G335- is rear centre right

parking aid sender -G205-

Rear centre right parking aid sender -G205- is rear right park‐

ing aid sender -G206-

The removal and installation procedure is the same for all senders

and is therefore described here for just one sender.

Caution

♦ Switch off ignition and all electrical consumers.
♦ Remove the ignition key.

Removing
– Remove rear bumper cover ⇒  General body repairs, exterior;

Rep. gr.  63 .

Caution

♦ The order for removing the senders must be adhered to

under all circumstances.

♦ The sender may otherwise be damaged. Hairline cracks

may occur if too much force is applied to the sender, caus‐

ing the sender to fail.

♦ First remove sender from bracket and then disconnect

sender connector.

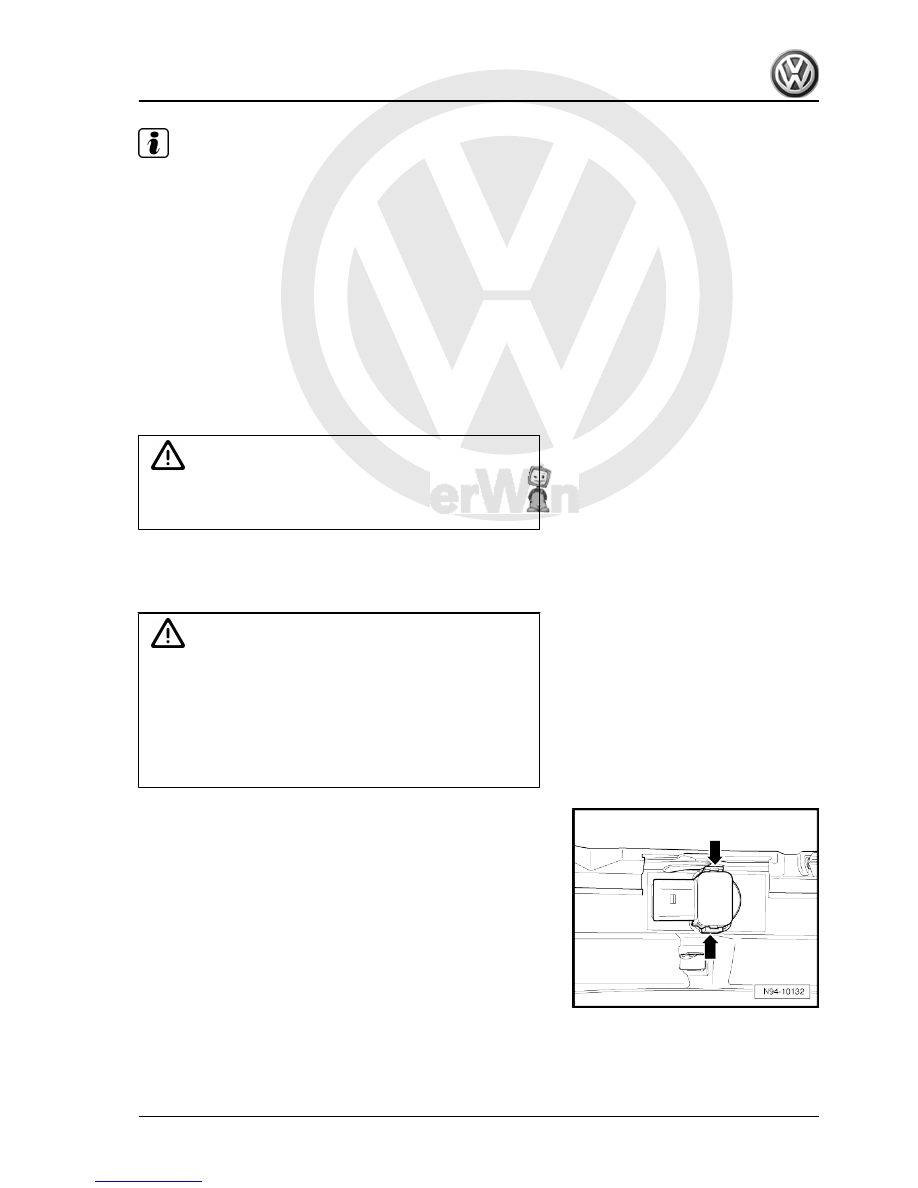

– Release locking lugs -arrows- using release tool -T10345- and

pull sender with connector still joined out of bumper cover.

14. Parking aid

343



Caution

♦ Expanding the isolation ring must be avoided under all

circumstances.

♦ Function problems may occur if a damaged isolation ring

is used.

♦ Renew damaged isolation rings.

Note

Senders are available in different forms and must be assigned

to respective fitting location in bumper cover.

When installing senders, note position of electrical connec‐

tions of senders.

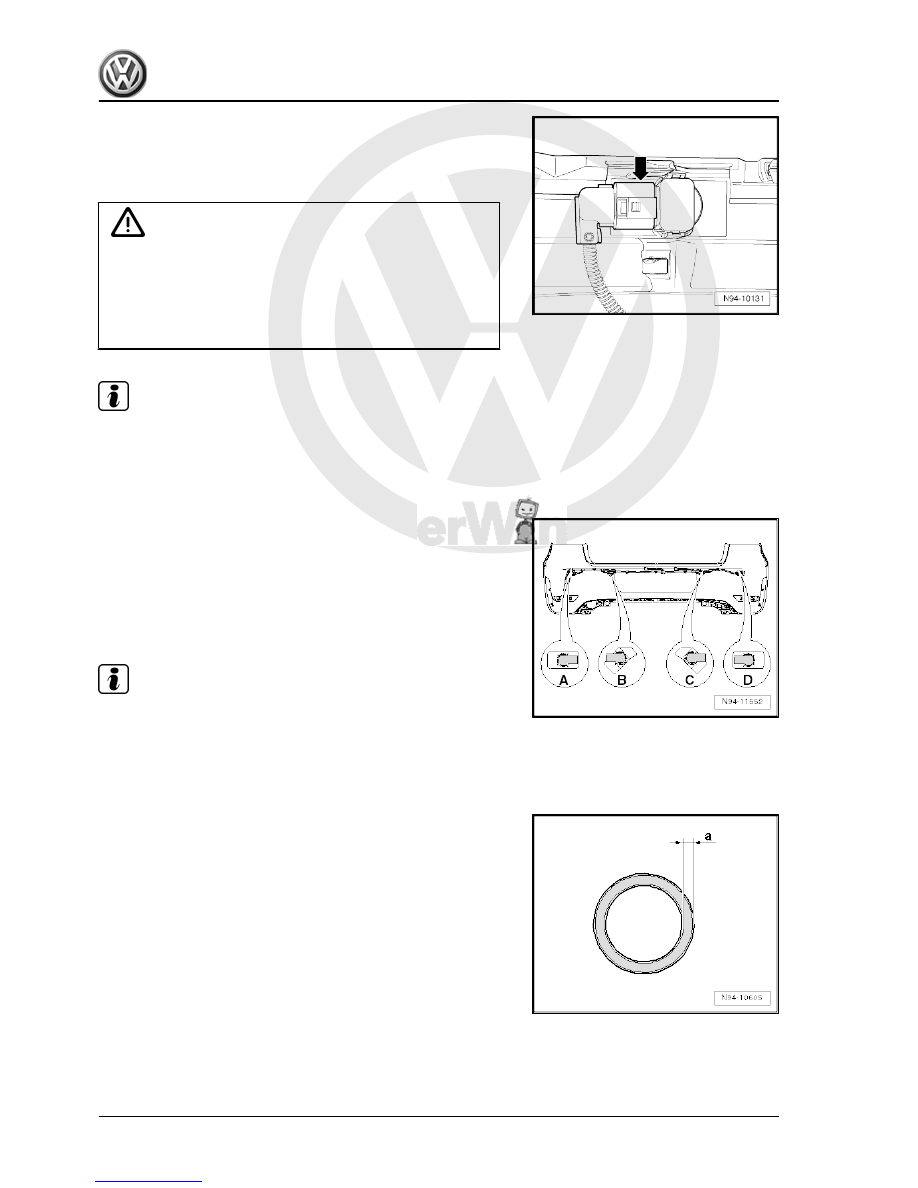

Assignment of parking aid senders on inside of rear bumper cov‐

er:
A - RL - right outer
B - RRC - right centre
C - RLC - left centre
D - RL - left outer

Note

When mounting the sender, ensure that the isolation ring

(black silicone ring) is correctly mounted on the sender head

and does not ride or roll up on insertion into the sender holder.

During installation, both locking lugs of sender must engage

audibly into sender holder.

– After installing the sender, check that the sender is correctly

seated in the bracket. Visible on the outer side of the bumper,

dimension -a- of the ring gap between the sender head and

the sender holder must be even all around.

344



aid senders

Note

The following illustrations show the removal and installation of

the front left parking aid sender.

The removal and installation of the other parking aid senders

are carried out in the same way.

Both exterior front left parking aid sender -G255- and front right

parking aid sender -G252- can also be removed through in‐

stallation aperture of fog light. Depending on equipment, re‐

move either front cover in bumper cover or fog light

⇒ page 297

 .

Caution

♦ Switch off ignition and all electrical consumers.
♦ Remove the ignition key.

Removing
– Remove front bumper cover ⇒  General body repairs, exterior;

Rep. gr.  63 .

Caution

♦ The order for removing the senders must be adhered to

under all circumstances.

♦ The sender may otherwise be damaged. Hairline cracks

may occur if too much force is applied to the sender, caus‐

ing the sender to fail.

♦ First remove sender from bracket and then disconnect

sender connector.

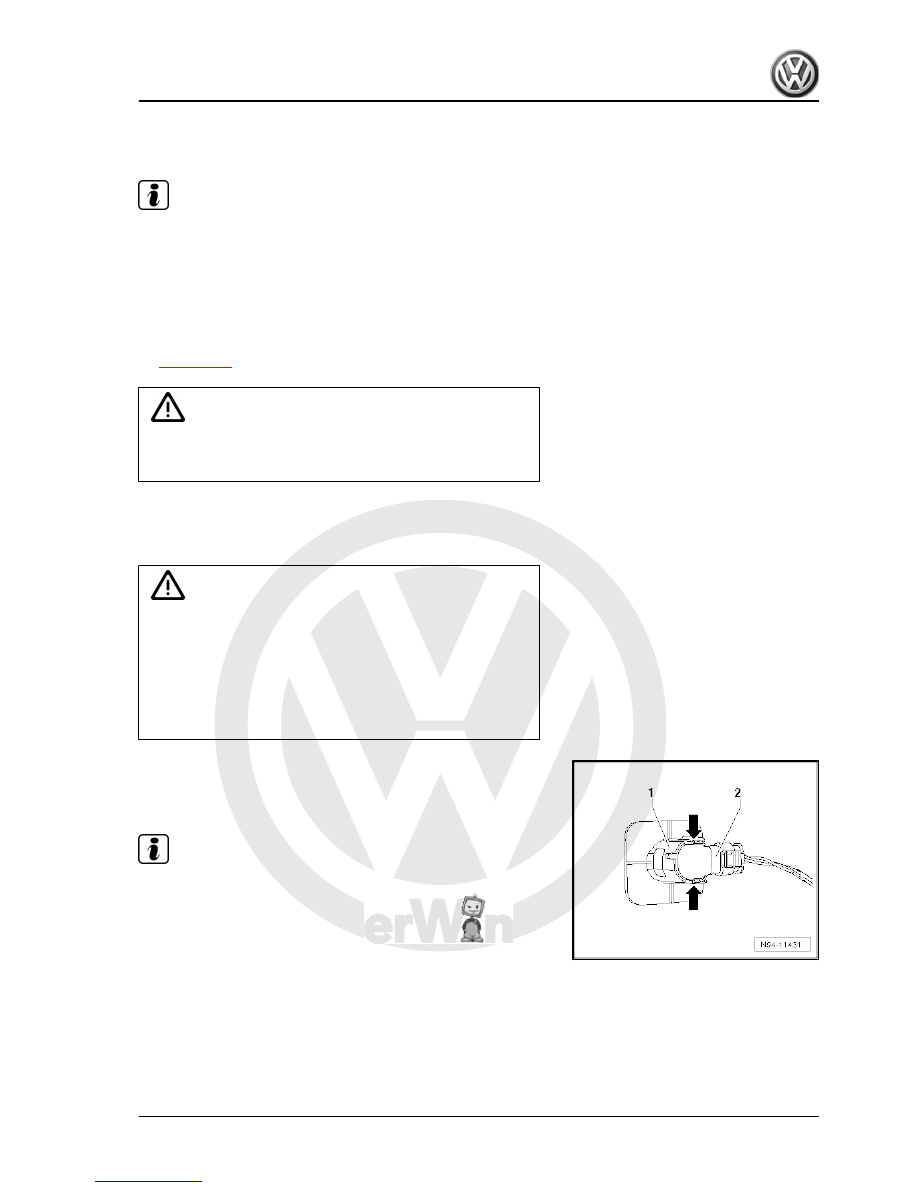

– Push fasteners -arrows- on sender holder -1- outwards.
– Pull sender -2- with connected wiring backwards out of sender

holder.

Note

When removing the sender, ensure the isolation ring (black

silicone ring) on the sender head does not remain in the sender

or become lost.

Expanding the isolation ring must be avoided under all cir‐

cumstances.

14. Parking aid

345
