Volkswagen Golf Variant / Jetta. Manual - part 840





umn switch base

Note

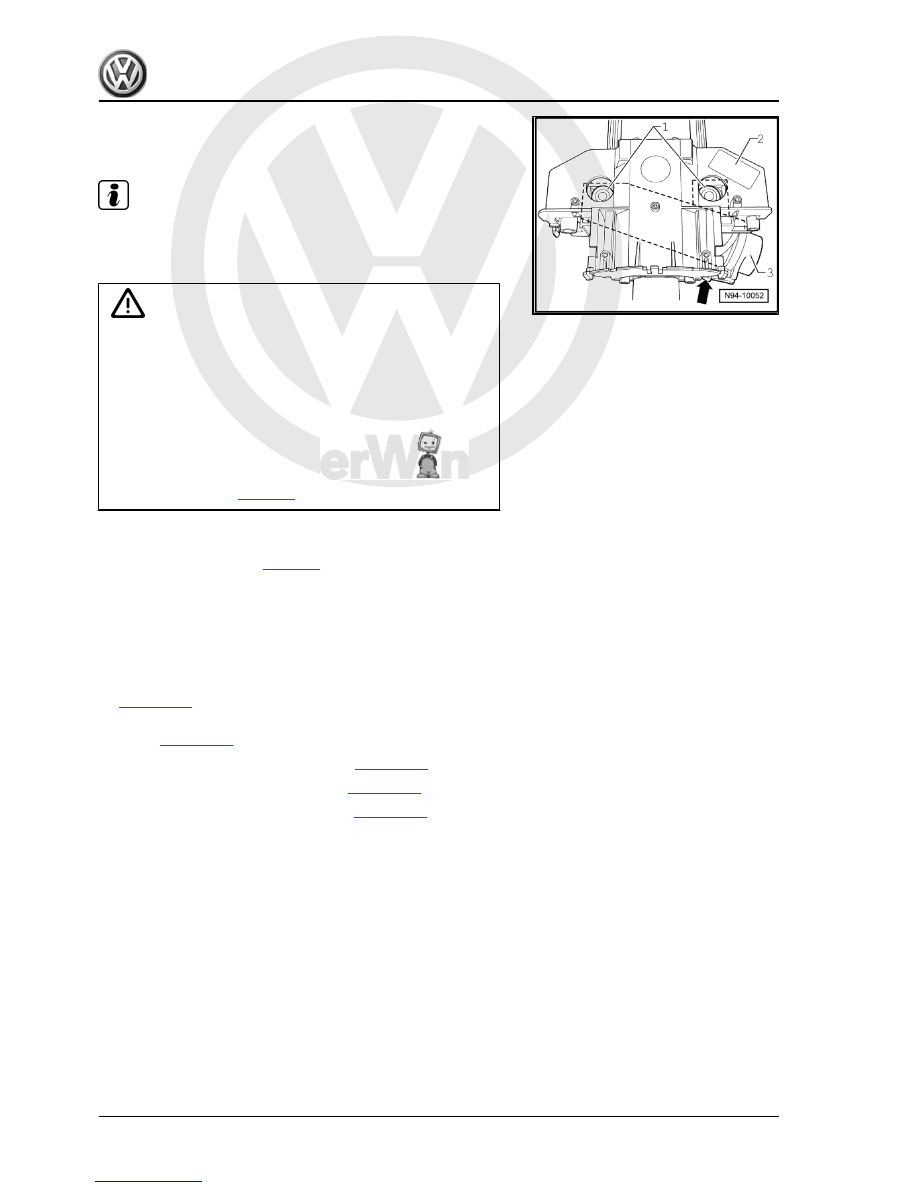

To remove the steering column switch base -2-, the shear bolts

of the steering lock housing must be drilled out. To reinstall, new

shear-head bolts -1- are required ⇒  Parts catalogue (ETKA) .

Caution

♦ Ensure that the components mounted on the carrier have

been removed before drilling out the shear-head bolts.

♦ The drilling operation can cause swarf to penetrate the

adjacent components resulting in damage and/or mal‐

function!

♦ Keep to the specified sequence when removing compo‐

nents.

♦ When battery -A- is disconnected and reconnected, the

procedure described in the workshop manual must be

strictly observed

⇒ page 4

 .

Removing
– Disconnect battery -A-

⇒ page 4

 .

gr.  69 .

– Remove steering column trim ⇒  General body repairs, interior;

Rep. gr.  68 .

– Remove steering column electronics control unit -J527-

⇒ page 321

 .

– Remove airbag coil connector and return ring with slip ring -

F138-

⇒ page 322

 .

– Remove steering angle sender -G85-

⇒ page 323

 .

– Remove turn signal light switch -E2-

⇒ page 324

 .

– Remove windscreen wiper switch -E-

⇒ page 324

 .

326



Note

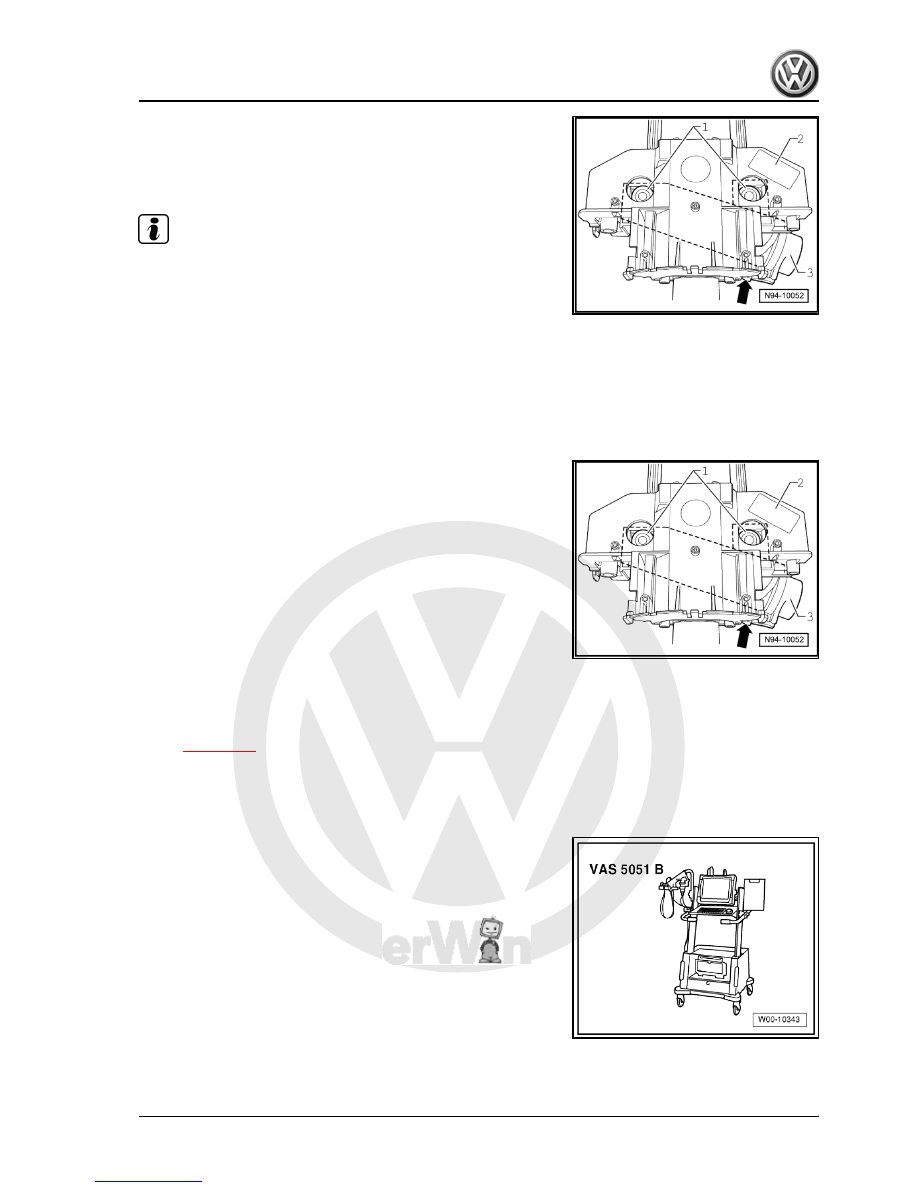

Bolts M8 -1-, core diameter 6.8 mm

– Pull steering lock housing and steering column switch base

-2- backwards off steering column.

– Take steering lock housing off steering column switch base.
Installing
Carry out installation in the reverse sequence, noting the follow‐

ing:
– Place the steering lock housing into the steering column switch

base.

– Push steering column switch base -2- as far as possible onto

steering column.

– Fit connector -arrow- on reader coil -3-.
– Secure steering lock housing using new shear bolts -1- to

steering column.

– Tighten shear bolts -1- until bolt heads shear off.

12.3

Steering column electronics control unit

-J527-

Removing and installing steering column electronics control unit

-J527-

⇒ page 321

 .

12.3.1

Coding steering column electronics con‐

trol unit -J527-

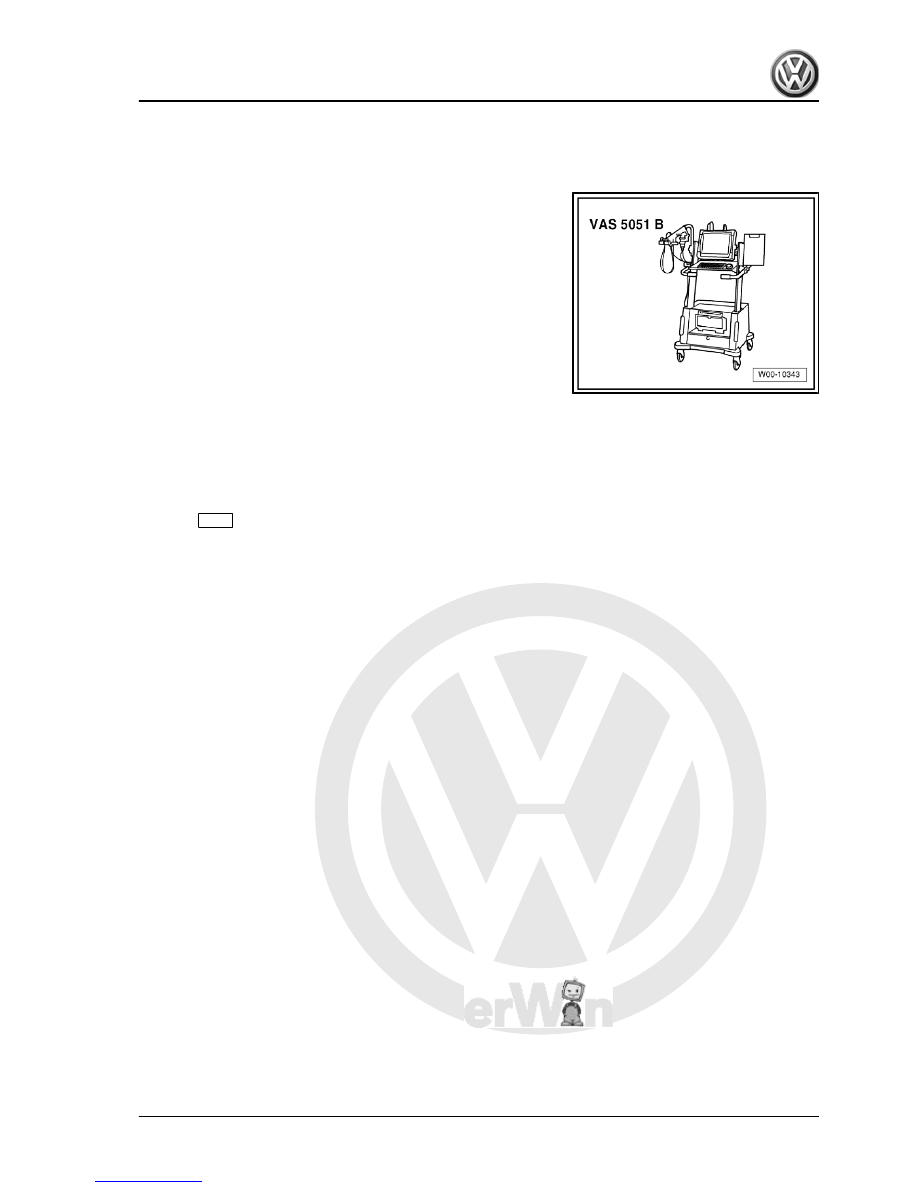

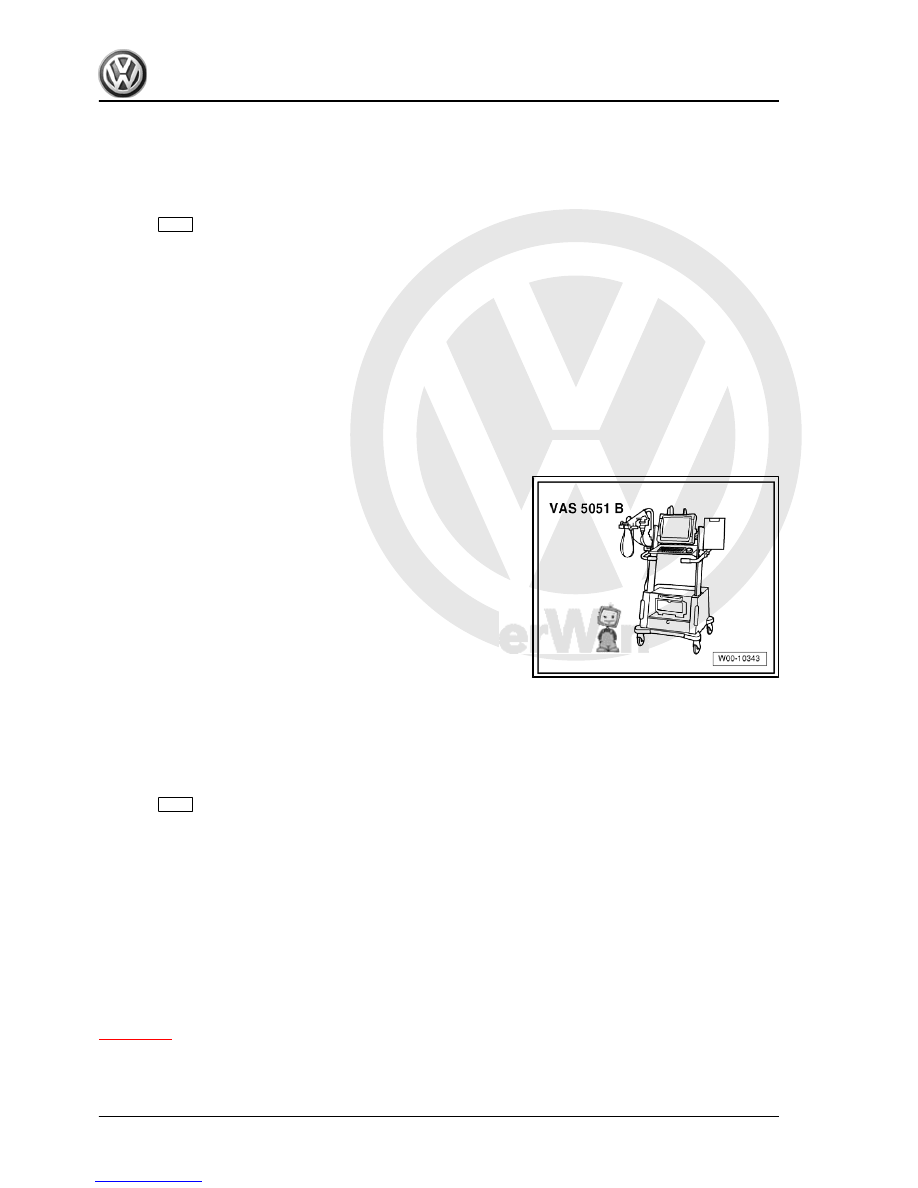

Special tools and workshop equipment required
♦ Vehicle diagnosis, testing and information system -VAS

5051B-

12. Steering column switch

327



– In vehicle diagnosis, testing and information system -VAS

5051B- , select „Guided fault finding“.

– Using

GoTo

 button, select „Functions/component“ and the fol‐

lowing menu options in succession:

♦ Body
♦ Electrical system
♦ 01 - On Board Diagnosis capable systems
♦ Steering wheel electronics
♦ Steering wheel electronics functions
♦ Coding steering wheel electronics control unit

12.3.2

Final control diagnosis steering column

electronics control unit -J527-

Special tools and workshop equipment required
♦ Vehicle diagnosis, testing and information system -VAS

5051B-

Procedure
– Connect vehicle diagnosis, testing and information system -

VAS 5051B- .

– In vehicle diagnosis, testing and information system -VAS

5051B- , select „Guided fault finding“.

– Using

GoTo

 button, select „Functions/component“ and the fol‐

lowing menu options in succession:

♦ Body
♦ Electrical system
♦ 01 - On Board Diagnosis capable systems
♦ Steering wheel electronics
♦ Steering wheel electronics functions
♦ Steering wheel electronics final control diagnosis

12.4

Steering angle sender -G85-

Removing and installing steering angle sender -G85-

⇒ page 323

 .

328



G85-

Special tools and workshop equipment required
♦ Vehicle diagnosis, testing and information system -VAS

5051B-

Procedure
– Connect vehicle diagnosis, testing and information system -

VAS 5051B- .

– In vehicle diagnosis, testing and information system -VAS

5051B- , select „Guided fault finding“.

– Using

GoTo

 button, select „Functions/component“ and the fol‐

lowing menu options in succession:

♦ Running gear
♦ Brake system
♦ 01 - On Board Diagnosis capable systems Mark 60 / Mark 70
♦ Anti-lock brake system ABS/EDL/TCS/ESP Mark 60
♦ Functions
♦ Basic setting of steering angle sender -G85-

12. Steering column switch

329
