and cornering lights (from MY2010)

4.1

General description

Note

Before working on headlight with gas discharge lights and cor‐

nering lights, always switch off the headlights and remove the

ignition key.

When dealing with complaints, it is absolutely essential that

the function and operation of the lighting system are first un‐

derstood.

Additional information:

⇒  Operating instructions
⇒ Self-study programme  No.  335 ; The Cornering Light System
⇒ Current flow diagrams, Electrical fault finding and Fitting loca‐

tions
Observe safety notes for gas discharge bulbs

⇒ page 258

 .

General description
The headlights with gas discharge bulbs and a cornering light

have a „bi-xenon“ feature.
With conventional xenon headlights, the gas discharge bulbs only

generate the dipped beam. The „bi-xenon“ features makes it pos‐

sible to generate both the dipped beam and the main beam with

„one“ gas discharge bulb. To achieve this, an electromechanical

adjuster ( left headlight screen adjustment solenoid -N395- / right

headlight screen adjustment solenoid -N396- ) uncovers the

screened area of the dipped beam on actuation of the main beam

function, thus producing main beam light distribution.
This means that with „bi-xenon“ headlights the main beam is al‐

ways automatically adjusted together with the dipped beam.
The headlights with gas discharge bulbs and cornering lights do

not have an „additional main beam“.
The cornering light has the following features:
♦ Swivelling main and dipped beams (dynamic cornering lights):

at vehicle speeds in excess of 10 km/h and steering turned.

♦ Cornering light bulb (static cornering light): when turning into

tight bends (bend radius smaller than 500 m) or when turning

a corner at vehicle speeds of less than 50 km/h

Fault detection and fault display
Automatic headlight range control, cornering lights and onboard

supply control unit are equipped with self-diagnosis.
For fault finding, use vehicle diagnosis, testing and information

system -VAS 5051B- in „Guided fault finding“ mode.

278



insert if the headlight range control or the variable front lighting

has a fault.

4.2

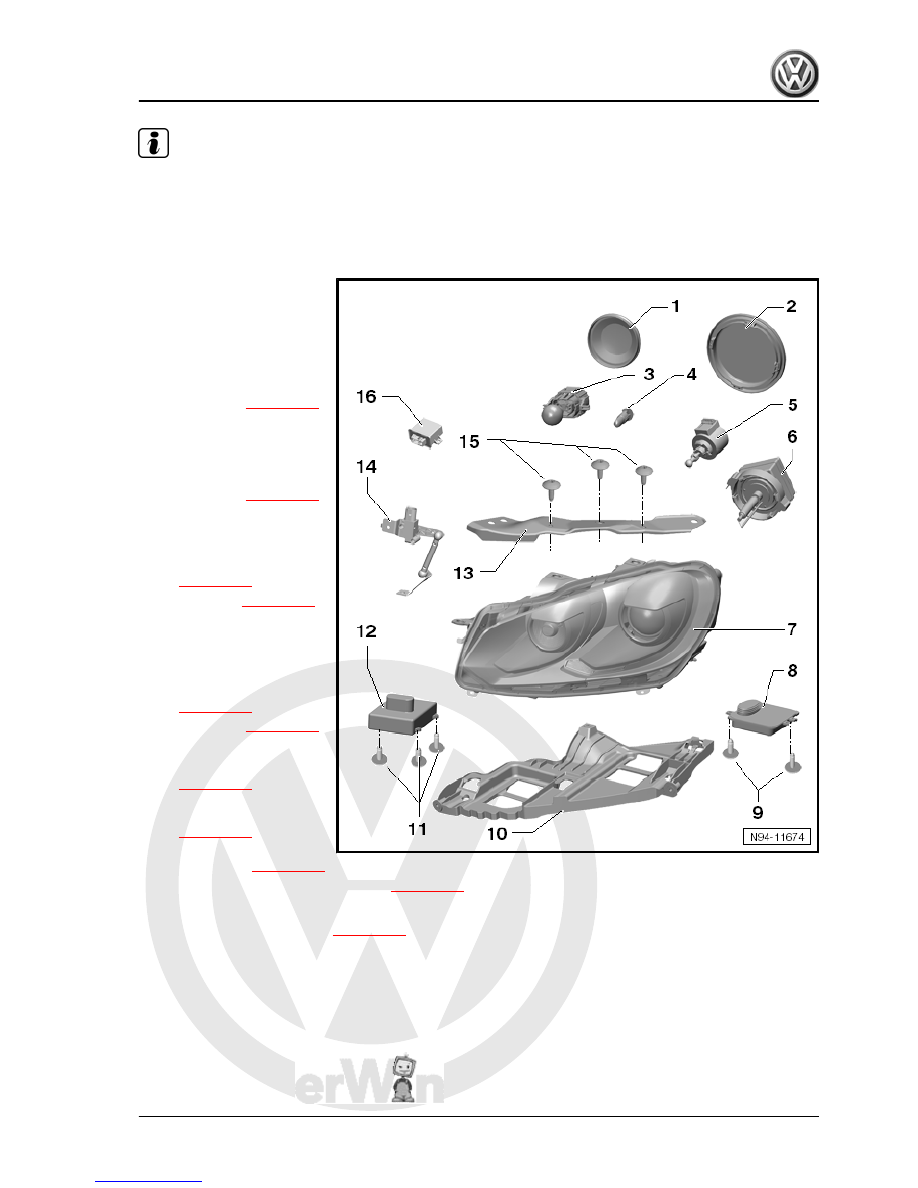

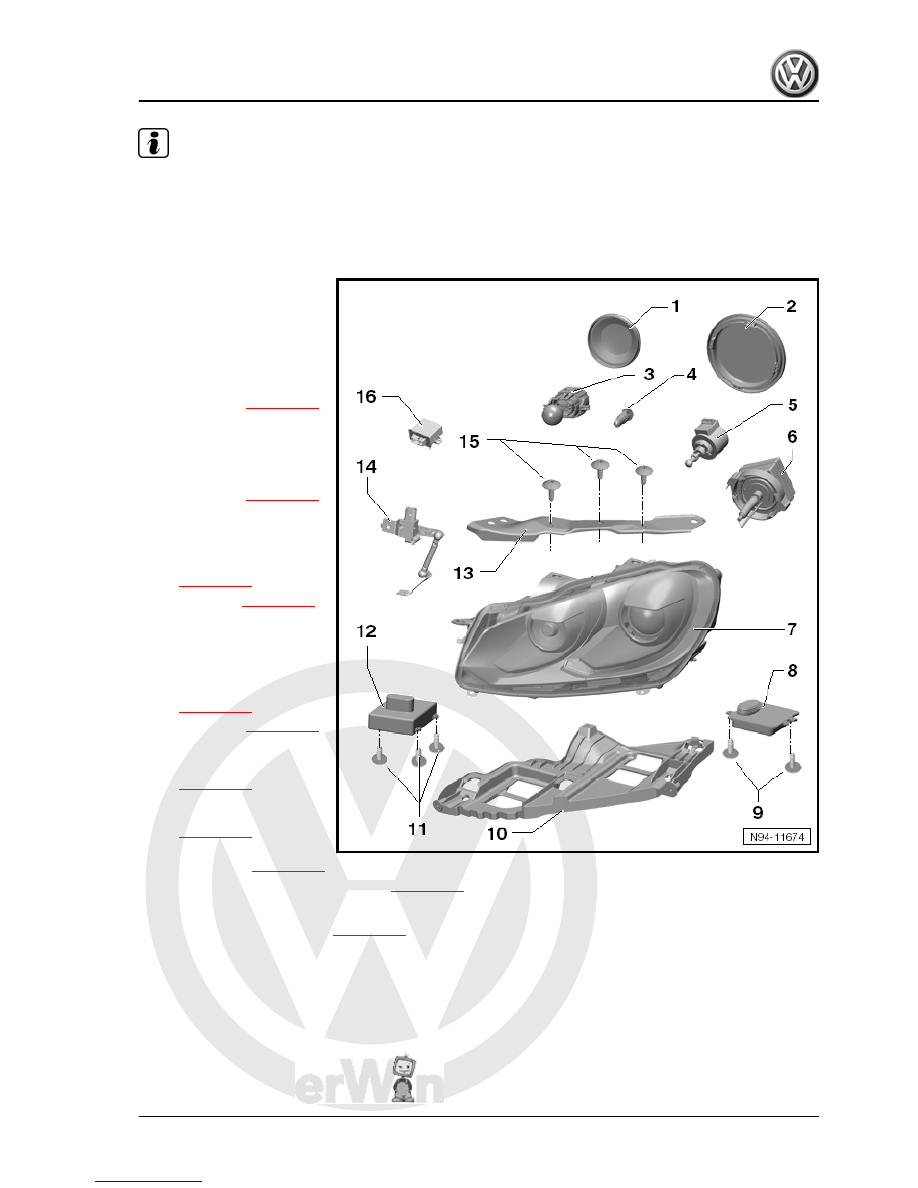

Assembly overview

1 - Cover cap
2 - Cover cap
3 - Front left turn signal bulb -

M5- / front right turn signal bulb

-M7-

❑ Bulb: PSY 12 V/24 W
❑ Renewing

⇒ page 284

4 - Left side light bulb -M1- /

right side light bulb -M3-

❑ Bulb: wedge-base bulb

12 V/5 W

❑ Renewing

⇒ page 286

5 - Left headlight range control

motor -V48- / right headlight

range control motor -V49-

❑ Removing and installing

⇒ page 292

❑ Checking

⇒ page 292

6 - Left gas discharge (xenon)

bulb -L13- / right gas discharge

(xenon) bulb -L14-

❑ Bulb: D1S 12 V/35 W
❑ Notes on safety

⇒ page 258

❑ Renewing

⇒ page 282

7 - Headlight

❑ Removing and installing

⇒ page 280

❑ Adjusting headlight in‐

stallation position

⇒ page 282

❑ Repairing headlight se‐

curing tabs

⇒ page 296

❑ Converting for driving on left/right

⇒ page 294

8 - Left headlight starter for gas discharge bulb -J426- / right headlight starter for gas discharge bulb -J427-

❑ Removing and installing

⇒ page 287

9 - Bolt

❑ 1.4 Nm

10 - Guide
11 - Bolt

❑ 1.4 Nm

4. Headlights with gas discharge bulbs and cornering lights (from MY2010)

279



⇒ page 294

15 - Bolts

❑ 5 Nm

16 - Headlight range control unit -J431-

❑ 1.5 Nm
❑ Removing and installing

⇒ page 290

❑ Coding

⇒ page 291

4.3

Removing and installing headlight

Note

You do not have to disconnect the earth wire of the battery -

A- .

Illustrations show removal and installation of the left headlight.

Removal and installation of the right headlight are carried out

in the same way.

If a headlight is removed, it should always be adjusted follow‐

ing installation ⇒ Maintenance ; Booklet  20.1 ; Description of

work .

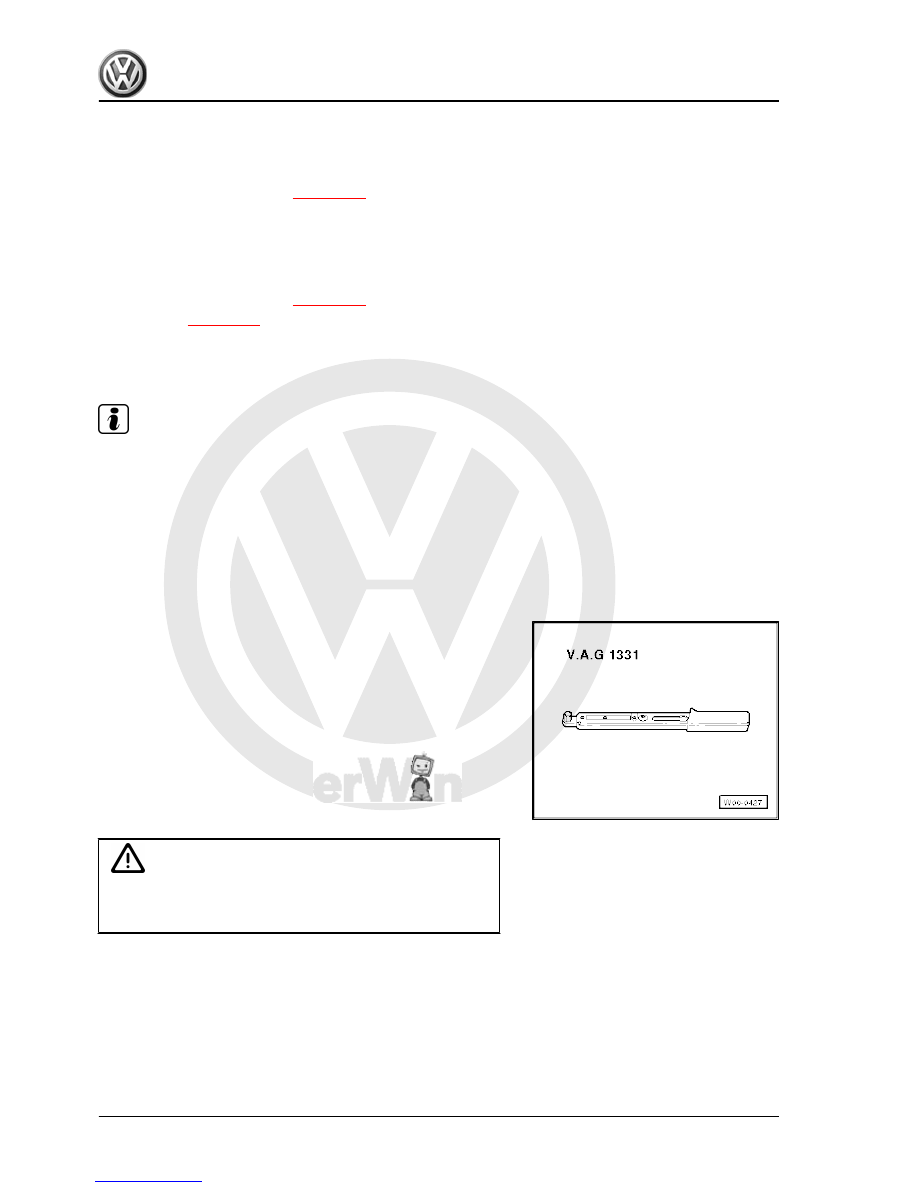

Special tools and workshop equipment required
♦ Torque wrench -V.A.G 1331-

Caution

♦ Switch off ignition and all electrical consumers.
♦ Remove the ignition key.

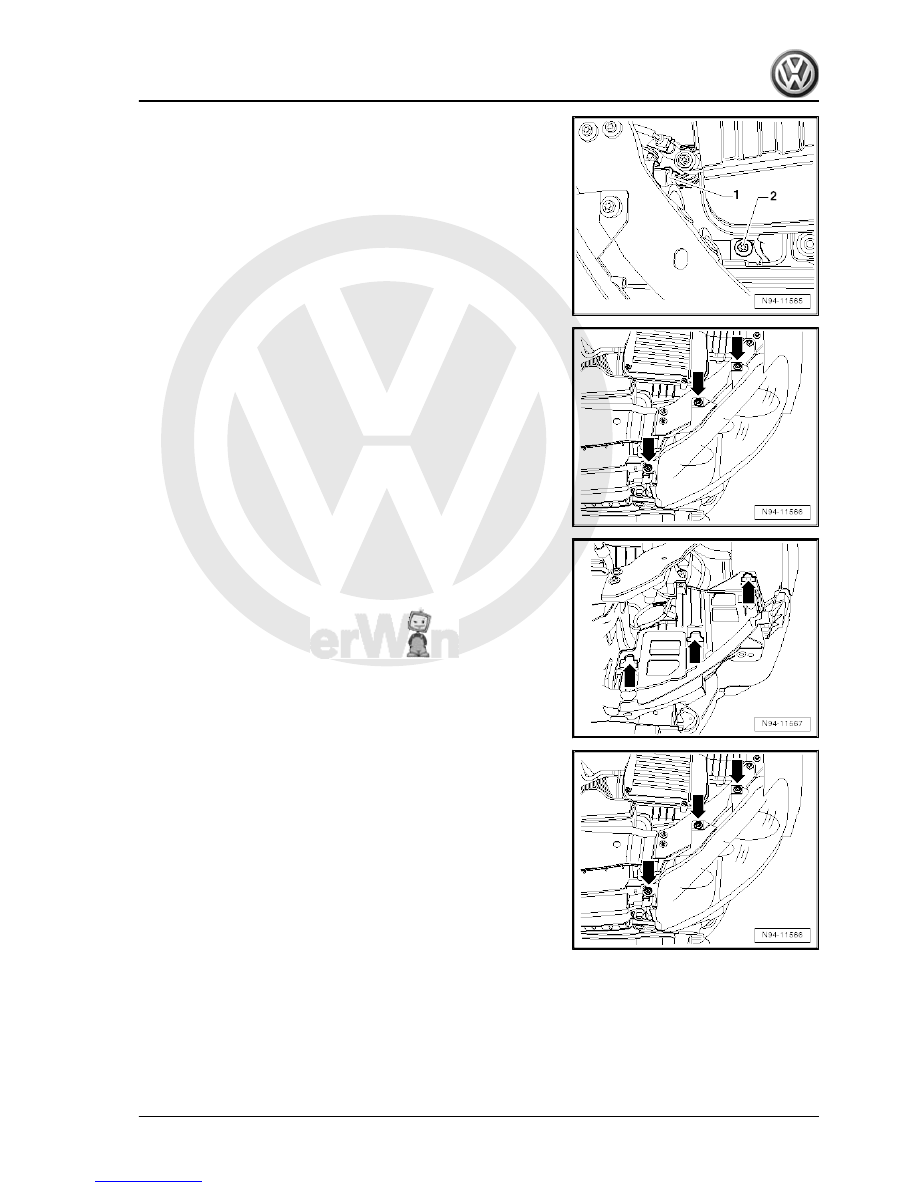

Removing
– Remove the radiator grille ⇒  General body repairs, exterior;

Rep. gr.  66 .

– Remove front bumper cover ⇒  General body repairs, exterior;

Rep. gr.  63 .

280



ing:

– Insert headlight with the three guides on underside into mount‐

ings -arrows- on guide and push into body aperture.

– First, screw in the three upper bolts -arrows-.

4. Headlights with gas discharge bulbs and cornering lights (from MY2010)

281
