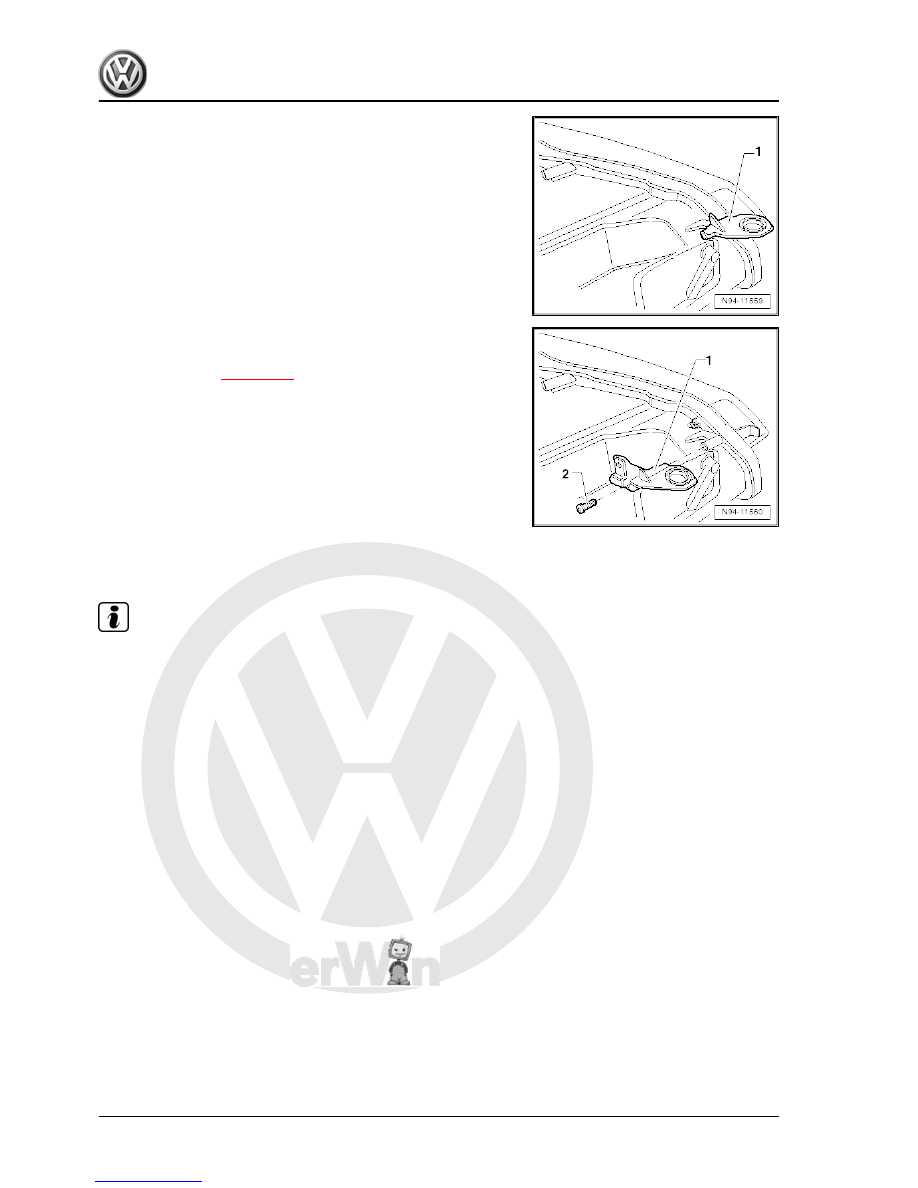

light and tighten bolt -2- to 1.0 Nm.

– Install headlight

⇒ page 215

 .

– Check headlight settings and adjust headlights if necessary

⇒ Maintenance ; Booklet  20.1 ; Descriptions of work .

2.8

Converting headlights for use when driv‐

ing on the left or right

Note

To avoid dazzling oncoming traffic with asymmetrical lights,

both headlights should be converted to the direction of traffic

(driving on the left or right) relevant to the country in which the

vehicle is being driven.

The corresponding headlight conversion set consists of two

sections of film.

Conversion of the headlights is not designed as a permanent

conversion for other countries. It is only suitable as a „tourist

solution“ for a short stay abroad.

Both headlights of a vehicle must always be converted.

The details „right“ and „left“ on the masking film always refer

to the direction of travel when looking forwards from inside the

vehicle.

254



ing on the right to driving on the left

Note

The headlight conversion set comprises two pieces of film.

Please note the different part numbers for the headlight con‐

version sets from right to left-hand traffic and from left to right-

hand traffic.

Clean headlight lens before converting.

After pulling off adhesive film from headlight lens, remove re‐

sidual adhesive from headlight lens.

Procedure
– Turn light switch to position „0“.
– Clean headlight lens.
Left headlight:

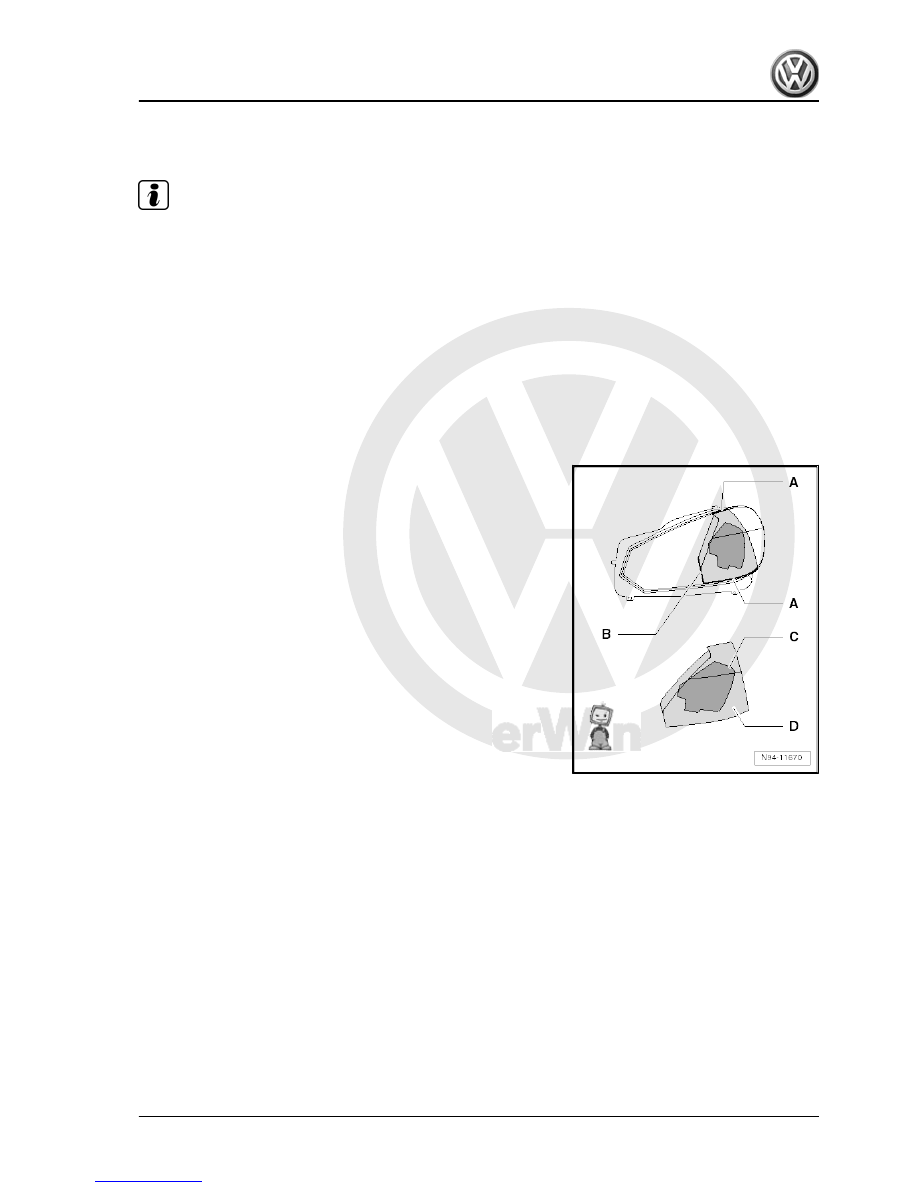

– Remove protective film on back of assembly film -D- in area

-C- only.

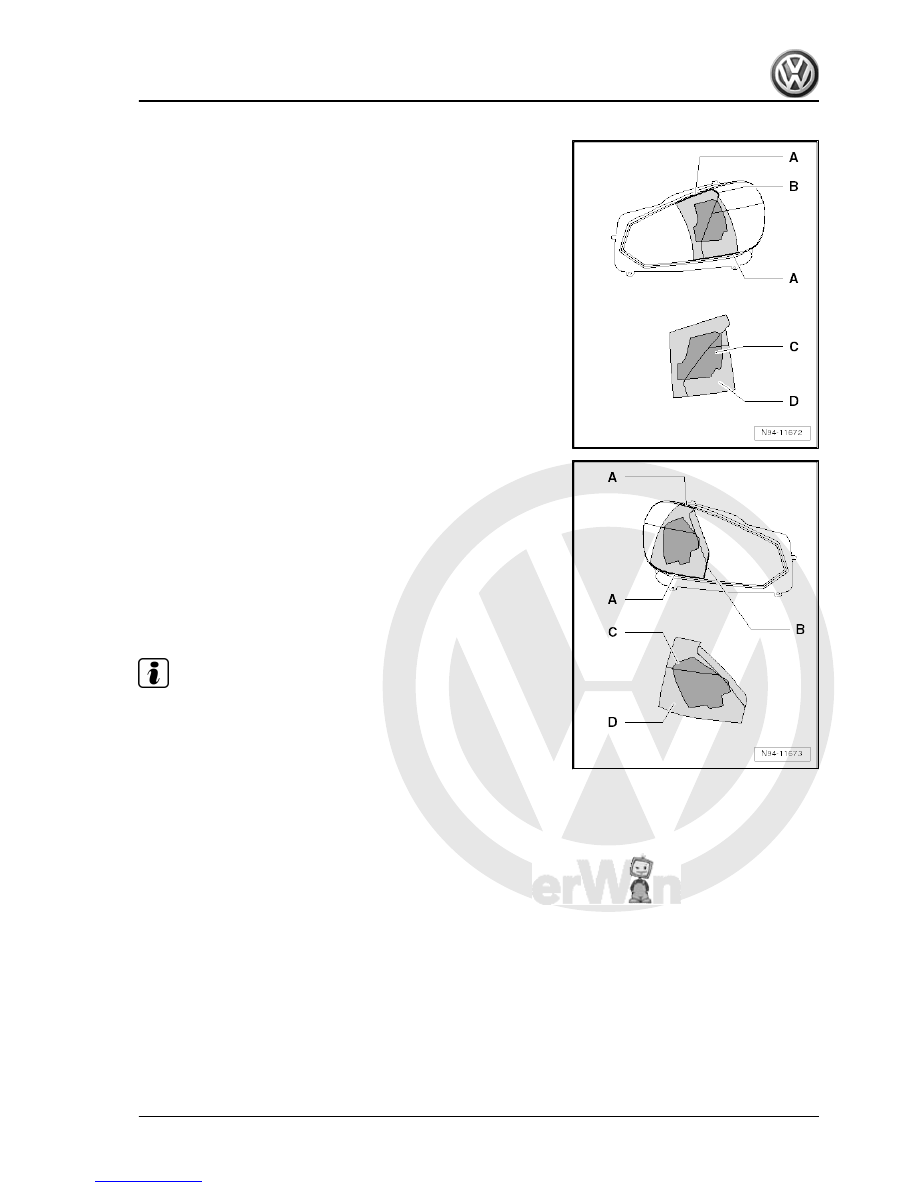

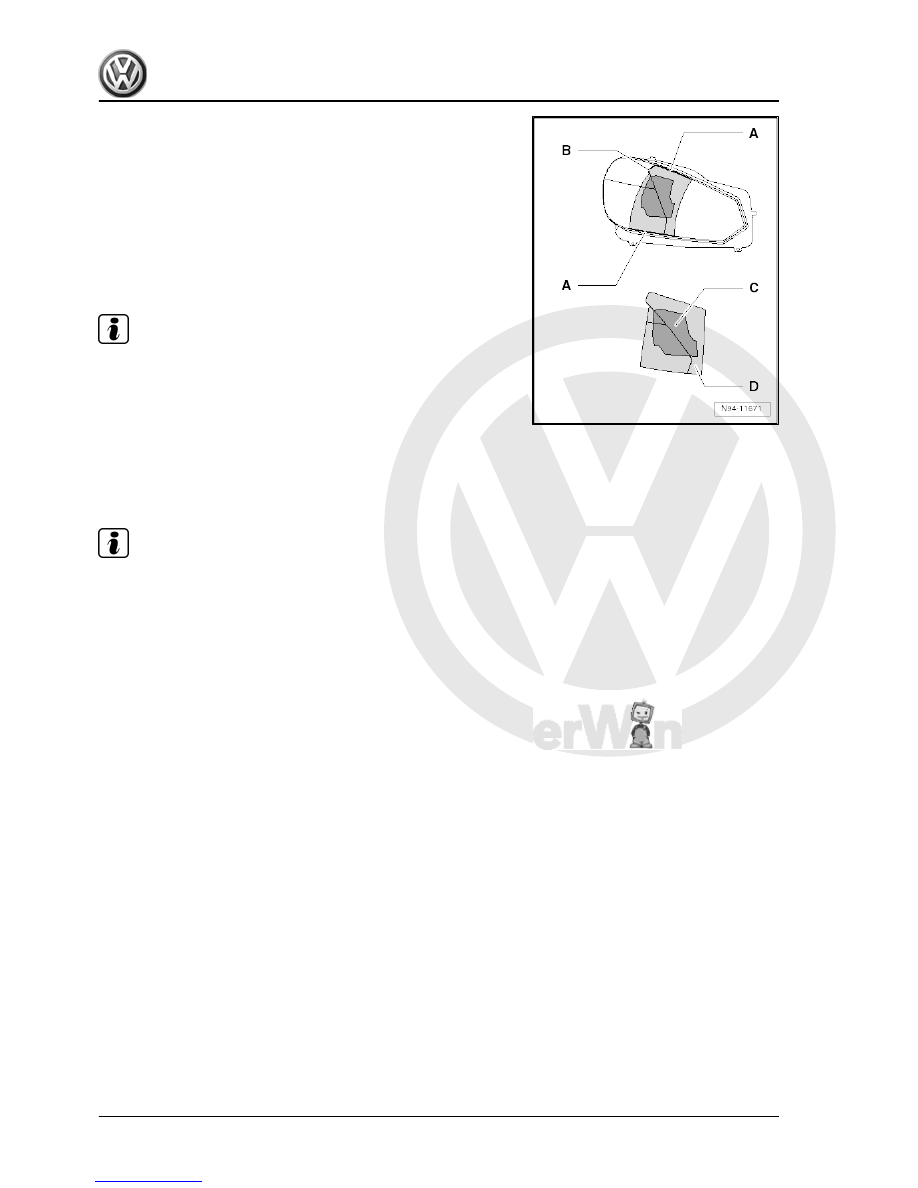

– Align top and bottom of assembly film -D- with upper and lower

edge -A- of headlight lens.

– Align assembly film -D- simultaneously with line -B- on line of

headlight lens.

– Push down in area -C- on headlight lens.
– Carefully pull assembly film -D- off headlight lens again.
– Masking film -C- remains on headlight lens.
Right headlight:

2. Headlights with halogen bulbs (from MY2009)

255



– Align top and bottom of assembly film -D- with upper and lower

edge -A- of headlight lens.

– Align assembly film -D- simultaneously with line -B- on line of

headlight lens.

– Push down in area -C- on headlight lens.
– Carefully pull assembly film -D- off headlight lens again.
– Masking film -C- remains on headlight lens.

Note

Remove any remaining adhesive using alcohol-based or al‐

cohol and water-based cleaning fluid. For example a cloth

soaked with isopropyl alcohol.

Customers should be informed of how to remove residual ad‐

hesive after detaching the masking section.

2.8.2

Converting headlights designed for driv‐

ing on the left to driving on the right

Note

The headlight conversion set comprises two pieces of film.

Please note the different part numbers for the headlight con‐

version sets from right to left-hand traffic and from left to right-

hand traffic.

Clean headlight lens before converting.

After pulling off adhesive film from headlight lens, remove re‐

sidual adhesive from headlight lens.

Procedure
– Turn light switch to position „0“.
– Clean headlight lens.

256



– Align top and bottom of assembly film -D- with upper and lower

edge -A- of headlight lens.

– Align assembly film -D- simultaneously with line -B- on line of

headlight lens.

– Push down in area -C- on headlight lens.
– Carefully pull assembly film -D- off headlight lens again.
– Masking film -C- remains on headlight lens.
Right headlight:

– Remove protective film on back of assembly film -D- in area

-C- only.

– Align top and bottom of assembly film -D- with upper and lower

edge -A- of headlight lens.

– Align assembly film -D- simultaneously with line -B- on line of

headlight lens.

– Push down in area -C- on headlight lens.
– Carefully pull assembly film -D- off headlight lens again.
– Masking film -C- remains on headlight lens.

Note

Remove any remaining adhesive using alcohol-based or al‐

cohol and water-based cleaning fluid. For example a cloth

soaked with isopropyl alcohol.

Customers should be informed of how to remove residual ad‐

hesive after detaching the masking section.

2.9

Adjusting headlights

Adjust headlight with halogen bulbs ⇒ Maintenance ; Booklet

20.1 ; Descriptions of work .

2. Headlights with halogen bulbs (from MY2009)

257
