Removing

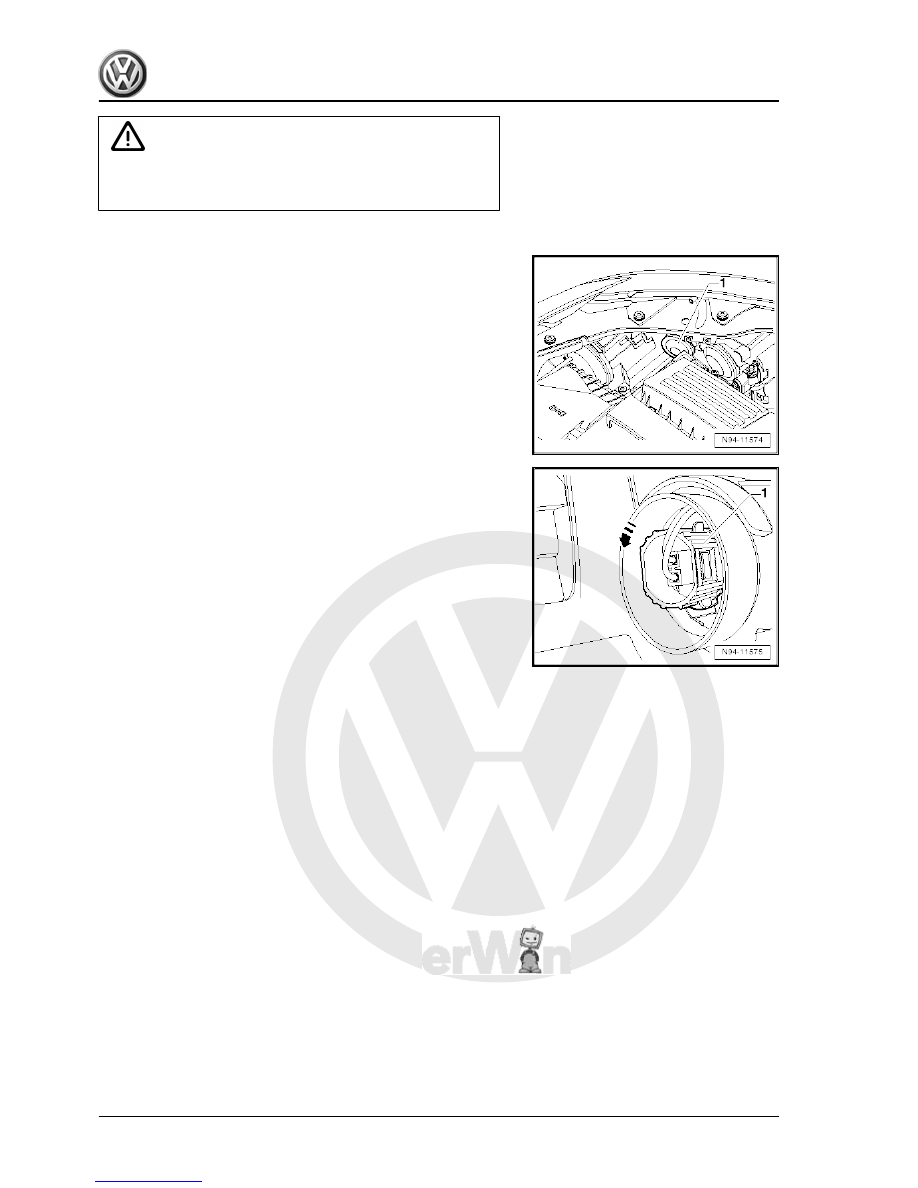

– Remove cover cap -1-.

– Turn bulb holder -1- in direction of -arrow- and pull left front

turn signal bulb -M5- backwards out of headlight.

246



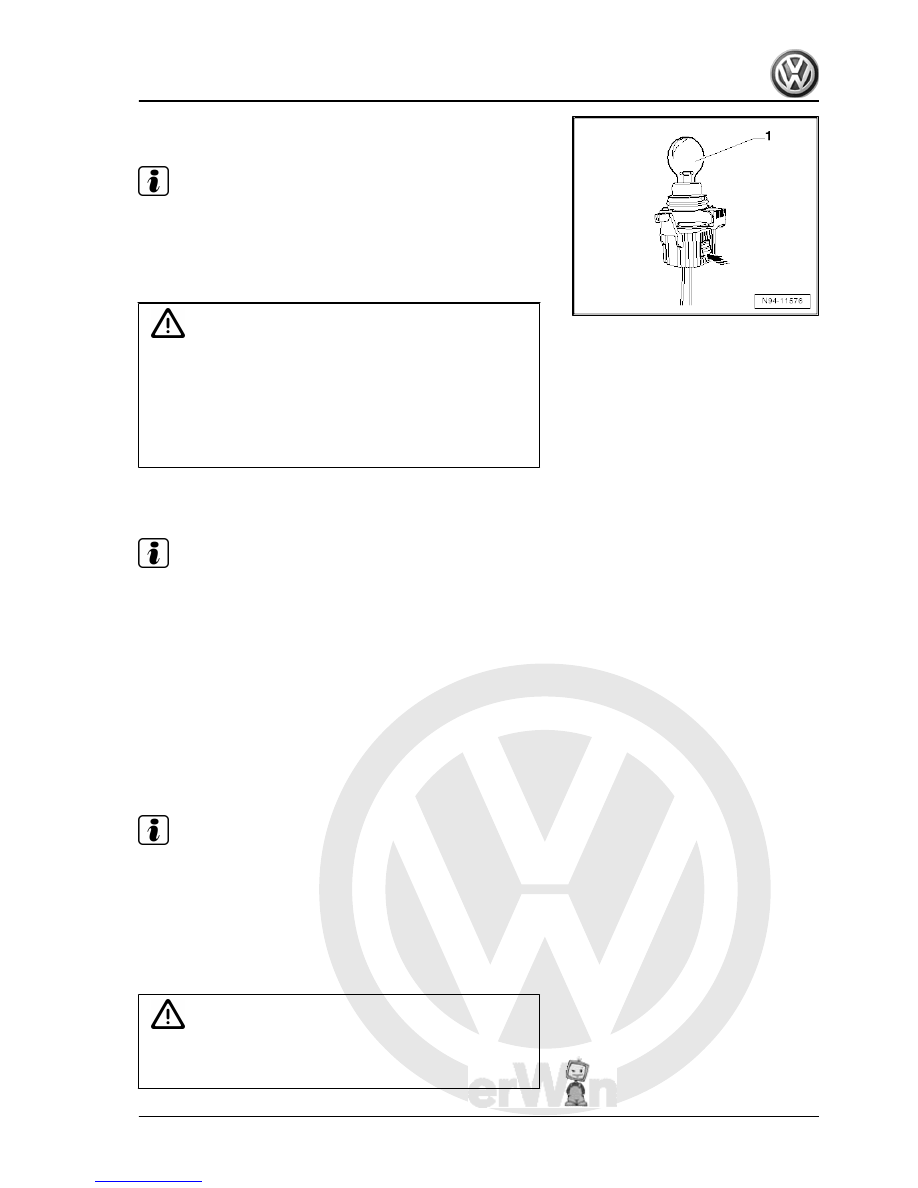

Note

The left front turn signal bulb -M5- is permanently attached to the

bulb holder and cannot be dismantled.

Bulb: 12 V/24 W
Installing

Caution

♦ Do not touch glass envelope when fitting bulb. Fingers

leave traces of grease on the glass envelope, which evap‐

orate when the bulb is switched on and cause the glass

envelope to cloud over.

♦ When installing cover cap, ensure that it seats properly.

The ingress of water will lead to permanent damage to the

headlight.

Carry out installation in the reverse sequence, noting the follow‐

ing:

Note

To lock the bulb holder, there are two locking lugs of different

lengths in the reflector.

Insert bulb holder together with left front turn signal bulb -M5-

into reflector so that the longer locking lug points upwards.

– Check headlight functions.

2.6

Removing and installing headlight range

control motor

2.6.1

Removing and installing (Hella)

Note

If control motors are removed and reinstalled or renewed, the

headlight adjustment must be checked and the headlights ad‐

justed ⇒ Maintenance ; Booklet  20.1 ; Description of work .

The illustrations show the renewal of the left headlight range

control motor -V48- for the left headlight.

The renewal of the headlight range control motor -V49- for the

right headlight is carried out in the same way.

Caution

♦ Switch off ignition and all electrical consumers.
♦ Remove the ignition key.

2. Headlights with halogen bulbs (from MY2009)

247



 .

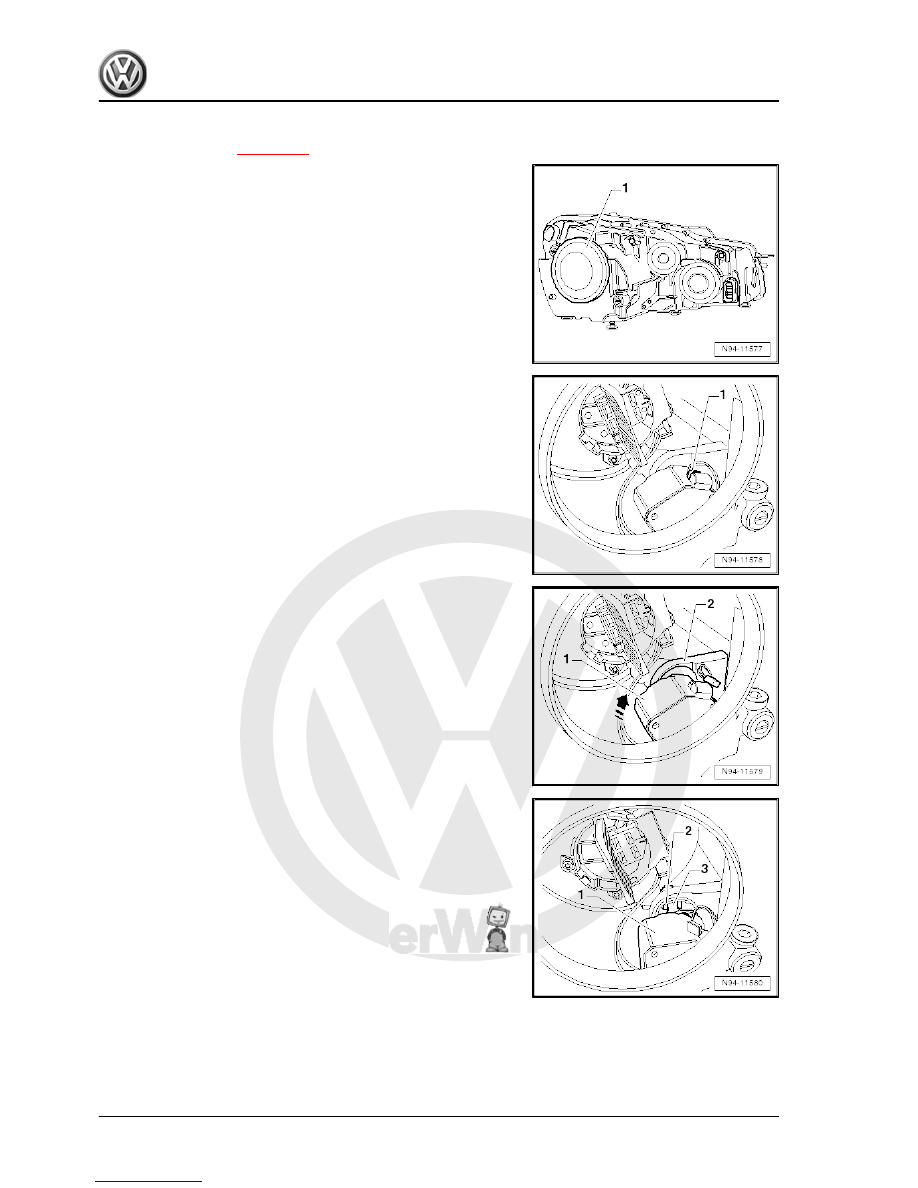

– Remove cover cap -1-.

– Detach connector -1- from left headlight range control motor

2 -V48- .

– Turn left headlight range control motor -V48- -1- in direction of

-arrow- to stop and pull it slightly backwards out of mounting

-2-.

– Tilt left headlight range control motor -V48- -1- so that ball

head -3- can be swivelled downwards out of the head mount‐

ing -2-.

– Take left headlight range control motor -V48- out of headlight

housing.

Installing
Carry out installation in the reverse sequence, noting the follow‐

ing:
– Install left headlight range control motor -V48- into headlight.
– Reconnect connector.

248



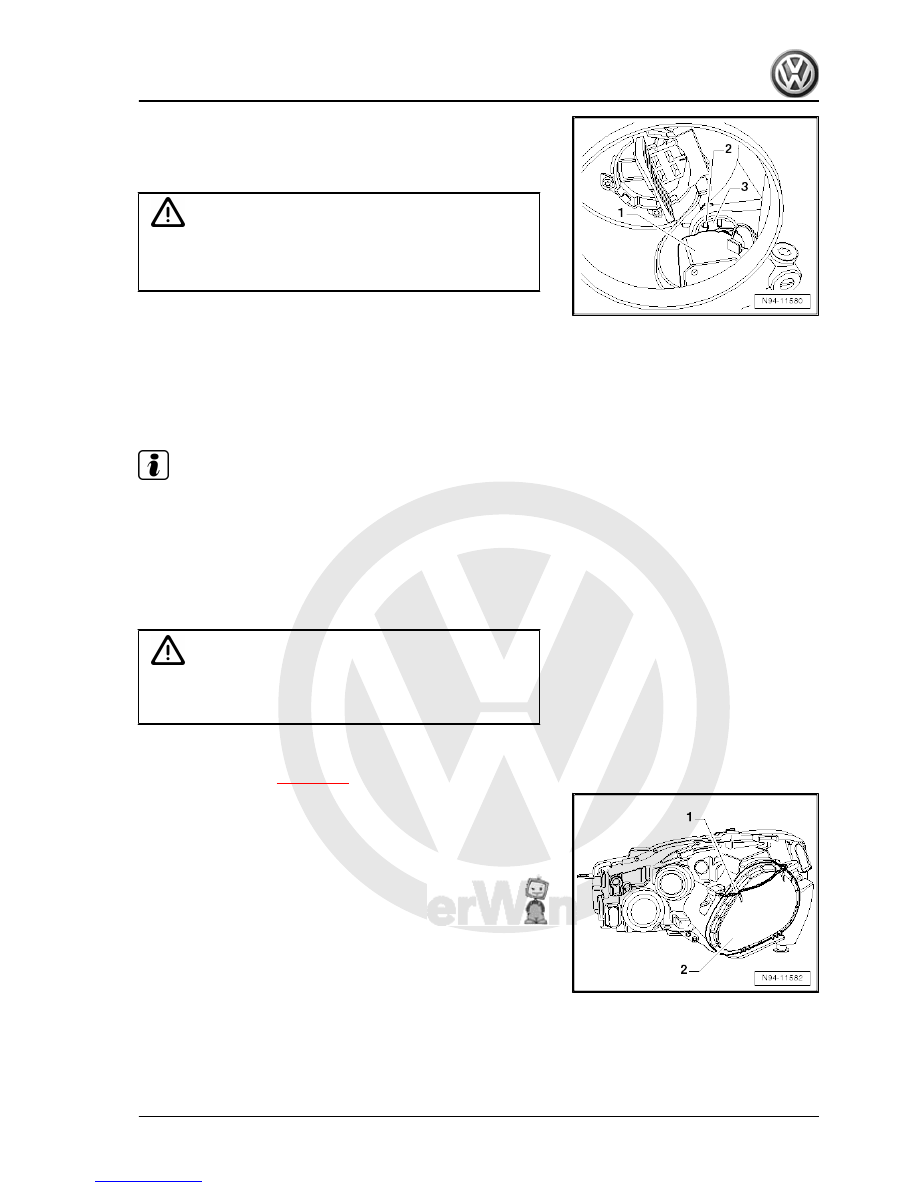

– Lock left headlight range control motor -V48- -1- by turning it

anti-clockwise to stop.

Caution

When installing cover cap, ensure cap is seated correctly. The

ingress of water will lead to permanent damage to the head‐

light.

– Check headlight functions.
– Adjust headlights.
– Check headlight settings and adjust headlights if necessary

⇒ Maintenance ; Booklet  20.1 ; Descriptions of work .

2.6.2

Removing and installing (Valeo)

Note

If control motors are removed and reinstalled or renewed, the

headlight adjustment must be checked and the headlights ad‐

justed ⇒ Maintenance ; Booklet  20.1 ; Description of work .

The illustrations show the renewal of the headlight range con‐

trol motor -V49- on the right headlight.

The renewal of the left headlight range control motor -V48- for

the left headlight is carried out in the same way.

Caution

♦ Switch off ignition and all electrical consumers.
♦ Remove the ignition key.

Removing
– Remove headlight

⇒ page 215

 .

– Pull clip -1- upwards and remove cover cap -2- from rear of

headlight.

2. Headlights with halogen bulbs (from MY2009)

249
