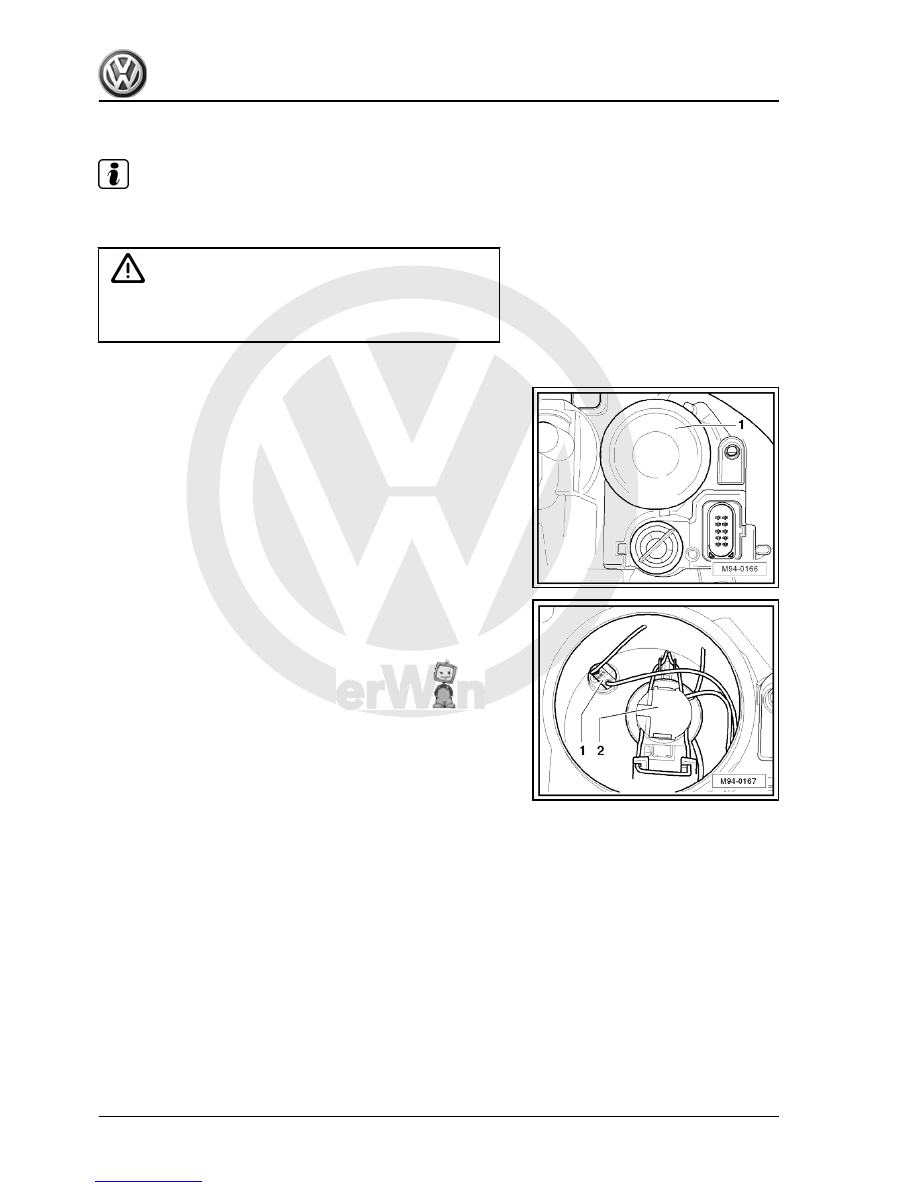

The diagrams show renewal of the left side light bulb -M1- for the

left headlight.

Caution

♦ Switch off ignition and all electrical consumers.
♦ Remove the ignition key.

Removing
– Remove cover cap -1-.

– As far as the wiring lengths allow, pull bulb holder -1- with left

side light bulb -M1- out of reflector.

222



Installing

Caution

♦ Do not touch glass envelope when fitting bulb. Fingers

leave traces of grease on the glass envelope, which evap‐

orate when the bulb is switched on and cause the glass

envelope to cloud over.

♦ When installing cover cap, ensure that it seats properly.

The ingress of water will lead to permanent damage to the

headlight.

Carry out installation in the reverse sequence, noting the follow‐

ing:
– Check headlight functions.
– Check headlight settings and adjust headlights if necessary

⇒ Maintenance ; Booklet  20.1 ; Descriptions of work .

1.4.4

Renewing front turn signal bulb

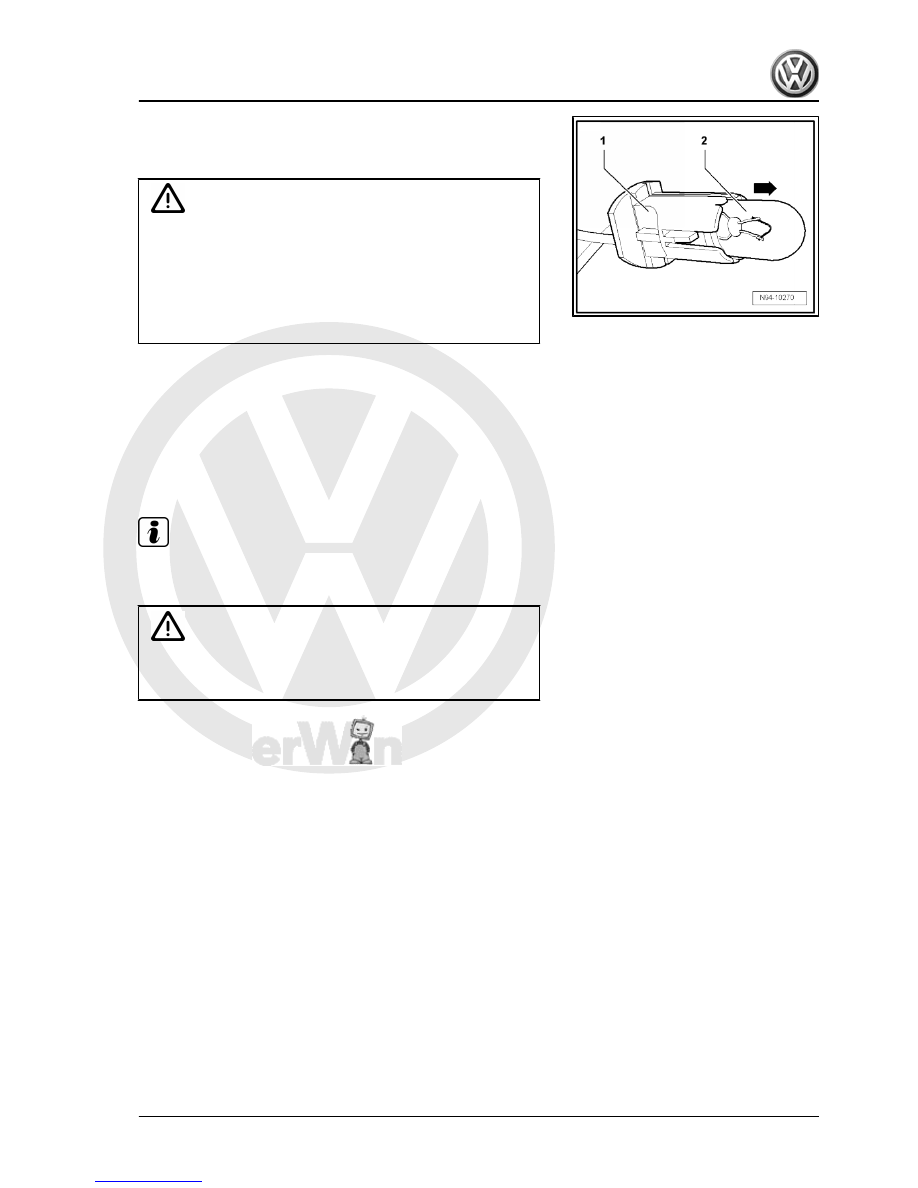

Note

The illustrations show the renewal of the front left turn signal bulb

-M5- for the left headlight.

Caution

♦ Switch off ignition and all electrical consumers.
♦ Remove the ignition key.

1. Headlights with halogen bulbs (up to MY2009)

223



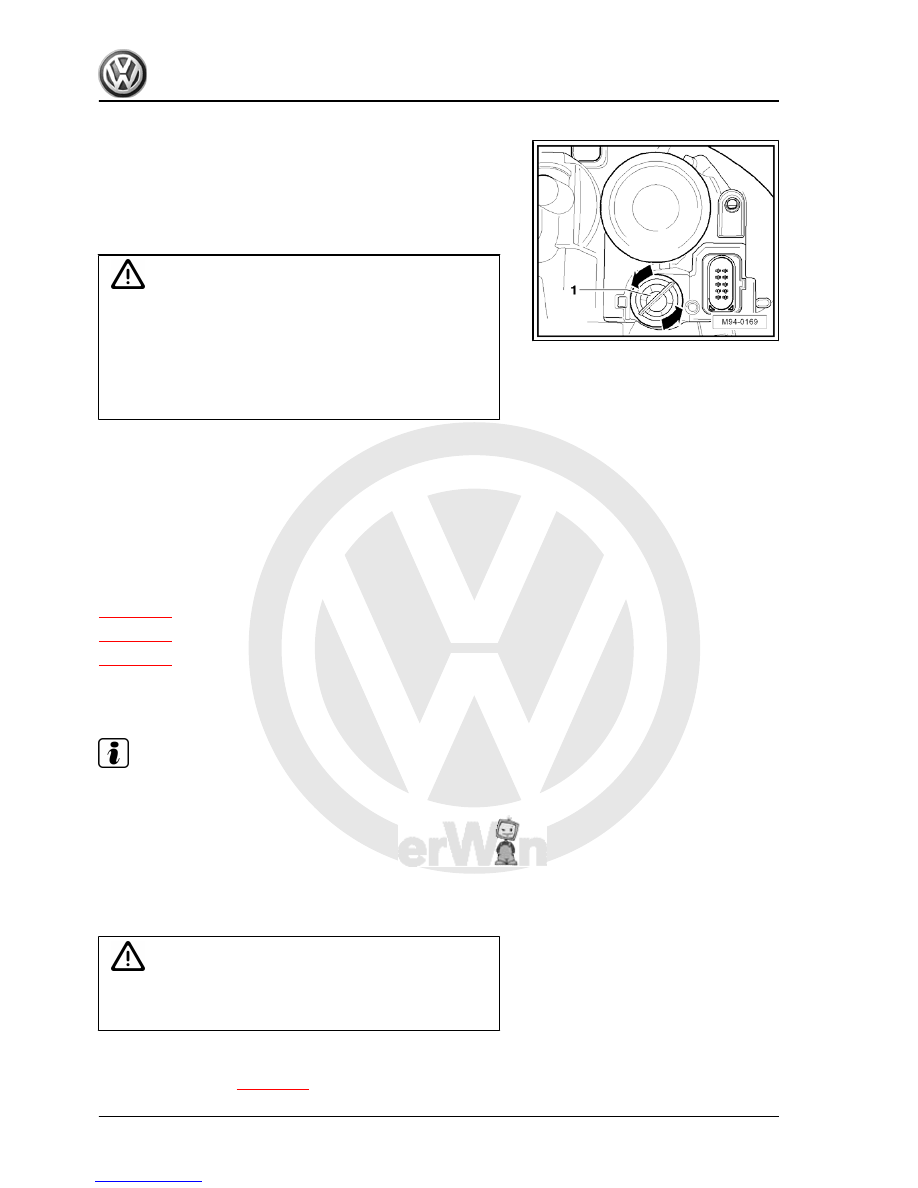

– Push front left turn signal bulb -M5- into bulb holder, turn front

left turn signal bulb -M5- anti-clockwise and pull front left turn

signal bulb -M5- out of bulb holder.

Installing

Caution

♦ Do not touch glass envelope when fitting bulb. Fingers

leave traces of grease on the glass envelope, which evap‐

orate when the bulb is switched on and cause the glass

envelope to cloud over.

♦ When installing cover cap, ensure that it seats properly.

The ingress of water will lead to permanent damage to the

headlight.

Carry out installation in the reverse sequence, noting the follow‐

ing:
– Check headlight functions.
– Check headlight settings and adjust headlights if necessary

⇒ Maintenance ; Booklet  20.1 ; Descriptions of work .

1.5

Removing and installing headlight range

control motor

⇒ page 224
⇒ page 227
⇒ page 229

1.5.1

Removing and installing headlight range

control motor (Automotive Lighting)

Note

If control motors are removed and reinstalled or renewed, the

headlight adjustment must be checked and the headlights ad‐

justed ⇒ Maintenance ; Booklet  20.1 ; Description of work .

The illustrations show the renewal of the headlight range con‐

trol motor -V49- on the right headlight. If the left headlight

range control motor -V48- is removed and installed, two as‐

sembly openings with predetermined breaking points must be

opened to gain access to the bolts (these are not shown on

the following illustrations).

Caution

♦ Switch off ignition and all electrical consumers.
♦ Remove the ignition key.

Removing
– Remove headlight

⇒ page 215

 .

224



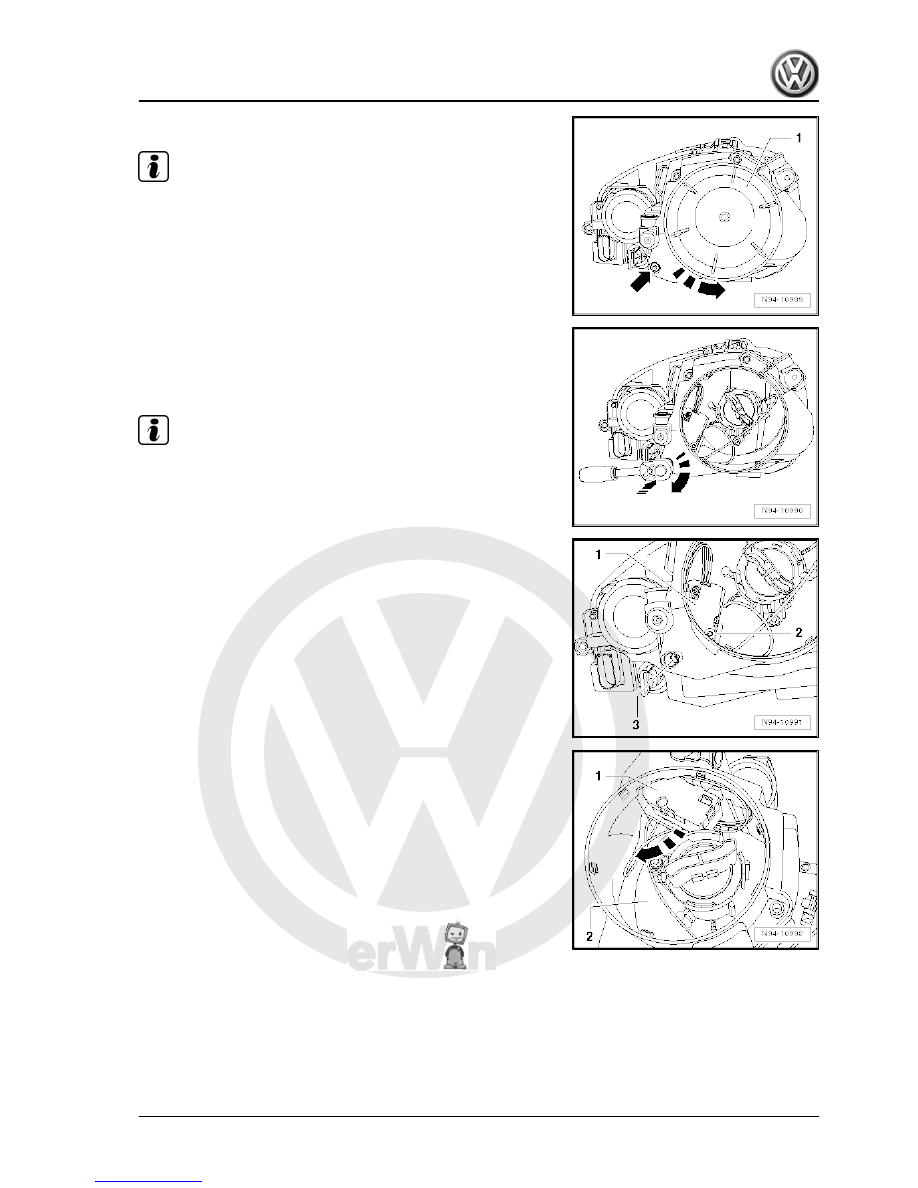

To gain access to the second bolt on the right headlight range

control motor -V49- , break open the assembly opening at the

predetermined breaking point -arrow- on the back of the headlight

housing. This opening must be sealed on completion of repairs

with separately available sealing plug.

– Fit a socket on the plastic hexagon on the back of the headlight

housing.

– Press and turn the plastic hexagon out of the headlight hous‐

ing to break open the assembly opening.

Note

The broken open sealing piece must not remain in the headlight.

Remove it from the headlight housing.

– Unscrew bolts -2- and -3- from right headlight range control

motor -V49- -1-.

– Lift dipped beam reflector -2- in headlight slightly and turn the

right headlight range control motor -V49- -1- in

-direction of arrow- on to stop.

1. Headlights with halogen bulbs (up to MY2009)

225
