Volkswagen Golf Variant / Jetta. Manual - part 809





-1-.

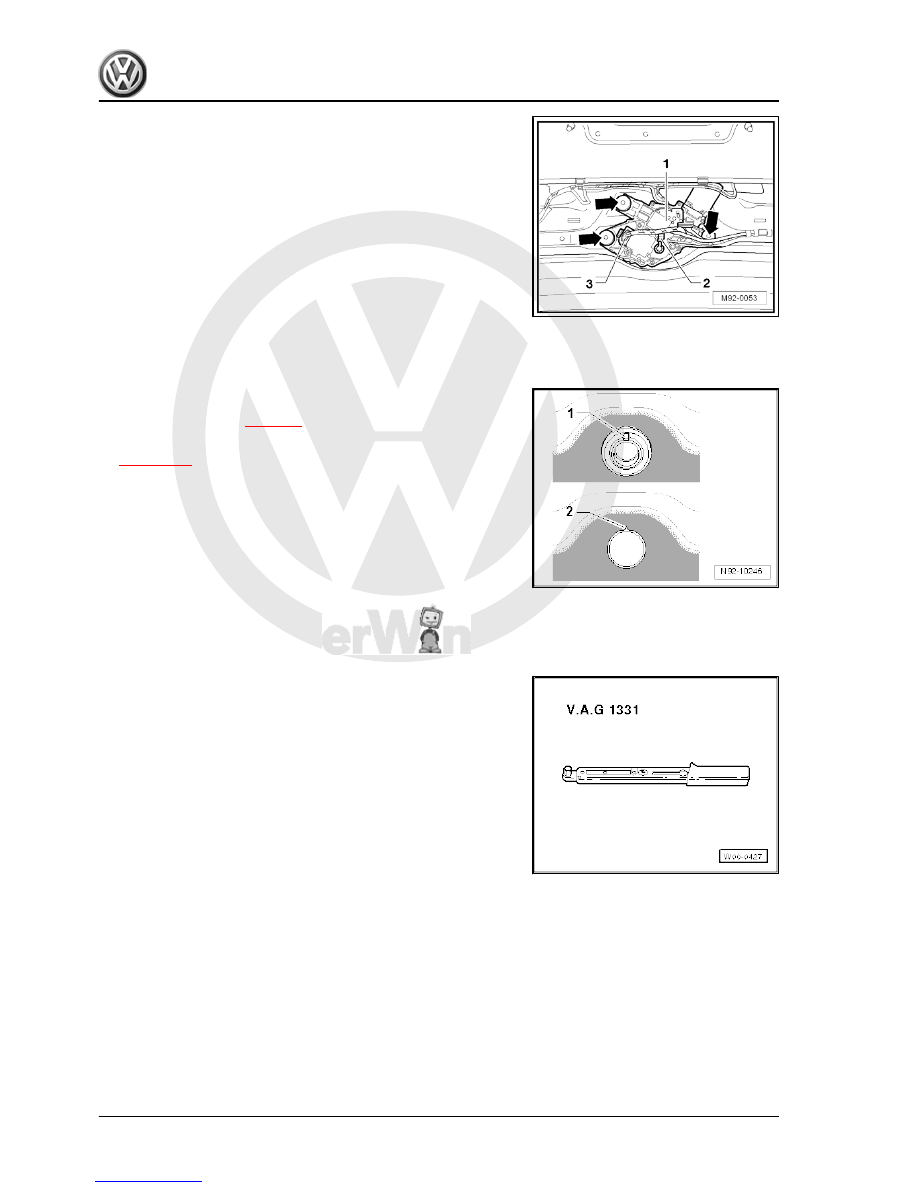

– Unscrew hexagon nuts -arrows-.
– Carefully pull rear window wiper motor -V12- off rear lid.
Installing
Install in the reverse order of removal. When doing this, note the

following:
– Before installing rear window wiper motor -V12- , moisten in‐

ner side of seal in rear window with a rubber and plastic

compatible lubricant (polyethylene glycol).

– Check seal is seated correctly in opening of rear window.

Mark -1- on seal must align with mark -2- on rear window.
– Connect battery -A-

⇒ page 4

 .

– Tighten threaded connections to specified torques

⇒ page 200

 .

3.3

Adjusting rear window wiper park posi‐

tion

Special tools and workshop equipment required
♦ Torque wrench -V.A.G 1331-

202



wiper arm on shaft.

Removing wiper arm

⇒ page 200

– Tighten threaded connections to specified torques

⇒ page 200

 .

3.4

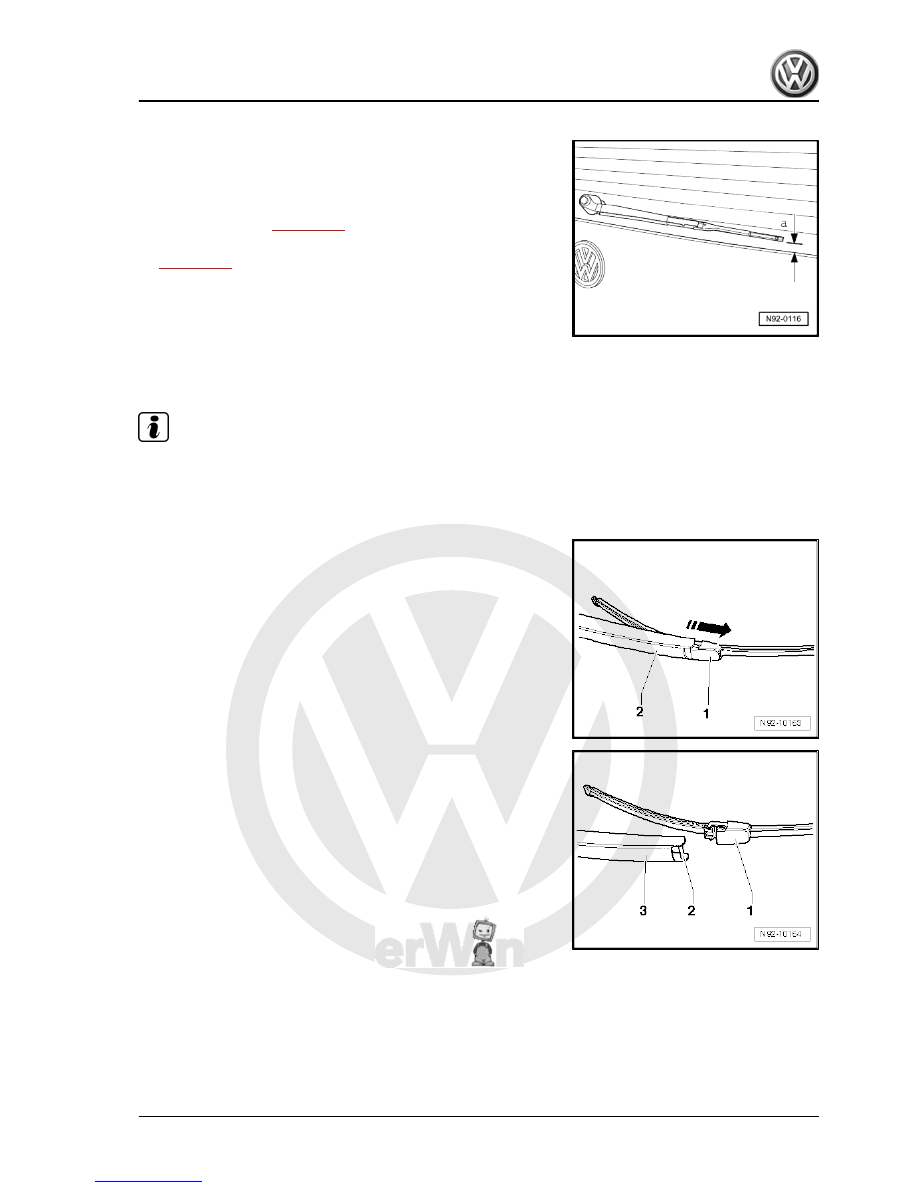

Removing and installing joint-free wiper

blades

Note

Joint-free wiper blades are very flexible. To lift the wiper blade off

the rear window, grasp it only in the area in which the wiper blade

is attached to the wiper.

Removing
– Pull wiper arm -2- away from windscreen.
– Pull wiper blade mounting -1- out of wiper arm -2- -arrow-.

– Remove wiper blade fitting -1- from wiper arm shaft -2-.
Installing

3. Rear window wiper system

203

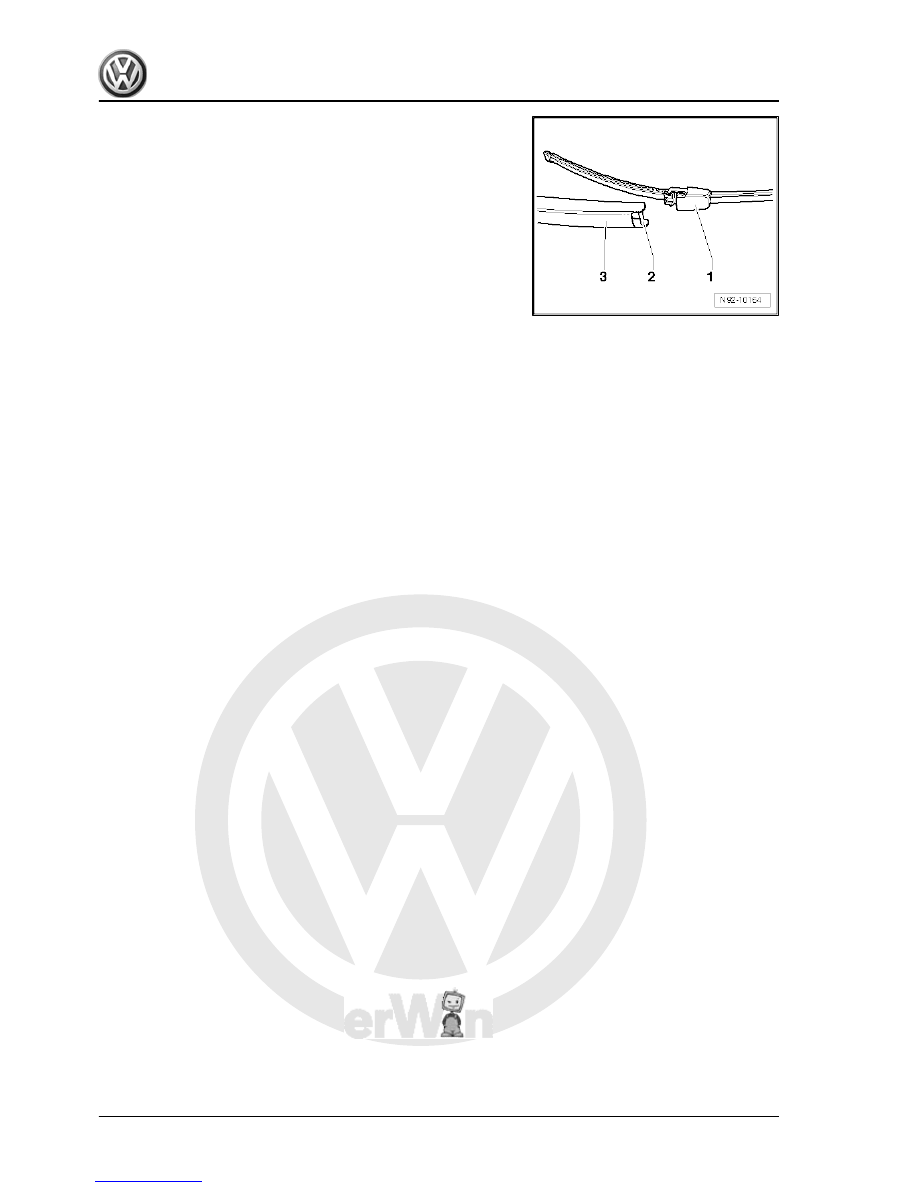

– Push on the wiper blade fitting until it engages in the wiper

arm.

– Carefully fold wiper arm back down onto rear window.

204



Note

Additional information:

⇒  Operating instructions

4.1

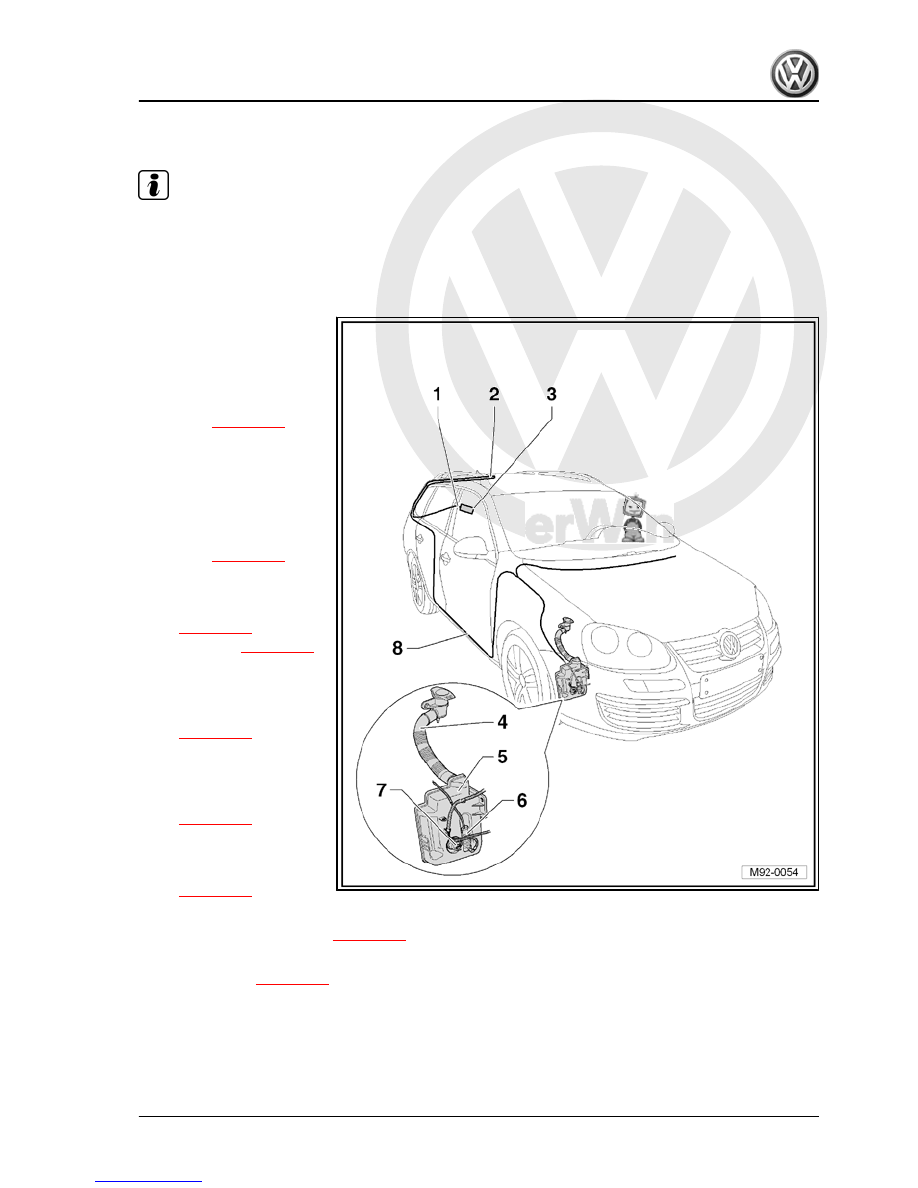

Assembly overview - rear window washer system

1 - Connection piece

❑ Connection to rear win‐

dow washer system

spray jet

❑ Overview of hose cou‐

plings for washer fluid

lines

⇒ page 213

2 - Connection piece

❑ Point of separation, pas‐

senger compartment

wiring harness to rear lid

wiring harness

❑ Overview of hose cou‐

plings for washer fluid

lines

⇒ page 213

3 - Rear window washer sys‐

tem spray jet

❑ Removing and installing

⇒ page 206

❑ Adjusting

⇒ page 206

4 - Filler pipe of reservoir for

windscreen washer and head‐

light washer systems

❑ Removing and installing

⇒ page 195

5 - Windscreen washer and

headlight washer system res‐

ervoir

❑ Removing and installing

⇒ page 195

6 - Windscreen and rear win‐

dow washer pump -V59-

❑ Removing and installing

⇒ page 197

7 - Windscreen washer fluid level sender -G33-

❑ Removing and installing

⇒ page 198

8 - Hose

❑ Hose repair

⇒ page 213

4. Rear window washer system

205
