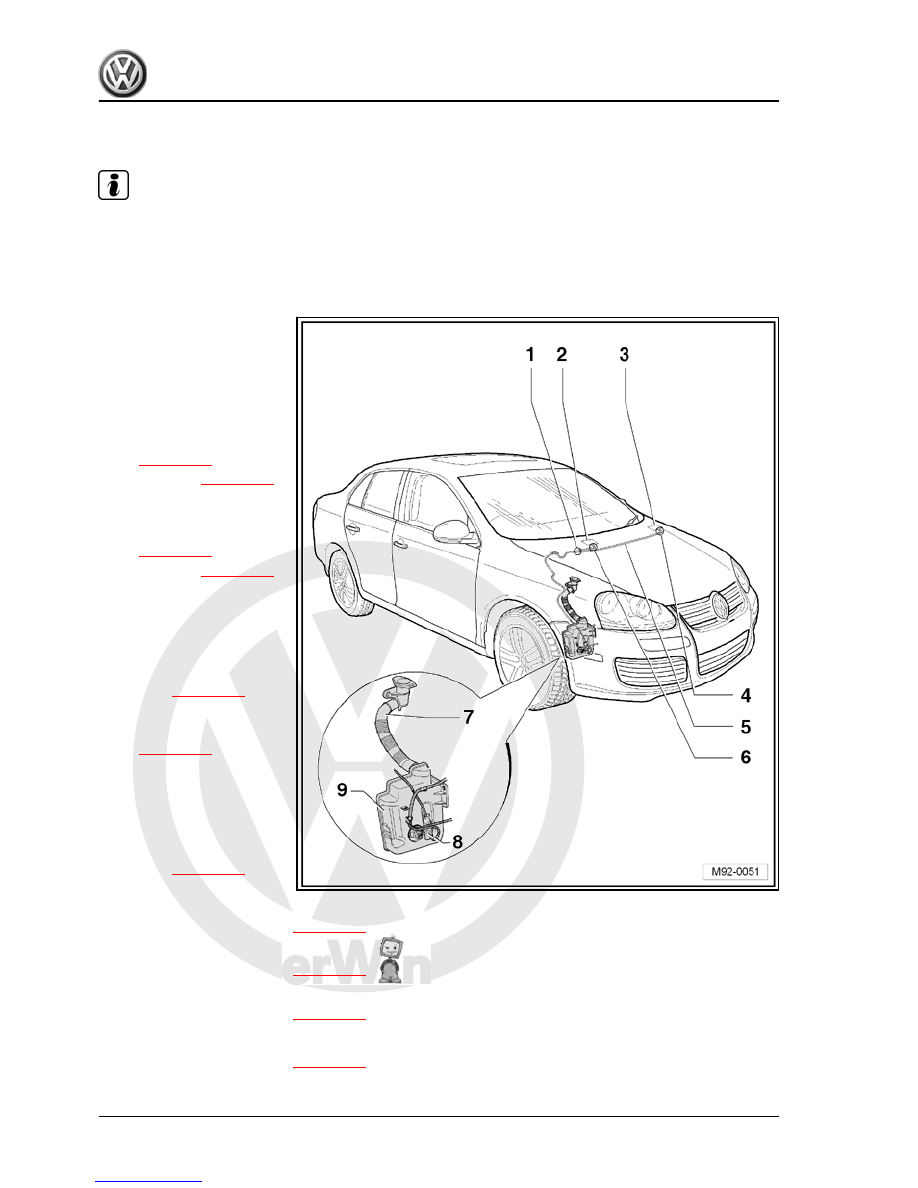

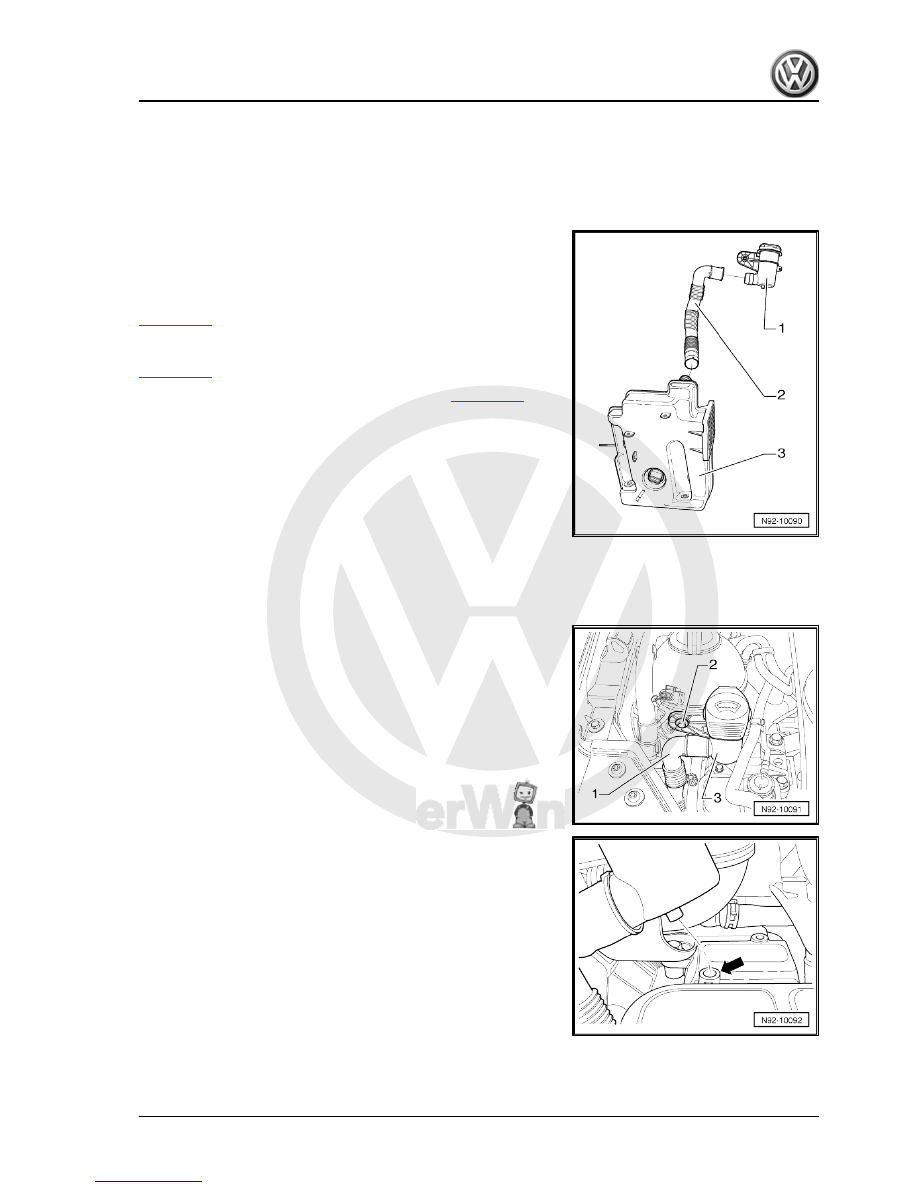

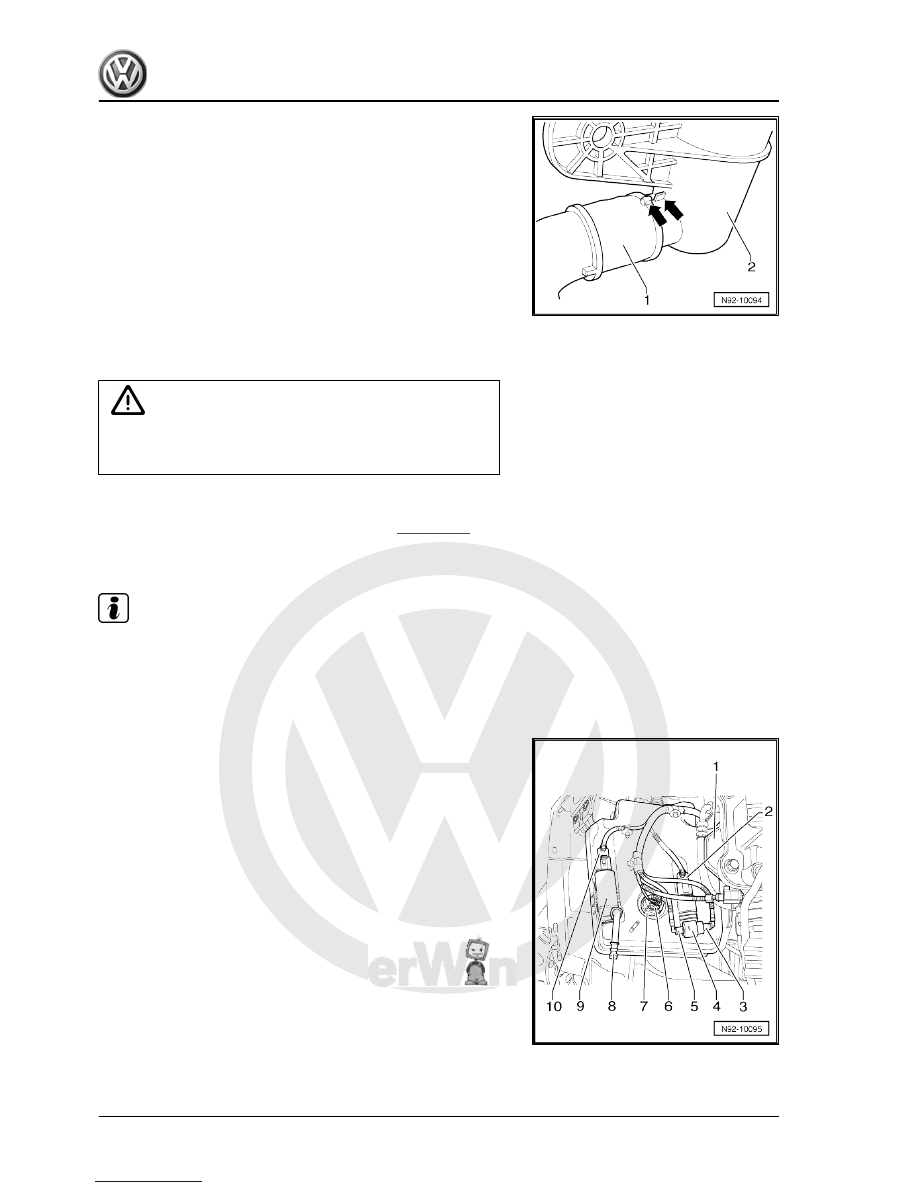

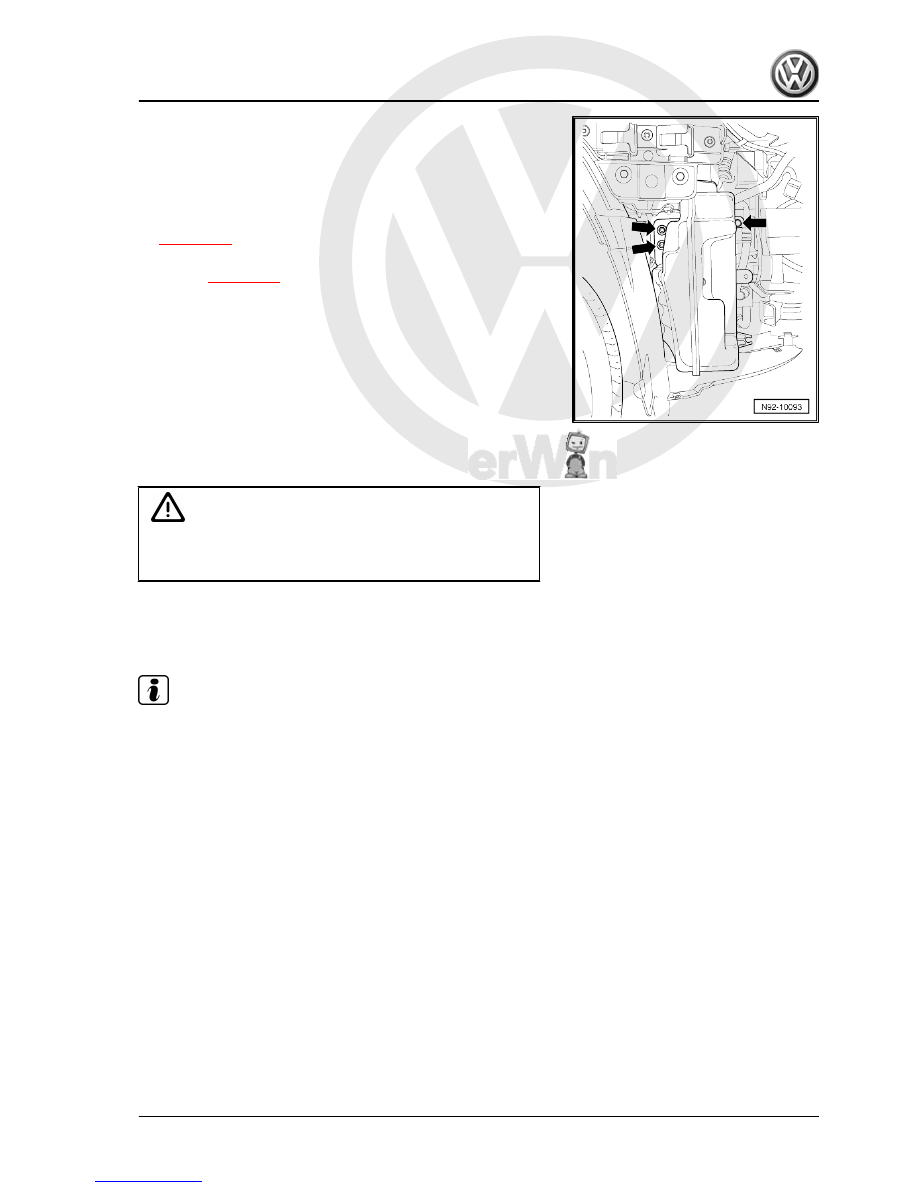

Note Additional information: ⇒ Operating instructions 2.1 Assembly overview - windscreen washer system 1 - Y-piece ❑ Distribution of washer fluid line to windscreen washer system spray jets 2 - Right washer jet for wind‐ screen washer system ❑ Removing and installing ⇒ page 199 ❑ Adjusting ⇒ page 199 3 - Left washer jet windscreen washer system ❑ Removing and installing ⇒ page 199 ❑ Adjusting ⇒ page 199 4 - Angled piece ❑ Connection to left wind‐ screen washer system spray jet ❑ Overview of hose cou‐ plings for washer fluid lines ⇒ page 212 5 - Hose ❑ Hose repair ⇒ page 213 6 - Angled piece ❑ Connection to right windscreen washer sys‐ tem spray jet ❑ Overview of hose cou‐ plings for washer fluid lines ⇒ page 213 7 - Reservoir filler neck for windscreen and headlight washer system ❑ Removing and installing ⇒ page 195 8 - Windscreen and rear window washer pump -V59- ❑ Removing and installing ⇒ page 197 9 - Windscreen washer and headlight washer system reservoir ❑ Removing and installing ⇒ page 196 - Windscreen washer fluid level sender -G33- ❑ Removing and installing ⇒ page 198 194
|
