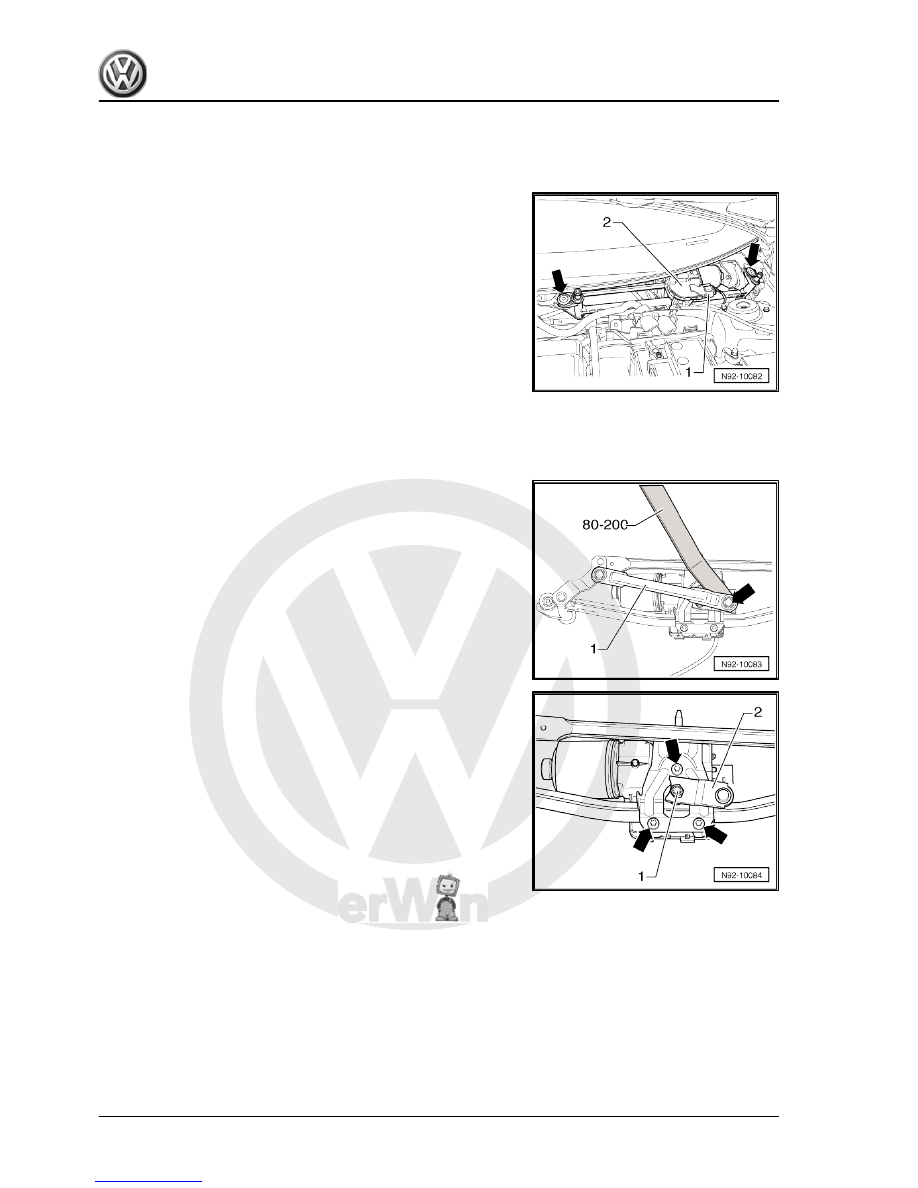

wiper motor -V-

Procedure
– Disconnect connector -1-.
– Remove bolts -arrows- and pull wiper frame -2- upwards off

vehicle.

1.3.6

Removing wiper motor -V- from wiper

frame

Procedure
– Lever ball end -arrow- of linkage -1- off motor crank using re‐

lease lever -80-200- .

– Remove nut -1-.
– Pull motor crank -2- off wiper motor shaft.
– Unscrew bolts -arrows- and remove wiper motor -V- together

with wiper motor control unit -J400- from wiper frame.

186

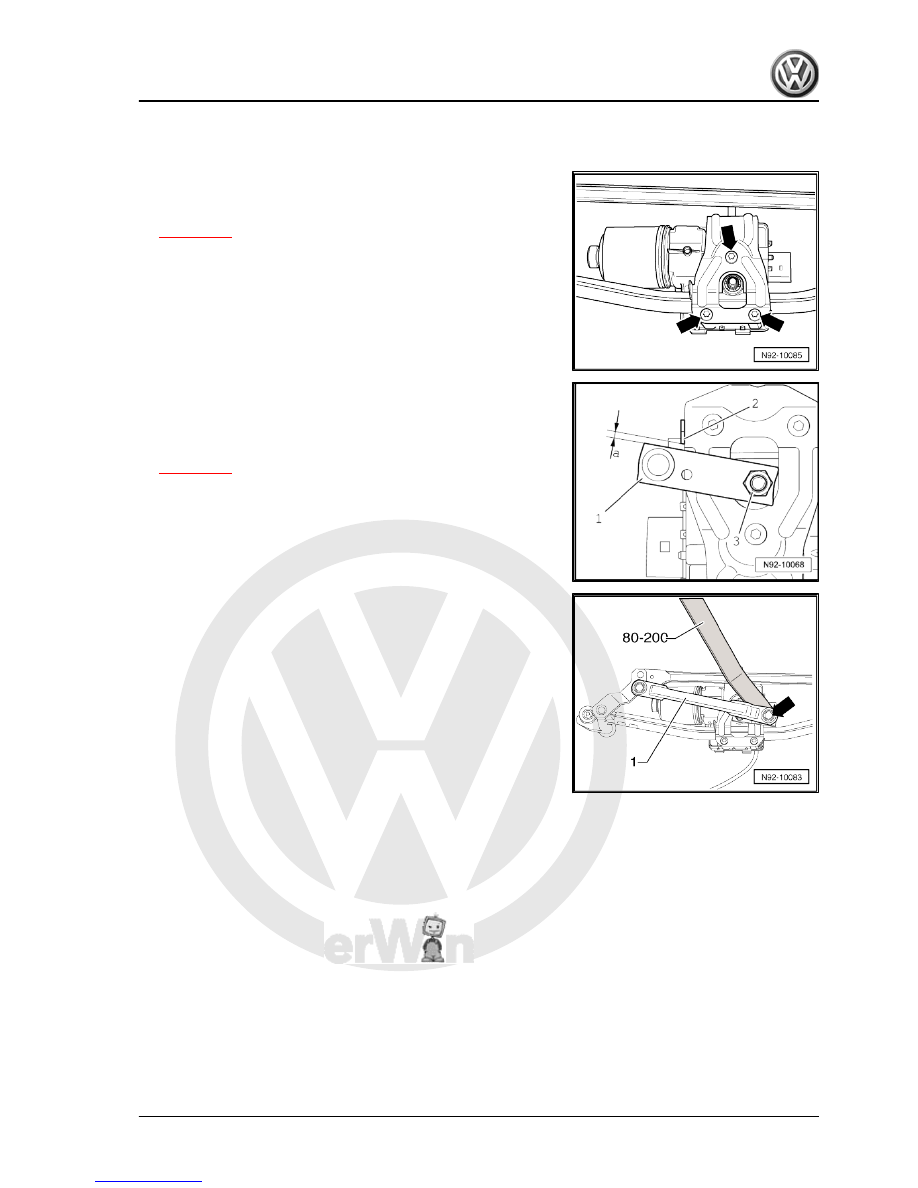

Procedure
– Insert wiper motor -V- with wiper motor control unit -J400- in

wiper frame and secure it with bolts -arrows-.

– Tighten threaded connections to specified torques

⇒ page 183

 .

– Place motor crank -1- on shaft of wiper motor -V- .

Distance -a- to limit stop -2- should be 3 ± 1 mm.
– Connect motor crank to shaft of wiper motor -V- using nut

-3-.

– Tighten threaded connections to specified torques

⇒ page 183

 .

– Press ball head -arrow- of linkage -1- onto motor crank.

1. Windscreen wiper system

187

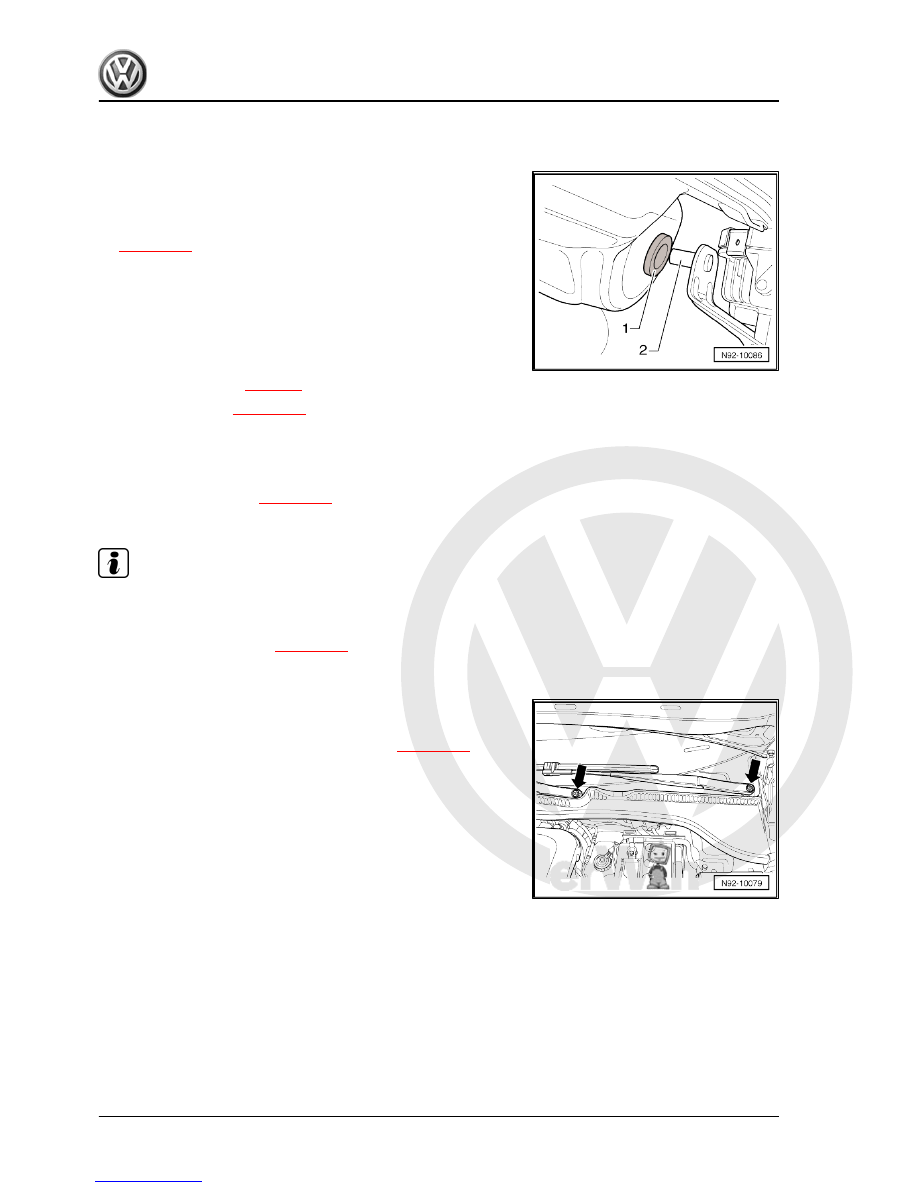

Procedure
– Install wiper frame in reverse order of removal. Note when in‐

stalling that securing pin -2- of wiper frame must be inserted

in grommet -1- in plenum chamber bulkhead.

– Tighten threaded connections to specified torques

⇒ page 183

 .

– Fit connector to wiper motor -V- connection and lock in posi‐

tion.

– Install air cowling and plenum chamber cover in reverse order

of removal.

– Install the plenum chamber cover ⇒  General body repairs,

exterior; Rep. gr.  64 .

– Connect battery -A-

⇒ page 4

 .

– Install wiper arms

⇒ page 188

 .

1.4

Removing and installing wiper arms

Removing
– Removing wiper arms

⇒ page 185

Installing

Note

Nuts of wiper arms are not tightened to specified torque until after

wiper blade park position has been adjusted.

– Deactivate APP function

⇒ page 181

 .

– To move wiper motor -V- to park position, switch wipers on and

off with ignition on.

– Insert wiper arms in approximate park position onto wiper arm

shafts and tighten nuts -arrows- by hand.

– Adjust windscreen wiper blade park position

⇒ page 188

 .

– Install the cover and the trim.

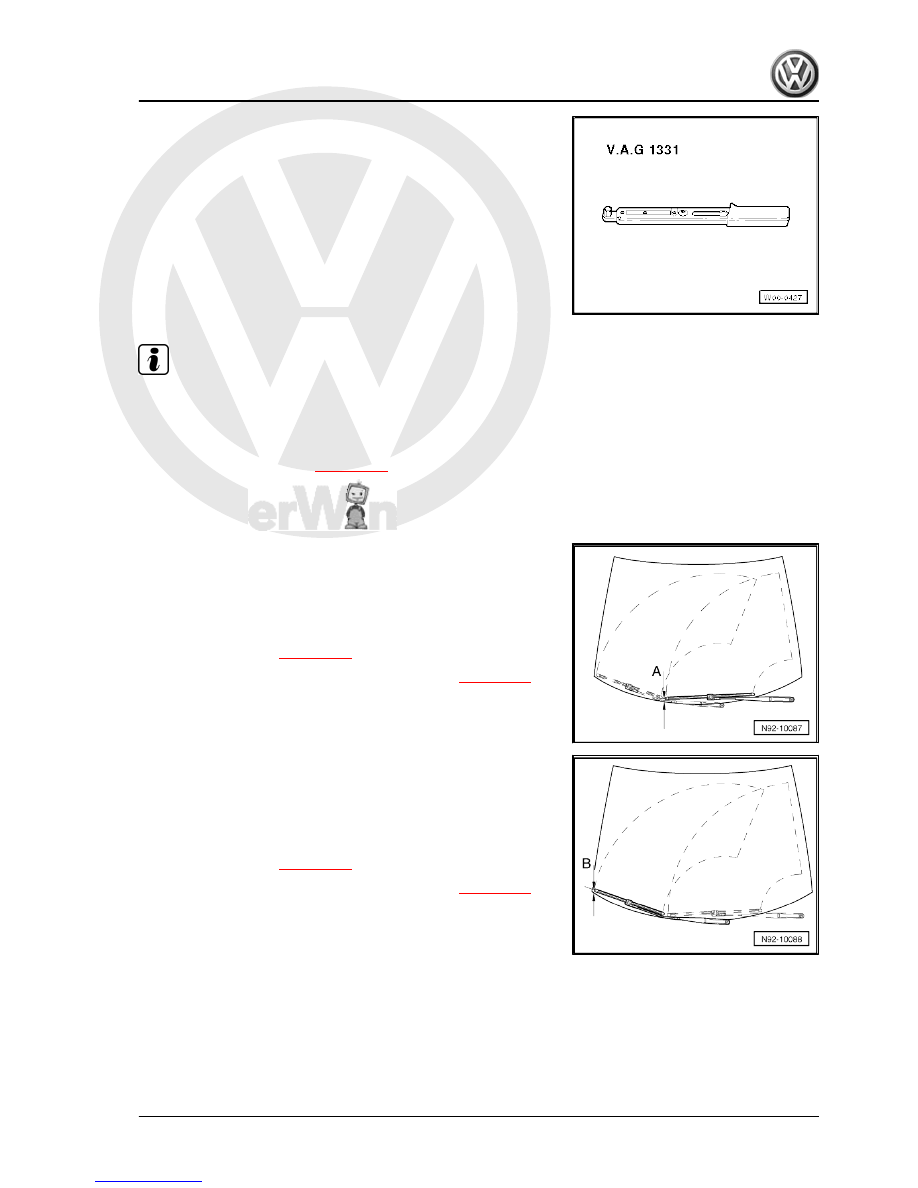

1.5

Adjusting wiper blade park position

Special tools and workshop equipment required

188



On RHD vehicles, the wiper blades are a mirror image of those

on LHD vehicles.

Procedure
– Deactivate APP function

⇒ page 181

 .

– Allow wiper to move to park position and then switch ignition

off.

– Now adjust windscreen wiper blade park position.
Driver side
Distance -A- between end of wiper blade and upper edge of ple‐

num chamber cover must be 10 mm.
– If necessary, adjust wiper blade park position by moving wiper

arm.

Removing wiper arms

⇒ page 185

– Tighten threaded connection to specified torque

⇒ page 183

 .

Front passenger side
Distance -B- between end of wiper blade and upper edge of ple‐

num chamber cover must be 10 mm.
– If necessary, adjust wiper blade park position by moving wiper

arm.

Removing wiper arms

⇒ page 185

– Tighten threaded connection to specified torque

⇒ page 183

 .

1. Windscreen wiper system

189
