Volkswagen Golf Variant / Jetta. Manual - part 803





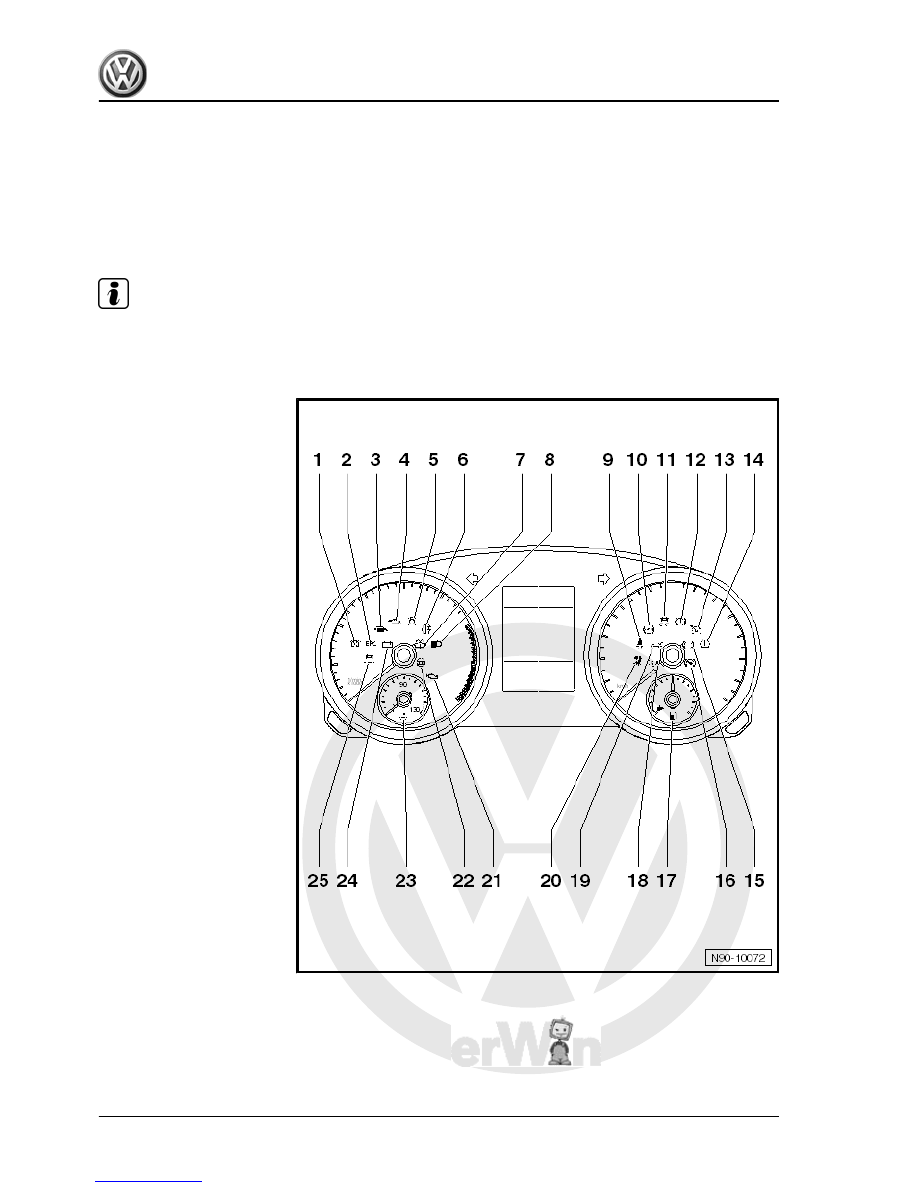

Warning lamp symbols on dash panel

insert (from MY2010)

Note

Different versions of dash panel insert are installed depending on

vehicle equipment. Therefore, the arrangement of the warning

lamps may differ.

1 - Glow period warning lamp -

K29-

❑ Only vehicles with die‐

sel engine

2 - Fault warning lamp for elec‐

tric accelerator mechanism -

K132-

❑ Only vehicles with petrol

engine

3 - Warning lamp for diesel par‐

ticle filter -K231-
4 - Oil pressure warning lamp -

K3-
5 - Bulb failure warning lamp -

K170-
6 - Warning lamp for rear fog

light -K13-
7 - Washer fluid level warning

lamp -K37-
8 - Main beam warning lamp -

K1-
9 - Seat belt warning system

warning lamp -K19-
10 - ABS warning lamp -K47-
11 - ESP and TCS warning

lamp -K155-
12 - Brake system warning

lamp -K118-
13 - Warning lamp for cruise

control system -K31-
14 - Tyre pressure monitor

warning lamp -K220-
15 - Brake pad warning lamp -K32-
16 - „Operate foot brake“ warning lamp

❑ Only vehicles with dual clutch gearbox (DSG)

178



1. Dash panel insert

179



2.1

Resetting service interval display

⇒ Maintenance ; Booklet  20.1 ; Descriptions of work

180



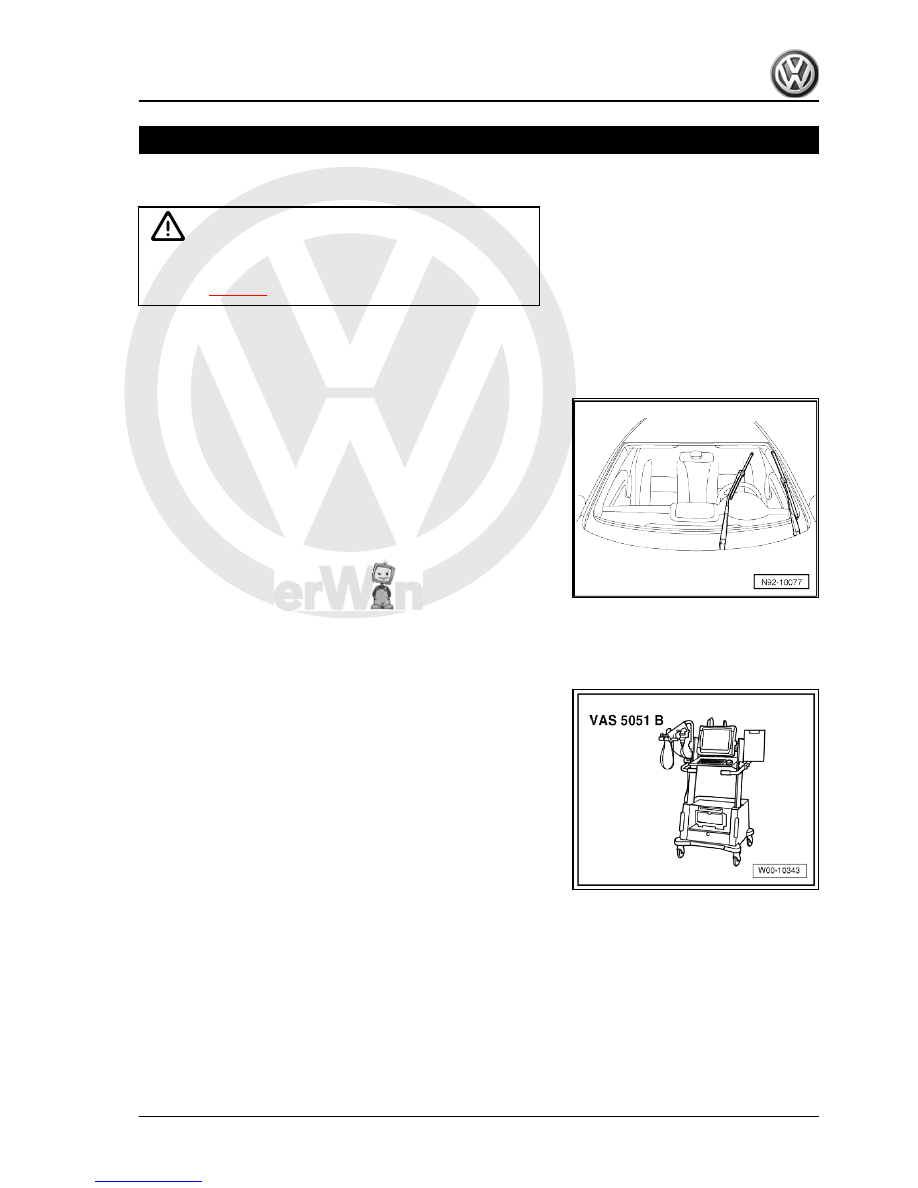

Windscreen wiper system

Caution

When battery -A- is disconnected and reconnected, the pro‐

cedure  described  in  the  workshop  manual  must  be  strictly

observed

⇒ page 4

 .

General description
The wiper motor control unit -J400- and the windscreen wiper

motor -V- are combined to form one unit.
To remove the wiper blades, the wiper arms should be placed in

the „service/winter position“. The „service/winter position“ is acti‐

vated within 10 seconds after ignition is switched off by pressing

the windscreen wiper lever in position „tip wipe“ ⇒  Operating

manual .
Fault detection and fault display
The on-board supply control unit -J519- is equipped with self-di‐

agnosis.
For fault finding, use vehicle diagnosis, testing and information

system -VAS 5051B- in „Guided fault finding“ mode.
Additional information ⇒  Operating instructions

1.1

Deactivating wiper motor control unit -

J400- APP function

Special tools and workshop equipment required
♦ Vehicle diagnosis, testing and information system -VAS

5051B-

The windscreen wiper system is equipped with an APP function

(alternating park position).
With the APP function, the wiper arm is moved up slightly once it

has reached the lowest position. This occurs every second time

the wiper system is switched off.
The wiper motor must be set to the bottom park position for at‐

taching the crank to the motor. This is done by deactivating the

APP function (coding wiper motor control unit -J400- ).

1. Windscreen wiper system

181
