⇒ page 88

 .

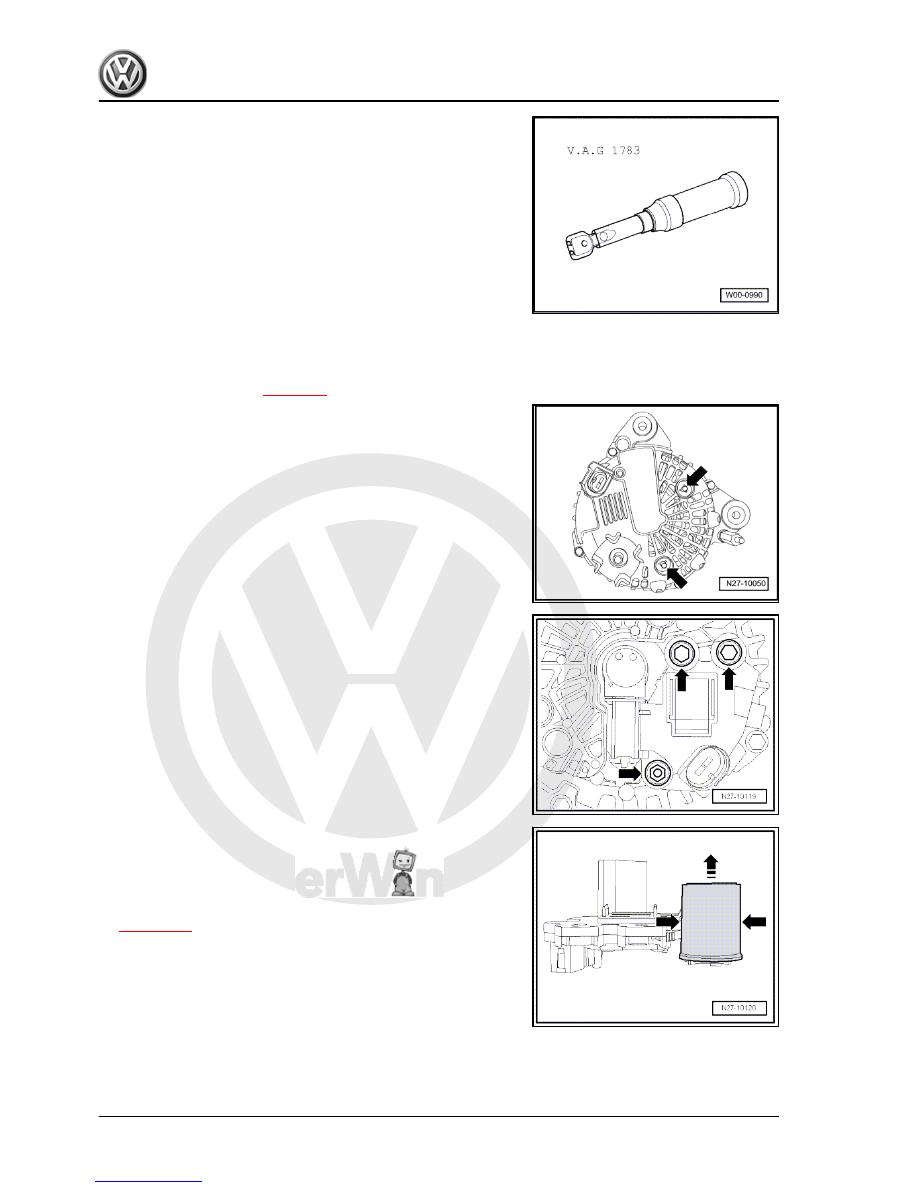

– Remove clamping rings -arrows- and detach protective cap

from alternator -C- .

– Remove bolts for voltage regulator -C1- -arrows-.
– Remove voltage regulator -C1- from alternator -C- .
Installing
Install in the reverse order of removal. When doing this, note the

following:

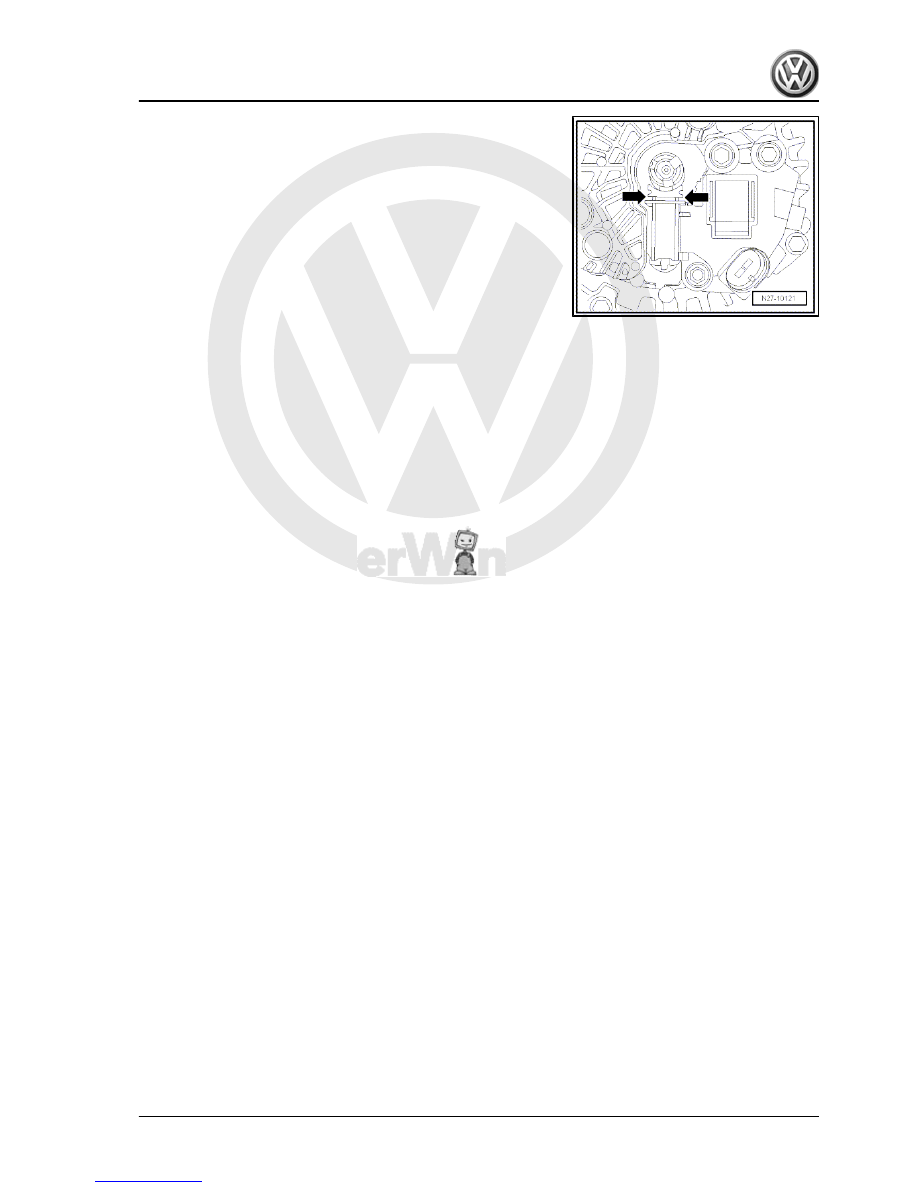

– Release locking lugs -arrows- and pull protective cap off volt‐

age regulator -C1- .

– Press carbon brushes into housing of voltage regulator -C1-

and insert voltage regulator -C1- in alternator -C- .

– Tighten threaded connections to specified torques

⇒ page 158

 .

170



7. Alternator C

171



All the instructions and information for this manual are found in

the workshop manual „Electrical System, General Information“. A

link to this workshop manual is not possible at present for tech‐

nical reasons. Please select the workshop manual „Electrical

System, General Information“ manually in ELSA.

172



Dash panel insert

General description
The following components are integrated in the dash panel insert:
♦ Control unit in dash panel insert -J285-
♦ immobiliser control unit -J362-
♦ Speedometer -G21-
♦ Rev. counter -G5-
♦ Fuel gauge -G1-
♦ Coolant temperature gauge -G3-
♦ Multifunction display
♦ Warning lamps

⇒ page 176

To provide acoustic support to some of the visual displays, the

dash panel features a warning buzzer, which is actuated by the

control unit in dash panel insert -J285- .
All warning lamps are fitted with light-emitting diodes (LEDs). No

provision is made for dash panel insert repair. If necessary, the

dash panel insert is renewed as a unit

⇒ page 173

 .

The data bus diagnostic interface -J533- is an individual control

unit and not part of the dash panel insert

⇒ page 467

 , unlike on

several other vehicles.
Fault detection and fault display
The dash panel insert is equipped with self-diagnosis.
For fault finding, use vehicle diagnosis, testing and information

system -VAS 5051B- in „Guided fault finding“ mode.

1.1

Renewing dash panel insert

The procedure „Renewing dash panel insert“ covers the following

additional tasks:
♦ If a new dash panel insert is installed in the vehicle, the control

unit in dash panel insert -J285- must be adjusted to the differ‐

ent equipment features and associated country settings.

♦ To adapt integrated immobiliser control unit -J362- to engine

control unit -J623- , data from engine control unit -J623- must

be stored in replacement dash panel insert.

♦ Furthermore, if a new dash panel insert is installed, all ignition

keys must be adapted.

Special tools and workshop equipment required

1. Dash panel insert

173
