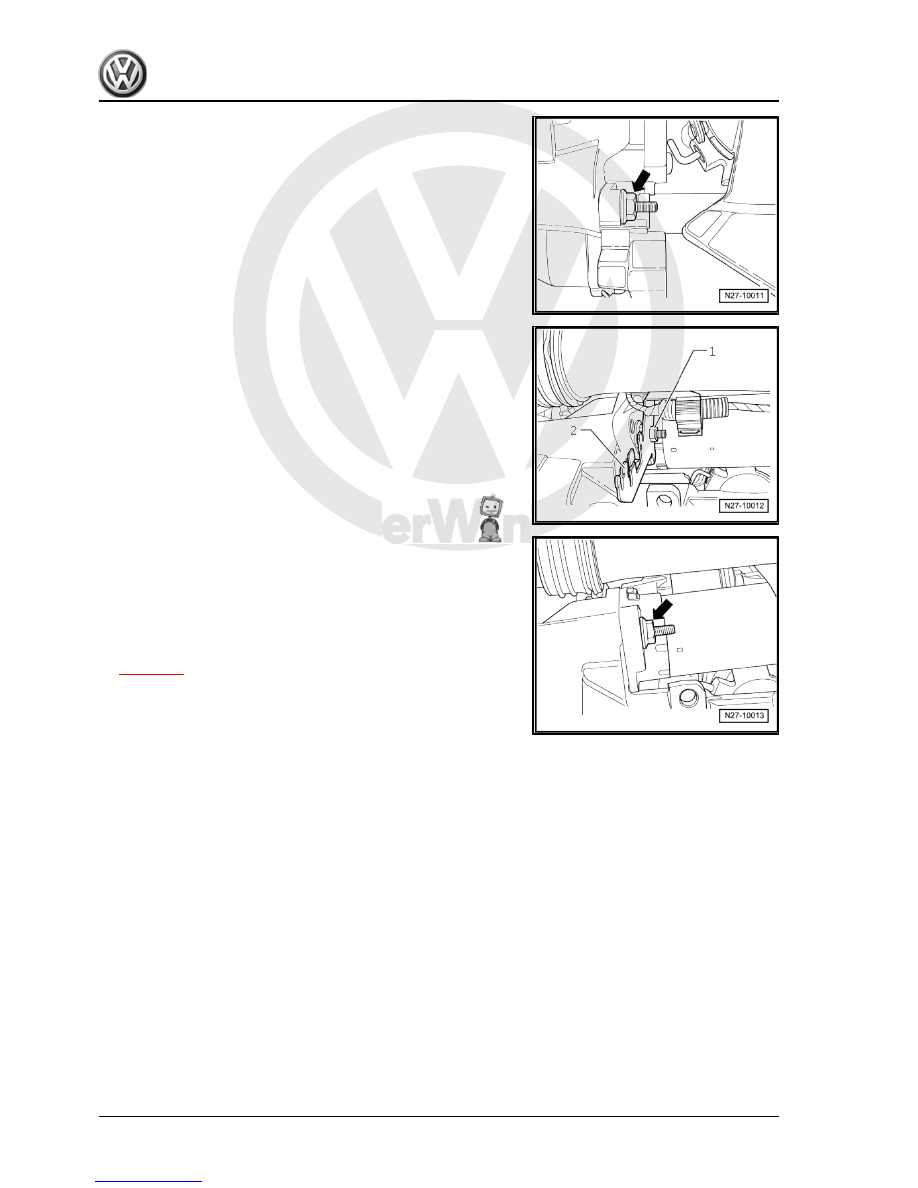

– Remove nut -1- from lower starter bolt.
– Remove wiring retainer -2-.

– Unscrew starter bolt -arrow-.
– Lower starter -B- out of vehicle.
Installing
Install in the reverse order of removal. When doing this, note the

following:
– Tighten threaded connections to specified torques

⇒ page 14

 .

34



(DSG)

6.3.1

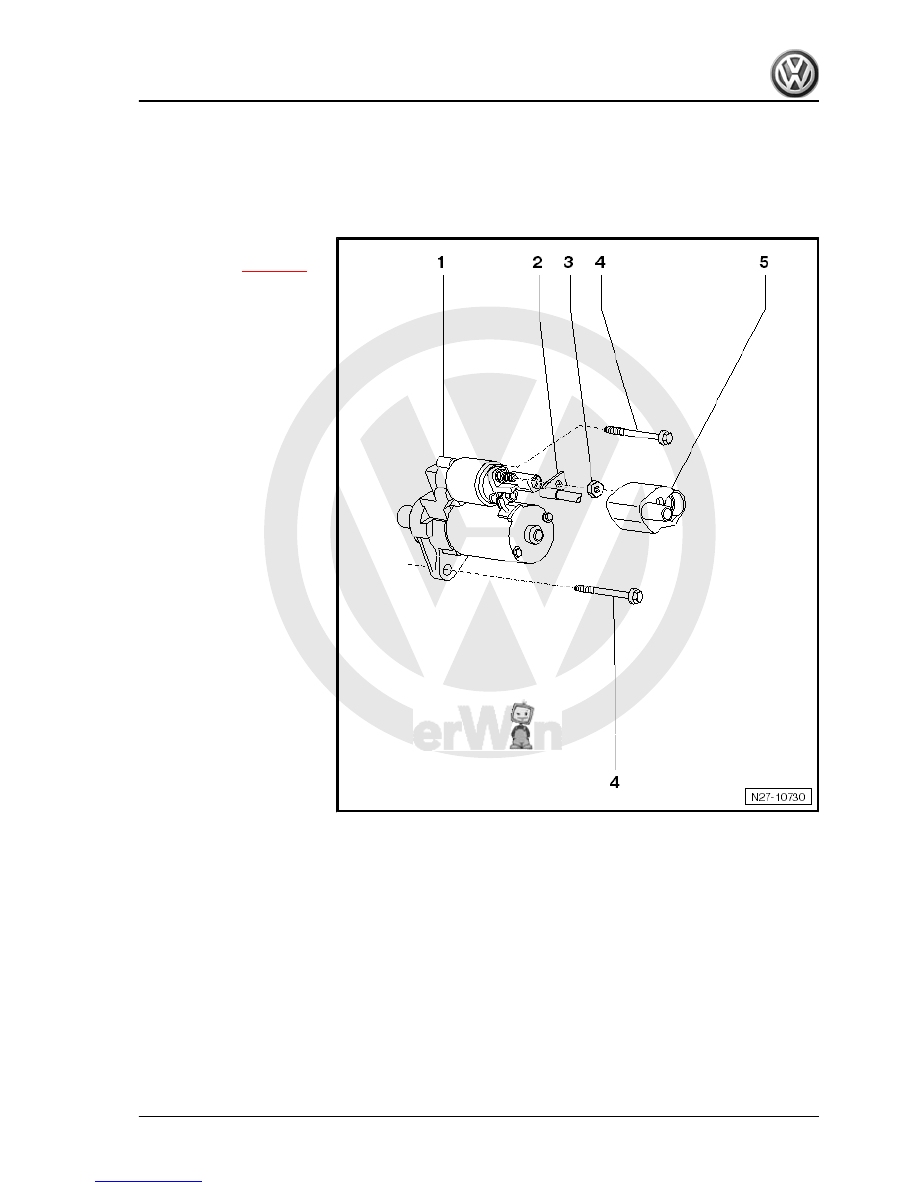

Assembly overview - starter -B-

1 - Starter -B-

❑ Checking

⇒ page 13

2 - Battery positive wire con‐

nection to starter -B-
3 - Nut

❑ 20 Nm

4 - Bolt

❑ M12 = 75 Nm
❑ M10 = 40 Nm

5 - Protective cap

Not illustrated
♦ Air filter housing bolt to body: 10 Nm

6.3.2

Vehicles with 1.4l TSI engine (90kW)

Special tools and workshop equipment required

6. Starter B

35



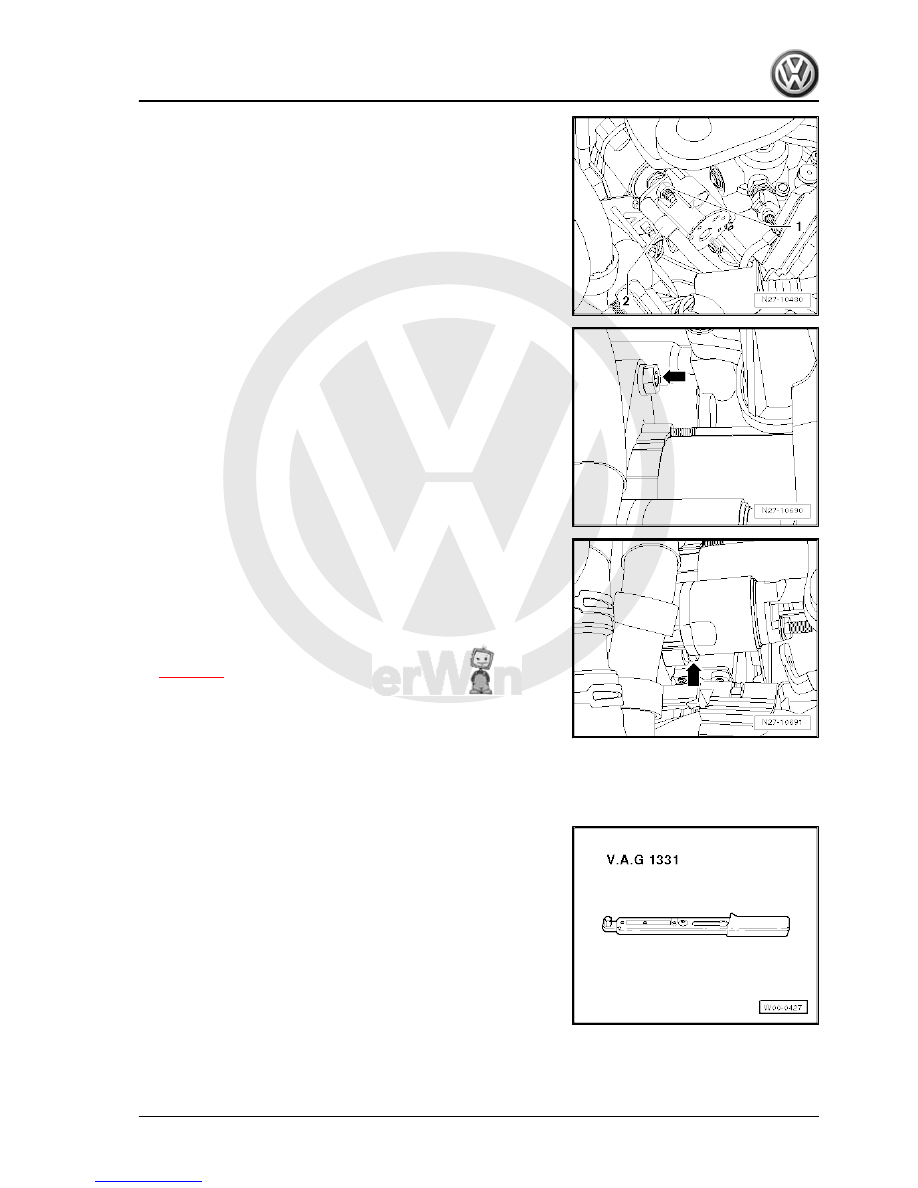

Carry out following procedures:
Removing
– Disconnect battery -A-

⇒ page 4

 .

– Remove air filter housing ⇒  Engine; Rep. gr.  24 .
– Release and disconnect connector -1-.

– Slide protective cap -1- off solenoid switch in direction of

-arrow-.

36



– Remove upper bolt -arrow- from starter.

– Remove lower bolt -arrow- from starter.
– Lift starter -B- -1- upwards out of vehicle.
Installing
Install in the reverse order of removal. When doing this, note the

following:
– Tighten threaded connections to specified torques

⇒ page 35

 .

6.3.3

Vehicles with 1.4l TSI engine (103kW/

125kW)

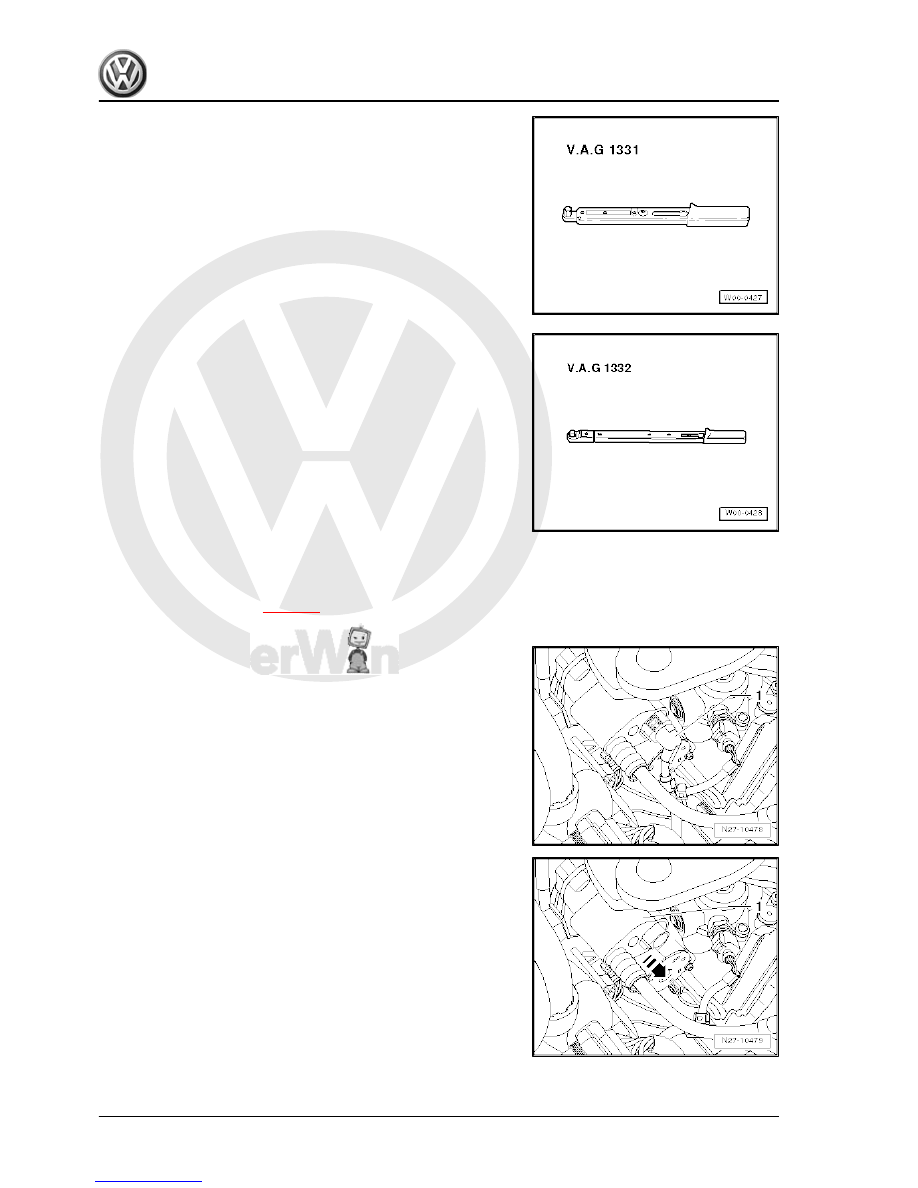

Special tools and workshop equipment required
♦ Torque wrench -V.A.G 1331-

6. Starter B

37
