– Remove noise insulation ⇒  General body repairs, exterior;

Rep. gr.  50 .

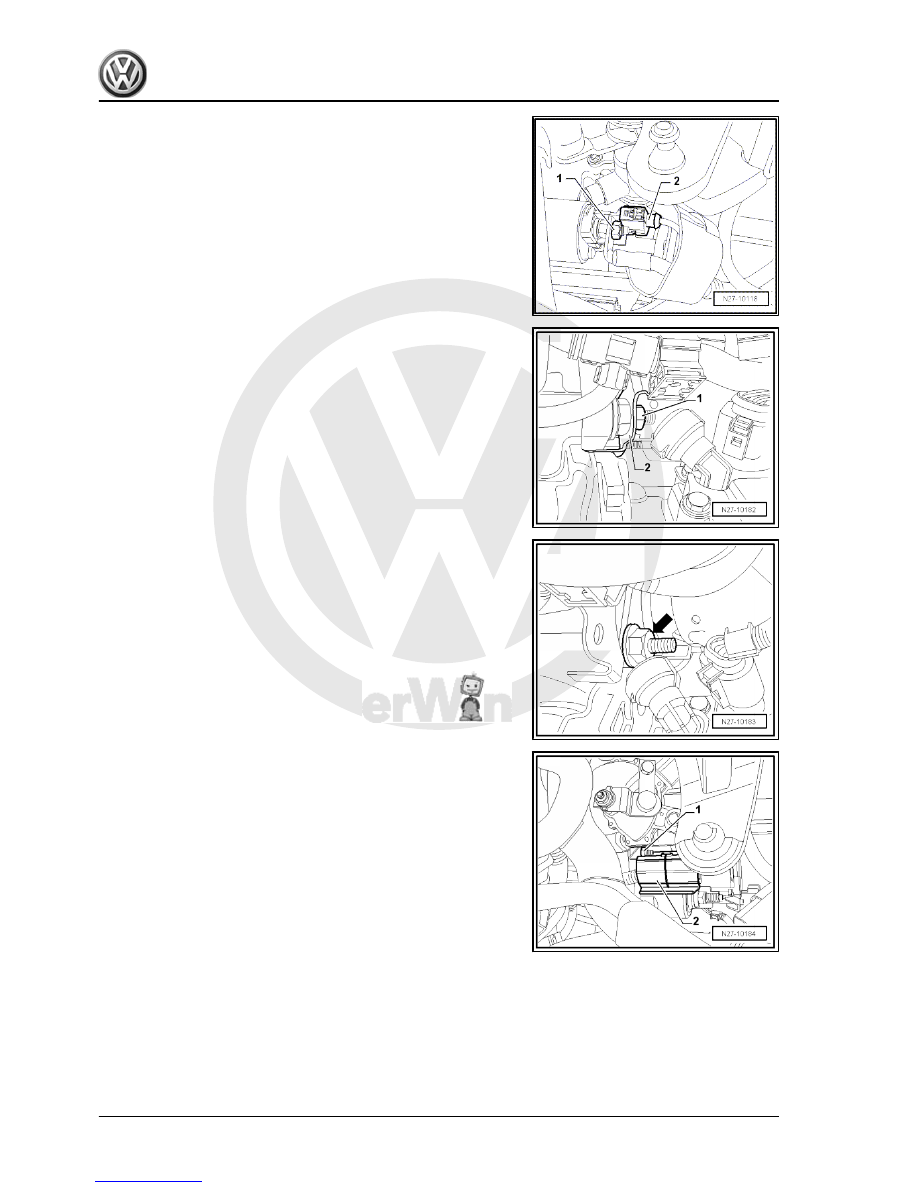

– Remove nut -1- from lower starter bolt.
– Remove wiring retainer -2-.

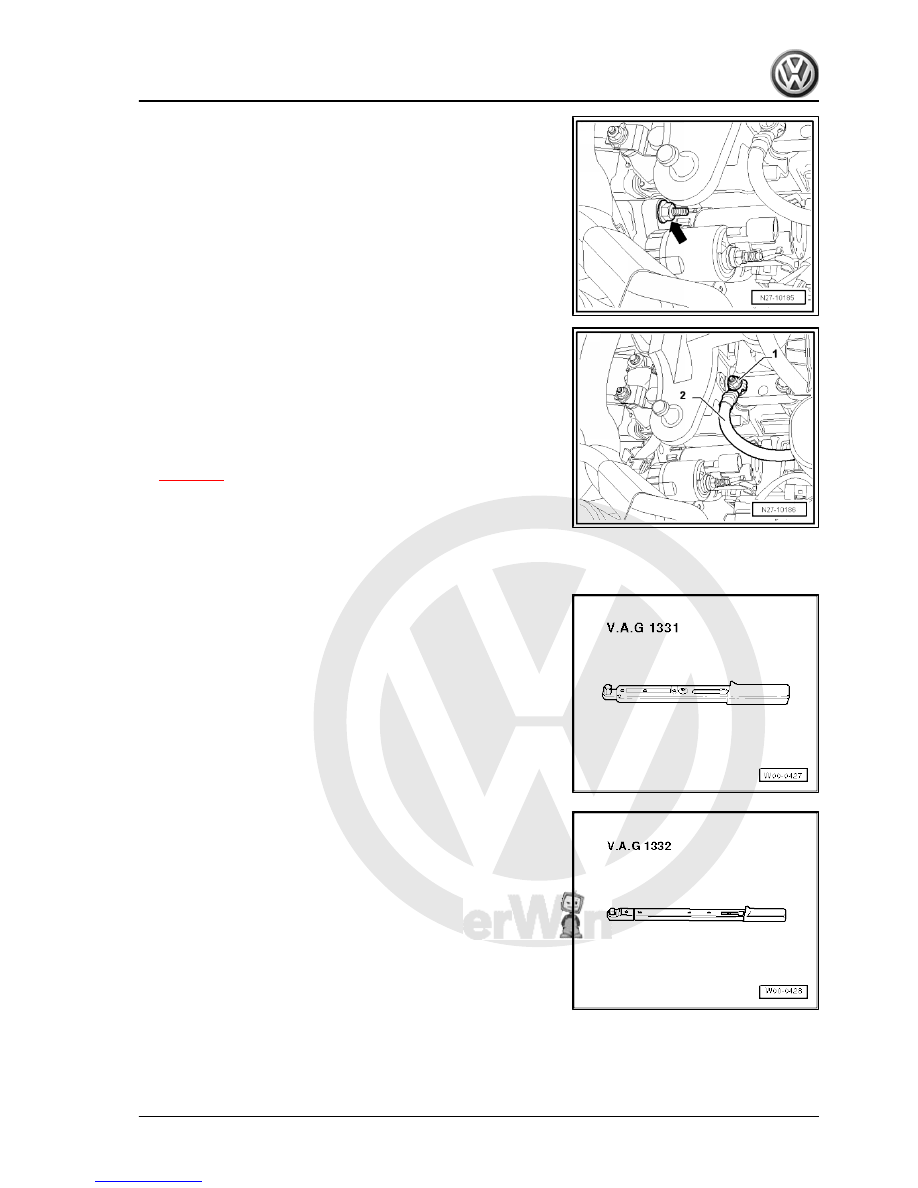

– Remove lower bolt -arrow- from starter.

– Remove nut -1- from upper starter bolt.
– Remove wiring retainer -2-.

30



to one side in direction of battery -A- .

– Remove starter -B- from vehicle upwards.
Installing
Install in the reverse order of removal. When doing this, note the

following:
– Tighten threaded connections to specified torques

⇒ page 14

 .

6.2.7

Vehicles with 2.0l SDI engine

Special tools and workshop equipment required
♦ Torque wrench -V.A.G 1331-

♦ Torque wrench -V.A.G 1332-

6. Starter B

31



⇒ page 4

 .

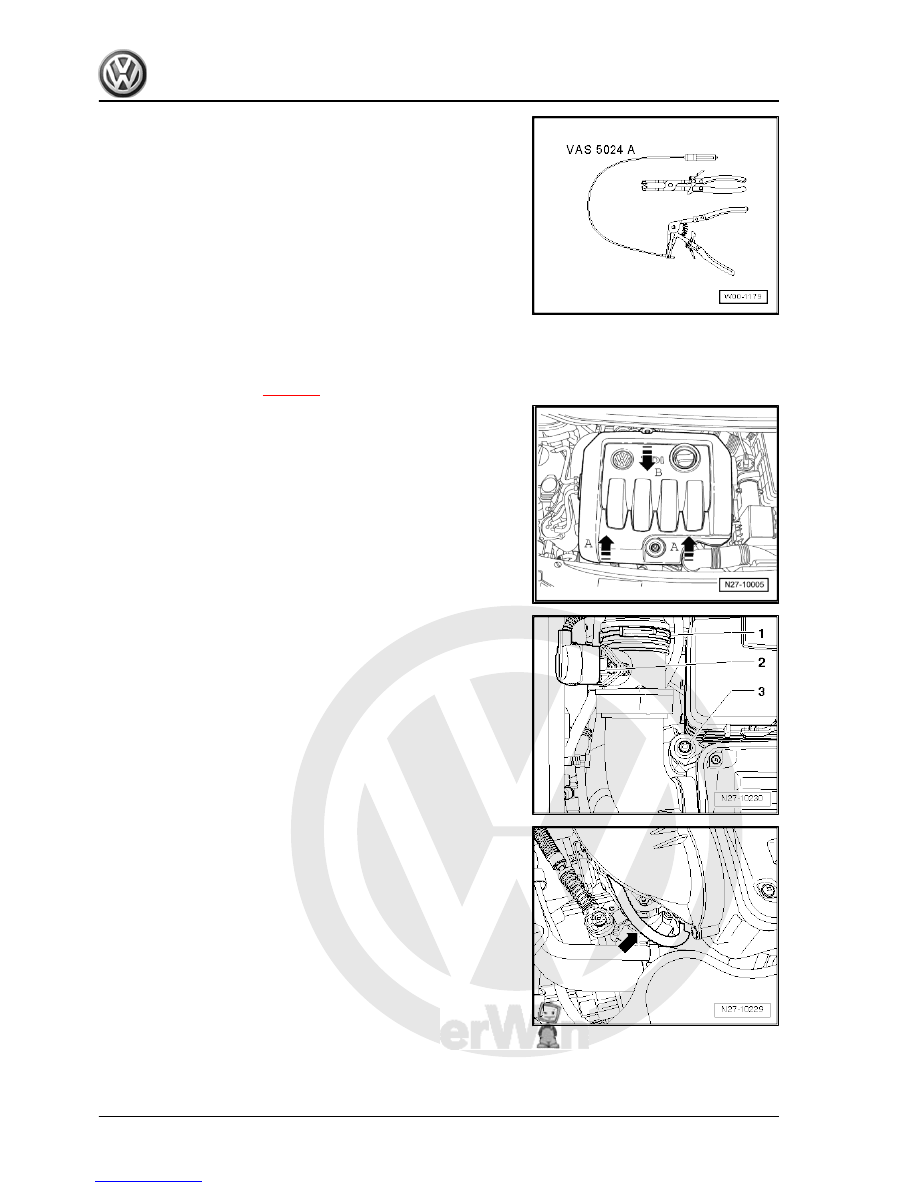

– Pull engine cover upwards -arrows A- and forwards

-arrow B-.

– Loosen spring-type clip -1- using spring-type clip pliers -VAS

5024A- and disconnect connector -2-.

– Remove bolt -3-.

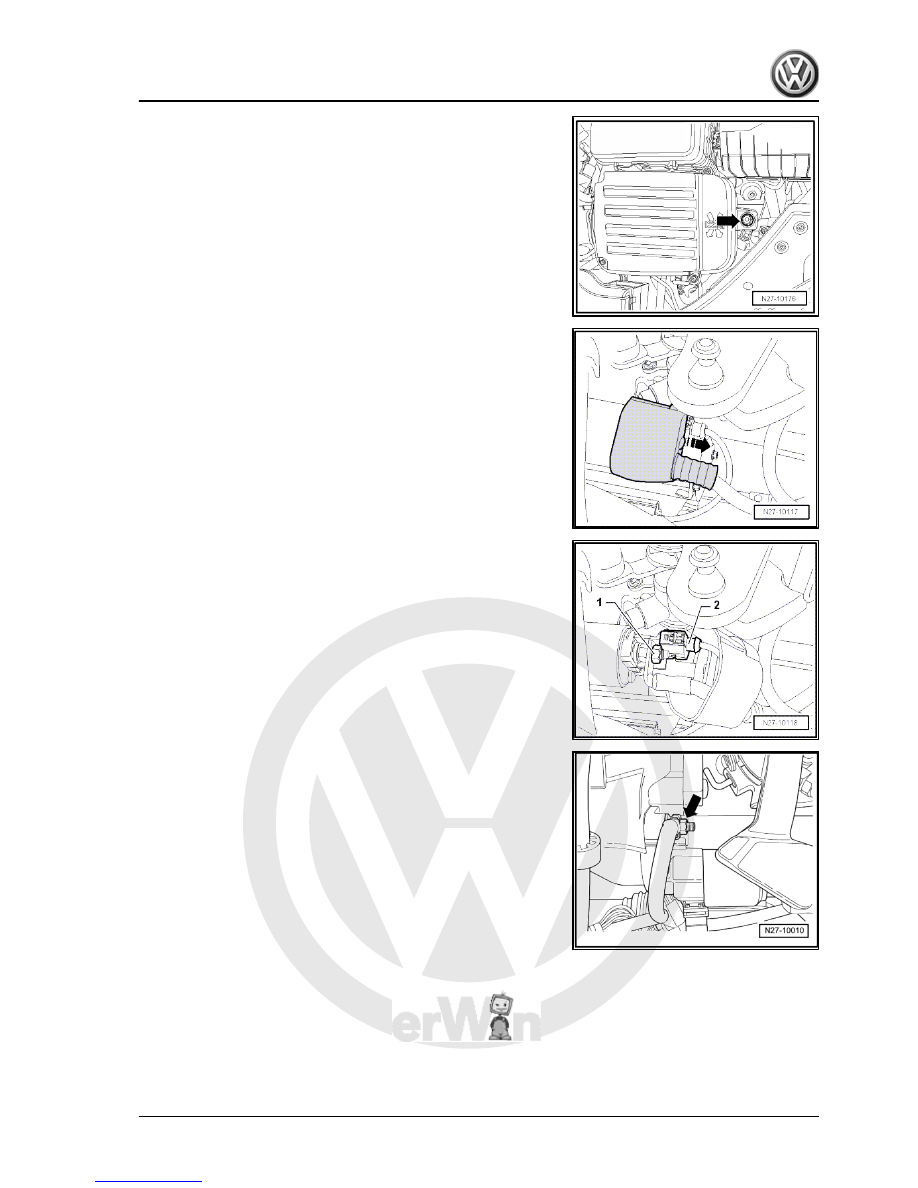

– Pull off vacuum hose -arrow-.

32



– Take air filter housing out of vehicle.

– Slide protective cap in direction of -arrow- off solenoid switch.

– Unscrew positive wire -1- and disconnect connector from ter‐

minal 50 -2-.

– Unscrew earth wire from starter bolt -arrow-.

6. Starter B

33
