Volkswagen Golf Variant / Jetta. Manual - part 761





⇒ page 4

 .

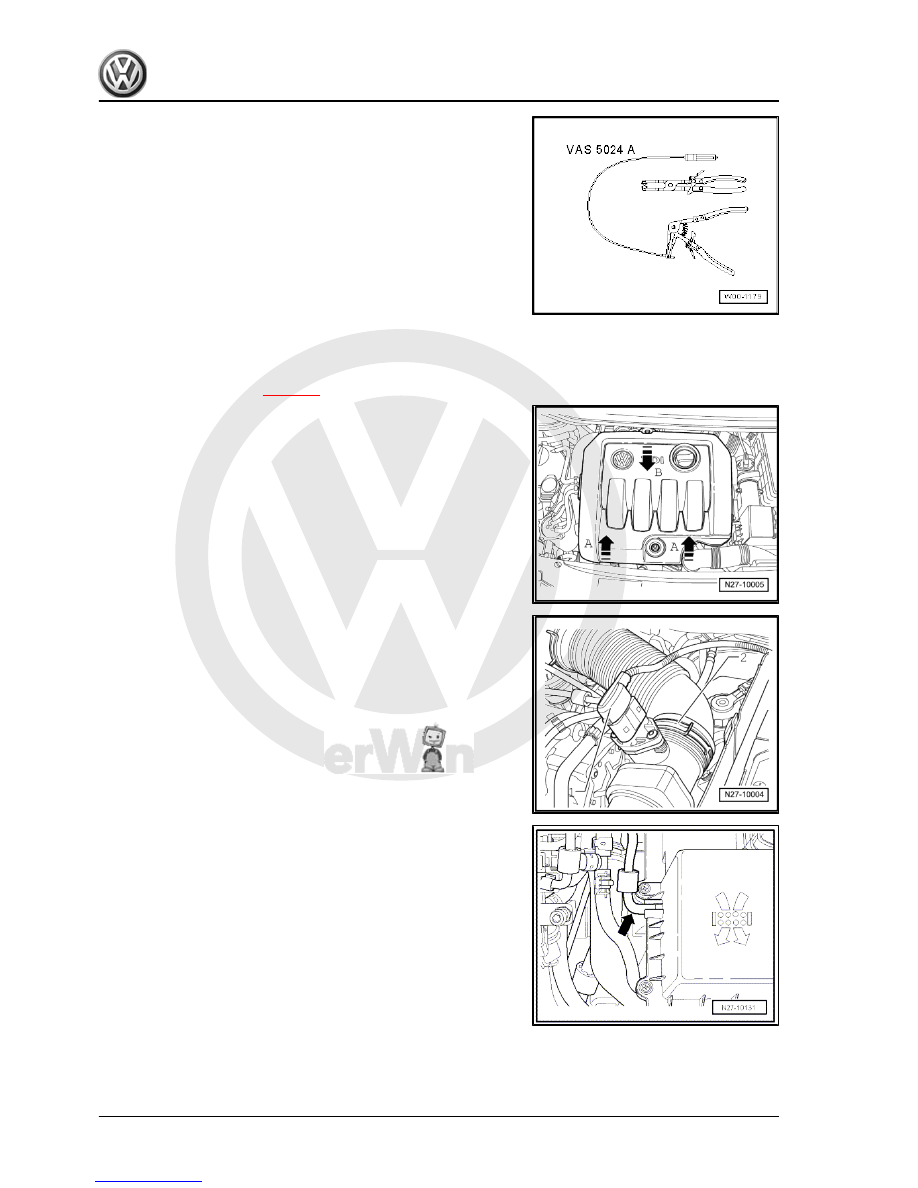

– Pull engine cover upwards -arrows A- and forwards

-arrow B-.

– Disconnect connector -1- and release spring-type clip -2- us‐

ing spring type clip pliers -VAS 5024A- .

– Pull vacuum hose -arrow- off air filter housing.

10

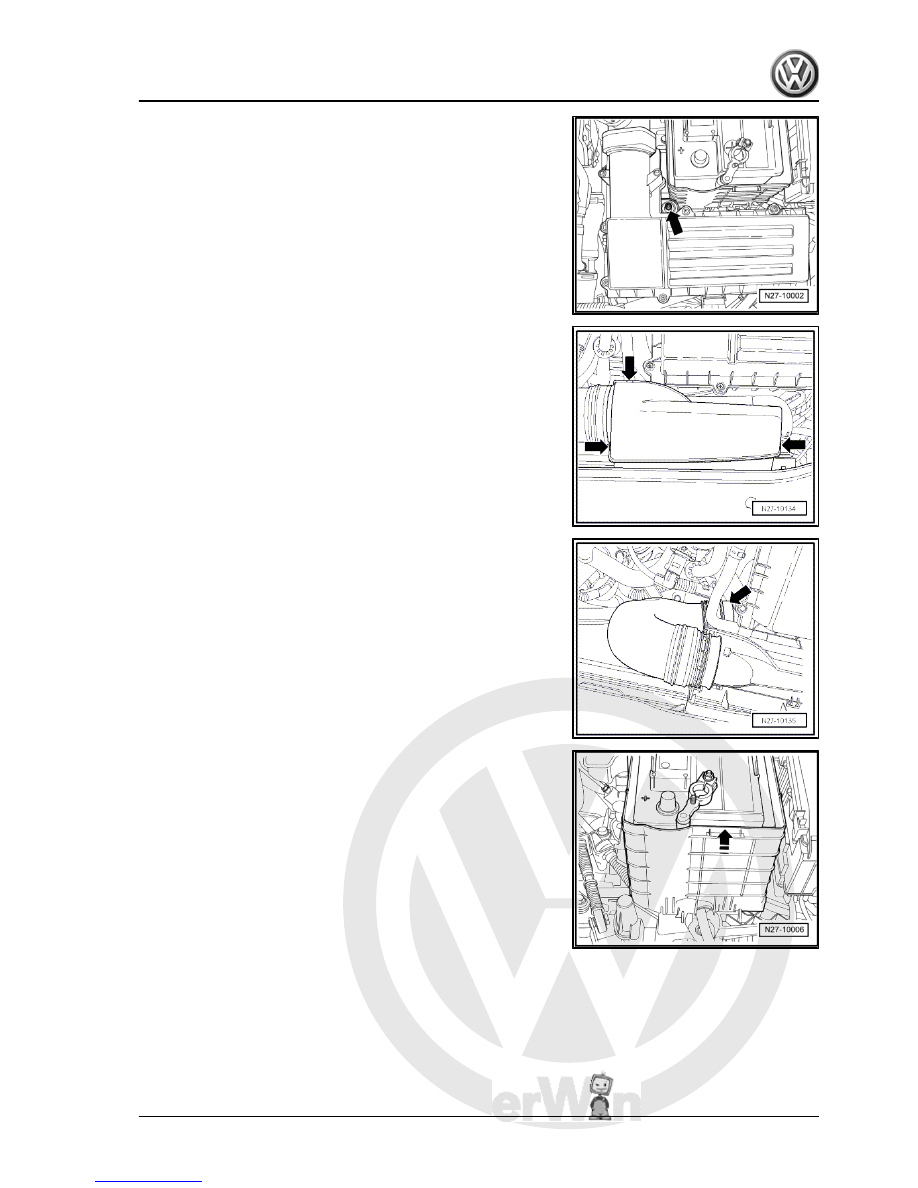

– Pull hose -arrow- off air filter housing and remove.
– Pull air filter housing upwards out of brackets and remove.

– Pull panel of battery housing out upwards

-in direction of arrow-.

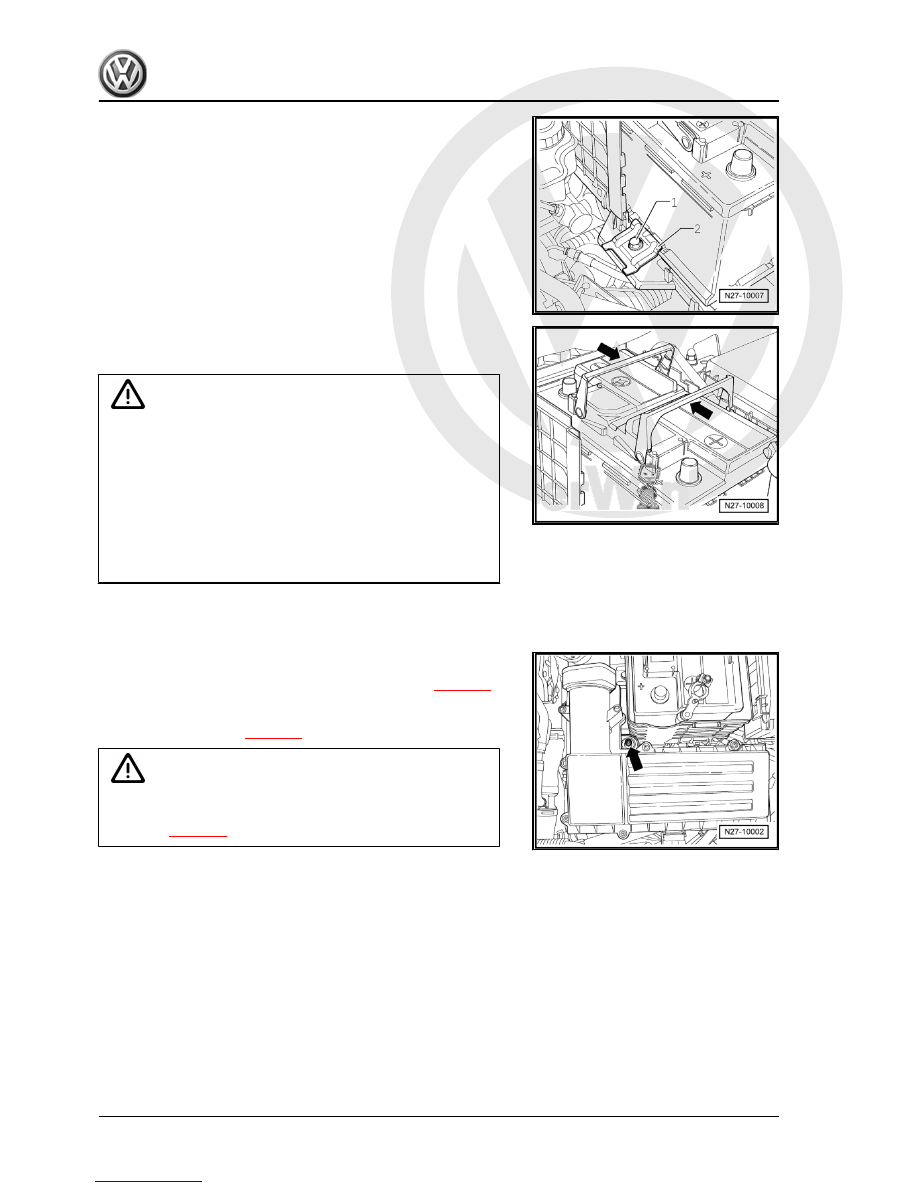

5. Removing and installing battery A

11



Caution

A loosely fitted battery -A- creates the following dangers:

♦ Shortened service life due to damage from vibration (dan‐

ger of explosion)

♦ The cells in the battery -A- will be damaged if the battery

-A- is not secured correctly.

♦ Damage to battery housing due to clamping plate (possi‐

bility of acid leaking, with high consequential costs)

♦ Poor crash safety

Carry out installation in the reverse sequence, noting the follow‐

ing:

– Tighten bolt for air filter housing -arrow- to 10 Nm.
– Tighten threaded connections to specified torques

⇒ page 7

 .

– After installing, check that battery -A- is seated securely.
– Connect battery -A-

⇒ page 4

 .

Caution

When battery -A- is disconnected and reconnected, the pro‐

cedure  described  in  the  workshop  manual  must  be  strictly

observed

⇒ page 4

 .

12



Caution

When battery -A- is disconnected and reconnected, the pro‐

cedure  described  in  the  workshop  manual  must  be  strictly

observed

⇒ page 4

 .

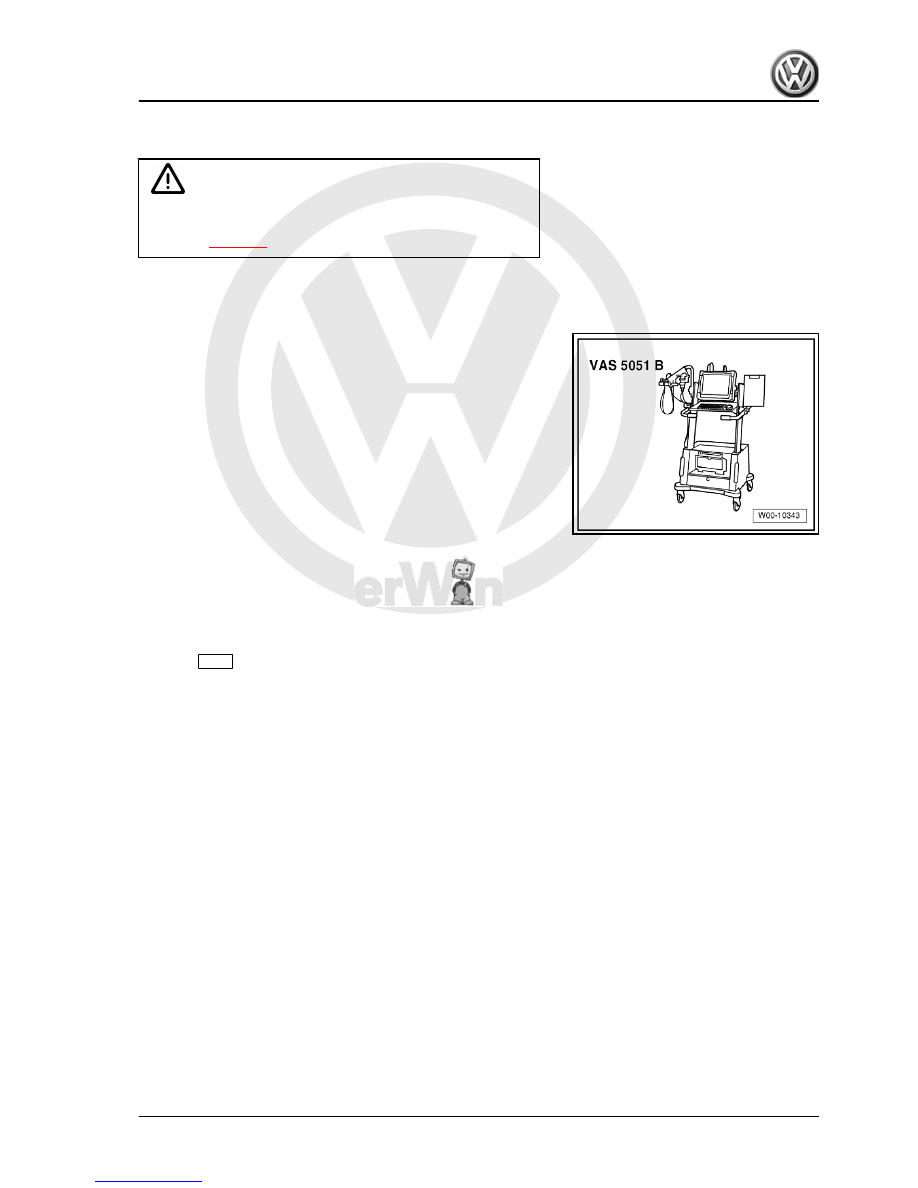

6.1

Checking starter -B-

Special tools and workshop equipment required
♦ Vehicle diagnosis, testing and information system -VAS

5051B-

Carry out following procedures:
– Connect vehicle diagnosis, testing and information system -

VAS 5051B- .

In vehicle diagnosis, testing and information system -VAS

5051B- , select „Guided fault finding“.
– Using

GoTo

 button, select „Functions/component“ and the fol‐

lowing menu options in succession:

♦ Body
♦ Electrical system
♦ 27 - Starter, current supply
♦ Electrical components
♦ B - Starter

6. Starter B

13
