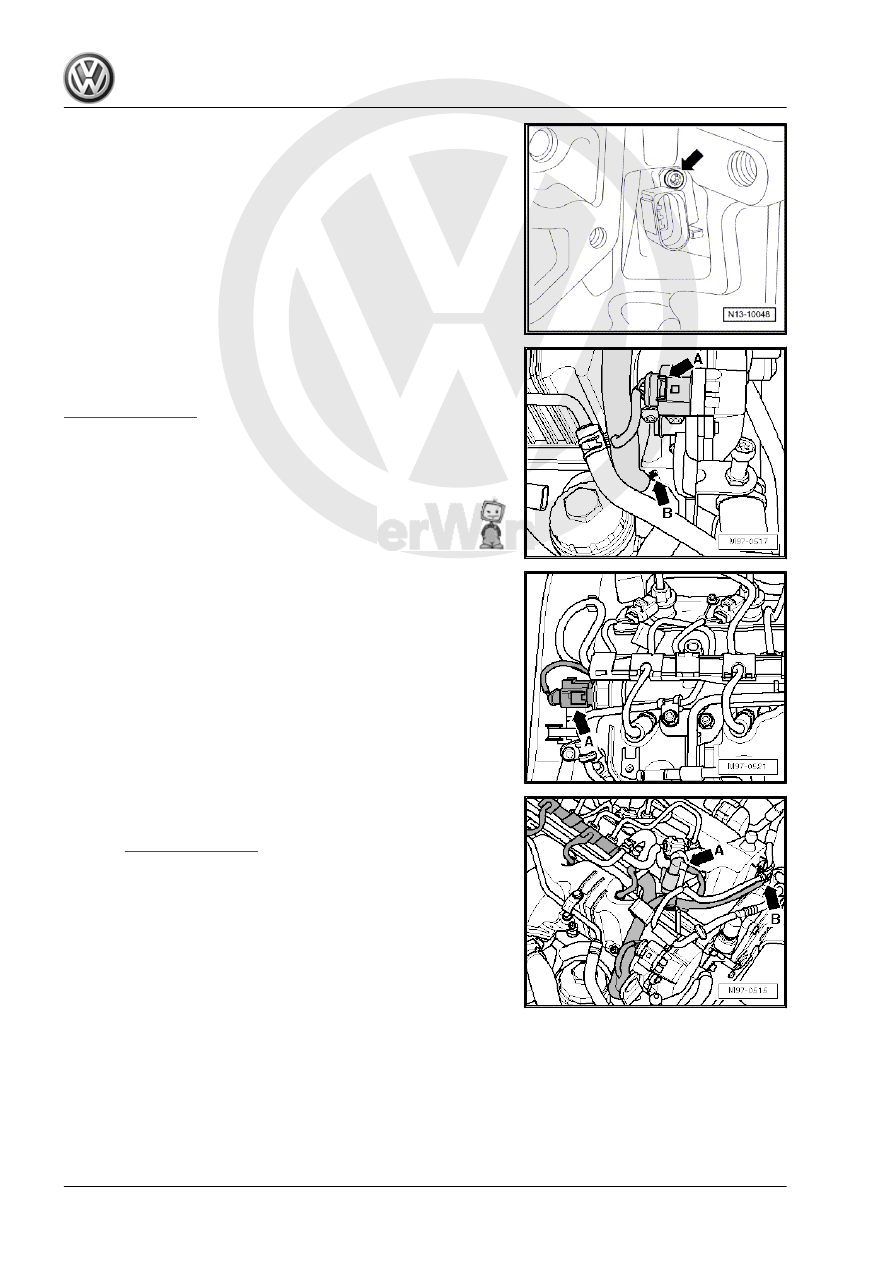

– Detach connector from intake manifold flap motor -V157-

-arrow A-.

Installation location intake manifold flap motor -V157-

⇒ Item 1 (page 496)

– Pull wiring harness out of bracket -arrow B-.

– Pull off connector from fuel pressure sender -G247-

-arrow A-.

– Unclip wiring harness from bracket -arrow B-.
– Remove nut from fuel line -arrow D-.
– Pull cable guide off rail element (high-pressure accumulator)

-arrow C-.

– Pull off connector from fuel pressure regulating valve -N276-

-arrow A-.

Location

⇒ Item 5 (page 492)

 .

502

⇒ Item 1 (page 492)

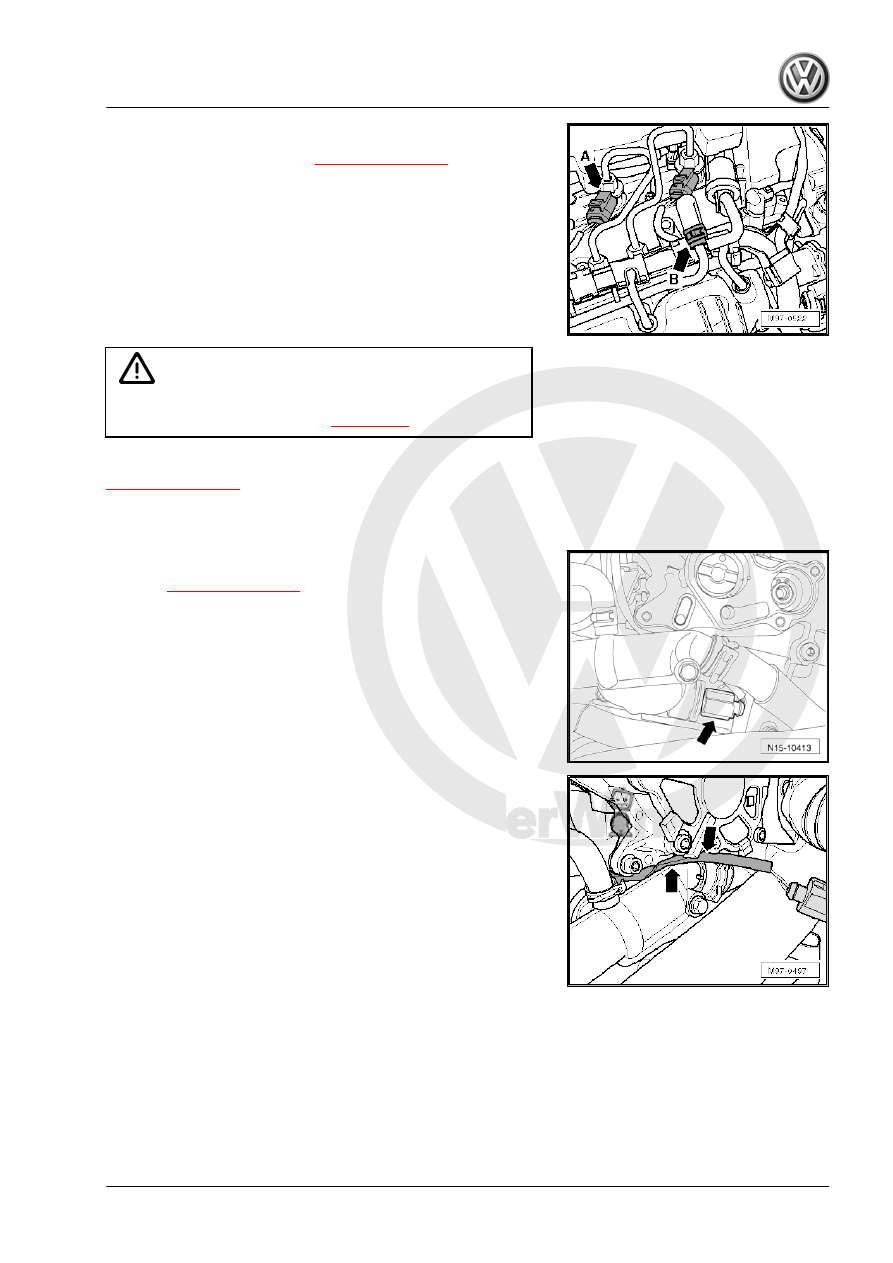

– Loosen spring-type clip -arrow B- with spring-type clip pliers -

VAS 6362- and pull line off rail element (high-pressure accu‐

mulator).

– Pull off line -arrow C-.
– Prior to removal, clean return line connection on injectors (us‐

ing commercially available cold cleaning agents).

– Dry the return line connections.
– Pull connectors off all glow plugs.

Caution

It is essential to comply with working sequence »Removing and

installing glow plug connectors«

⇒ page 492

 !

Installation location of connectors from glow plugs

⇒ Item 8 (page 492)

– Pull wiring harness with cable guide off rail element and slide

out wiring harness.

– Pull connector -arrow- off coolant temperature sender -G62- .
Location

⇒ Item 7 (page 495)

 .

– Slide out cable -arrows-.

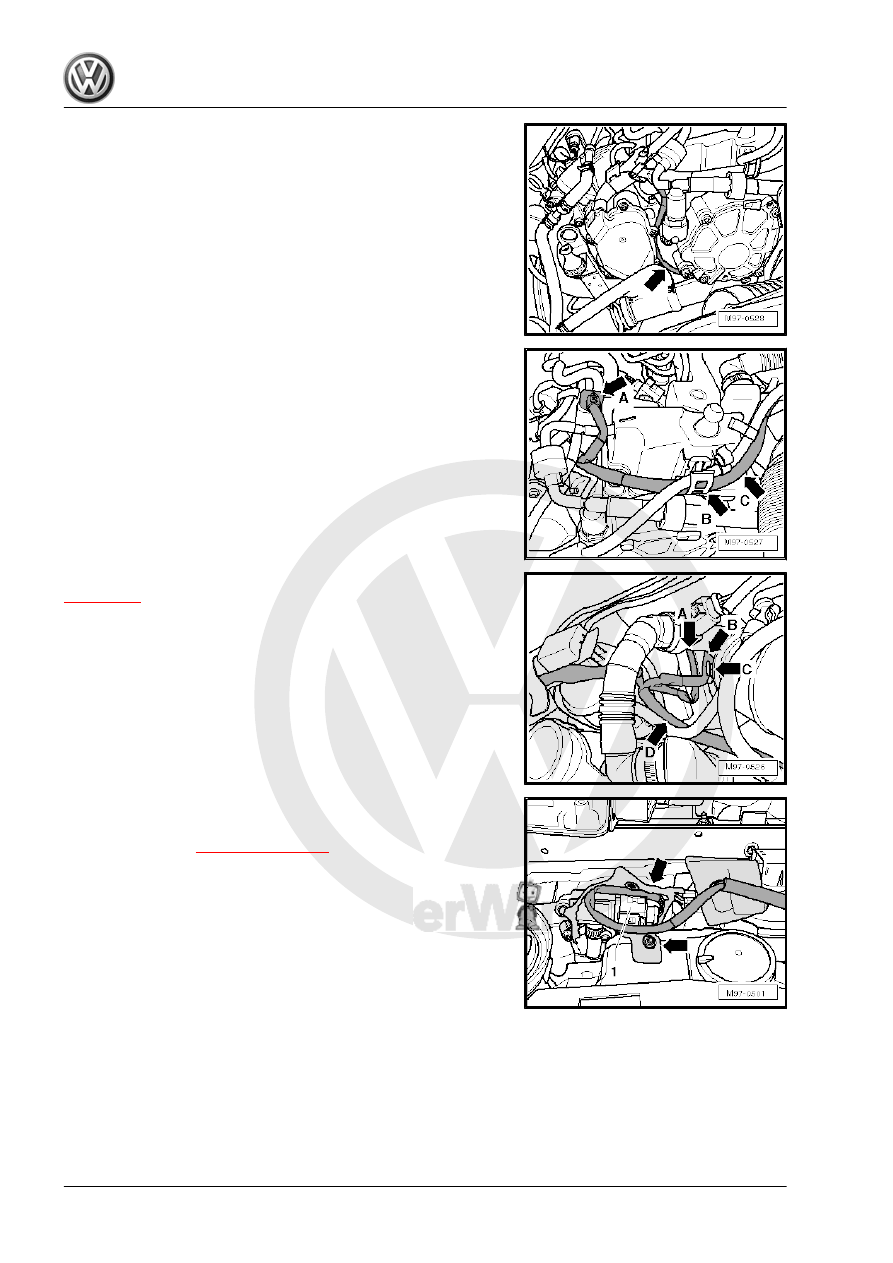

7. Removing and installing engine wiring harness

503

-G62- -arrow-.

-Arrow C- shows wiring harness to following components:
♦ Exhaust gas pressure sensor 2 -G451-
♦ Position sender for charge pressure positioner -G581-
♦ Exhaust gas recirculation valve 2 -N213-
♦ Exhaust gas recirculation temperature sensor -G98-
– Slide out wiring harness from bracket -arrow B-.

-Arrow D- wiring harness from „bracket on cylinder head cover“.

⇒ page 504

-Arrow A- wiring harness to exhaust gas recirculation temperature

sensor -G98- .
-Arrow B- wiring harness to exhaust gas recirculation valve 2 -

N213-
-Arrow C- bracket for exhaust gas recirculation valve 2 -N213-

cable.

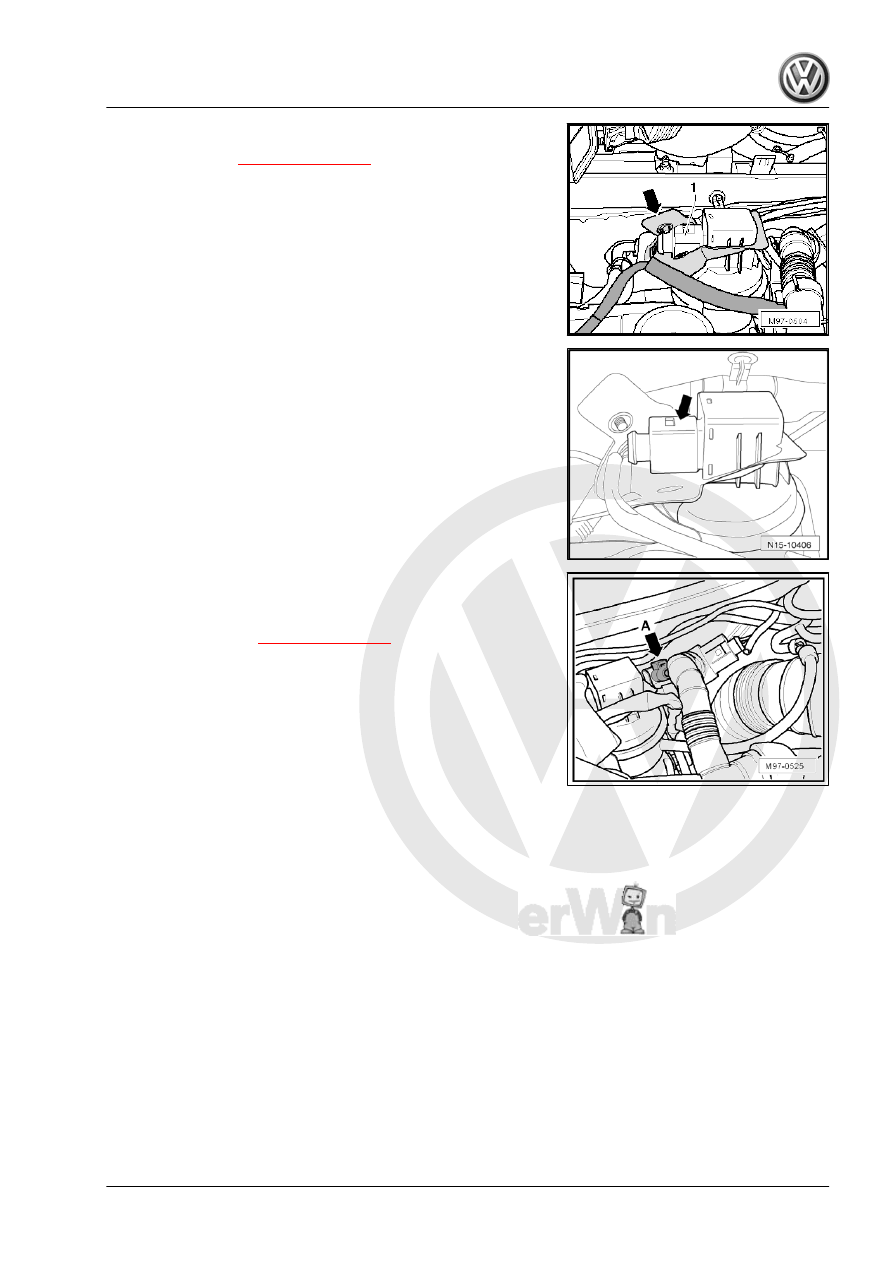

– Clip on heat insulation -arrows- and pull off connector from

exhaust gas pressure sensor 2 -G451- -1-.

Installation position

⇒ Item 2 (page 495)

504

⇒ Item 3 (page 492)

– Pull off connector from position sender for charge pressure

positioner -G581- -arrow- on pressure socket from turbocharg‐

er and slide cable out of brackets.

– Pull off connector from exhaust gas recirculation temperature

sensor -G98- -arrow A- and slide out cable.

Installation position of connector exhaust gas recirculation tem‐

perature sensor -G98-

⇒ Item 1 (page 495)

7. Removing and installing engine wiring harness

505
