Volkswagen Golf Variant / Jetta. Manual - part 746





motor -V295-

♦ Left fog light bulb -L22- / right fog light bulb -L23-
♦ Right reversing light bulb -M17- / left reversing light bulb -M16-
♦ Left brake light bulb -M9- / right brake light bulb -M10- / addi‐

tional brake light bulb -M25-

♦ Rear left fog light bulb -L46- / rear right fog light bulb -L47-
♦ Front left turn signal bulb -M5- / rear left turn signal bulb -M6-
♦ Front right turn signal bulb -M7- / rear right turn signal bulb -

M8-

♦ Number plate light -X-
♦ Dimmed interior light
♦ Instrument lighting of all keys and switches and the dash panel

insert

♦ Terminal 30 voltage supply relay -J317-
♦ LED heated rear window / heated rear window
♦ LED heated exterior mirrors / heated exterior mirrors
♦ Release of sliding/tilting sunroof
♦ Release of seat heating
♦ Fuel pump relay -J17-
♦ Headlight washer system relay -J39- / headlight washer sys‐

tem pump -V11-

♦ Windscreen wipers
♦ Wiper module change direction point
♦ Washer pump -V5-
♦ Dual tone horn relay -J4- / treble horn -H2- / bass horn -H7-
♦ Left cornering light bulb -L148- / right cornering light bulb -

L149-

♦ Heated windscreen -Z2-
♦ Luggage compartment lock
Procedure

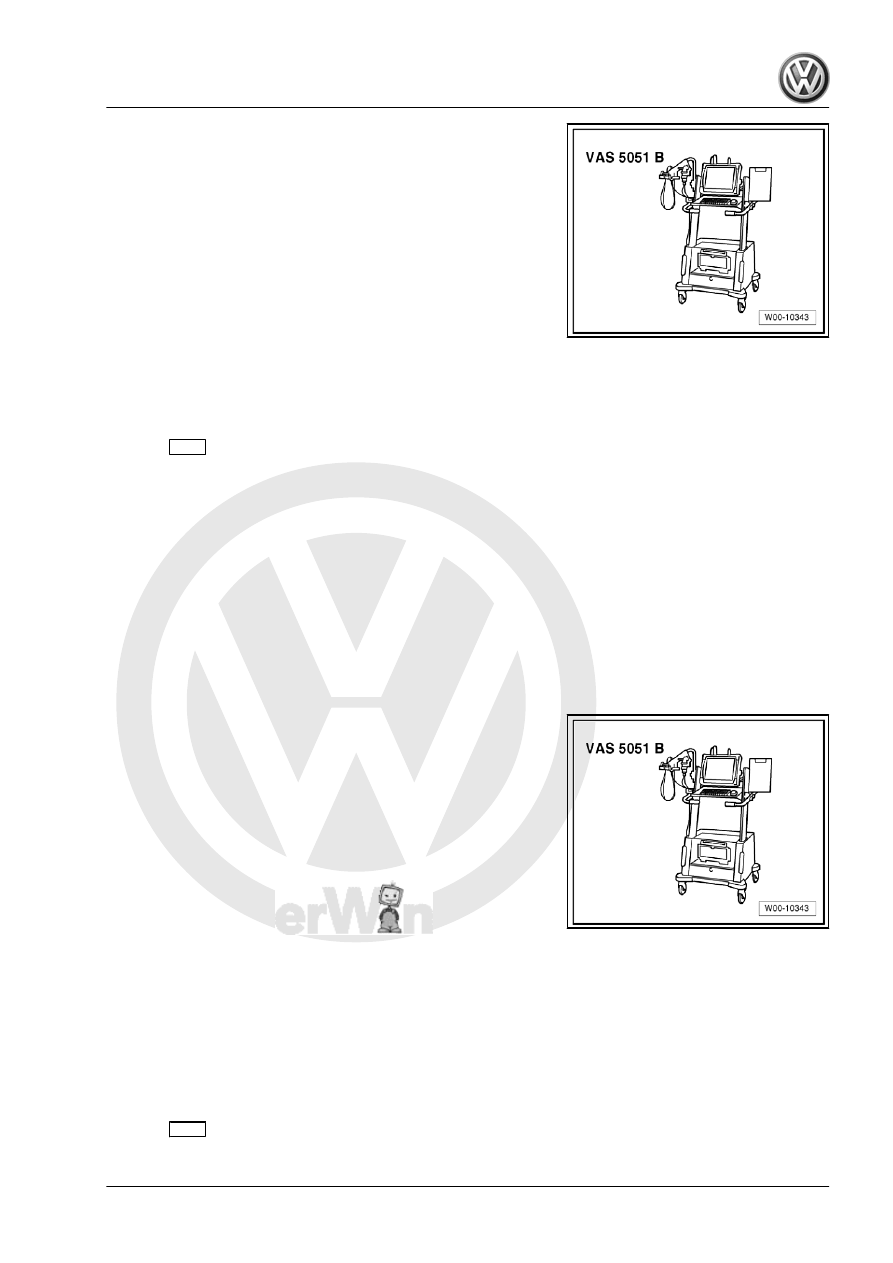

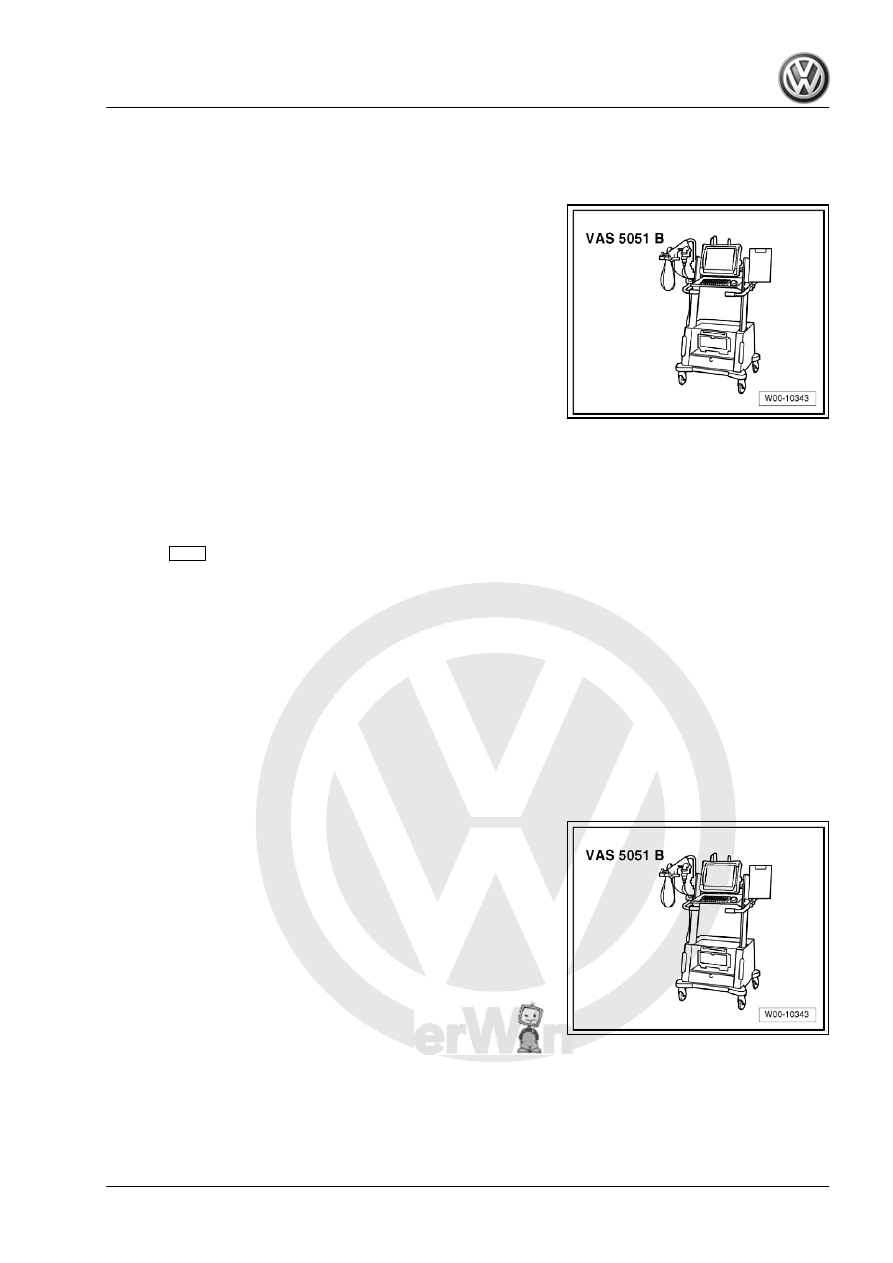

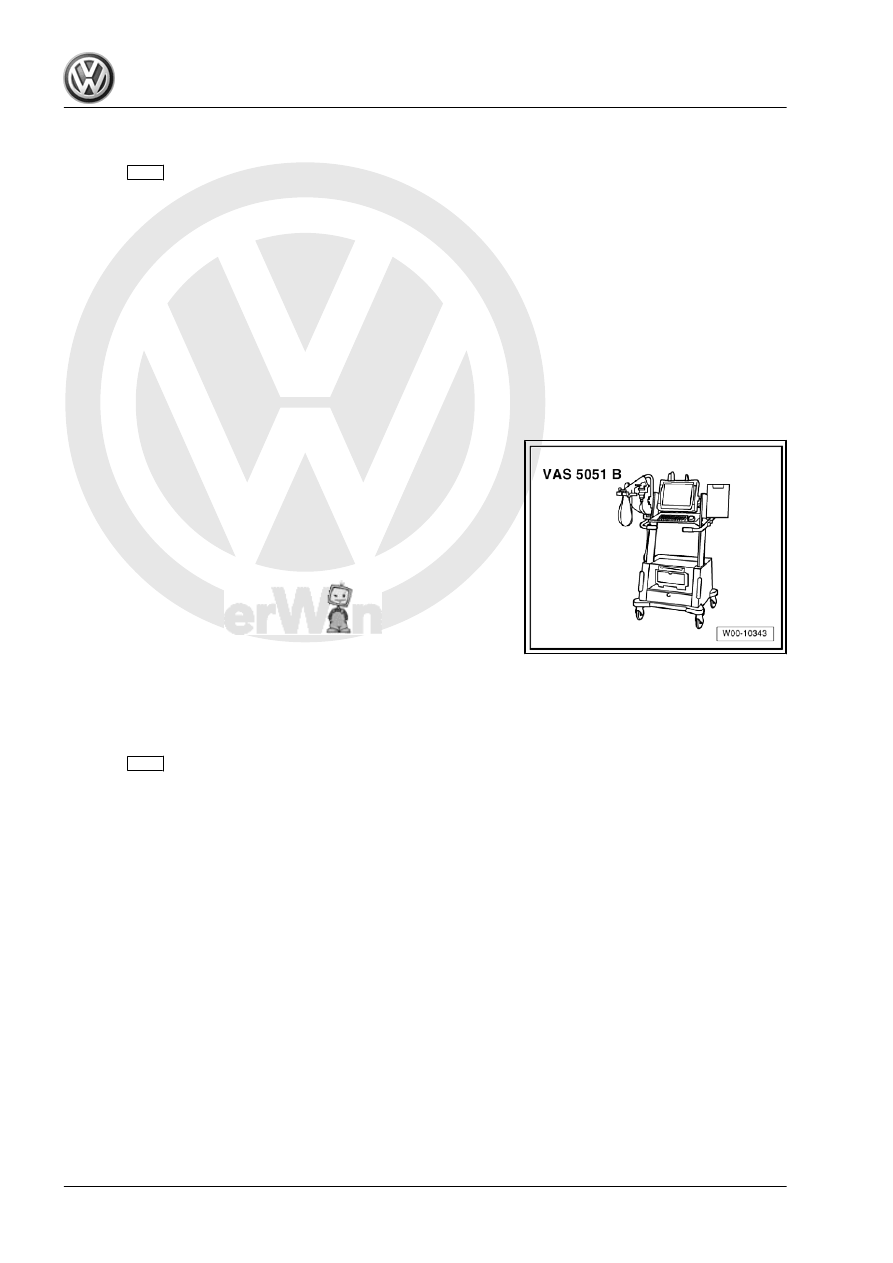

– Connect vehicle diagnosis, testing and information system -

VAS 5051B- .

– In vehicle diagnosis, testing and information system -VAS

5051B- , select „Guided fault finding“.

– Using

GoTo

 button, select „Functions/component“ and the fol‐

lowing menu options in succession:

♦ Body
♦ Electrical system
♦ 01 - On Board Diagnosis capable systems
♦ Onboard supply control unit
♦ Functions
♦ Onboard supply control unit final control diagnosis

454

Coding onboard supply control unit -

J519-

Special tools and workshop equipment required
♦ Vehicle diagnosis, testing and information system -VAS

5051B-

Procedure
– Connect vehicle diagnosis, testing and information system -

VAS 5051B- .

– In vehicle diagnosis, testing and information system -VAS

5051B- , select „Guided fault finding“.

– Using

GoTo

 button, select „Functions/component“ and the fol‐

lowing menu options in succession:

♦ Body
♦ Electrical system
♦ 01 - On Board Diagnosis capable systems
♦ Onboard supply control unit
♦ Functions
♦ Code onboard supply control unit online

5.1.5

Adapting headlight washer system (up

to MY2009)

Special tools and workshop equipment required
♦ Vehicle diagnosis, testing and information system -VAS

5051B-

Procedure
The „active time“ of the headlight washer system can be variably

adjusted to between 0 and 12.75 seconds.
– Connect vehicle diagnosis, testing and information system -

VAS 5051B- .

5. Control units

455

5051B- , select „Guided fault finding“.

– Using

GoTo

 button, select „Functions/component“ and the fol‐

lowing menu options in succession:

♦ Body
♦ Electrical system
♦ 01 - On Board Diagnosis capable systems
♦ Onboard supply control unit
♦ Functions - onboard supply control unit
♦ Adapting headlight washer system

5.1.6

Adapting switch-off time of headlight

washer system (up to MY2009)

Special tools and workshop equipment required
♦ Vehicle diagnosis, testing and information system -VAS

5051B-

– Connect vehicle diagnosis, testing and information system -

VAS 5051B- .

– In vehicle diagnosis, testing and information system -VAS

5051B- , select „Guided fault finding“.

– Using

GoTo

 button, select „Functions/component“ and the fol‐

lowing menu options in succession:

♦ Body
♦ Electrical system
♦ 01 - On Board Diagnosis capable systems
♦ Onboard supply control unit
♦ Functions
♦ Adapt switch-off time of heated rear window

5.1.7

Coding/decoding daytime running light

(up to MY2009)

Special tools and workshop equipment required

456

5051B-

– Connect vehicle diagnosis, testing and information system -

VAS 5051B- .

– In vehicle diagnosis, testing and information system -VAS

5051B- , select „Guided fault finding“.

– Using

GoTo

 button, select „Functions/component“ and the fol‐

lowing menu options in succession:

♦ Body
♦ Electrical system
♦ 01 - On Board Diagnosis capable systems
♦ Onboard supply control unit
♦ Functions
♦ Coding/decoding daytime running lights

5.1.8

Adapting acoustic feedback when un‐

locking

Special tools and workshop equipment required
♦ Vehicle diagnosis, testing and information system -VAS

5051B-

⇒  Operating manual
Main beam can be switched on or off by the automatic headlight

control.
Procedure
– Connect vehicle diagnosis, testing and information system -

VAS 5051B- .

– In vehicle diagnosis, testing and information system -VAS

5051B- , select „Guided fault finding“.

– Using

GoTo

 button, select „Functions/component“ and the fol‐

lowing menu options in succession:

5. Control units

457
