Volkswagen Golf Variant / Jetta. Manual - part 741





Removing and installing vehicle inclina‐

tion sender -G384- (up to 2006)

Vehicle inclination sender -G384- (from 2007)

⇒ page 431

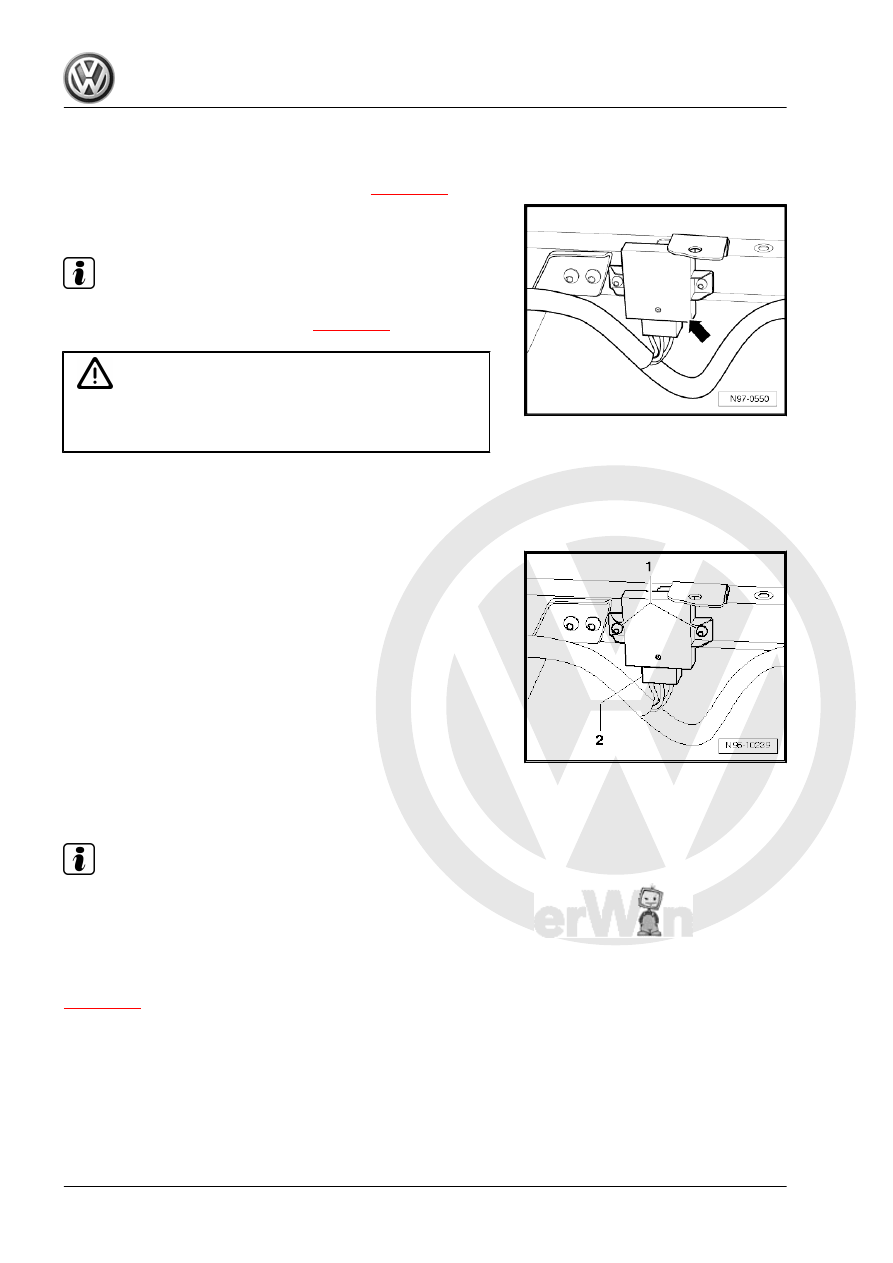

The vehicle inclination sender -G384- -arrow- is located on the

right beneath the dash panel, behind the front passenger's airbag.

Note

The anti-theft alarm system must be deactivated before vehicle

inclination sender -G384- is removed

⇒ page 430

 .

Caution

♦ Switch off ignition and all electrical consumers.
♦ Remove the ignition key.

Removing
– Remove glove compartment ⇒  General body repairs, interior;

Rep. gr.  68 .

– Unscrew bolts -1- and remove vehicle inclination sensor -

G384- from bracket.

– Detach connector -2- from vehicle level sender -G384- .
Installing
Installation is carried out in reverse order of removal.

9.7

Vehicle inclination sender -G384- (from

MY2010)

Note

The anti-theft alarm sensor -G578- includes the vehicle incli‐

nation sender -G384- and the interior monitoring sensor -

G273- (two sensors).

The anti-theft alarm sensor -G578- cannot be dismantled.

Removing and installing anti-theft alarm sensor -G578-

⇒ page 432

 .

434

Interior monitoring sensor -G273- (from

MY2010)

Note

The anti-theft alarm sensor -G578- includes the vehicle incli‐

nation sender -G384- and the interior monitoring sensor -

G273- (two sensors).

The anti-theft alarm sensor -G578- cannot be dismantled.

Removing and installing anti-theft alarm sensor -G578-

⇒ page 432

 .

9.9

Central locking and anti-theft alarm sys‐

tem aerial -R47-

Up to MY2009
The central locking and anti-theft alarm system aerial -R47- is

routed from the convenience system central control unit -J393- to

the A-pillar on left in the main wiring harness.
The central locking and anti-theft alarm system aerial -R47- can‐

not be repaired as this would adversely affect the reception

quality.
In the event of damage, it is necessary to replace the central

locking and anti-theft alarm system aerial -R47- .
From MY2010
The central locking and anti-theft alarm system aerial -R47- re‐

ceives the signals from the remote control and passes them to

the onboard supply control unit -J519- .
The central locking and anti-theft alarm system aerial -R47- is

integrated in the onboard supply control unit -J519- and cannot

be replaced individually.
Additional information:
⇒ Current flow diagrams, Electrical fault finding and Fitting loca‐

tions

9.10

Removing and installing alarm horn -

H12-

The alarm horn -H12- is located on the right at the A-pillar in the

wing.

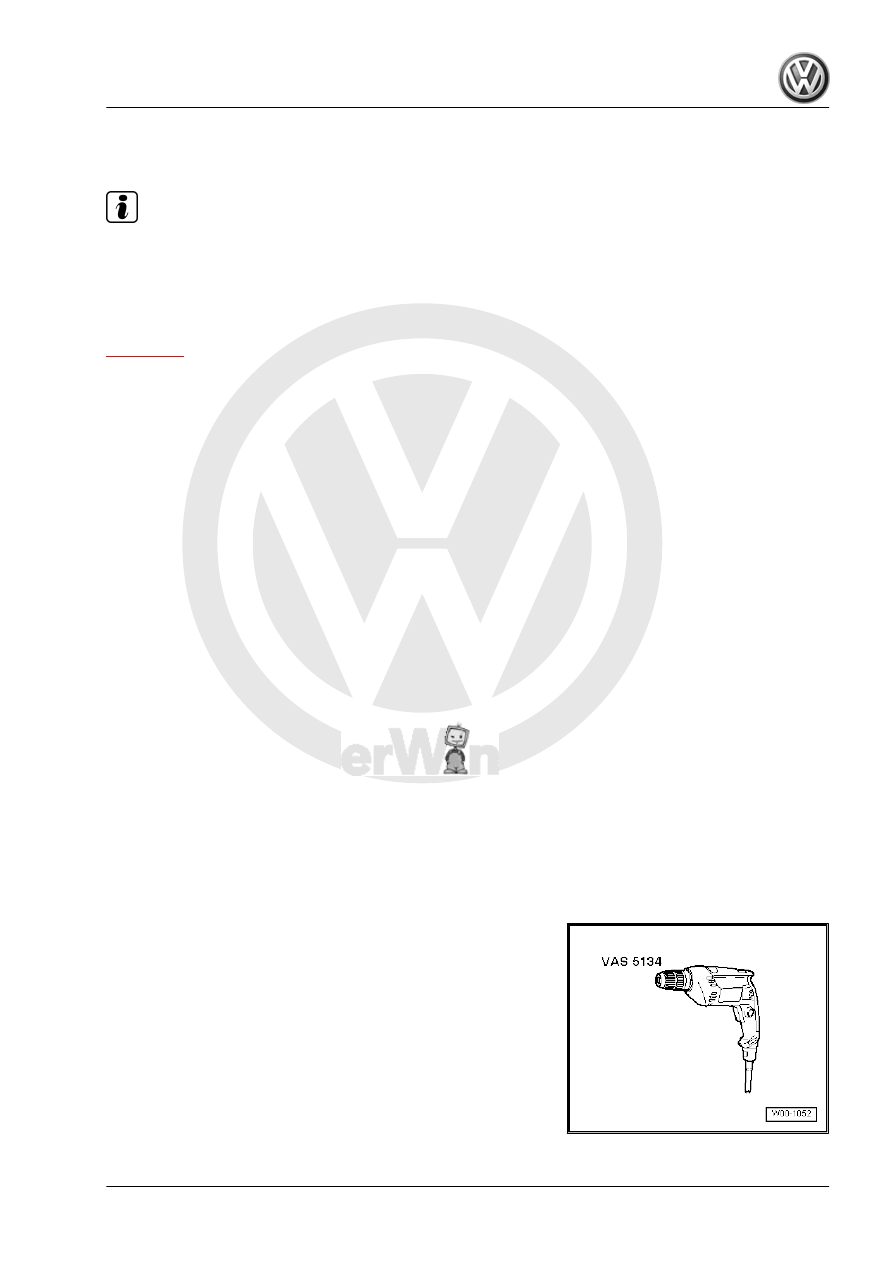

Special tools and workshop equipment required
♦ Drill -VAS 5134-

♦ Twist drill bit ∅ 6 mm

9. Anti-theft alarm (ATA)

435

Note

The anti-theft alarm must be deactivated before removing the

alarm horn -H12-

⇒ page 430

 .

Caution

♦ Switch off ignition and all electrical consumers.
♦ Remove the ignition key.

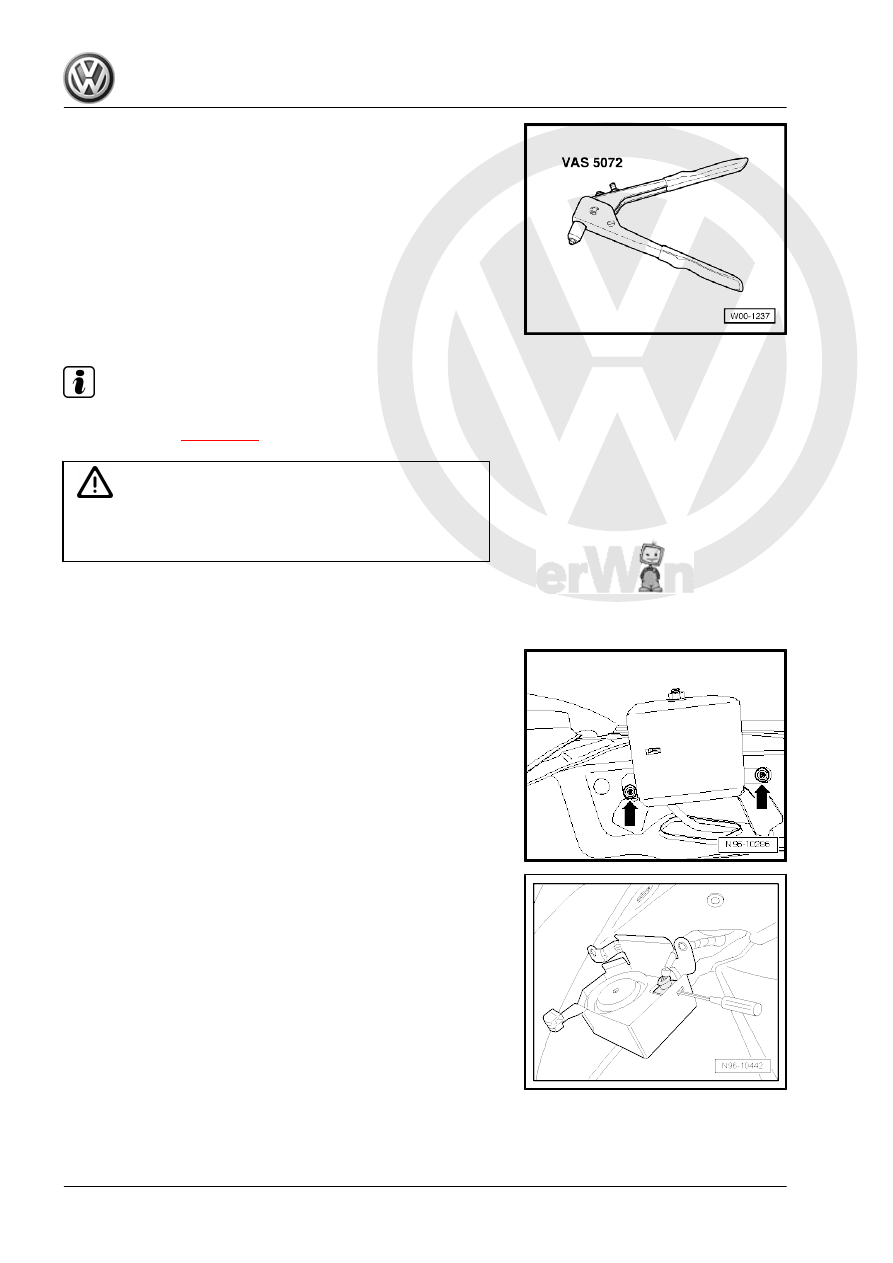

Removing
– Remove front right wheel housing liner ⇒  General body re‐

pairs, interior; Rep. gr.  66 .

– Use drill -VAS 5134- and a drill bit (∅ 6 mm) to drill out both

pop rivets -arrows-.

– Release connector -1- by opening the cover -2- using a small

screwdriver and remove the alarm horn -H12- -3- from the

wheel housing.

436

Note

Remove all metal swarf produced by drilling.

– Perform necessary corrosion protection measures ⇒ General

Information; Body Repairs, General Body Repairs .

Note

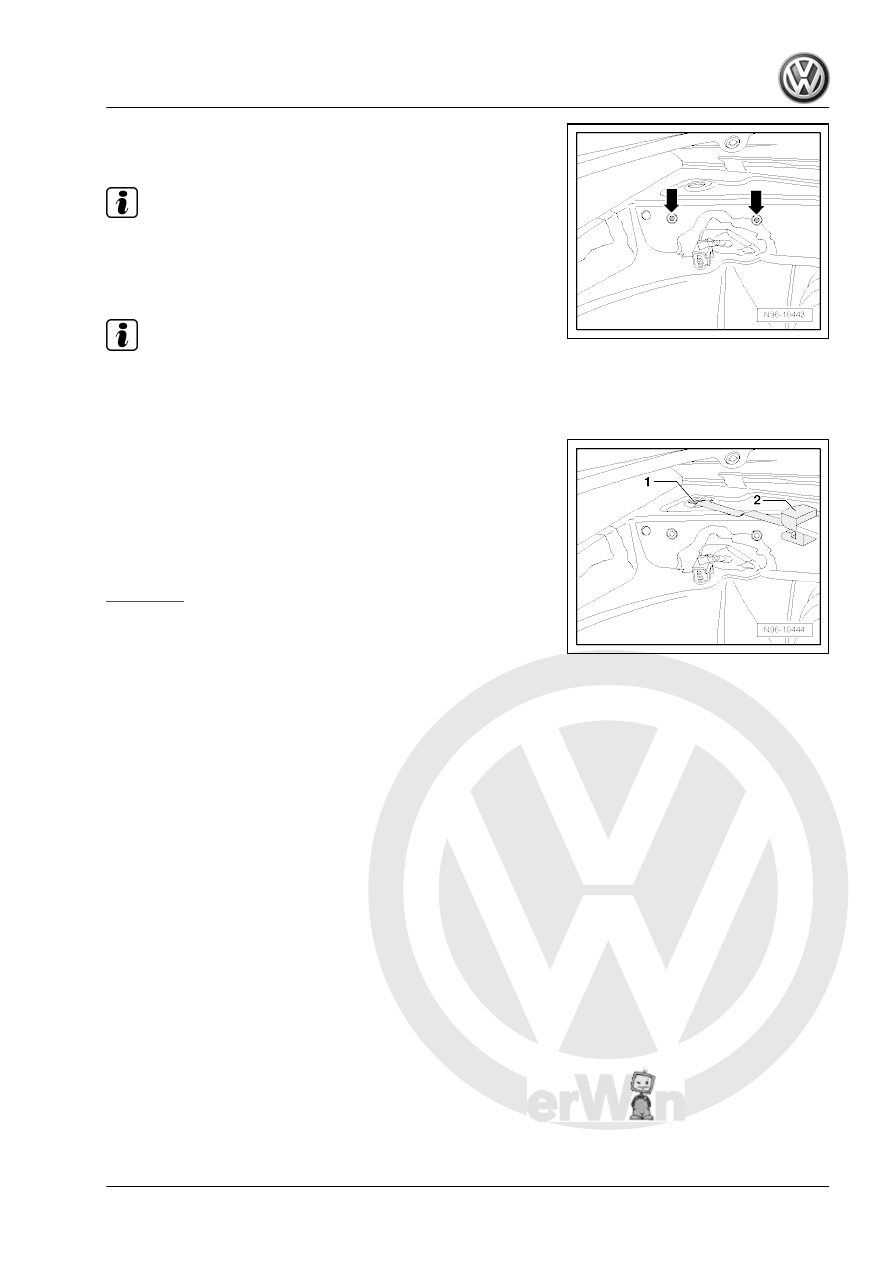

For reasons of clarity, the alarm horn -H12- is not shown in the

following illustration, therefore the connector is shown discon‐

nected.

– Guide clip -2- of alarm horn -H12- into aperture in body -1-.
– Secure alarm horn -H12- using new pop rivets.
– Install front right wheel housing liner ⇒  General body repairs,

interior; Rep. gr.  66 .

Testing the alarm horn -H12- :
The alarm horn -H12- can be checked using final control diagno‐

sis of convenience system central control unit -J393-

⇒ page 475

 .

9. Anti-theft alarm (ATA)

437
