Volkswagen Golf Variant / Jetta. Manual - part 735





Caution

♦ Switch off ignition and all electrical consumers.
♦ Remove the ignition key.
♦ When removing and installing components that are in view

(switches, covers, trim), mask off areas where tools ( re‐

moval wedge -VAS 3409- , screwdriver) are used to lever

out those components using commercially available

masking tape.

Removing
– Use removal wedge -VAS 3409- to carefully prise lens out of

front interior light -W1- -arrow-.

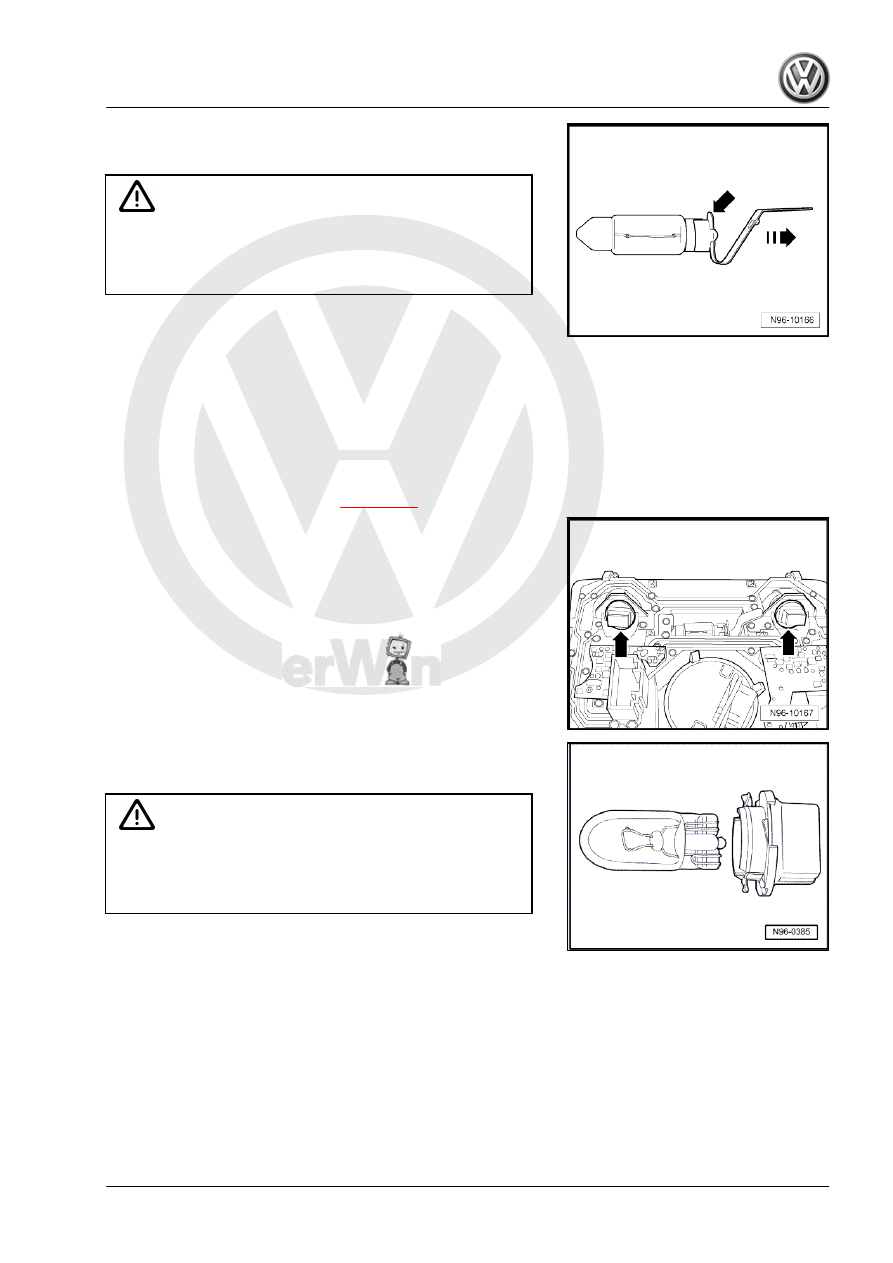

– Press contact plate -1- of front interior light -W1- to side

-arrow- and remove festoon bulb -2-, together with contact

plate, from front interior light -W1- .

410

Caution

♦ Do not touch glass envelope when fitting bulb. Fingers

leave traces of grease on the glass envelope, which evap‐

orate when the bulb is switched on and cause the glass

envelope to cloud over.

Installing
Installation is carried out in reverse order of removal.

6.2.4

Replacing centre reading light

Left centre reading light -W39- / right centre reading light -W40-

are removed and installed in same way and description is only

given for one.
Removing
– Remove front interior light -W1-

⇒ page 407

 .

– Turn bulb holder -arrows- of left centre reading light -W39- by

90° to the left.

– Remove bulb holder together with bulb out of left centre read‐

ing light -W39- .

– Carefully pull glass-base bulb out of bulb holder.
– Renew glass-base bulb (12 V/5 W).

Caution

♦ Do not touch glass envelope when fitting bulb. Fingers

leave traces of grease on the glass envelope, which evap‐

orate when the bulb is switched on and cause the glass

envelope to cloud over.

Installing
Installation is carried out in reverse order of removal.

6.3

Rear interior light -W45- (vehicles with‐

out anti-theft alarm)

The following components are built into the rear interior light -

W45- :
♦ Rear interior light -W45-
♦ Rear left reading light -W11-
♦ Rear right reading light -W12-

6. Lights and switches in roof trim

411

terior light -W45- must be renewed.
– Renew rear interior light -W45-

⇒ page 412

 .

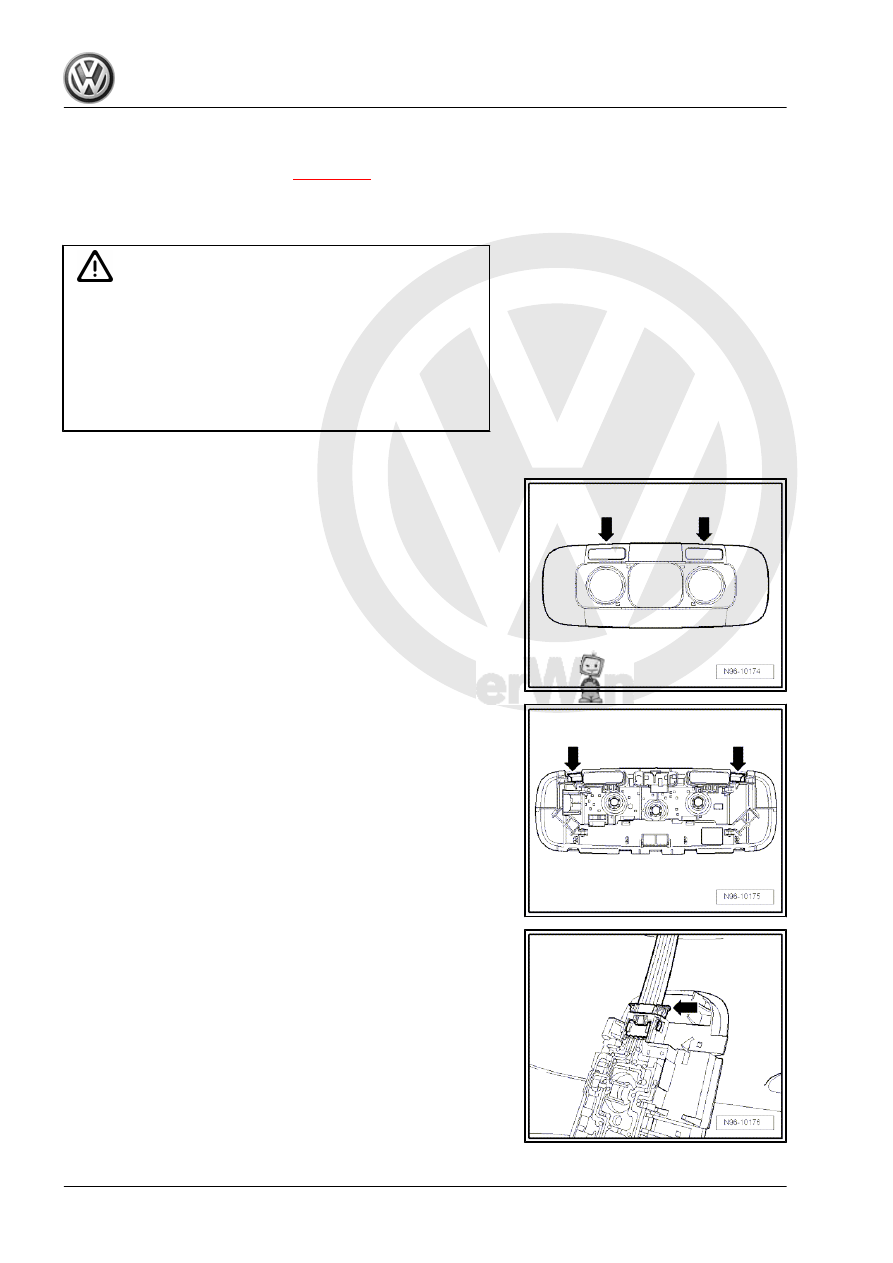

6.3.1

Removing and installing rear interior

light -W45-

Caution

♦ Switch off ignition and all electrical consumers.
♦ Remove the ignition key.
♦ When removing and installing components that are in view

(switches, covers, trim), mask off areas where tools ( re‐

moval wedge -VAS 3409- , screwdriver) are used to lever

out those components using commercially available

masking tape.

Removing
– Release locking lugs -arrows- and remove trim with lens from

rear interior light -W45- .

– Release locking lugs -arrows- and remove rear interior light -

W45- from moulded headliner.

– Disconnect connector -arrow-.
Installing
Installation is carried out in reverse order of removal.

412

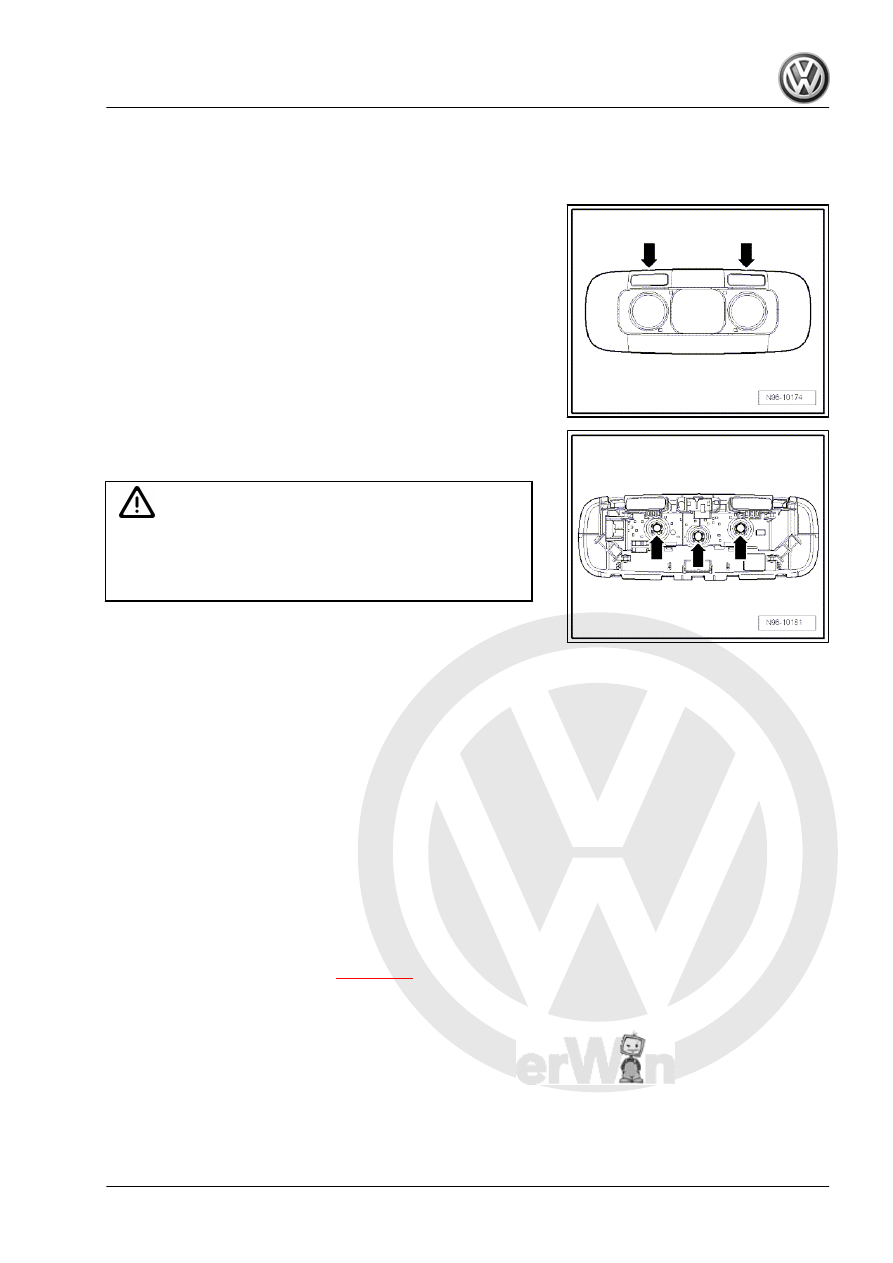

Renewing bulb of rear interior light -

W45-

Removing
– Release locking lugs -arrows- and remove trim with lens from

rear interior light -W45- .

– Carefully pull glass-base bulb out of holder -arrows-.
– Renew glass-base bulb (12 V/5 W).

Caution

♦ Do not touch glass envelope when fitting bulb. Fingers

leave traces of grease on the glass envelope, which evap‐

orate when the bulb is switched on and cause the glass

envelope to cloud over.

Installing
Installation is carried out in reverse order of removal.

6.4

Rear interior light -W45- (vehicles with

anti-theft alarm) up to MY2009

The following components are built into the rear interior light -

W45- :
♦ Rear interior light -W45-
♦ Rear left reading light -W11-
♦ Rear right reading light -W12-
♦ Anti-theft alarm ultrasonic sensor -G209-
Components cannot be renewed individually. Complete rear in‐

terior light -W45- must be renewed.
Anti-theft alarm ultrasonic sensor -G209- is not allowed to be

moved from its preset position.
– Renew rear interior light -W45-

⇒ page 414

 .

6. Lights and switches in roof trim

413
