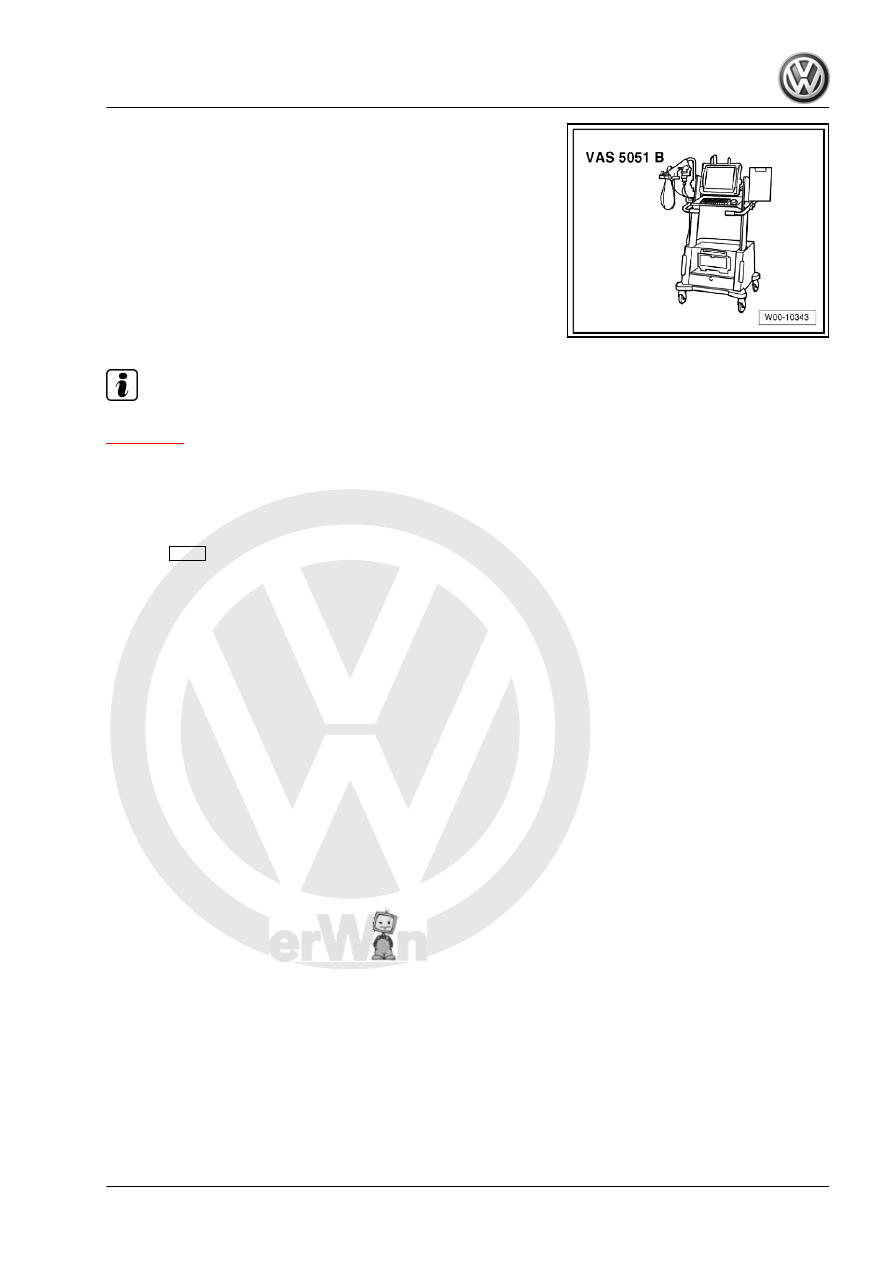

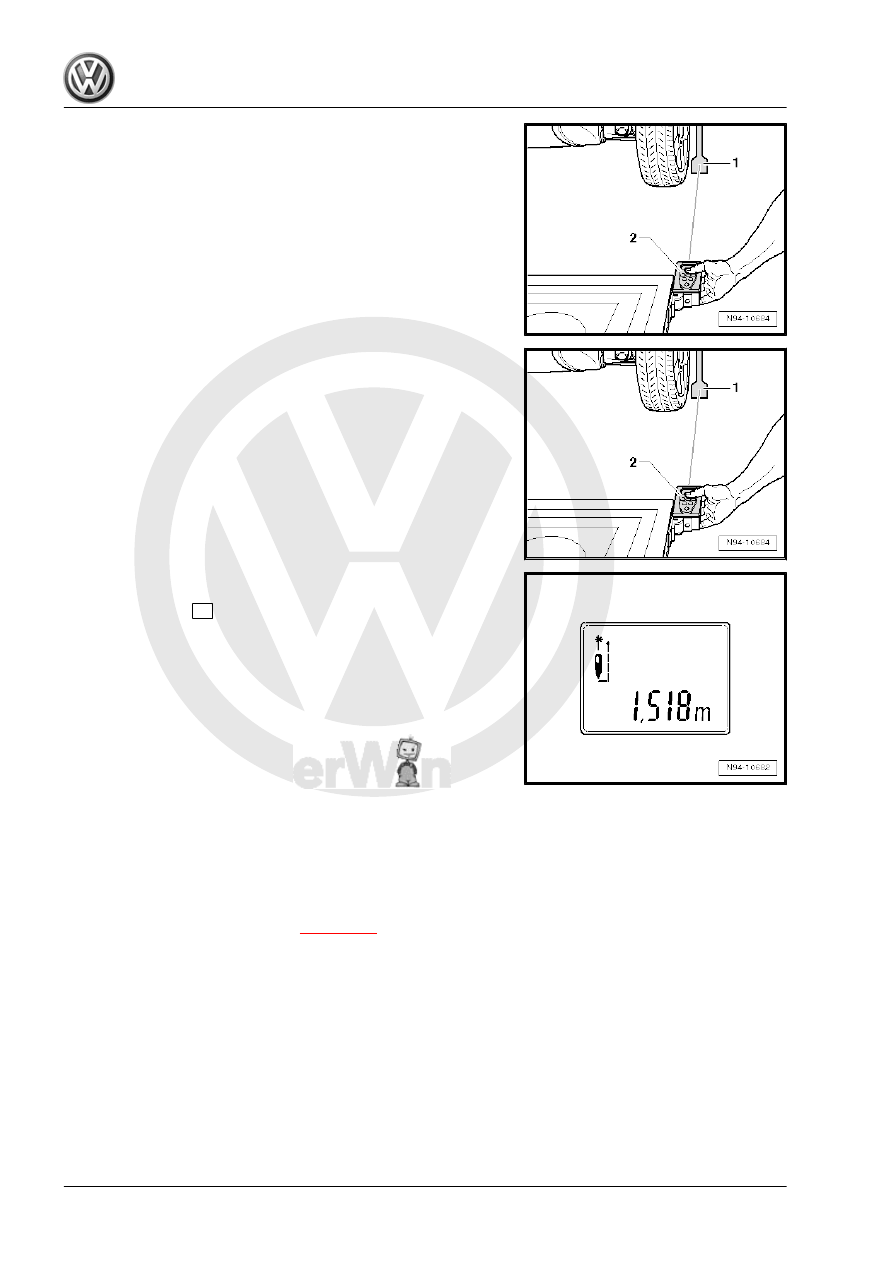

flush against bracket on one side of calibration unit -VAS 6350/4- so that spacing laser -VAS 6350/2- lies firmly against bracket. – Make sure that laser beam of from spacing laser -VAS 6350/2- hits lower, enlarged part of paddle -1-. If this is not the case, adjust paddles accordingly on wheel mount‐ ing -VAS 6350/1- using clamping bolts. – Hold spacing laser -VAS 6350/2- in bracket on calibration de‐ vice -VAS 6350/4- while laser beam is visible on paddle. Now briefly press the ON button to measure distance. The following appears in the display: The distance is shown on the display in „metres“. wheel on other side of calibration unit -VAS 6350/4- . Measured distance value must be identical on both sides. If value is not identical, adjust calibration unit -VAS 6350/4- until values on both sides are identical. laser beam of the linear laser -VAS 6350/3- continues to hit the vehicle centrally above the VW logo and that the spirit level indi‐ cator remains in the centre. Adjust accordingly if required. vehicle diagnostic, testing and information system -VAS 5051B- during calibration. . 16.4.2 Calibrating reversing camera system Special tools and workshop equipment required 378 |
