Carry out following procedures:
Removing

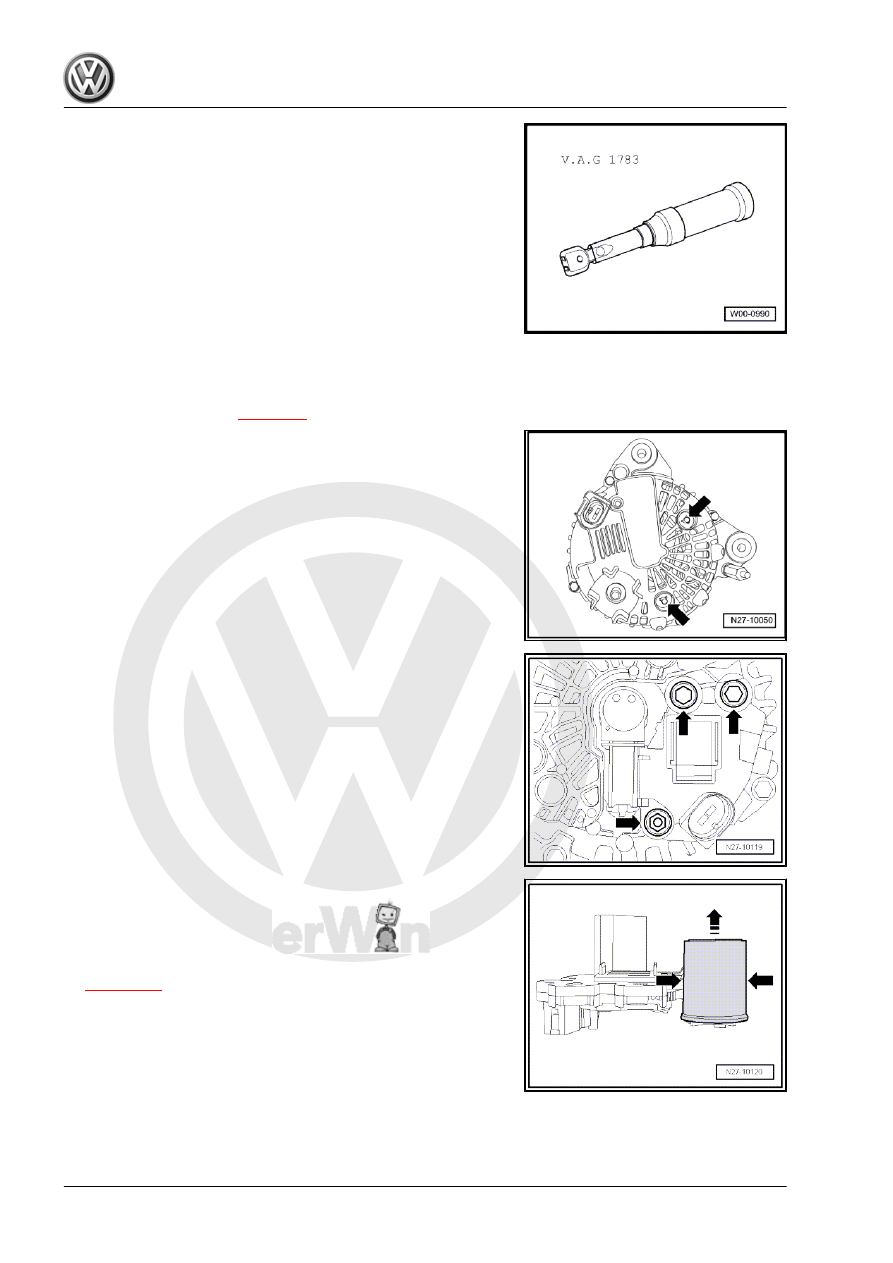

– Remove alternator -C-

⇒ page 88

 .

– Remove clamping rings -arrows- and detach protective cap

from alternator -C- .

– Remove bolts for voltage regulator -C1- -arrows-.
– Remove voltage regulator -C1- from alternator -C- .
Installing
Install in the reverse order of removal. When doing this, note the

following:

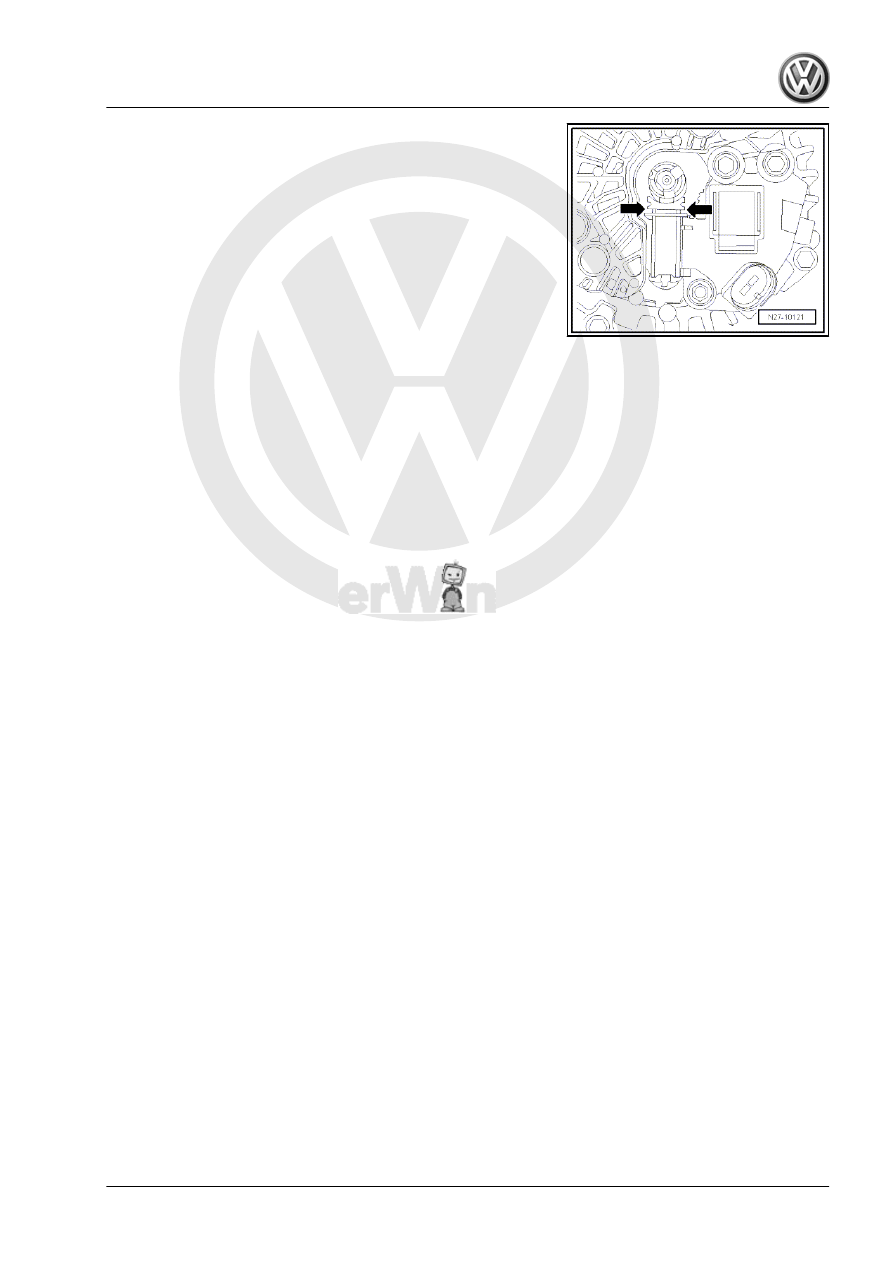

– Release locking lugs -arrows- and pull protective cap off volt‐

age regulator -C1- .

– Press carbon brushes into housing of voltage regulator -C1-

and insert voltage regulator -C1- in alternator -C- .

– Tighten threaded connections to specified torques

⇒ page 158

 .

170

engage.

7. Alternator C

171

Cruise control system (CCS)

All the instructions and information for this manual are found in

the workshop manual „Electrical System, General Information“. A

link to this workshop manual is not possible at present for tech‐

nical reasons. Please select the workshop manual „Electrical

System, General Information“ manually in ELSA.

172

1

Dash panel insert

General description
The following components are integrated in the dash panel insert:
♦ Control unit in dash panel insert -J285-
♦ immobiliser control unit -J362-
♦ Speedometer -G21-
♦ Rev. counter -G5-
♦ Fuel gauge -G1-
♦ Coolant temperature gauge -G3-
♦ Multifunction display
♦ Warning lamps

⇒ page 176

To provide acoustic support to some of the visual displays, the

dash panel features a warning buzzer, which is actuated by the

control unit in dash panel insert -J285- .
All warning lamps are fitted with light-emitting diodes (LEDs). No

provision is made for dash panel insert repair. If necessary, the

dash panel insert is renewed as a unit

⇒ page 173

 .

The data bus diagnostic interface -J533- is an individual control

unit and not part of the dash panel insert

⇒ page 467

 , unlike on

several other vehicles.
Fault detection and fault display
The dash panel insert is equipped with self-diagnosis.
For fault finding, use vehicle diagnosis, testing and information

system -VAS 5051B- in „Guided fault finding“ mode.

1.1

Renewing dash panel insert

The procedure „Renewing dash panel insert“ covers the following

additional tasks:
♦ If a new dash panel insert is installed in the vehicle, the control

unit in dash panel insert -J285- must be adjusted to the differ‐

ent equipment features and associated country settings.

♦ To adapt integrated immobiliser control unit -J362- to engine

control unit -J623- , data from engine control unit -J623- must

be stored in replacement dash panel insert.

♦ Furthermore, if a new dash panel insert is installed, all ignition

keys must be adapted.

Special tools and workshop equipment required

1. Dash panel insert

173
