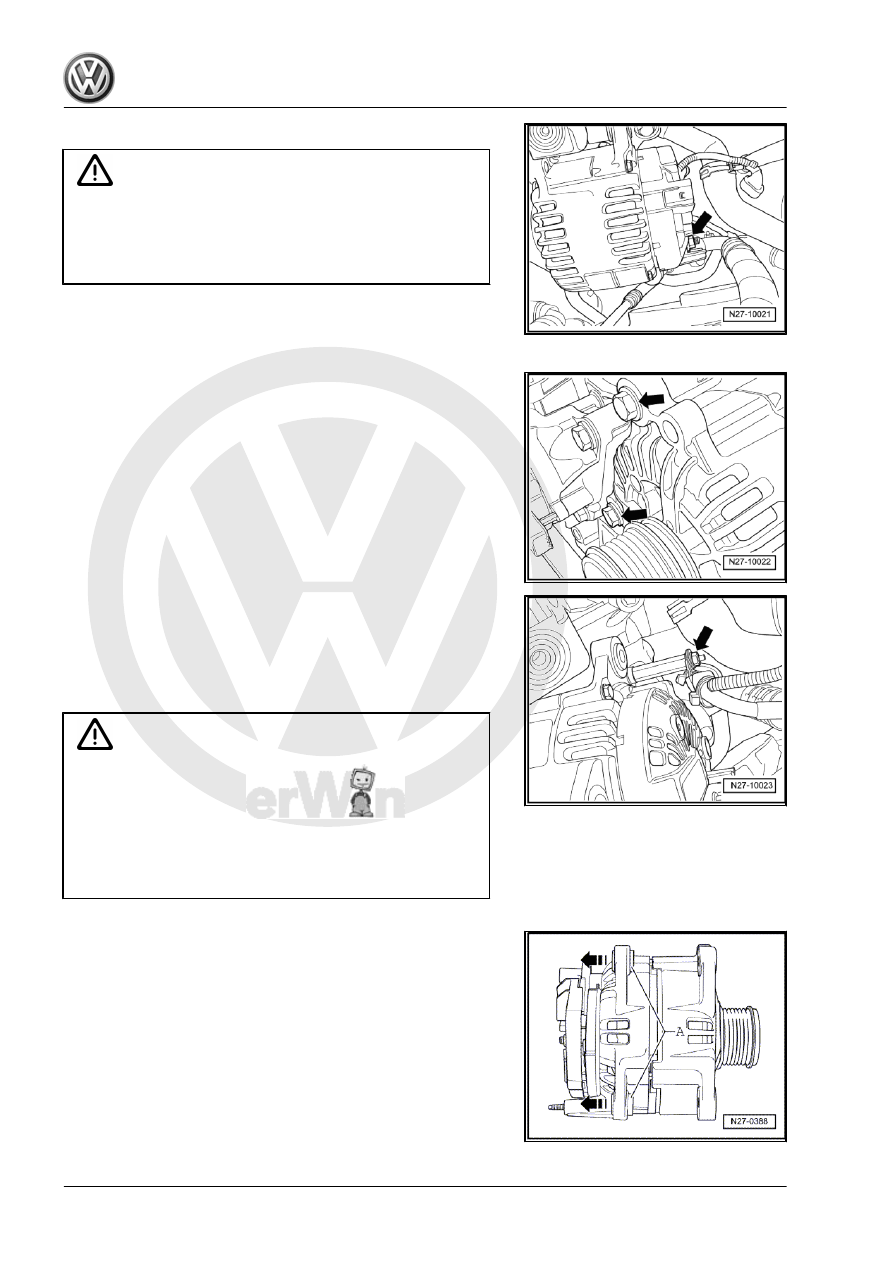

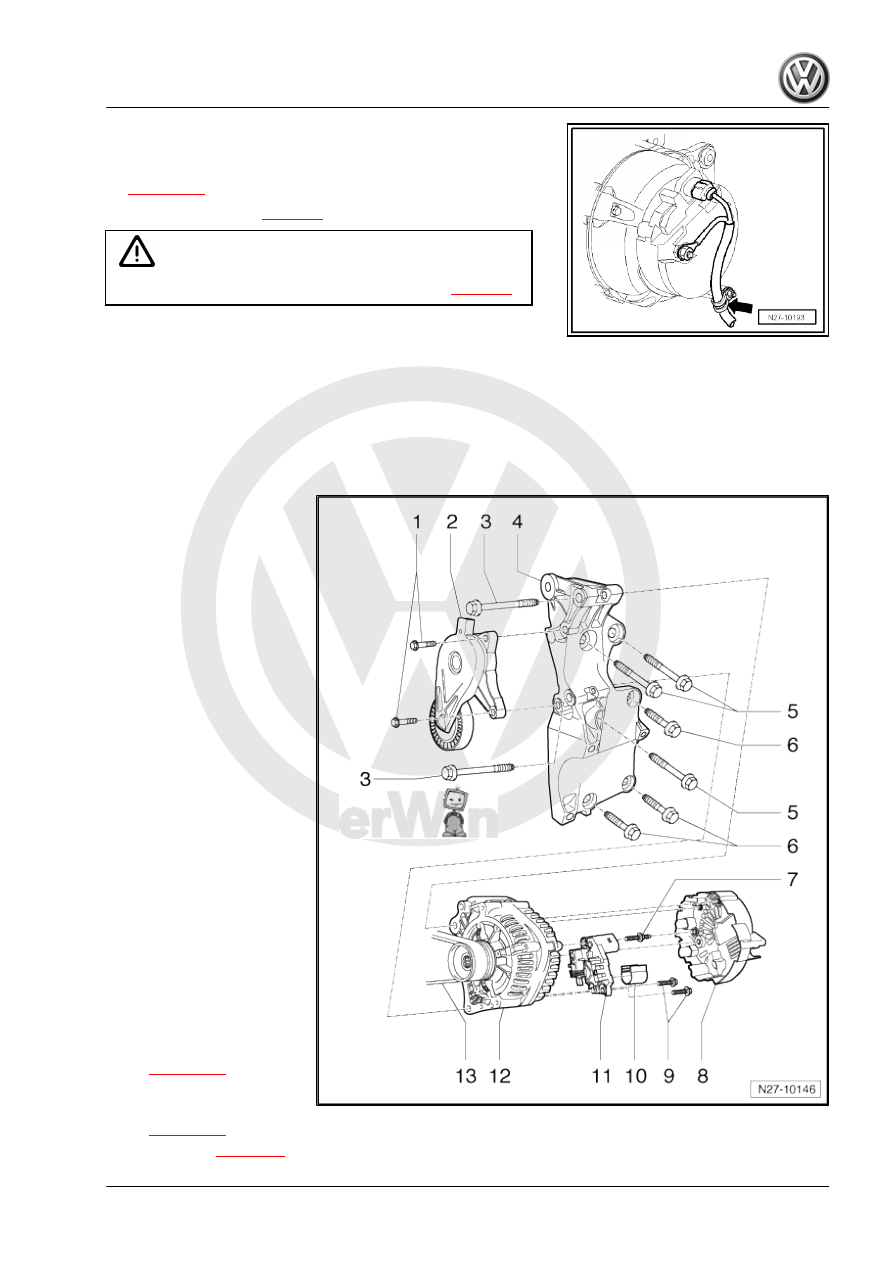

Caution Before removing, mark the top side and direction of rotation of the poly V-belt. When installing, ensure correct fitting position and direction of rotation. If the belt is installed in the wrong position or against direction of rotation, the belt will be de‐ stroyed! – Remove the upper idler wheel, lower idler wheel and the poly V-belt tensioner for alternator -C- and coolant pump ⇒ Engine; Rep. gr. 13 . – Remove bolts of alternator -C- -arrows-. – Unscrew wiring retainer from alternator -C- -arrow-. following: Caution ♦ When installing used poly V-belts observe the direction of rotation marked on removal! ♦ Before installing poly V-belt, make sure all assemblies ( alternator -C- / air conditioner compressor) are firmly in position. ♦ When fitting belt, ensure that poly V-belt seats correctly in pulleys! – Drive threaded sleeves -A- roughly 4 mm in direction of arrow out of alternator -C- housing. 130 |
