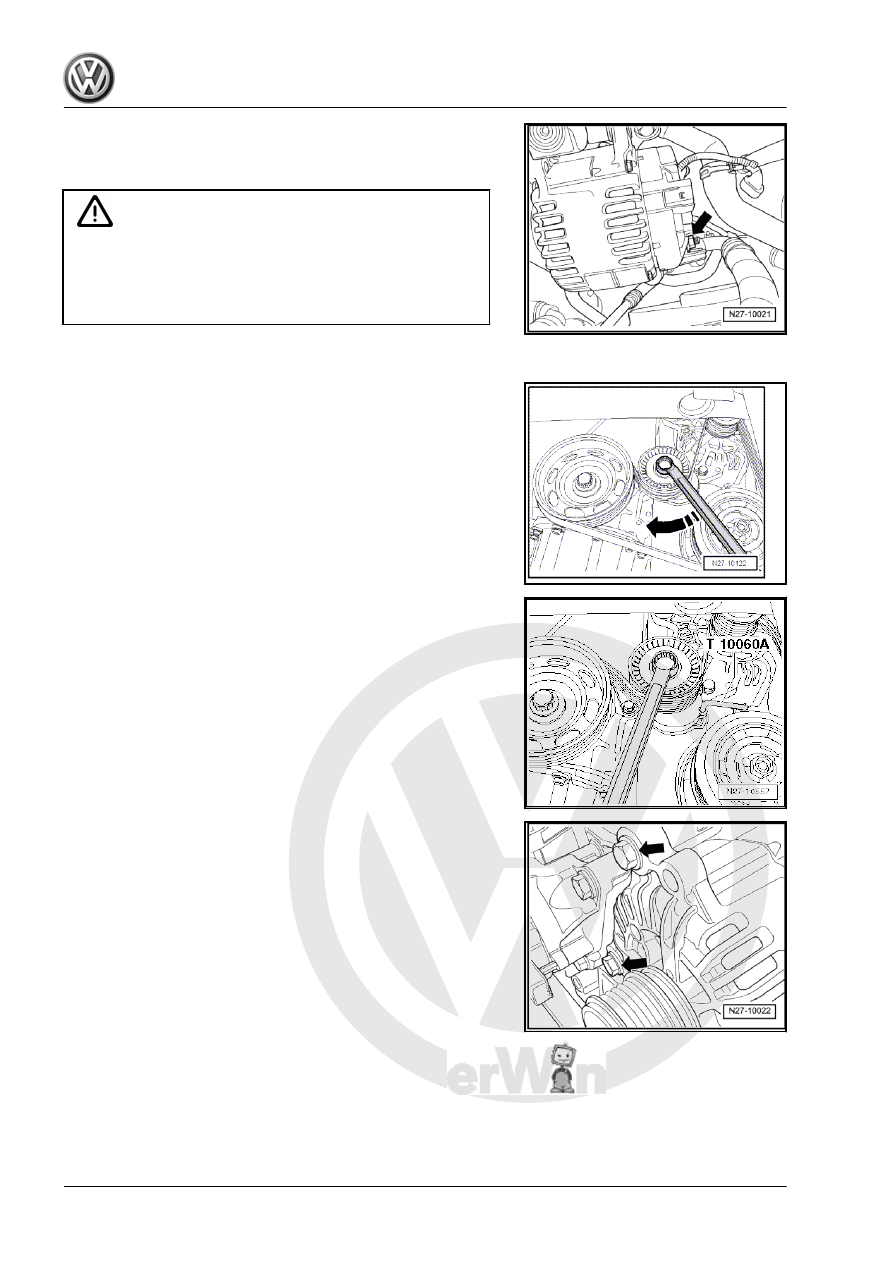

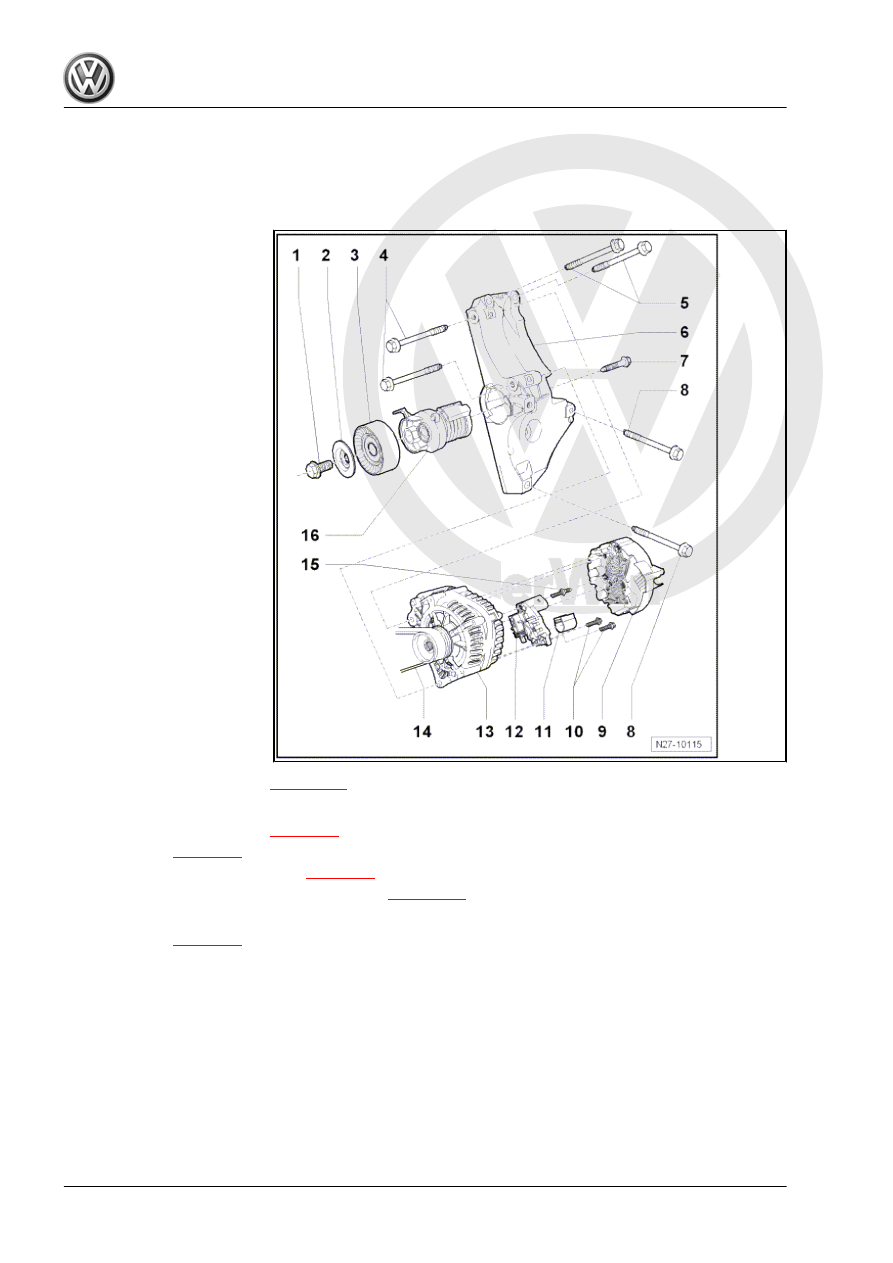

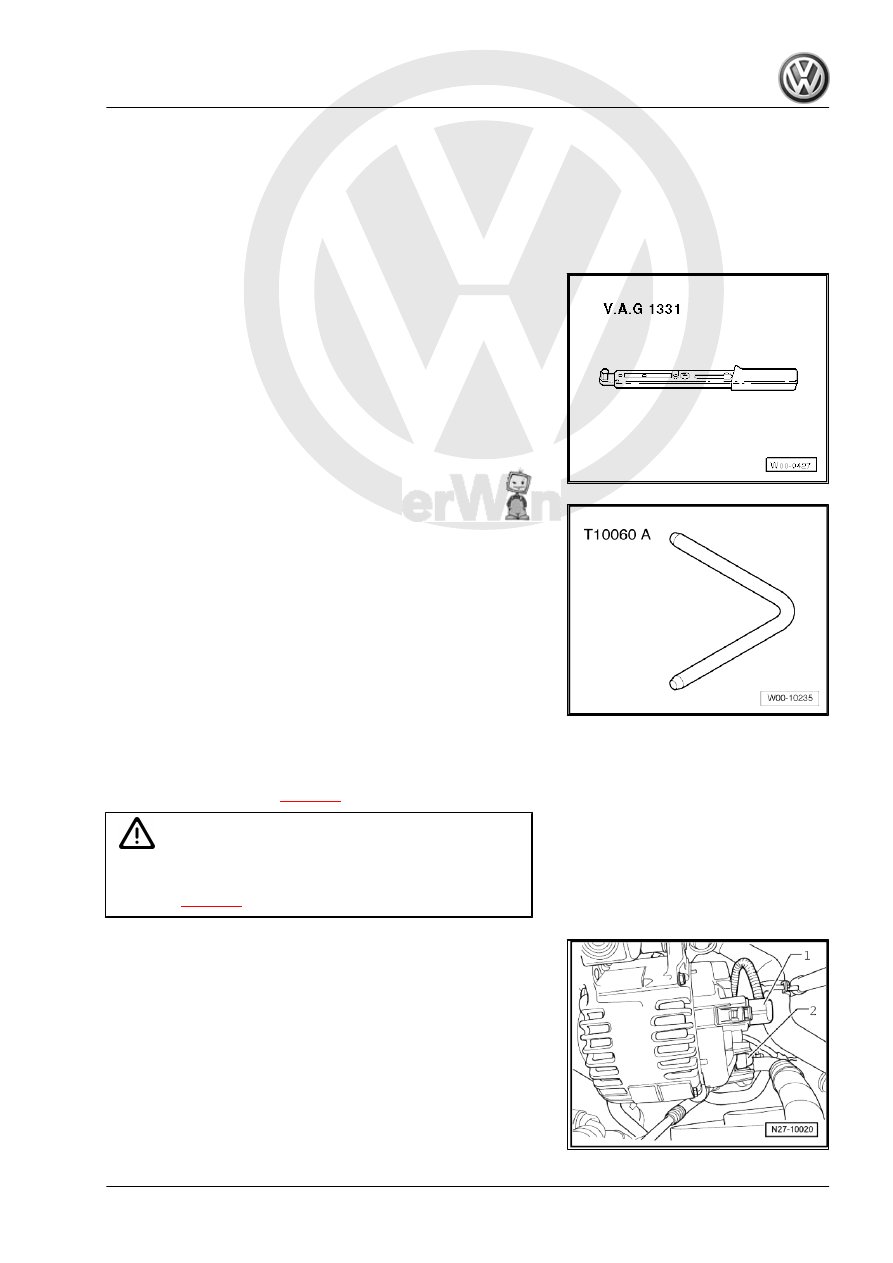

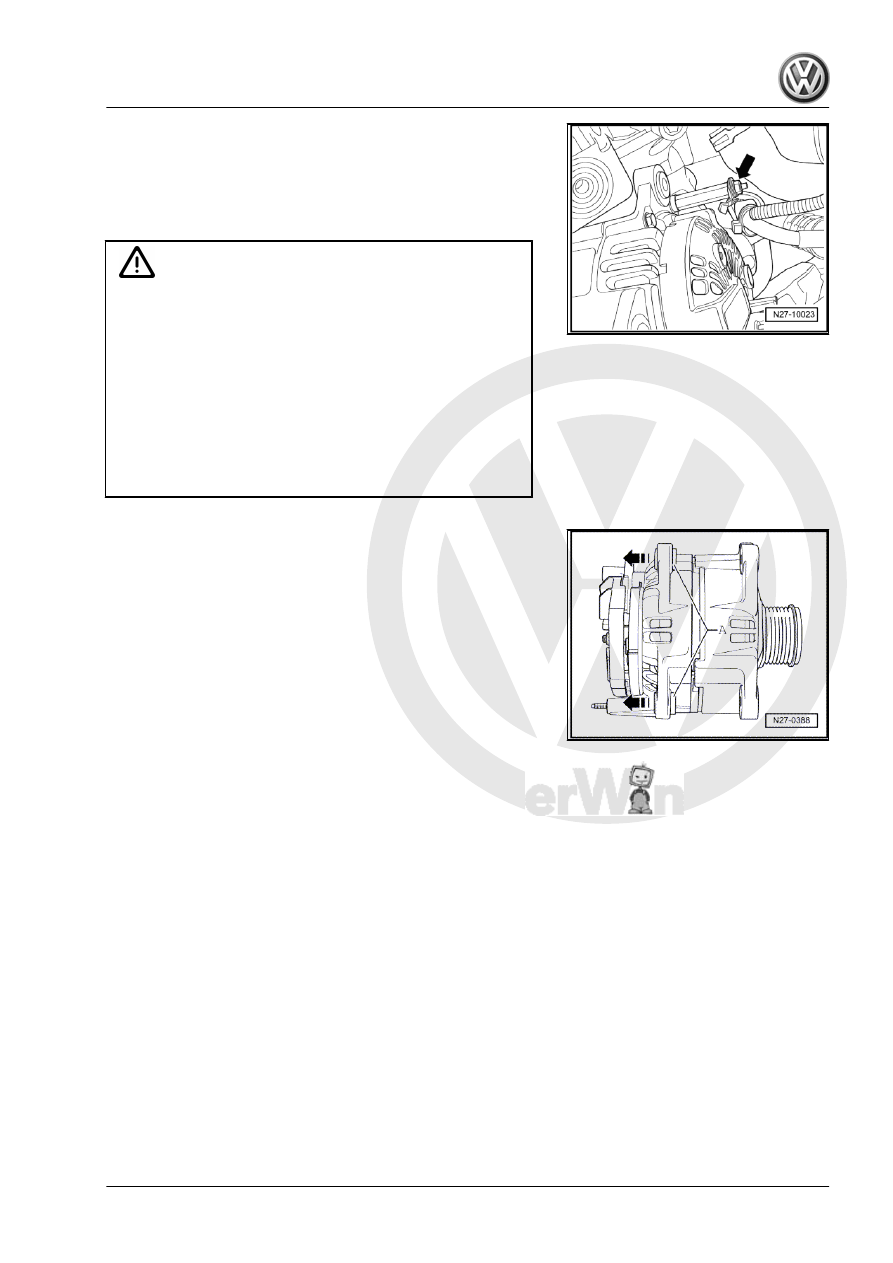

Alternator -C- 1.4l petrol engine 7.4.1 Assembly overview 1 - Hexagon head flange bolt ❑ 60 Nm 2 - Washer ❑ 20 Nm 5 - Hexagon head flange bolts ❑ 40 Nm 6 - Ancillary bracket ❑ For alternator -C- and air conditioner compres‐ sor ❑ Tightening sequence ⇒ Engine; Rep. gr. 13 7 - Hexagon head flange bolt ❑ 20 Nm 8 - Hexagon head flange bolts ❑ 40 Nm 9 - Protective cap er ❑ 2 Nm 11 - Protective cap for carbon brushes ❑ Removing and installing 13 - Alternator -C- ❑ Removing and installing ❑ Checking ❑ Securing battery positive wire ❑ Removing and installing poly V-belt pulley 14 - Poly V-belt ❑ Checking ❑ Process ⇒ power unit; Rep. gr. 13 15 - Hexagon bolt with washer and threaded element ❑ 2 Nm 16 - Poly V-belt tensioning element Not illustrated 90 |
