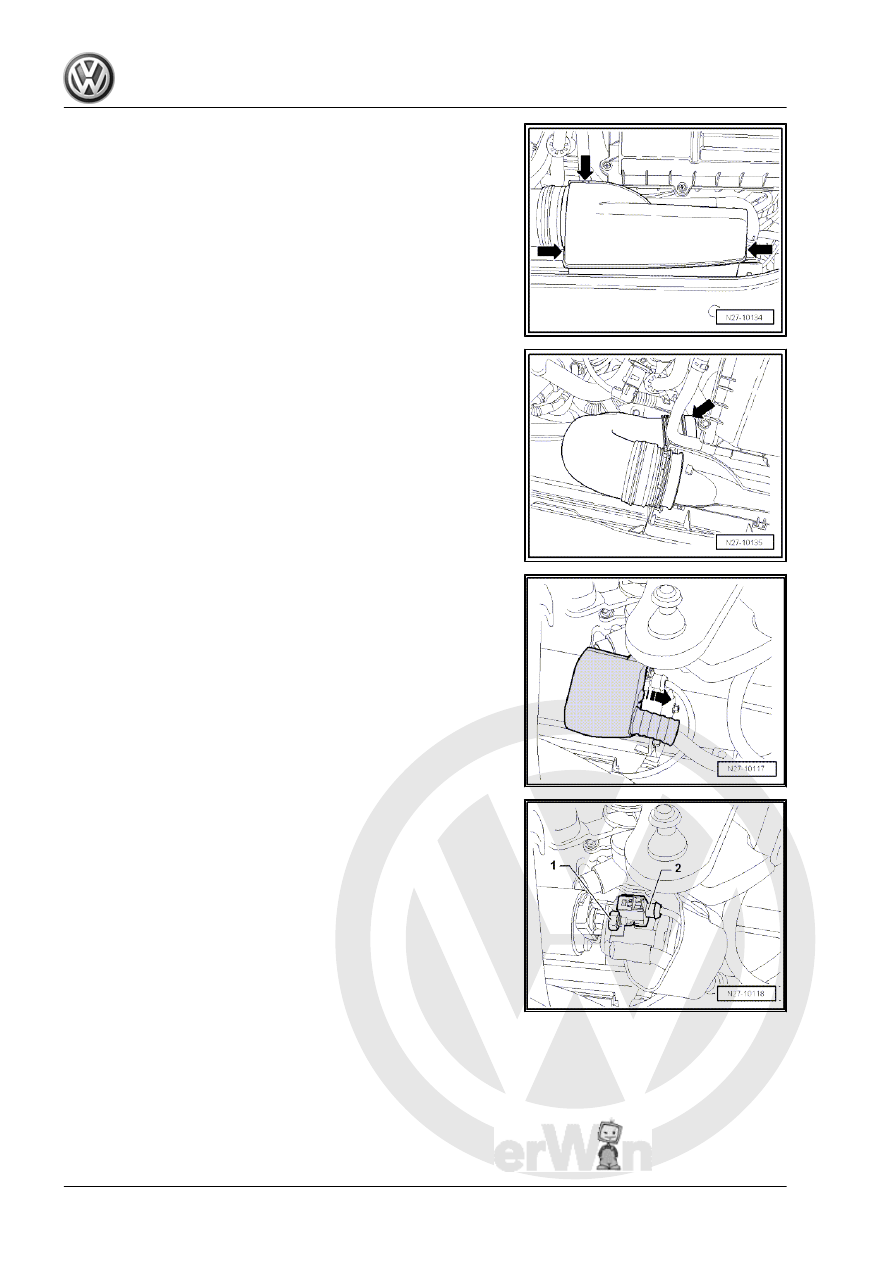

– Pull hose -arrow- off air filter housing and remove.
– Pull air filter housing upwards out of brackets and remove.

– Slide protective cap in direction of -arrow- off solenoid switch.

– Unscrew positive wire -1- and disconnect connector from ter‐

minal 50 -2-.

58

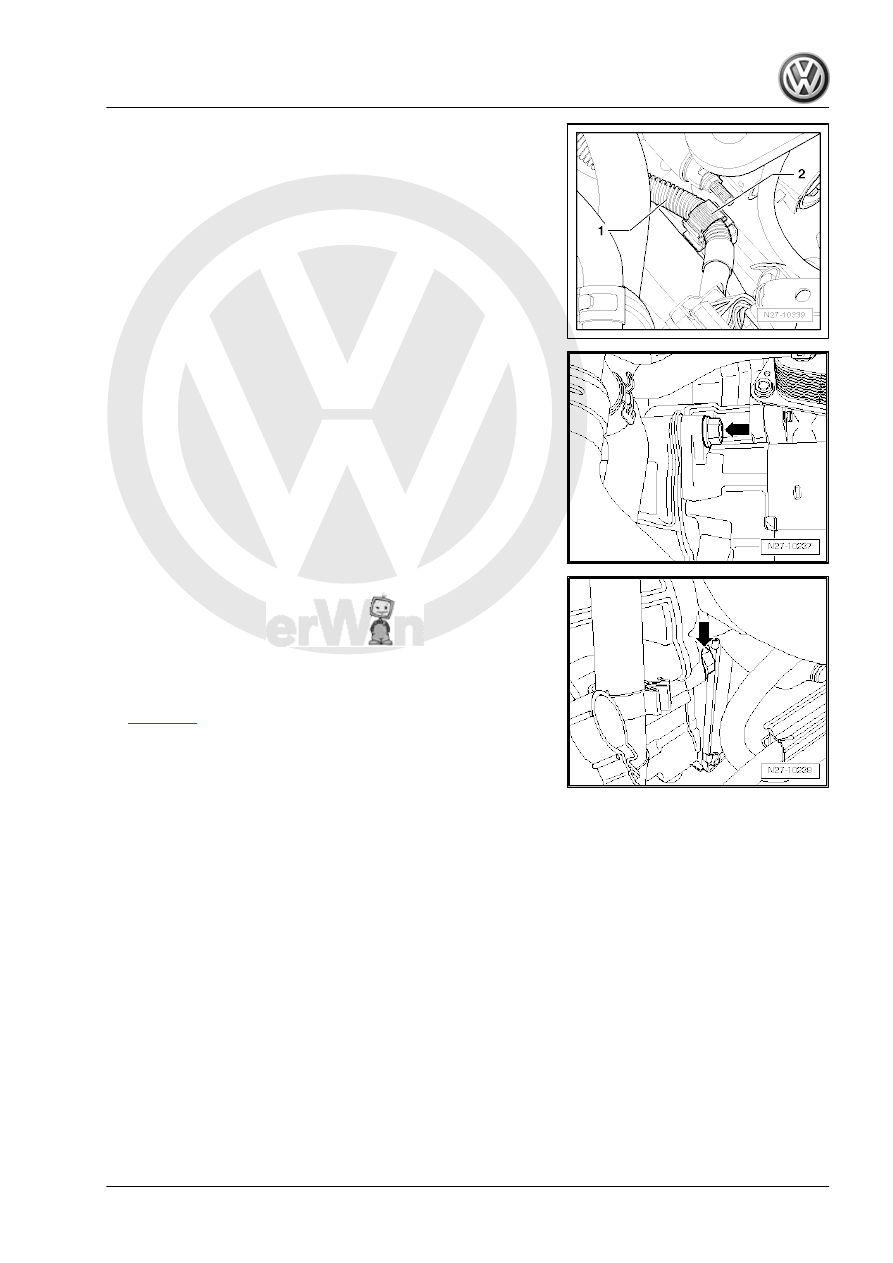

– Remove upper bolt -arrow- from starter.

– Remove lower bolt -arrow- from starter.
– Remove starter -B- from vehicle upwards.
Installing
Install in the reverse order of removal. When doing this, note the

following:
– Tighten threaded connections to specified torques

⇒ page 35

 .

6. Starter B

59

Removing and installing starter -B-

(manual gearbox)

6.4.1

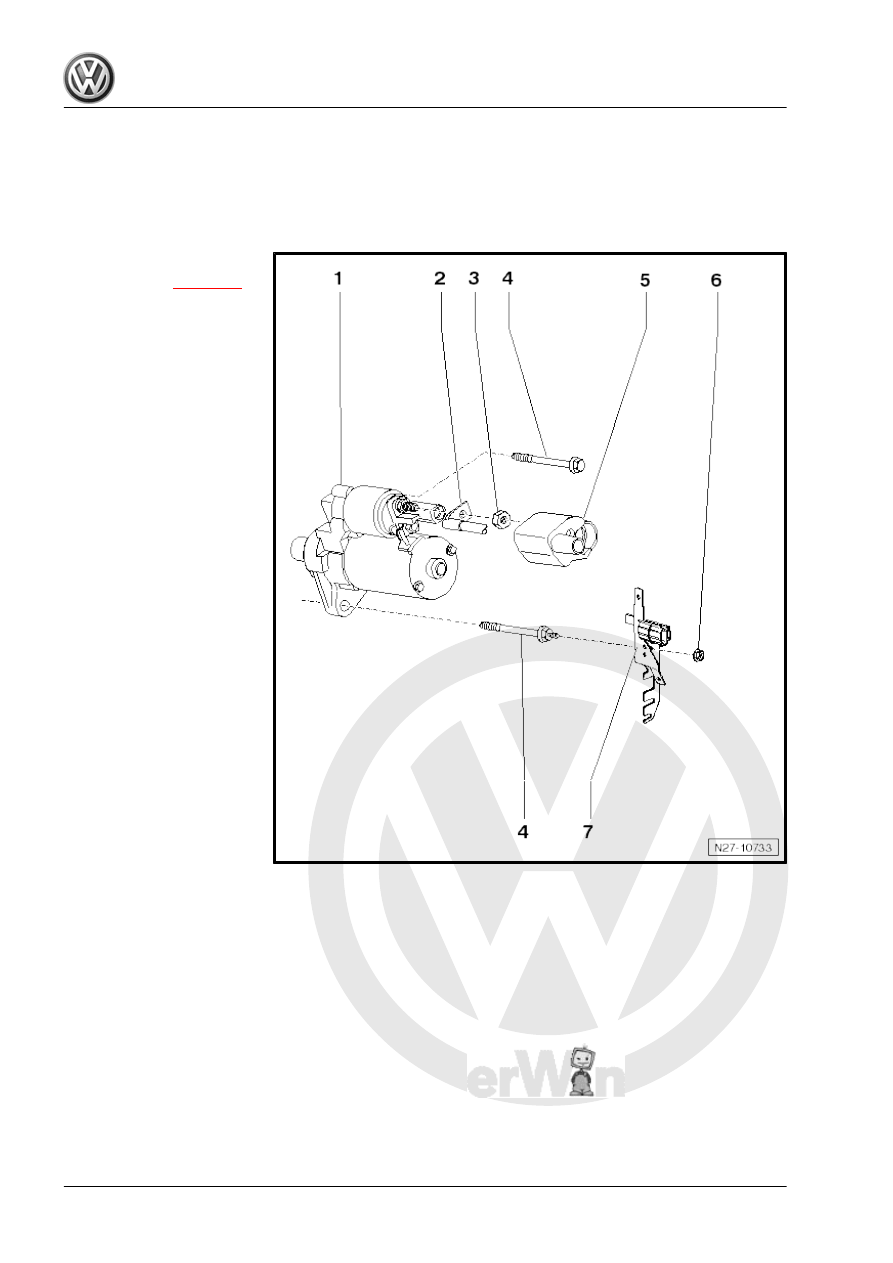

Assembly overview - starter -B-

1 - Starter -B-

❑ Checking

⇒ page 13

2 - Battery positive wire con‐

nection to starter -B-
3 - Nut

❑ 15 Nm

4 - Bolt

❑ 75 Nm

5 - Protective cap
6 - Nut

❑ 23 Nm

7 - Wiring retainer

Not illustrated
♦ Air filter housing bolt to body: 10 Nm

6.4.2

Vehicles with 1.4l TSI engine

Special tools and workshop equipment required

60

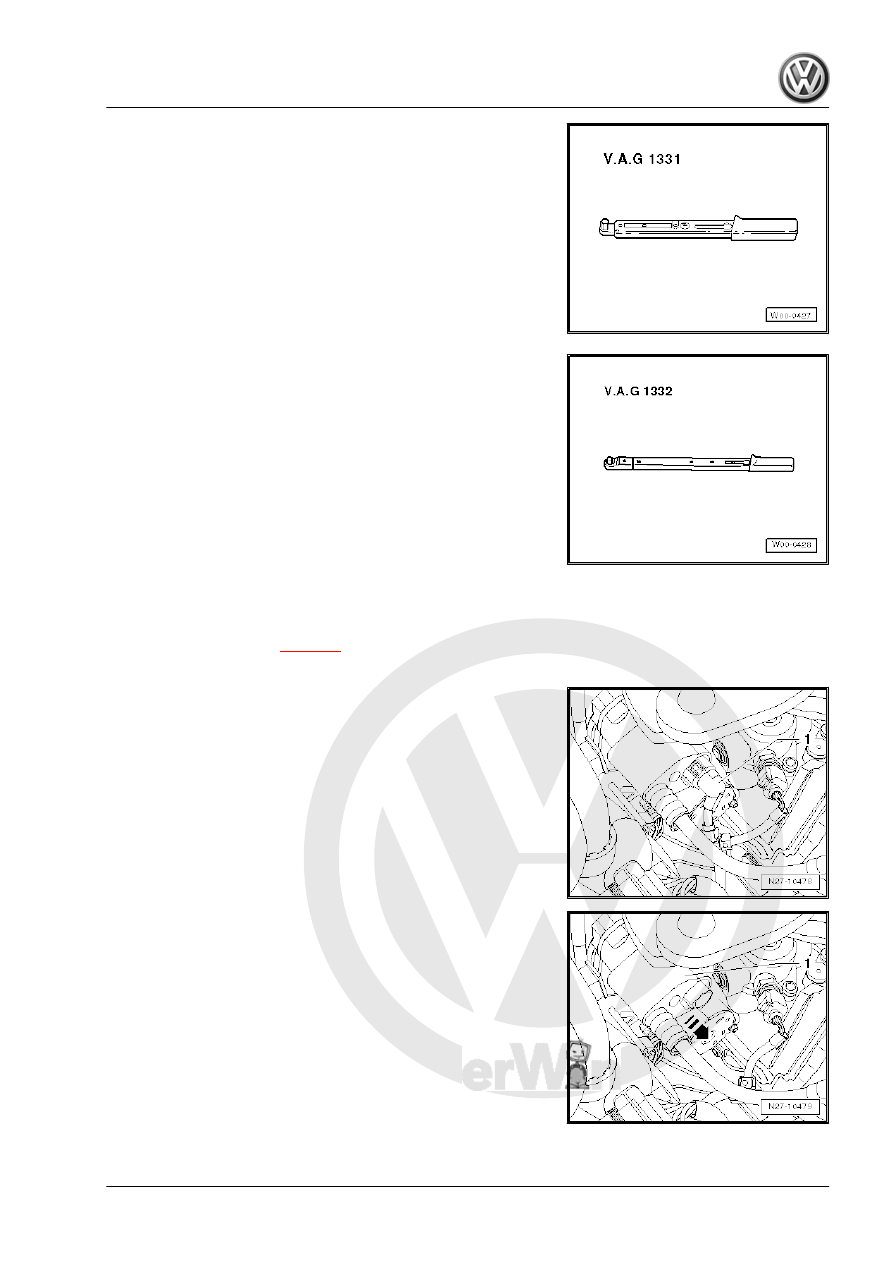

♦ Torque wrench -V.A.G 1332-

Carry out following procedures:
Removing
– Disconnect battery -A-

⇒ page 4

 .

– Remove air filter housing ⇒  Engine; Rep. gr.  24 .
– Release and disconnect connector -1-.

– Slide protective cap -1- off solenoid switch in direction of

-arrow-.

6. Starter B

61
