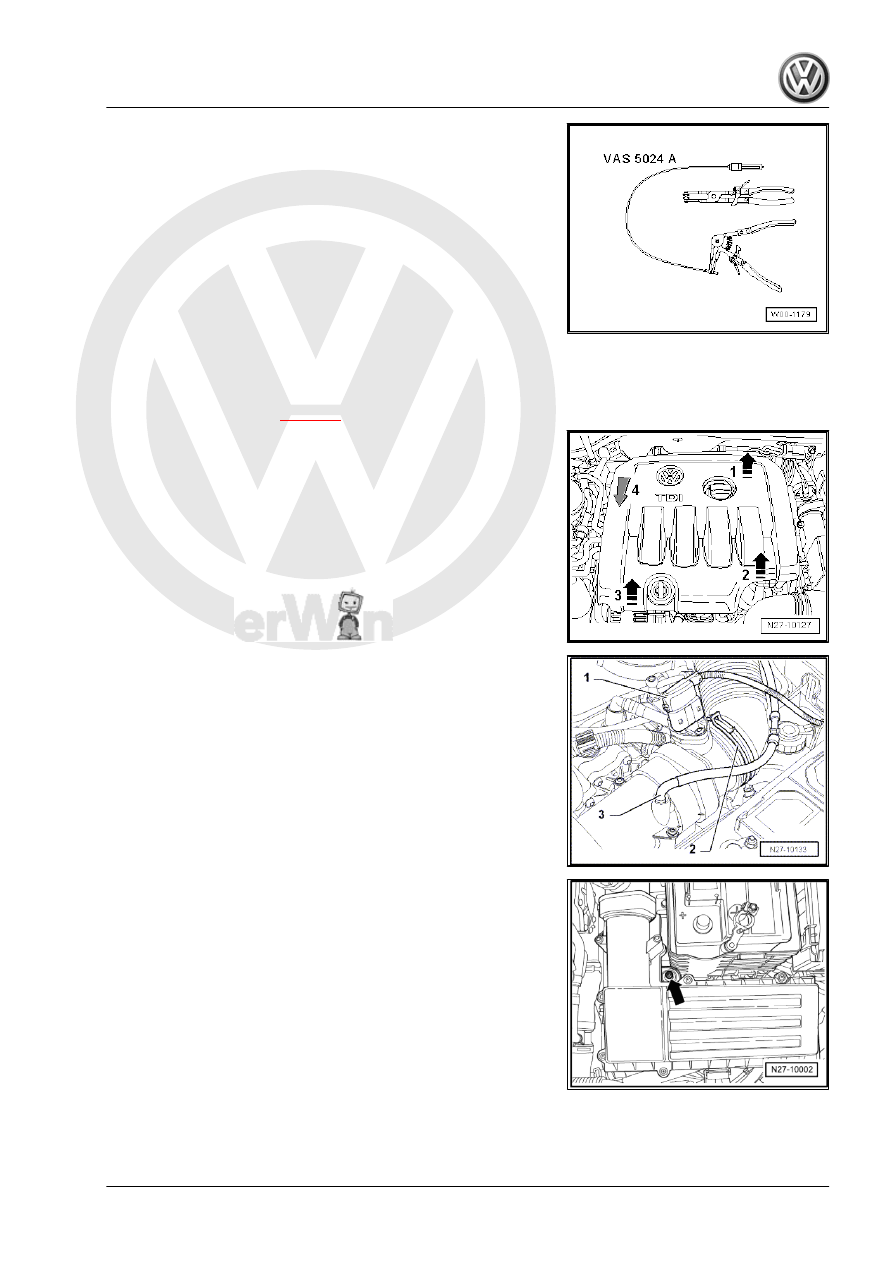

– Disconnect connector -1-, release spring-type clip -2- with

spring-type clip pliers -VAS 5024A- and pull off vacuum hose

-3-.

– Remove bolt of air filter housing -arrow-.

– Release locking lugs -arrows- and take off cover.

54

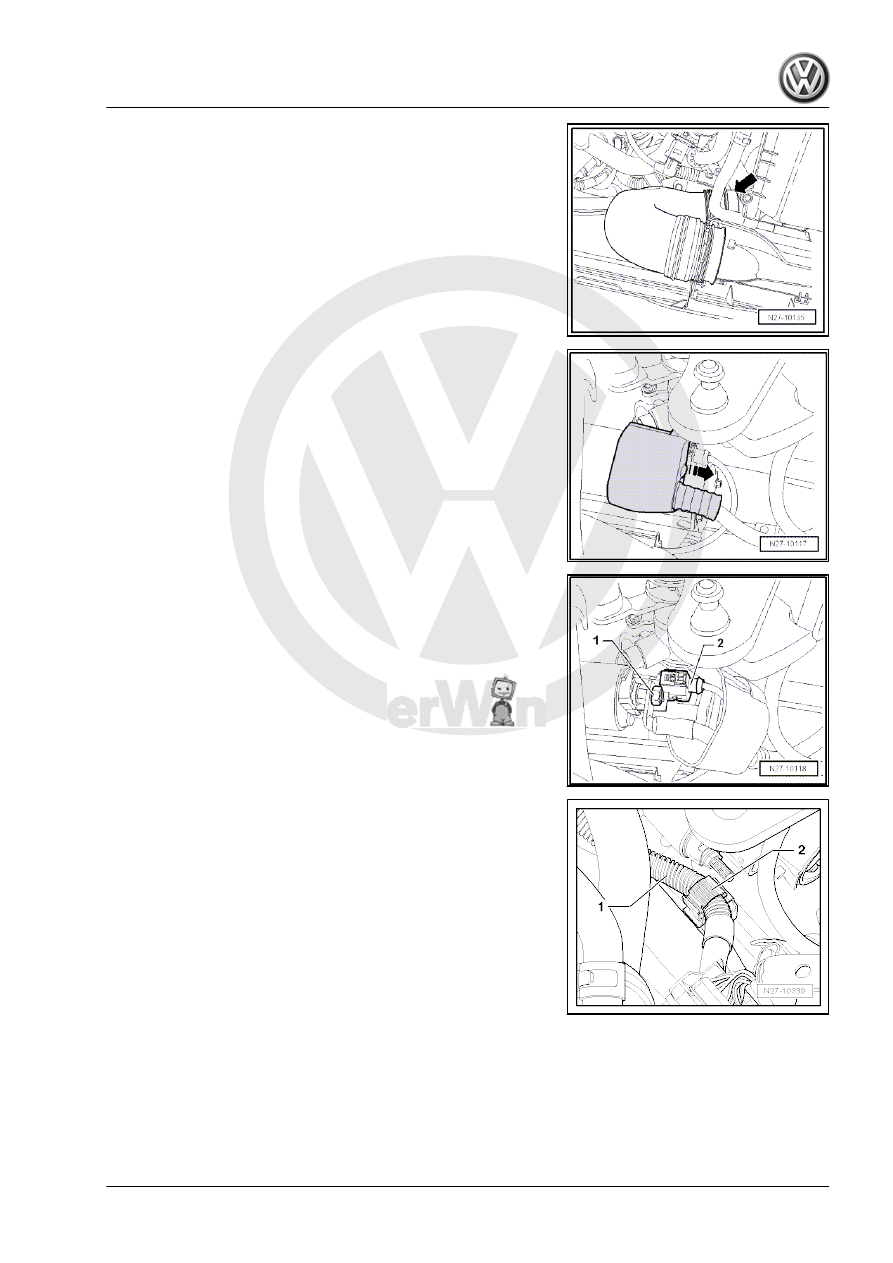

– Slide protective cap in direction of -arrow- off solenoid switch.

– Unscrew positive wire -1- and disconnect connector from ter‐

minal 50 -2-.

– Unclip wiring -1- from wiring retainer -2-.

6. Starter B

55

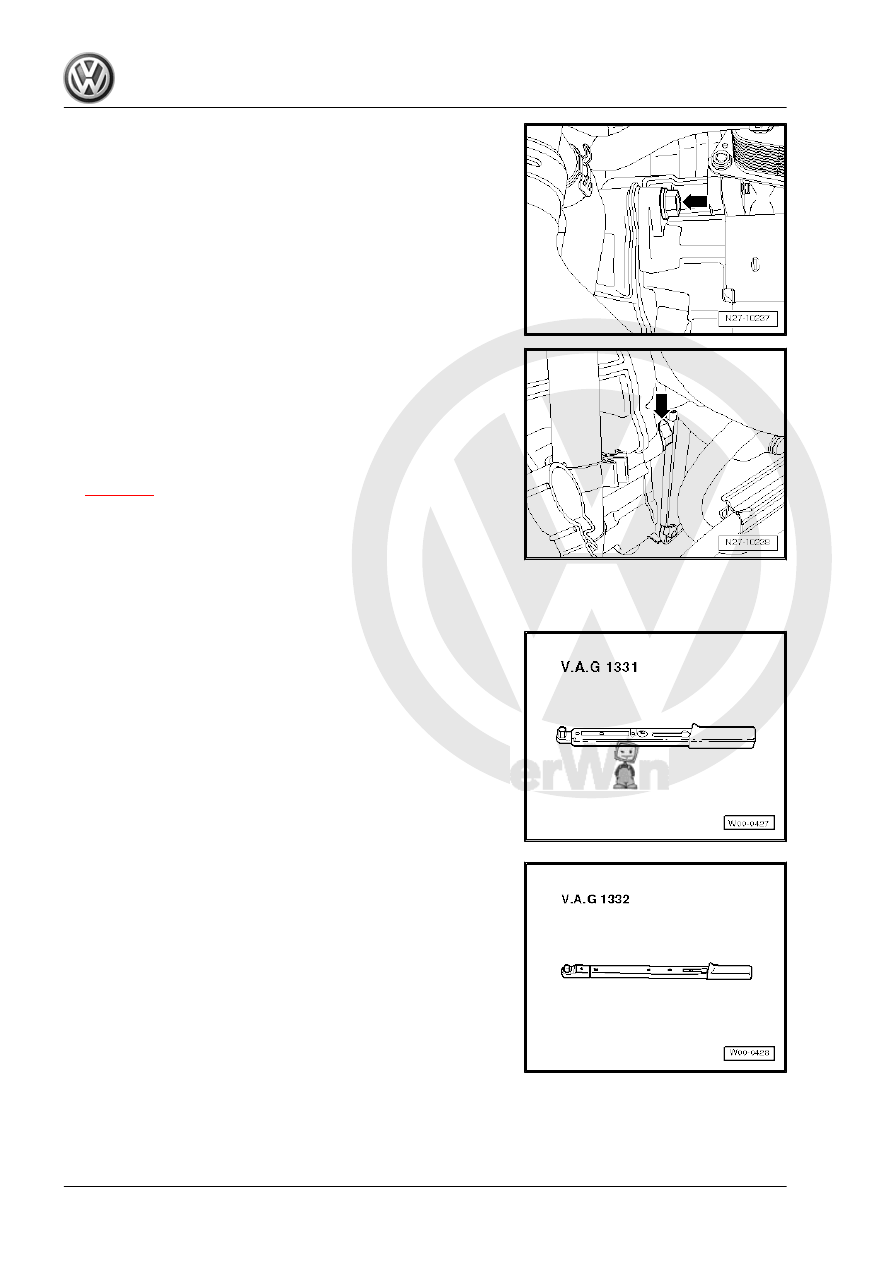

– Remove lower bolt -arrow- from starter.
– Remove starter -B- from vehicle upwards.
Installing
Install in the reverse order of removal. When doing this, note the

following:
– Tighten threaded connections to specified torques

⇒ page 35

 .

6.3.9

Vehicles with 2.0l CR TDI engine

Special tools and workshop equipment required
♦ Torque wrench -V.A.G 1331-

♦ Torque wrench -V.A.G 1332-

56

Carry out following procedures:
Removing
– Disconnect battery -A-

⇒ page 4

 .

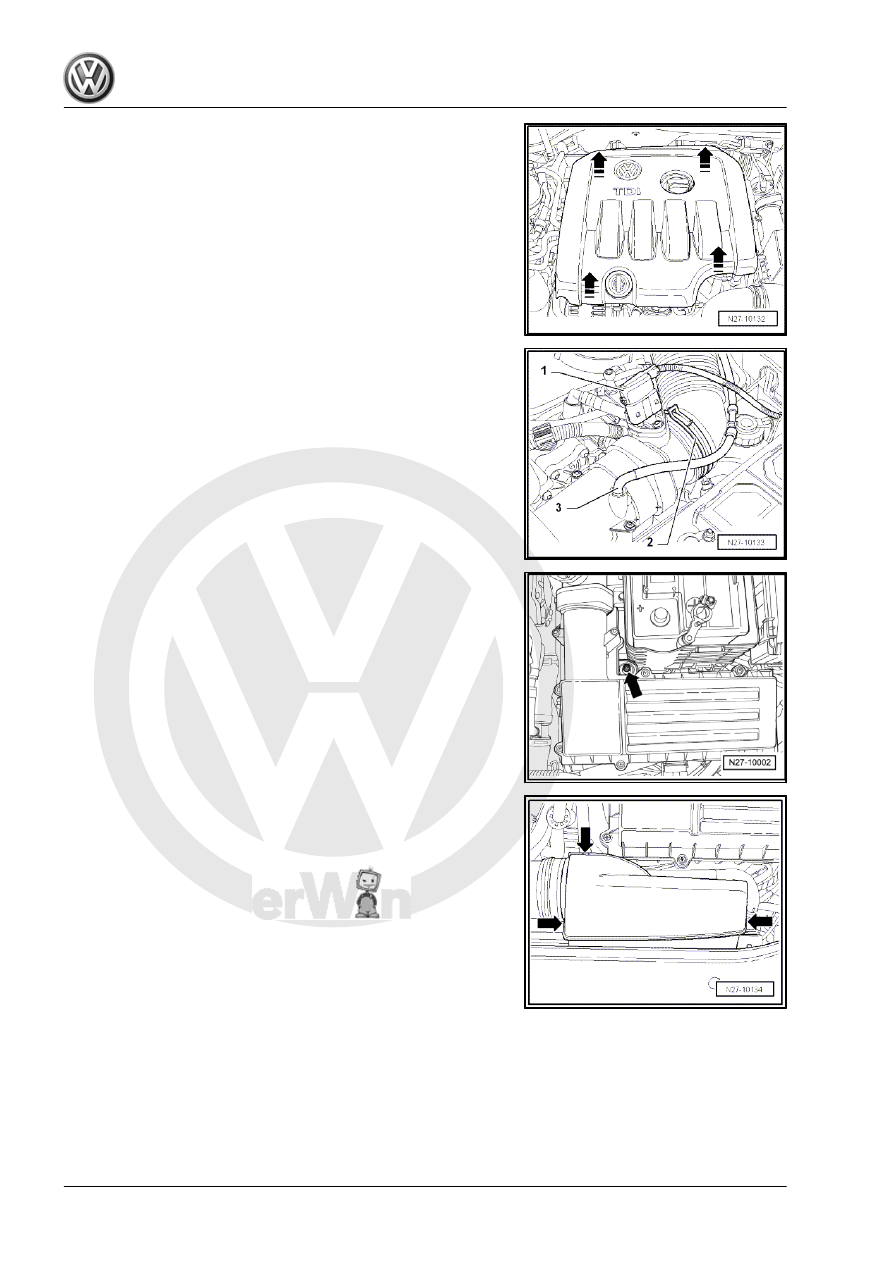

– Pull engine cover panel upwards -arrows-.

– Disconnect connector -1-, release spring-type clip -2- with

spring-type clip pliers -VAS 5024A- and pull off vacuum hose

-3-.

– Remove bolt of air filter housing -arrow-.

6. Starter B

57
