Checking battery -A-

All the instructions and information for this manual are found in

the workshop manual „Electrical System, General Information“. A

link to this workshop manual is not possible at present for tech‐

nical reasons. Please select the workshop manual „Electrical

System, General Information“ manually in ELSA.

2

Charging battery -A-

All the instructions and information for this manual are found in

the workshop manual „Electrical System, General Information“. A

link to this workshop manual is not possible at present for tech‐

nical reasons. Please select the workshop manual „Electrical

System, General Information“ manually in ELSA.

3. Charging battery A

3

Disconnecting and connecting bat‐

tery -A-

4.1

Disconnecting and connecting battery -

A- ( battery -A- in engine compartment)

WARNING

Danger of injury! Observe warning notices and safety regula‐

tions

⇒ page 1

 !

Disconnect battery -A-

⇒ page 5

Reconnecting battery -A-

⇒ page 5

 .

4.1.1

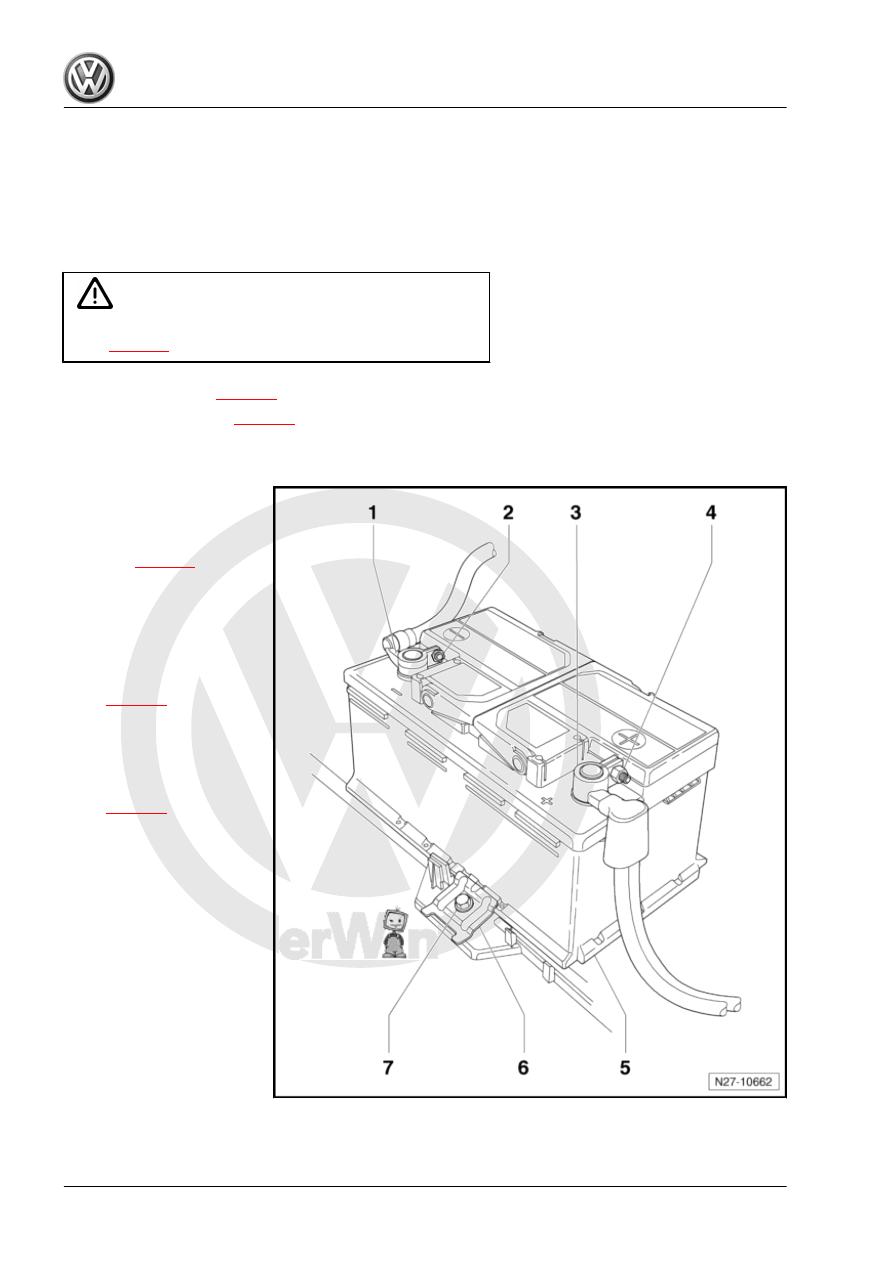

Assembly overview - battery -A-

1 - Earth wire battery terminal

clamp

❑ Observe notes for bat‐

tery pole terminal clamp

bolt

⇒ page 1

 .

2 - Nut

❑ 6 Nm

3 - Positive wire battery termi‐

nal clamp

❑ Observe notes for bat‐

tery terminal clamp bolt

⇒ page 1

 .

4 - Nut

❑ 6 Nm

5 - Battery -A-

❑ Removing and installing

⇒ page 7

6 - Clamping plate
7 - Bolt

❑ 35 Nm

4

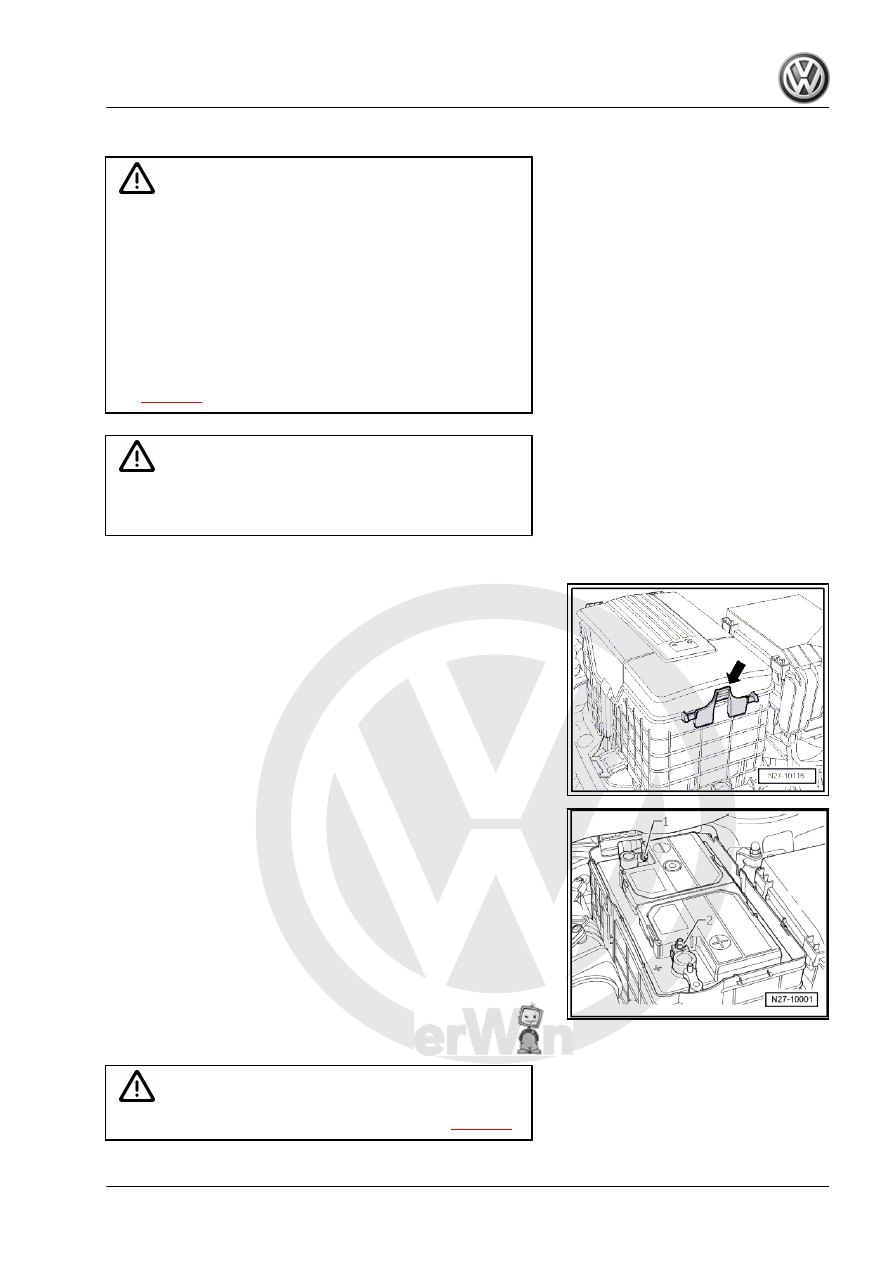

Disconnecting battery -A-

Caution

♦ Always make sure that the electrical system of the vehicle

is protected by disconnecting the battery -A- before any

work on the electrical system starts.

♦ Do not unfasten or remove the earthing cable from your

body. Only remove the negative terminal (-) of the battery

-A- .

♦ The positive terminal (B+) of the battery -A- is only allowed

to be removed if the battery -A- has been removed from

the vehicle.

♦ Observe warning notices and safety regulations

⇒ page 1

 .

Caution

♦ Switch off ignition and all electrical consumers.
♦ Remove the ignition key.

Carry out following procedures:
– Release catch -arrow- and take cover off battery housing.
– First unscrew battery earth terminal clamp -1- from battery

negative terminal.

– Then unscrew battery positive terminal clamp -2- from battery

positive terminal.

4.1.3

Connecting battery -A-

Caution

Observe notes for battery pole terminal clamp bolt

⇒ page 1

 .

4. Disconnecting and connecting battery A

5
