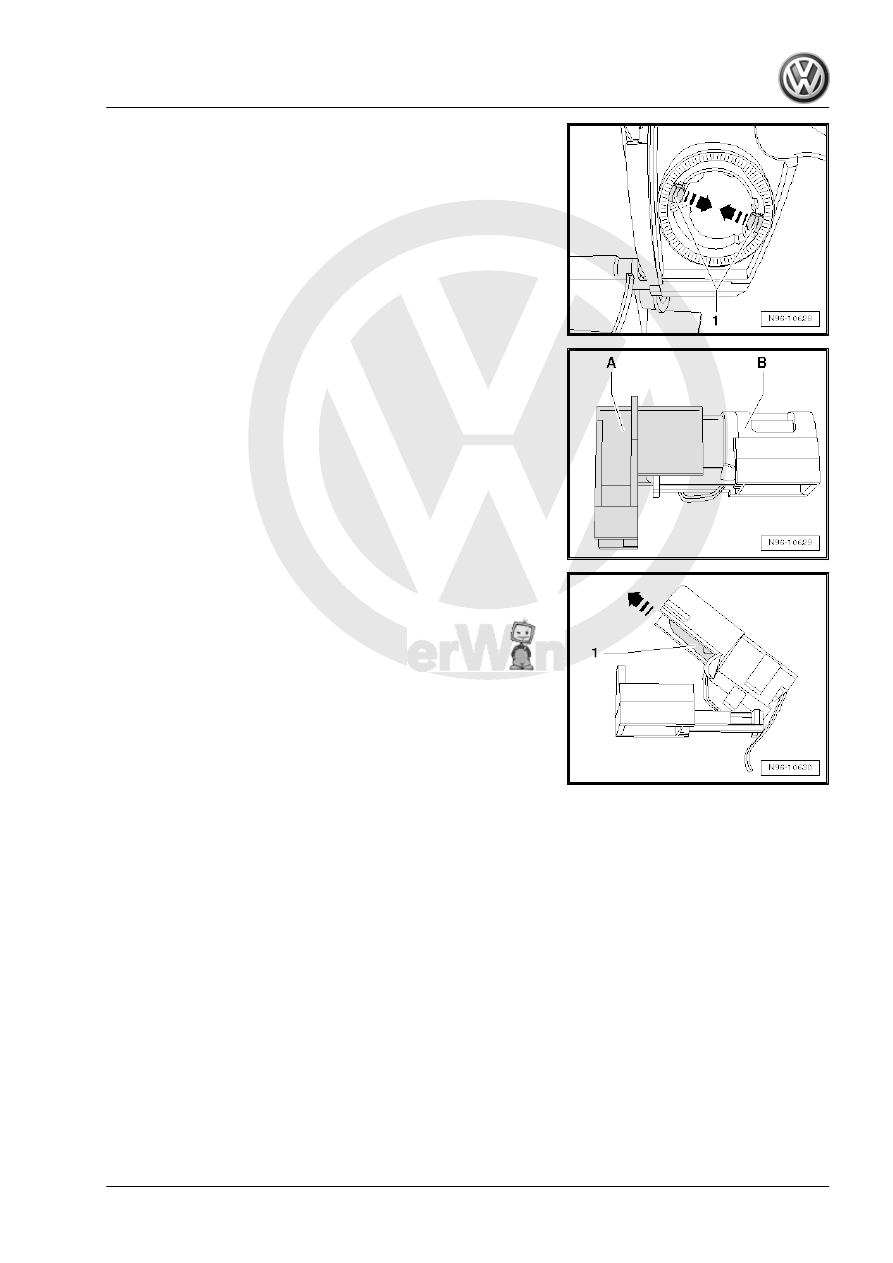

taining sleeve together with bulb carrier.

– Unclip bulb carrier from retaining sleeve.

– Separate bulb carrier in areas -A- and -B-.
– Open part -B- of bulb carrier.

– Remove light bulb in direction of -arrow-.
Installing
Installation is carried out in reverse order of removal.

2. Cigarette lighter U1

81

1

Vehicle diagnosis, testing and infor‐

mation system -VAS 5051B-

WARNING

♦ During testing or measuring operations using a vehicle di‐

agnosis, testing and information system -VAS 5051B- ,

there is a risk of serious or even fatal injury!

♦ If vehicle diagnosis, testing and information system -VAS

5051B- is lodged in the activity area of an airbag during a

testing or measuring operation, a triggered airbag can re‐

sult in serious or even fatal injury!

♦ During testing and measuring operations, work with a sec‐

ond person who can operate vehicle diagnosis, testing

and information system -VAS 5051B- from one of the back

seats.

Note

All work procedures can be found in “guided fault finding” and

“guided functions” modes.

Additional information:
♦ ⇒ Self-study programme  No.  202 ; Vehicle diagnostic, testing

and information system VAS 5051

♦ ⇒ Self-study programme  No.  256 ; VAS 5052
♦ ⇒ Self-study programme  No.  294 ; Online connection of VAS

5051

Connecting vehicle diagnosis, testing and information system -

VAS 5051B-

⇒ page 82

1.1

Connecting vehicle diagnosis, testing

and information system -VAS 5051B-

Note

Observe the latest operating instructions for vehicle diagnosis,

testing and information system -VAS 5051B- , which are dis‐

played after selecting the “Administration” and “Operating Man‐

ual” keys.

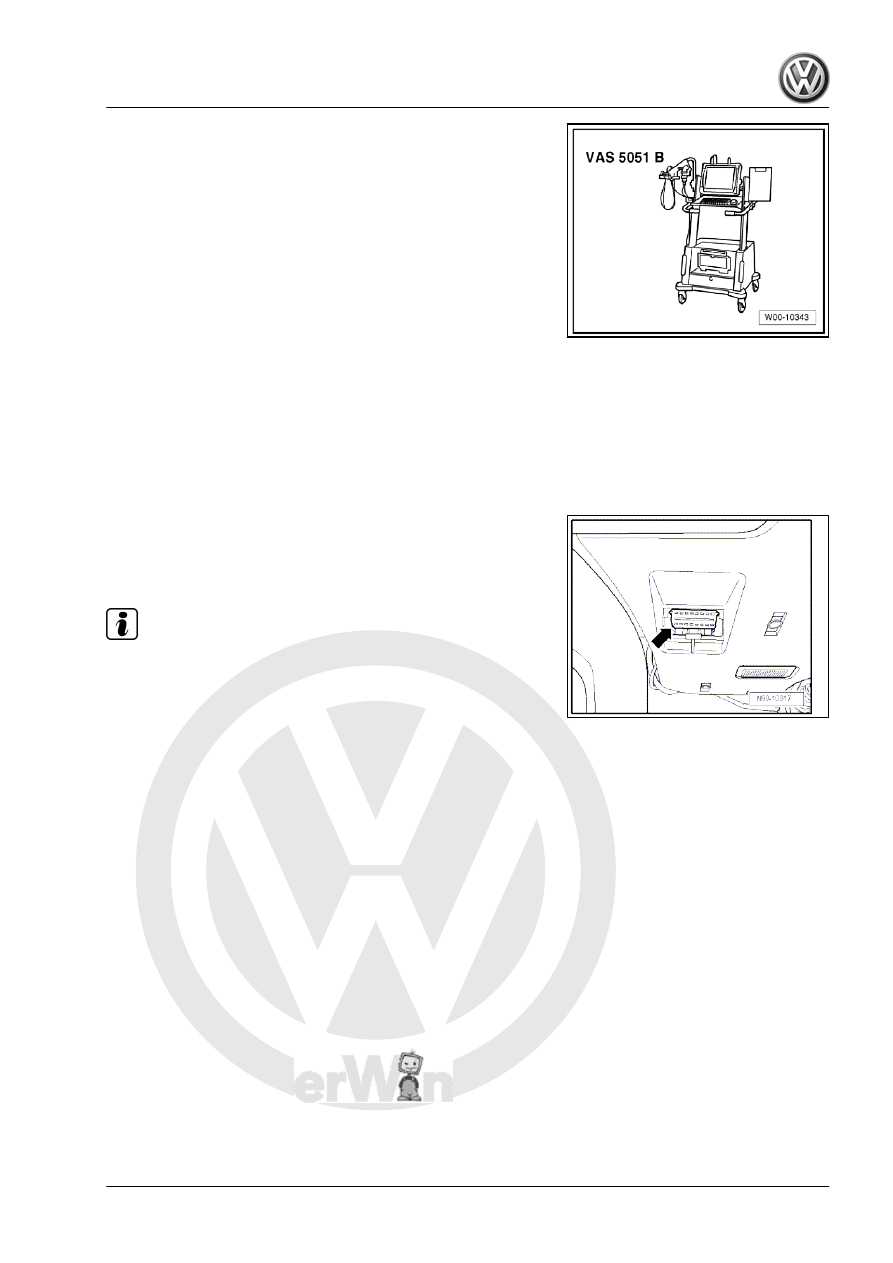

Special tools and workshop equipment required

82

5051B-

Carry out following procedures:
– Switch off ignition and all electrical loads.
– Apply handbrake.
– Vehicles with automatic gearbox, move selector lever to posi‐

tion “P” or “N”.

– Vehicles with manual gearbox, move gear lever to neutral po‐

sition.

– With ignition switched off, connect vehicle diagnosis, testing

and information system -VAS 5051B- to diagnostic connection

-arrow- in vehicle.

– Switch on ignition.

Note

Connect all other and following vehicle diagnostic testers accord‐

ingly in sequence described above.

1.2

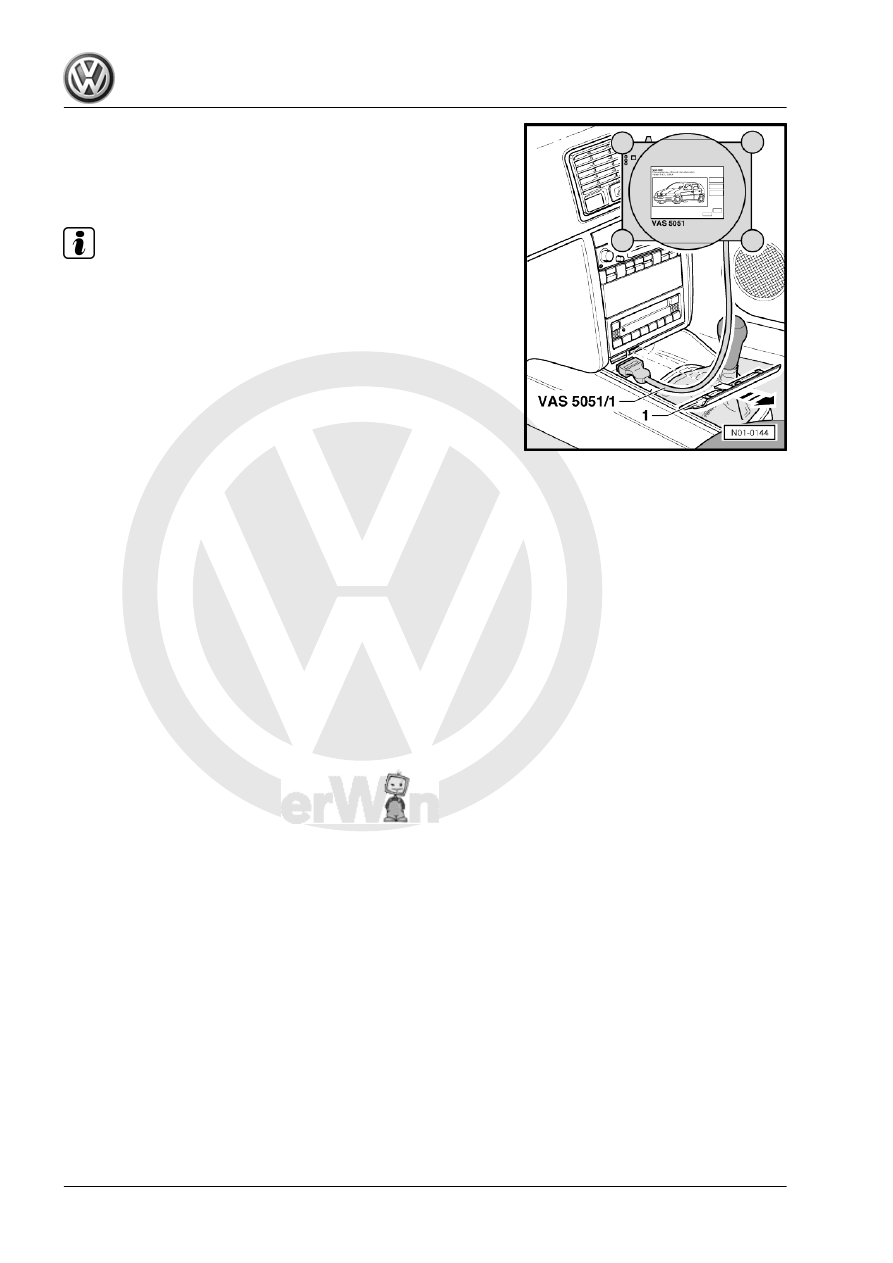

Connecting vehicle diagnostic tester

Bora Model Year 1998 to 2003

Carry out following procedures:
– Switch off ignition and all electrical loads.
– Apply handbrake.
– Vehicles with automatic gearbox, move selector lever to posi‐

tion “P” or “N”.

– Vehicles with manual gearbox, move gear lever to neutral po‐

sition.

1. Vehicle diagnosis, testing and information system VAS 5051B

83

tester to the vehicle diagnosis connection.

– Switch on ignition.

Note

Connect all other and following vehicle diagnostic testers accord‐

ingly in sequence described above.

84
