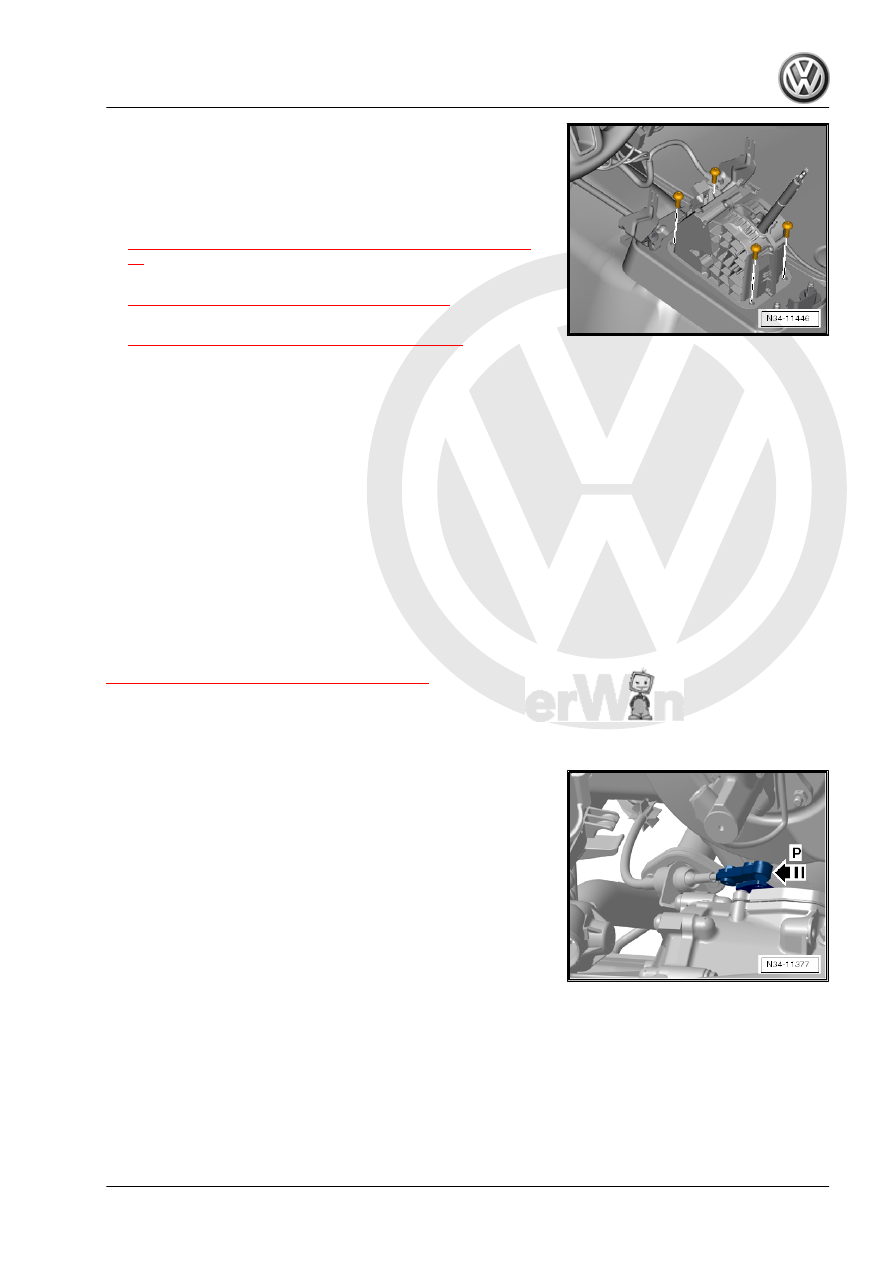

four bolts.

68 ; Center Console; Center Console, Removing and Instal‐

ling, »Basic« .

– Install the selector lever handle. Refer to

⇒ “2.8 Selector Lever Handle, Removing and Installing”, page

96

 .

– Adjust the selector lever cable. Refer to

⇒ “2.6 Selector Lever Cable, Adjusting”, page 94

 .

– Check the selector mechanism. Refer to

⇒ “2.10 Selector Mechanism, Checking”, page 101

 .

- Air Filter Housing .

System; Overview - Air Filter .

– Install the engine cover if removed.

2.5

Selector Lever Cable, Checking

Brief Description
The selector lever cable must be removed from the transmission

in order to check it for ease of movement. Do not let the removed

end touch anything.
Then selector lever is moved and the selector lever cable installed

again on the transmission.
After that, the selector lever cable must be adjusted. Refer to

⇒ “2.6 Selector Lever Cable, Adjusting”, page 94

 .

Do not lubricate the selector lever cable connections.
Checking
– Move the selector lever into »P«.
– Remove the selector lever cable from the ball head on the se‐

lector lever using, for example, a Pry Lever - 80-200- .

– Move the selector lever from »P« to »S« and back to »P« sev‐

eral times.

• The selector lever must have ease of movement.
– Reinstall the selector level cable with the »loosened« adjust‐

ing screw.

2. Selector Mechanism

93

always be installed.
– Adjust the selector lever cable. Refer to

⇒ “2.6 Selector Lever Cable, Adjusting”, page 94

 .

2.6

Selector Lever Cable, Adjusting

Special tools and workshop equipment required
♦ Torque Wrench 1331 5-50Nm - VAG1331-
Selector Lever Cable Must Always Be Adjusted If:
♦ The selector lever cable was removed from the transmission.
♦ The engine and/or transmission were removed and installed.
♦ Sections of the subframe mount were removed and installed.
♦ The selector lever cable itself or the selector mechanism was

removed and installed.

♦ The engine/transmission position was changed, for example,

were installed without tension.

Adjusting

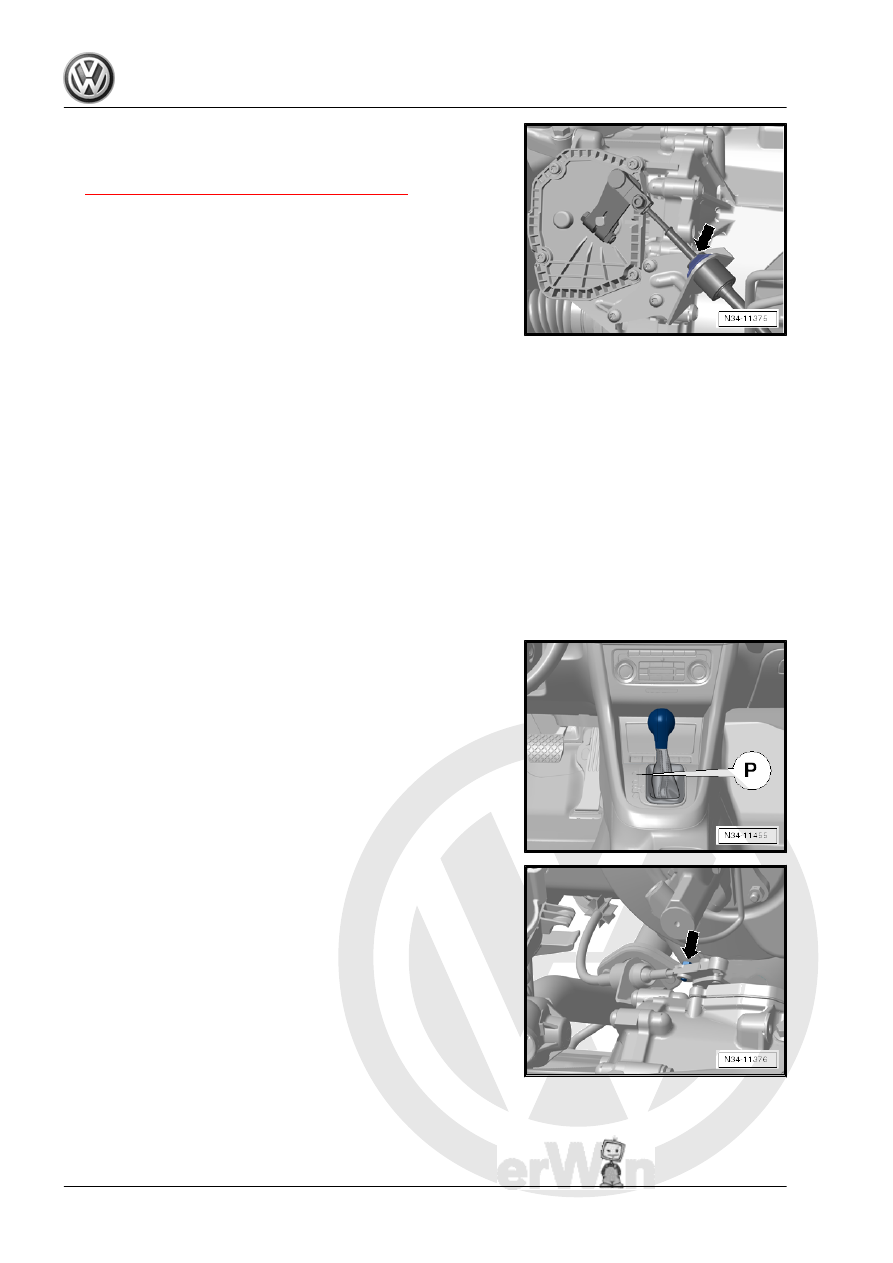

– Move the selector lever into “P”.

The adjusting screw -arrow- must be »loosened«.
– Move the selector lever on the transmission to “P”.

94

toward the right side of the vehicle«, in the direction of the selector

lever cable bracket.

The illustration shows the transmission from the »rear«. -P- is to‐

ward the cable bracket.

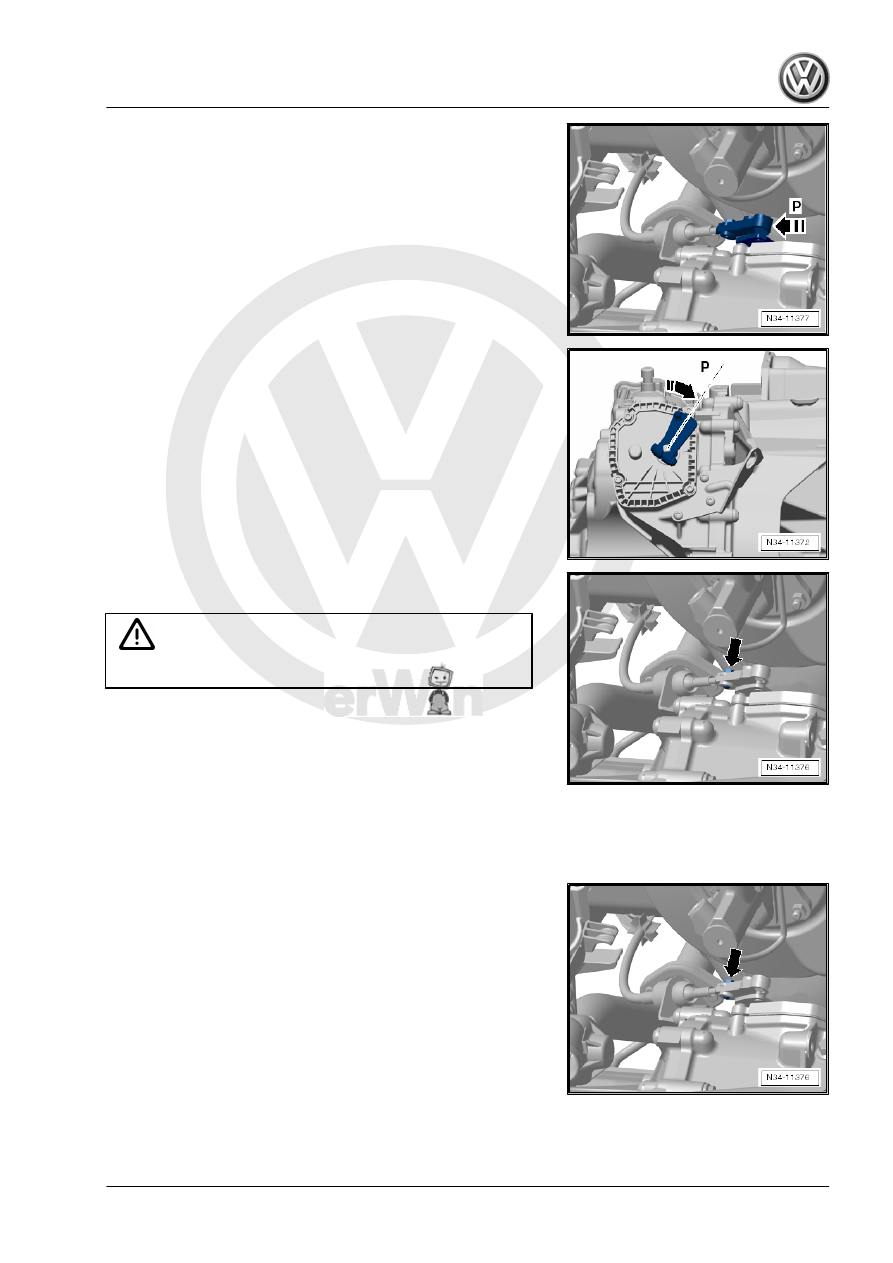

– Install the selector lever cable with the adjusting screw

-arrow- loosened and the new lock washer.

WARNING

Make sure the parking lock is latched.

– From »underneath the vehicle«, rotate both front wheels in the

same direction and at the same time until the parking lock au‐

dibly engages.

• The parking lock is engaged when it is not possible to rotate

both front wheels in the same direction at the same time.

– Tap the handle on the selector lever back and forth gently but

do not move it out of “P” under any circumstances.

This places the selector lever cable core in its optimal position.

– Tighten adjustment screw -arrow- to 13 Nm.
This ends the adjustment.

2. Selector Mechanism

95

Selector Lever, Emergency Release

Note

Do not remove the handle.

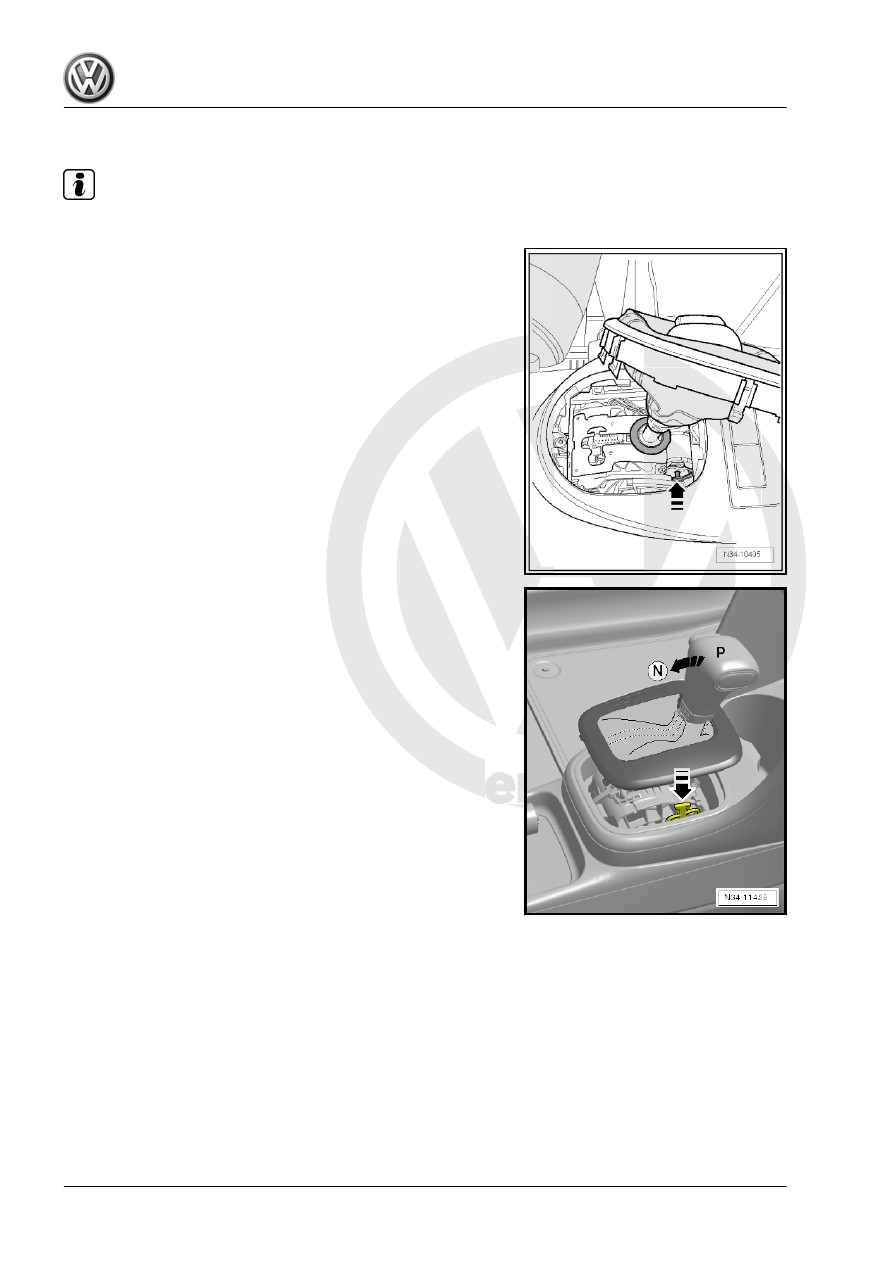

– Unclip the shift cover and hold it to the side.
– Press the brake or set the parking brake.
Vehicles through 02/2009
– Press on the yellow plastic piece from the right to the left

-arrow-.

– Or press it onto the solenoid pins.

Vehicles from 03/2009
– Push onto the yellow plastic part -arrow-.
All
The selector lever can now be moved out of »P«.

2.8

Selector Lever Handle, Removing and

Installing

Brief Description
There are different handles depending on the model.
The handle is removed together with the shift cover.
Removing
– Move the selector lever into “D” position.

96
