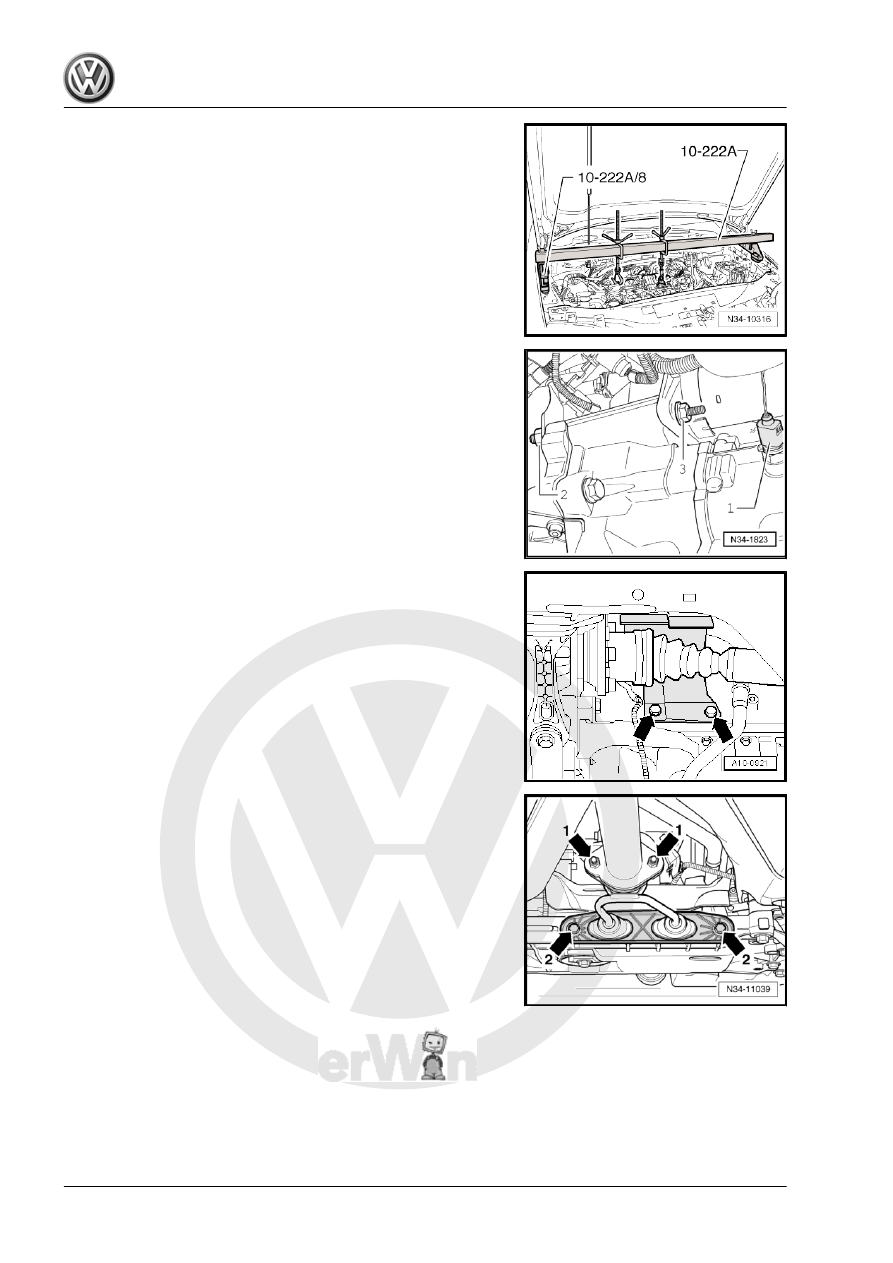

Support Bridge - Engine Support Feet - 10-222A/8- in front of

the hood gas struts.

– Preload the engine/transmission subassembly slightly using

the spindle.

– Raise the vehicle.
– Remove the noise insulation. Refer to ⇒  Body Exterior; Rep.

Gr.  50 ; Noise Insulation .

– Remove the lower part of the left front wheel housing liner.

– Disconnect the connector -1- from the Back-Up Lamp Switch

- F4- .

– If a nut -2- is installed, it must be removed now.
– Remove the starter (bolt -3-). Refer to ⇒  Electrical Equipment;

Rep. Gr.  27 ; Starter; Starter, Removing and Installing .

– If equipped, remove the driveshaft heat shield from the engine

-arrows-.

– Separate the exhaust system -arrows 1- and remove the ex‐

haust pipe bracket from the subframe -arrows 2-. Refer to ⇒

Rep. Gr.  26 ; Exhaust System .

84

sor - G266- .

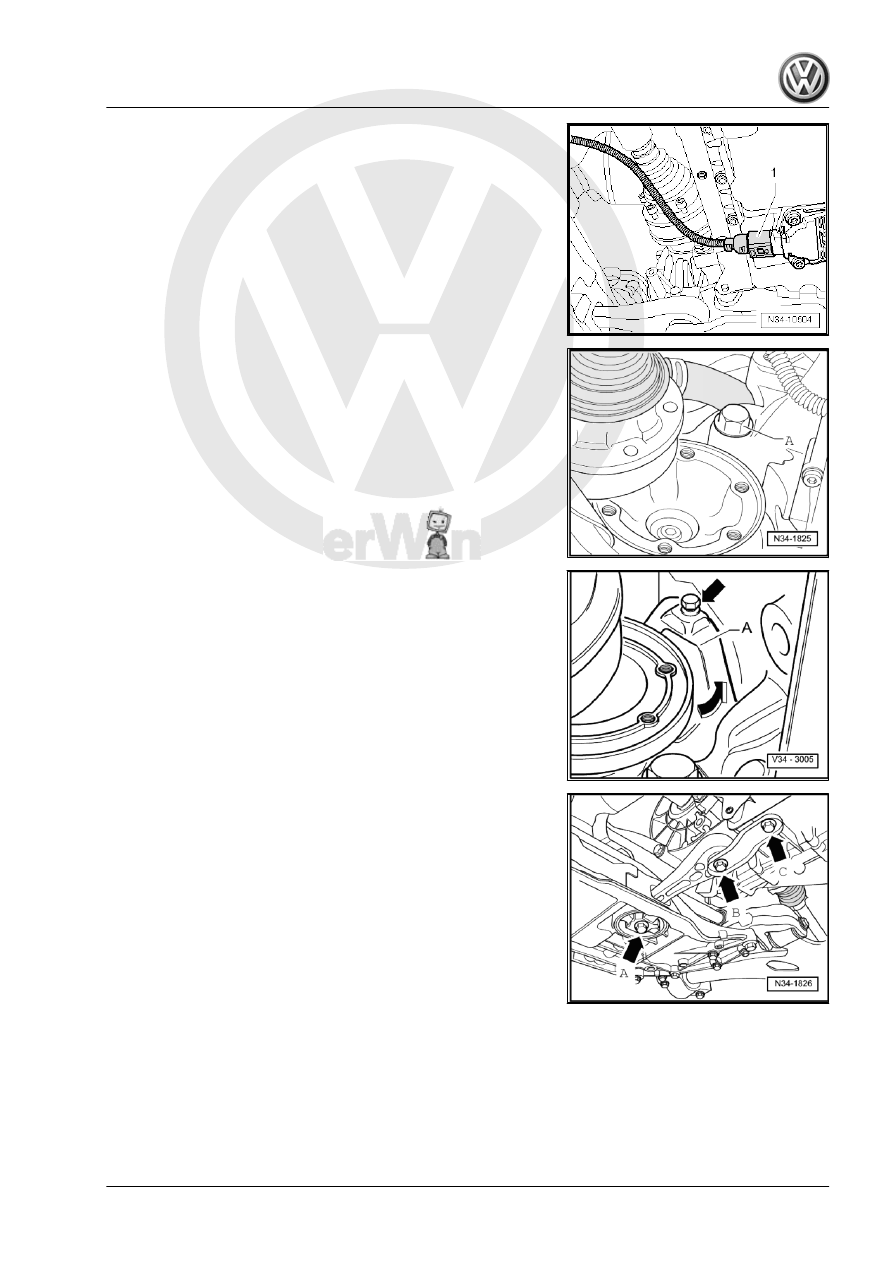

– Remove the driveshafts from the flange shafts and tie them up

as high as possible. Be careful not to damage the surface pro‐

tection.

– Remove engine/transmission connecting bolt -A- near the

right flange shaft.

– Check whether a cover plate -A- is installed above the right

flange shaft.

– If equipped, remove the cover plate -A- -arrows-.

– Remove the pendulum support -arrows A, B and C-.

2. Transmission, Removing and Installing, Jetta from MY 2005 , Golf Wagon from MY 2007 and Golf Wagon from MY 2010

85

the transmission mounting.

– Carefully move the engine/transmission subassembly into an

angled position. To do so lower the engine/transmission as‐

sembly using the Engine Support Bridge - 10-222A- left spin‐

dle.

Note

Pay attention to all of the lines when lowering the transmission.

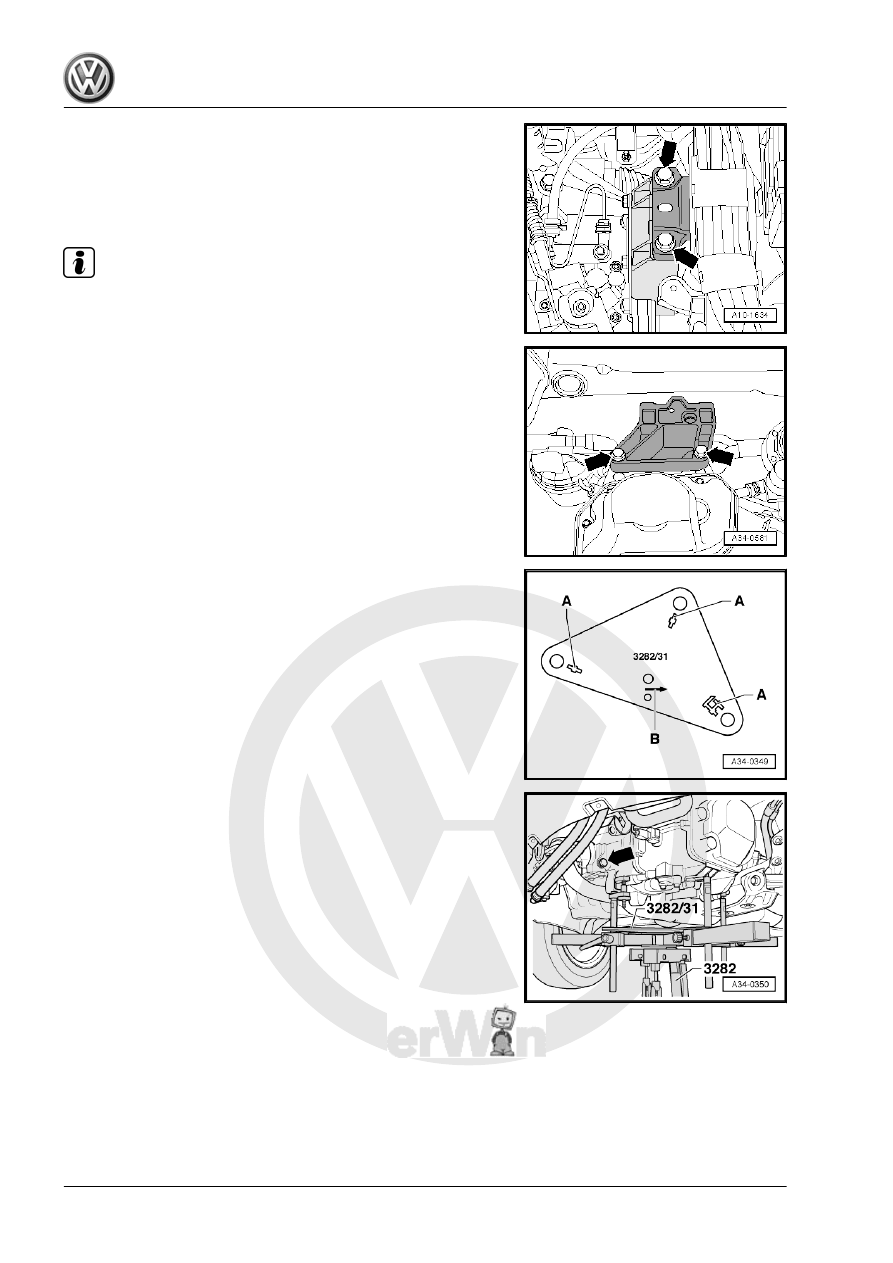

– Remove the transmission support from the transmission

-arrows-.

The Transmission Support - 3282- is aligned with the Transmis‐

sion Support - Mounting Plate 31 - 3282/31- in order to remove

the “0AF” transmission.
– Insert the Transmission Support - 3282- into the Engine and

Gearbox Jack - VAS6931- .

– Align the arms of the Transmission Support so that they match

up with the holes in the Adjustment Plate .

– Install the Support Elements -A- as illustrated on the Adjust‐

ment Plate .

– Position the Engine and Transmission Jack under the vehicle.

The arrow symbol -B- on the Adjusting Plate points in the di‐

rection of travel.

– Align the Adjusting Plate so that it is parallel to the transmis‐

sion and secure the safety support to the transmission.

– Remove the engine/transmission connecting bolt -arrow-.

86

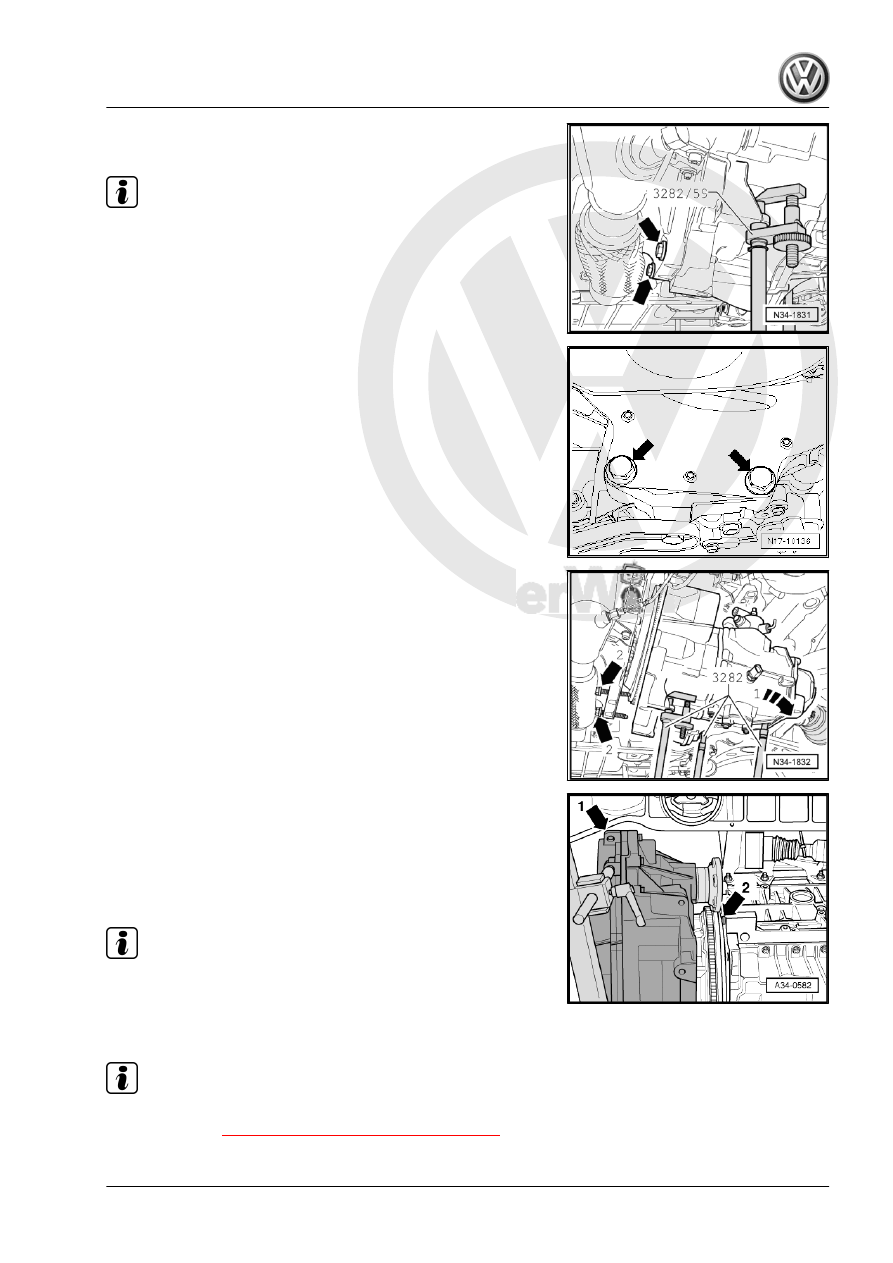

the area around the oil pan.

Note

The bolts remain attached to the engine if the exhaust system is

in front of the bolts -arrows-.

– If the vehicle has a steel metal oil pan, then remove the cover

plate -arrows-.

– Remove the transmission from the alignment sleeves.
– Be careful of the intermediate plate on the engine.
– Carefully push the engine forward with a second technician.

– Rotate the transmission downward in the area of the differen‐

tial -arrow 1- and slightly at the front end.

– If engine/transmission connecting bolts -arrows 2- cannot be

removed, ensure they do not come in contact with the exhaust

system.

– Then carefully guide transmission with right flange shaft, as

shown, onto flywheel/intermediate plate -arrow 2-.

– Lower transmission while being careful of subframe

-arrow 1-.

– Use spindles on the Transmission Support - 3282- to adjust

the position of the transmission while lowering it.

Note

Pay attention to all of the lines when lowering the transmission.

2.2

Transmission, Installing

Note

Refer to “Transmission, Removing” to get a list of the special tools

needed. Refer to

⇒ “2.1 Transmission, Removing”, page 82

 .

2. Transmission, Removing and Installing, Jetta from MY 2005 , Golf Wagon from MY 2007 and Golf Wagon from MY 2010

87
