1

Shift Mechanism, Servicing

⇒ “1.1 Shift Mechanism Installation Position”, page 52
⇒ “1.2 Overview - Selector Mechanism”, page 54
⇒ “1.3 Overview - Gearshift Knob and Cover”, page 55
⇒ “1.4 Boot with Shifter Knob and Noise Insulation, Removing and

Installing”, page 55
⇒ “1.5 Overview - Gearshift Lever and Gearshift Housing, through

10/2006”, page 57
⇒ “1.6 Gearshift Lever and Gearshift Housing, from 11/2006”,

page 59
⇒ “1.7 Overview - Operating Cables”, page 66
⇒ “1.8 Selector Mechanism, Removing and Installing”,

page 70
⇒ “1.9 Gearshift Cable and Selector Cable, Removing and Instal‐

ling”, page 75
⇒ “1.10 Selector Mechanism, Adjusting”, page 76
⇒ “1.11 Plastic Relay Lever”, page 78

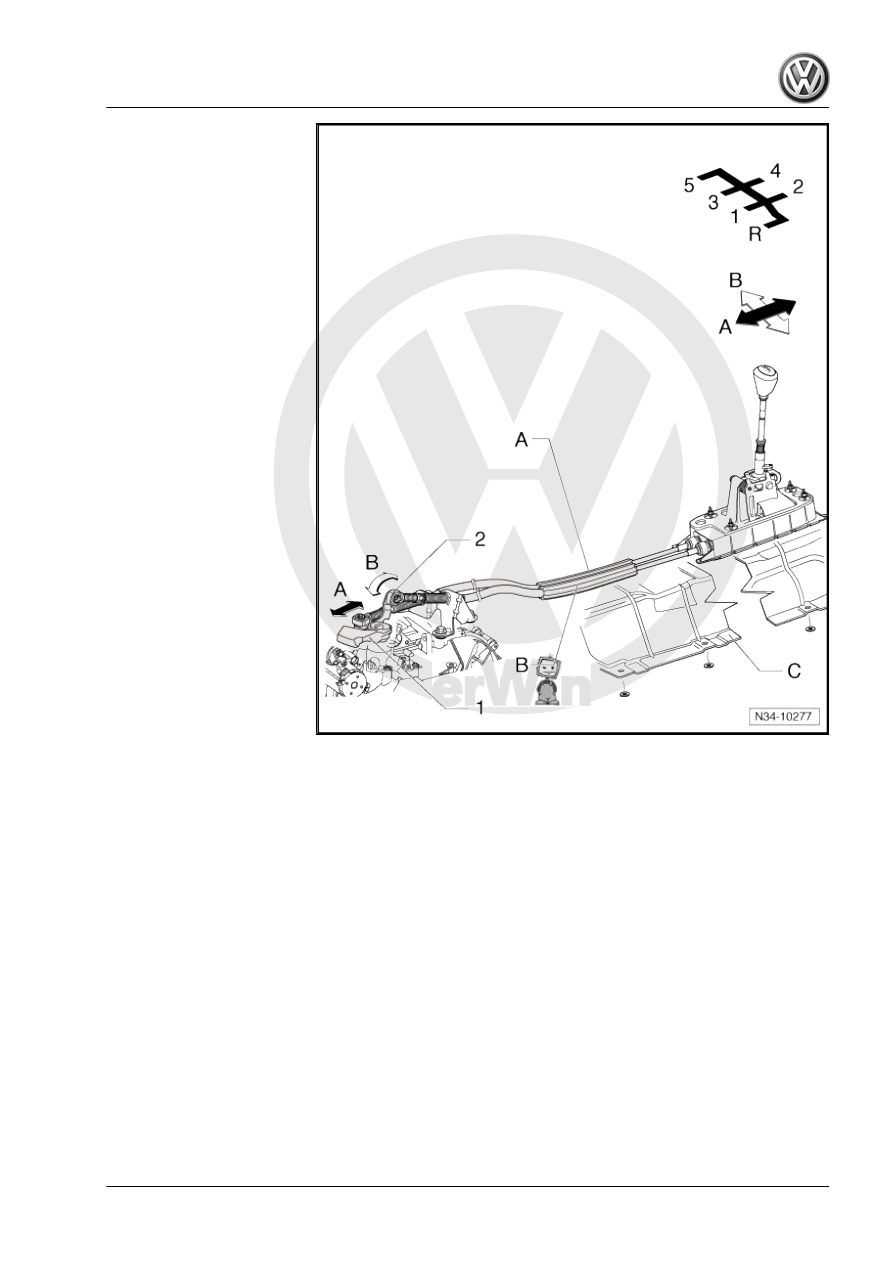

1.1

Shift Mechanism Installation Position

-Arrow A- gearshift lever movement
-Arrow B- selector lever movement

52

❑ Remove the gearshift

mechanism before re‐

moval

1 - Selector Lever
2 - Relay Lever

1. Shift Mechanism, Servicing

53

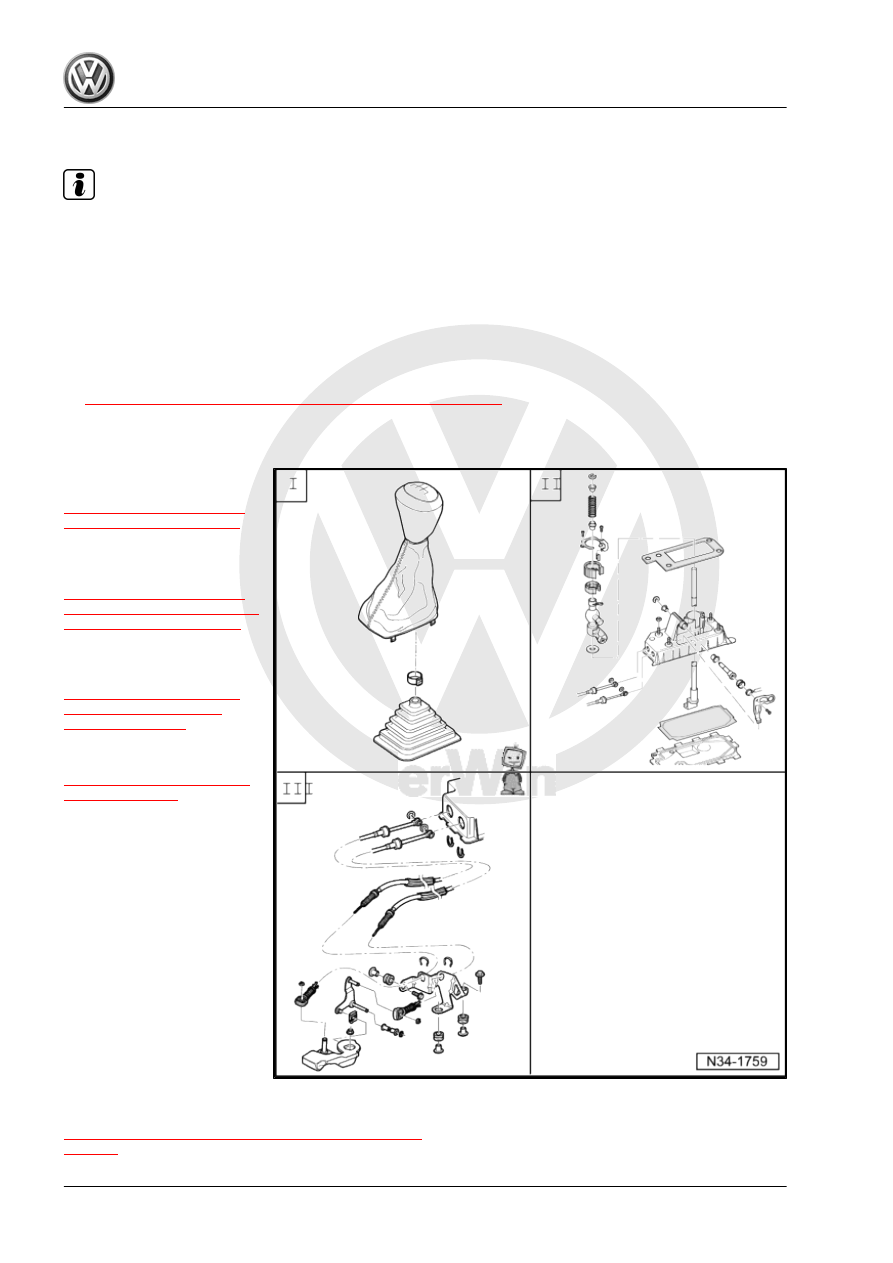

Overview - Selector Mechanism

Note

♦

Note radio code on vehicles with coded radio.

♦

Disconnect the ground cable from the battery when working on the gearshift mechanism inside the engine

compartment. Refer to ⇒  Electrical Equipment; Rep. Gr.  27 ; Battery; Battery, Disconnecting and Con‐

necting .

♦

Connect battery and follow the procedures to be performed after connecting a battery. Refer to ⇒  Electrical

Equipment; Rep. Gr.  27 ; Battery; Battery, Disconnecting and Connecting .

♦

To work on gearshift mechanism in the engine compartment, remove entire air filter housing if it is located

♦

The shift mechanism must be removed in order to replace the operating cables. Refer to

⇒ “1.8 Selector Mechanism, Removing and Installing”, page 70

 .

♦

Do not bend the operating cables.

I - Overview - Gearshift Knob

and Cover. Refer to

⇒ “1.3 Overview - Gearshift

Knob and Cover”, page 55

 .

II - Overview - Gearshift Lever

and Gearshift Housing,

through 10/2006. Refer to

⇒ “1.5 Overview - Gearshift

Lever and Gearshift Housing,

through 10/2006”, page 57

 .

II - Overview - Gearshift Lever

and Gearshift Housing, from

11/2006. Refer to

⇒ “1.6 Gearshift Lever and

Gearshift Housing, from

11/2006”, page 59

 .

III - Overview - Operating Ca‐

bles. Refer to

⇒ “1.7 Overview - Operating

Cables”, page 66

Gearshift Mechanism, Removing and Installing. Refer to

⇒ “1.8 Selector Mechanism, Removing and Installing”,

page 70

 .

54

⇒ “1.10 Selector Mechanism, Adjusting”, page 76

 .

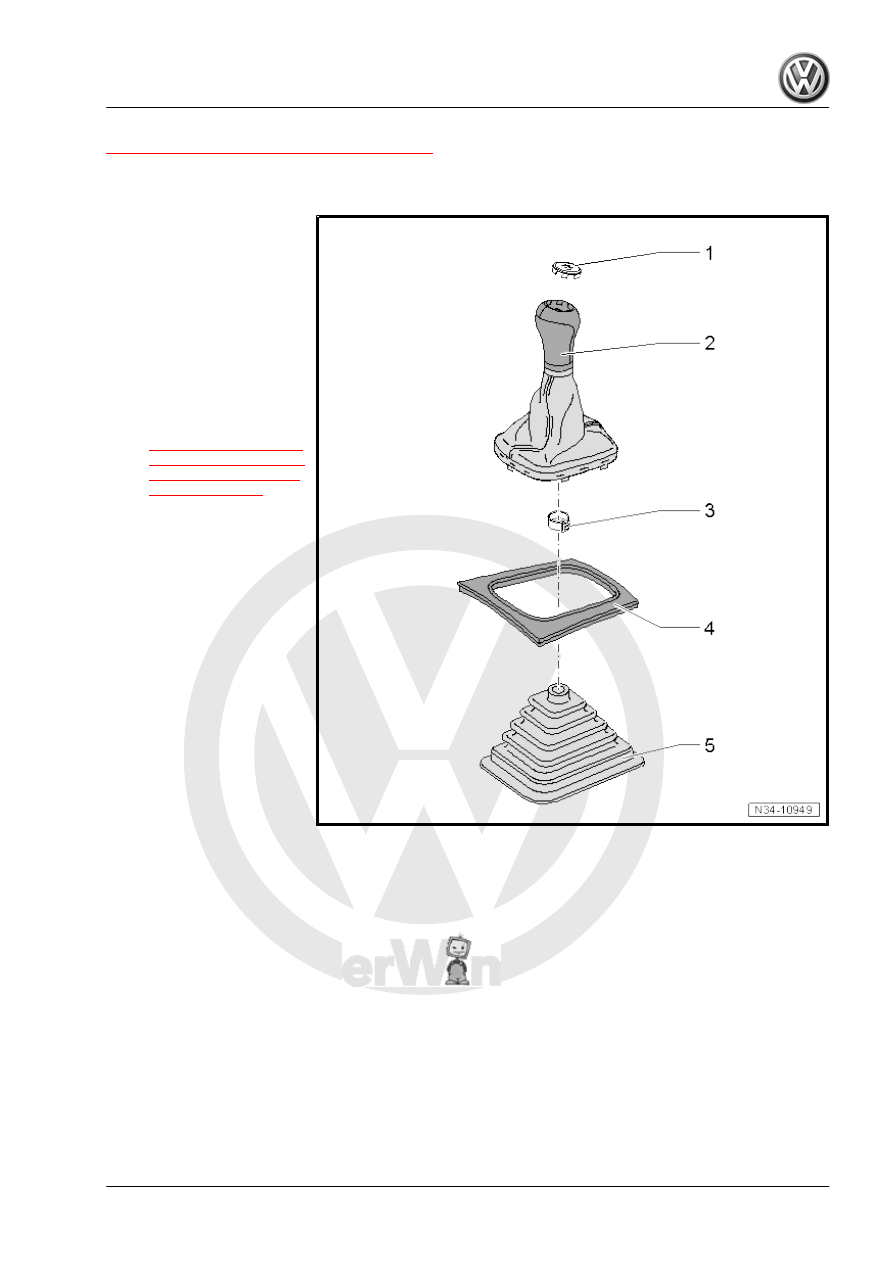

1.3

Overview - Gearshift Knob and Cover

1 - Badge

❑ Can be carefully pried

off a plastic or leather

shift knob

2 - Gearshift Knob

❑ With boot
❑ The shift knob and boot

cannot be separated

from each other.

❑ Always replace together
❑ Removing and instal‐

ling. Refer to

⇒ “1.4 Boot with Shifter

Knob and Noise Insula‐

tion, Removing and In‐

stalling”, page 55

 .

3 - Clamp

❑ For securing the shift

knob to the shift lever

❑ Replace after removing
❑ Secure on the gearshift

knob using Hose Clamp

Pliers - VAG1275- .

4 - Center Control Cover

❑ Combined in one piece

with the upper center

console section on

some versions

5 - Noise Insulation

❑ Not on all vehicles
❑ Arrow on noise insula‐

tion points in direction of

travel

❑ Retaining tab spacing

varies

❑ Therefore can only be arranged in one position

1.4

Boot with Shifter Knob and Noise Insu‐

lation, Removing and Installing

Special tools and workshop equipment required
♦ Hose Clip Pliers - VAG1275A-

1. Shift Mechanism, Servicing

55
