sult in malfunctions.
Procedure
– Remove the old heated oxygen sensor.

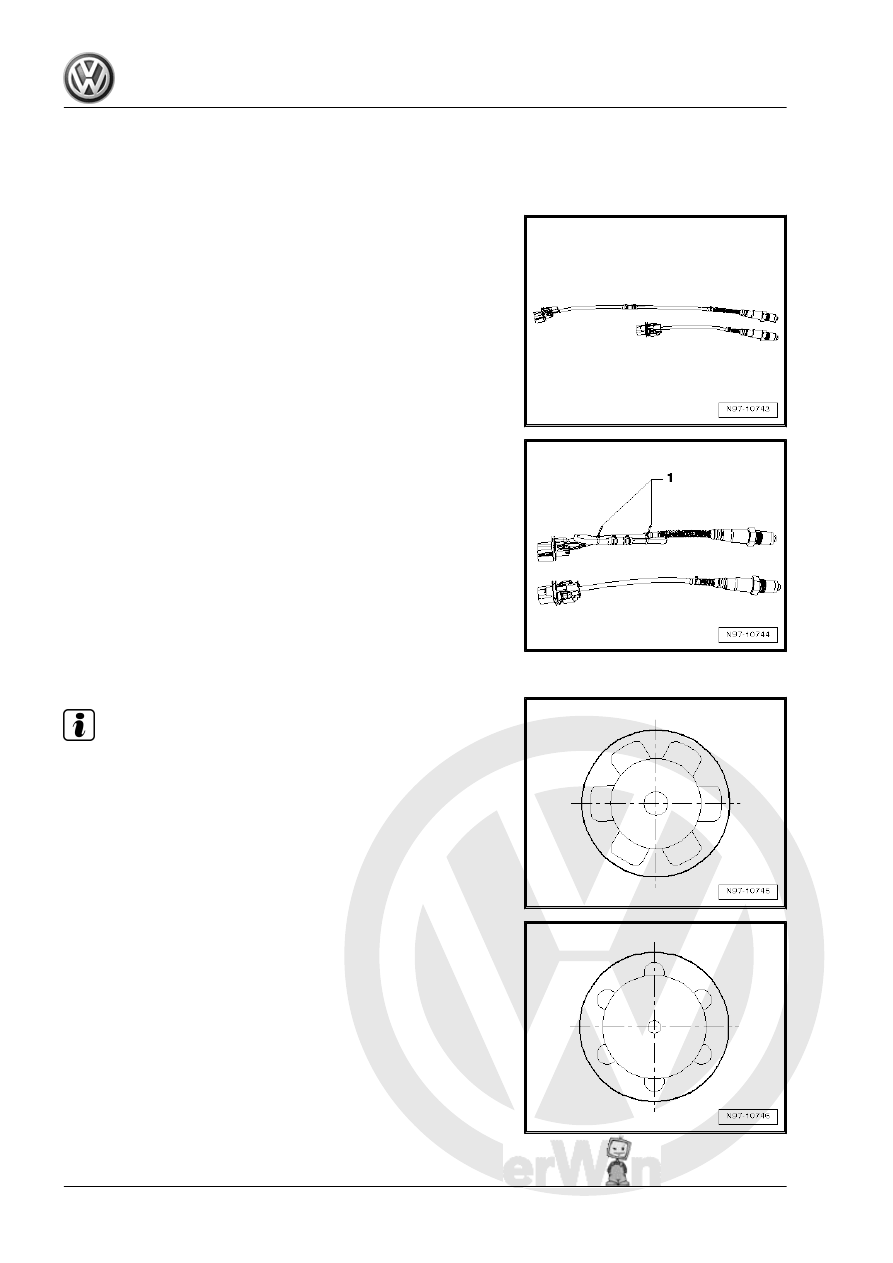

– Lay both of the heated oxygen sensors next to each other so

the sensor housings are the same level.

– Tie the excess length of the sensor (approximately 50 to 250

mm) back so it is the same length as the faulty sensor and

secure it with cable ties -1-.

– Install the new heated oxygen sensor in the vehicle.

7.3

Oxygen Sensor Unit Protective Pipes

Note

In addition to using the part number, the protective pipe can also

be used for identification.

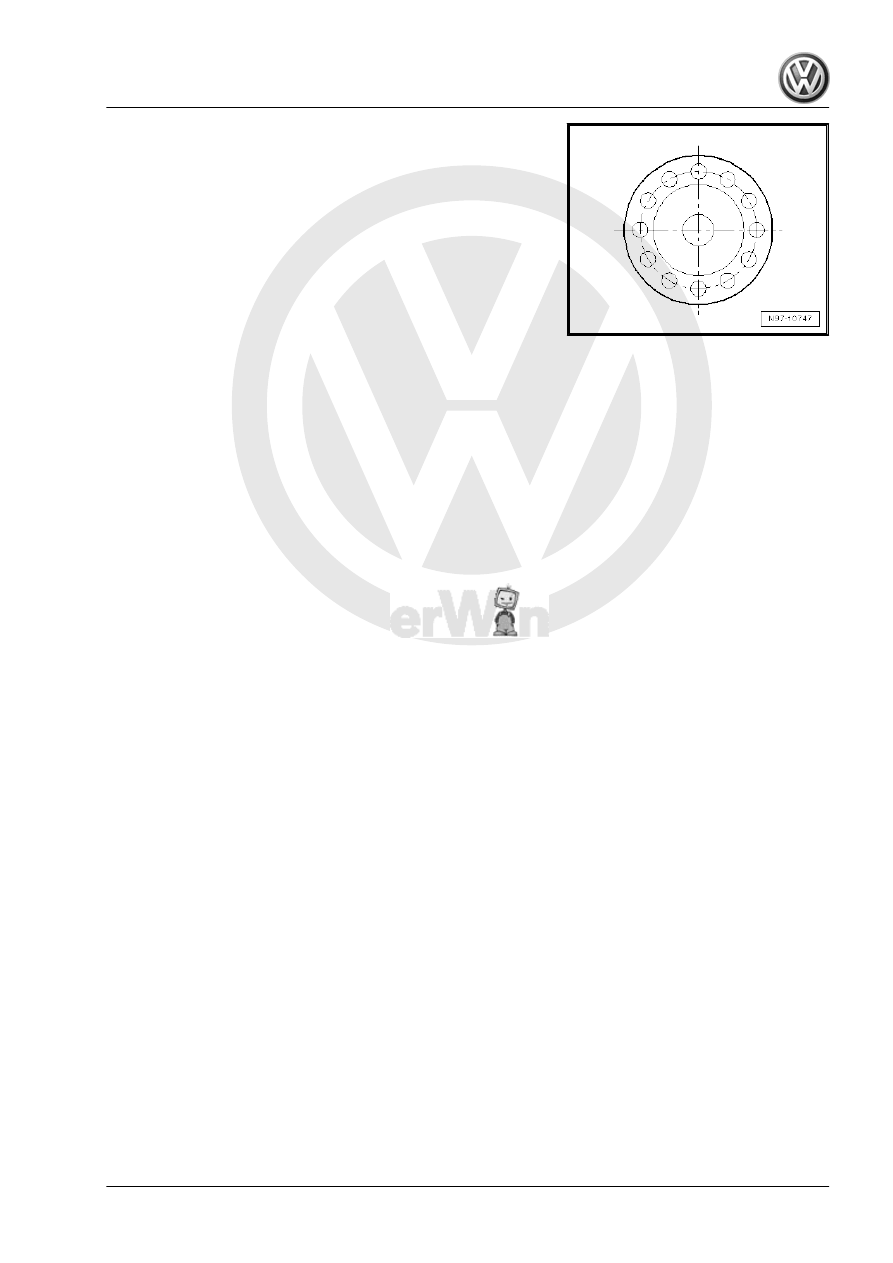

Version D1: 6 Openings, 3.5 mm Each
Only used with the 4-pin oxygen sensor

Version D2: 6 Openings, 2 mm Each
Used with 4-pin and 6-pin universal oxygen sensors.

Beetle 2012 ➤ , Golf 2015 ➤ , Golf Variant 2007 ➤ , Golf Variant 2010 ➤ ...

132

Beetle 2012 ➤ , Golf 2015 ➤ , Golf Variant 2007 ➤ , Golf Variant 2010 ➤ ...

7. Heated Oxygen Sensor, Replacing

133

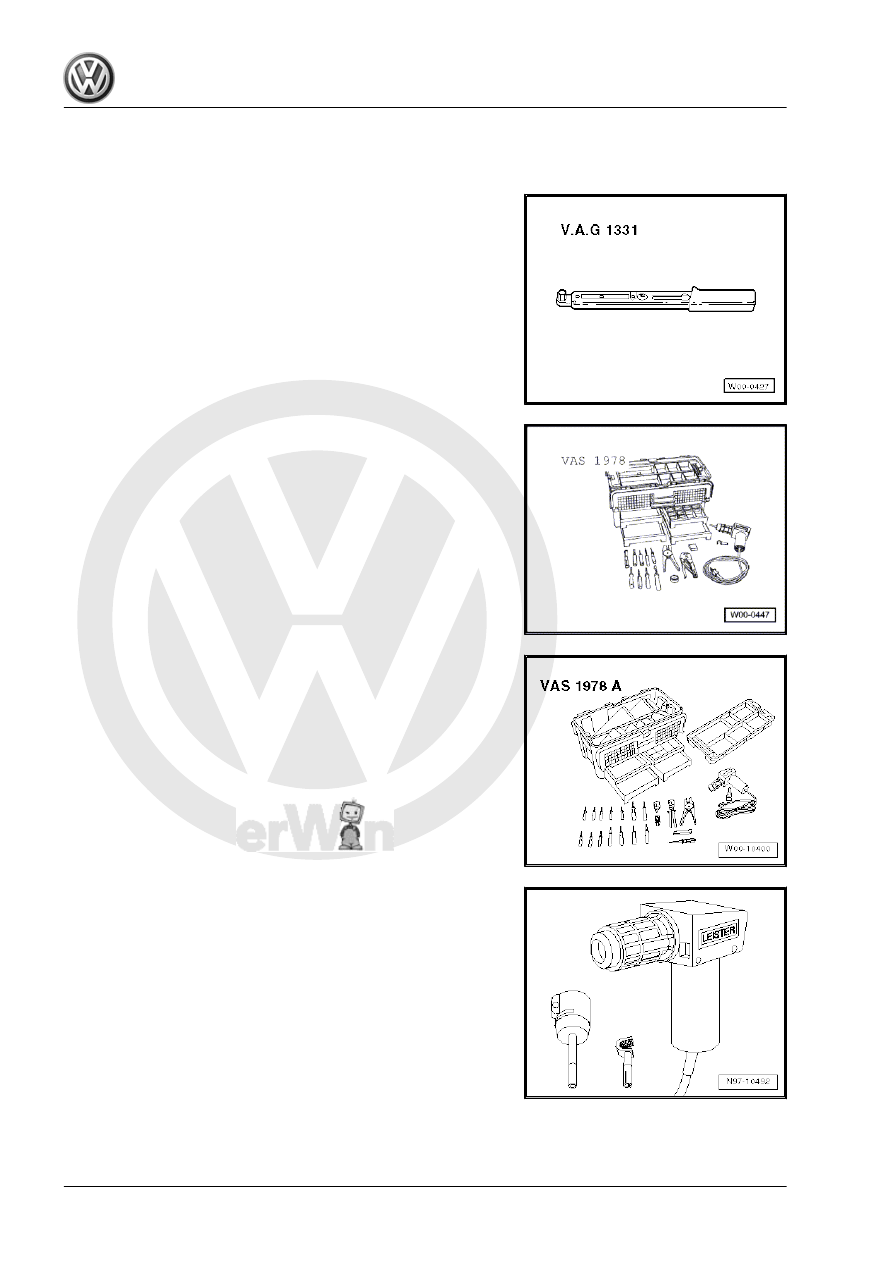

Special Tools

Special tools and workshop equipment required
♦ Torque Wrench 1331 5-50Nm - VAG1331-

♦ Wiring Harness Repair Set - VAS1978-

♦ Wiring Harness Repair Set - VAS1978A-

♦ Wiring Harness Repair Set - Hot Air Blower - VAS1978/14A-

Beetle 2012 ➤ , Golf 2015 ➤ , Golf Variant 2007 ➤ , Golf Variant 2010 ➤ ...

134

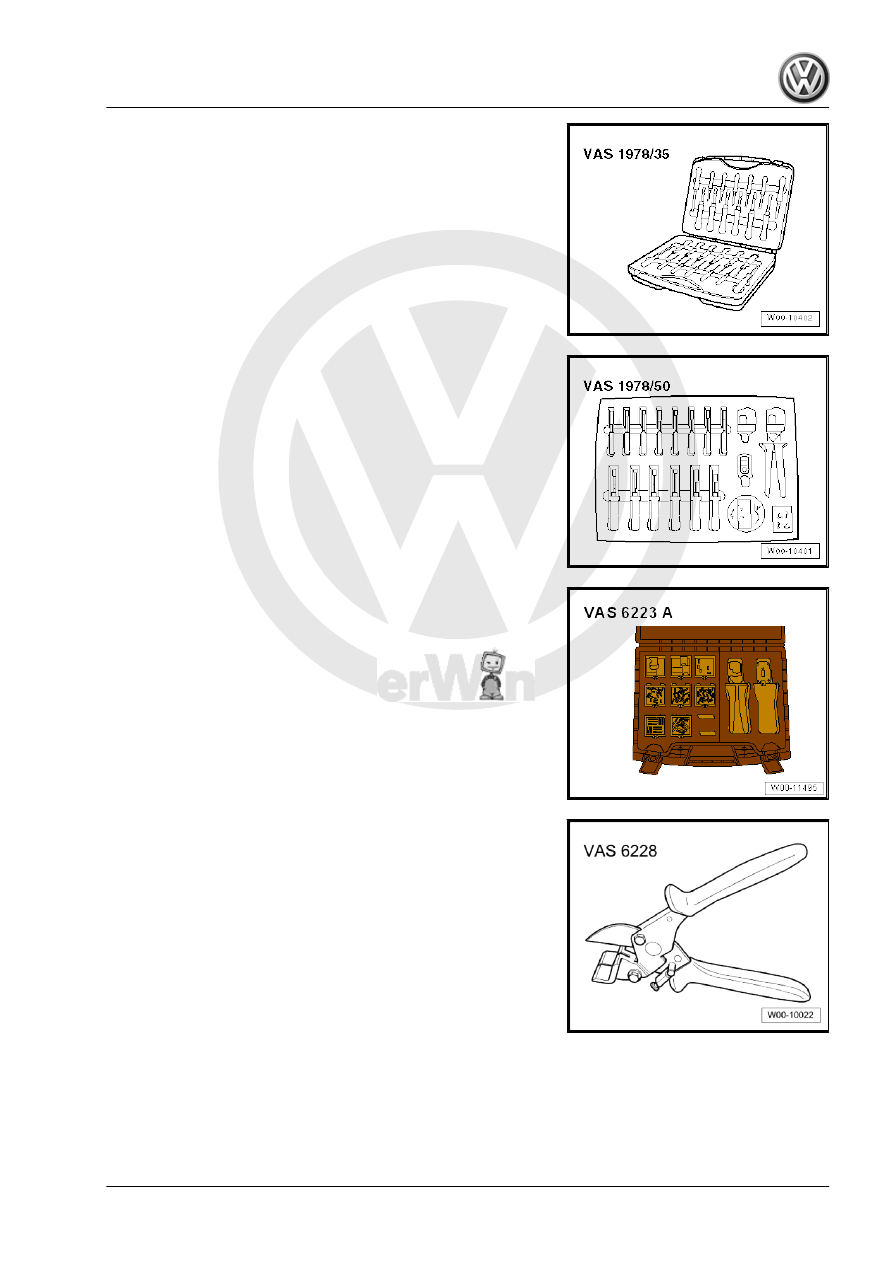

♦ Upgrade Kit For VAS1978 - VAS1978/50-

♦ Fiber-Optic Conductor Repair Set - VAS6223A-

♦ Hose Cutting Pliers - VAS6228-

Beetle 2012 ➤ , Golf 2015 ➤ , Golf Variant 2007 ➤ , Golf Variant 2010 ➤ ...

8. Special Tools
