• Turn off the ignition and all electrical consumers and re‐

move the ignition key.

• When working on headlamp system, ensure all compo‐

nents are without voltage, including relieving residual volt‐

age after switching headlamps off.

• Residual voltages are discharged by switching low beam

on and off again after ignition key was removed.

• Make sure lamps cannot be switched on when working on

headlamp system.

Notes on Pressure, Temperature and Radiation/Glare

WARNING

• HID Headlamp Bulb must only be operated in headlamp

housing (it offers protection against touching extremely

hot lamp, absorption of UV radiation, prevention of glare,

protection against explosion).

• The glass HID headlamp bulbs can become very hot - risk

of burning!

• Avoid looking directly into light beam, since UV radiation

of the HID lamp is approximately 2.5 times higher than that

of standard Halogen lamps.

• Avoid looking into light beam (risk of glare), it can have

lasting negative effects on vision.

WARNING

• Avoid contact with burst bulbs.
• H7 bulbs and HID bulbs are under pressure and can burst

when replaced - danger of injury!

• When removing and installing HID bulbs, always wear

safety glasses and gloves.

Beetle 2012 ➤ , Golf 2015 ➤ , Golf Variant 2007 ➤ , Golf Variant 2010 ➤ ...

80

Caution

♦ Before replacing a HID headlamp bulb, the corresponding

electrical equipment must always be switched off.

♦ Turn off the ignition and all electrical consumers and re‐

move the ignition key.

♦ Do not touch an HID headlamp bulb with bare hands, use

clean gloves. The remaining fingerprint would evaporate

due to the heat of the operated HID headlamp bulb and

condense on the reflector which would impair headlamp

luminosity.

♦ An HID headlamp bulb must be replaced with an HID

headlamp bulb of the same version. Bulb identification can

be found on bulb socket or glass cone.

♦ Harness connectors must engage correctly when installed

and must be checked for proper connection.

Disposal Regulations for HID Headlamp Bulbs

WARNING

• HID lamps must be disposed of as hazardous waste, nev‐

er dispose of HID lamps via domestic waste.

• HID lamps contain metallic mercury (Hg) and traces of

thallium, they must not be destroyed.

• These components must be returned for proper recycling

in accordance with national legislation.

• Dispose of only in the designated containers at the re‐

sponsible collection point.

Beetle 2012 ➤ , Golf 2015 ➤ , Golf Variant 2007 ➤ , Golf Variant 2010 ➤ ...

1. HID Headlamp Usage and Safety Precautions

81

1

Cigarette Lighter and Socket

⇒ “1.1 Overview - Cigarette Lighter, 12 V Socket”, page 82
⇒ “1.2  Cigarette Lighter U1 , Removing and Installing”,

page 83
⇒ “1.3  Socket Illumination Bulb L42 , Removing and Installing”,

page 86
⇒ “1.4  Cigarette Lighter Illumination Bulb L28 , Removing and

Installing”, page 86

1.1

Overview - Cigarette Lighter, 12 V Sock‐

et

Caution

Using force to remove Sockets - U- without Socket Illumination

Bulb - L42- can result in damage to the mounting sleeve re‐

tainers.
Using the Cigarette Lighter Release Tool - T40148- , only the

Sockets - U- ( Cigarette Lighter - U1- ) with the Socket Illumi‐

nation Bulb - L42- can be removed.
The Cigarette Lighter Release Tool - T40148- cannot release

the tabs on Sockets - U- without illumination.
Sockets - U- without a Socket Illumination Bulb - L42- usually

get damaged when being removed.

Beetle 2012 ➤ , Golf 2015 ➤ , Golf Variant 2007 ➤ , Golf Variant 2010 ➤ ...

82

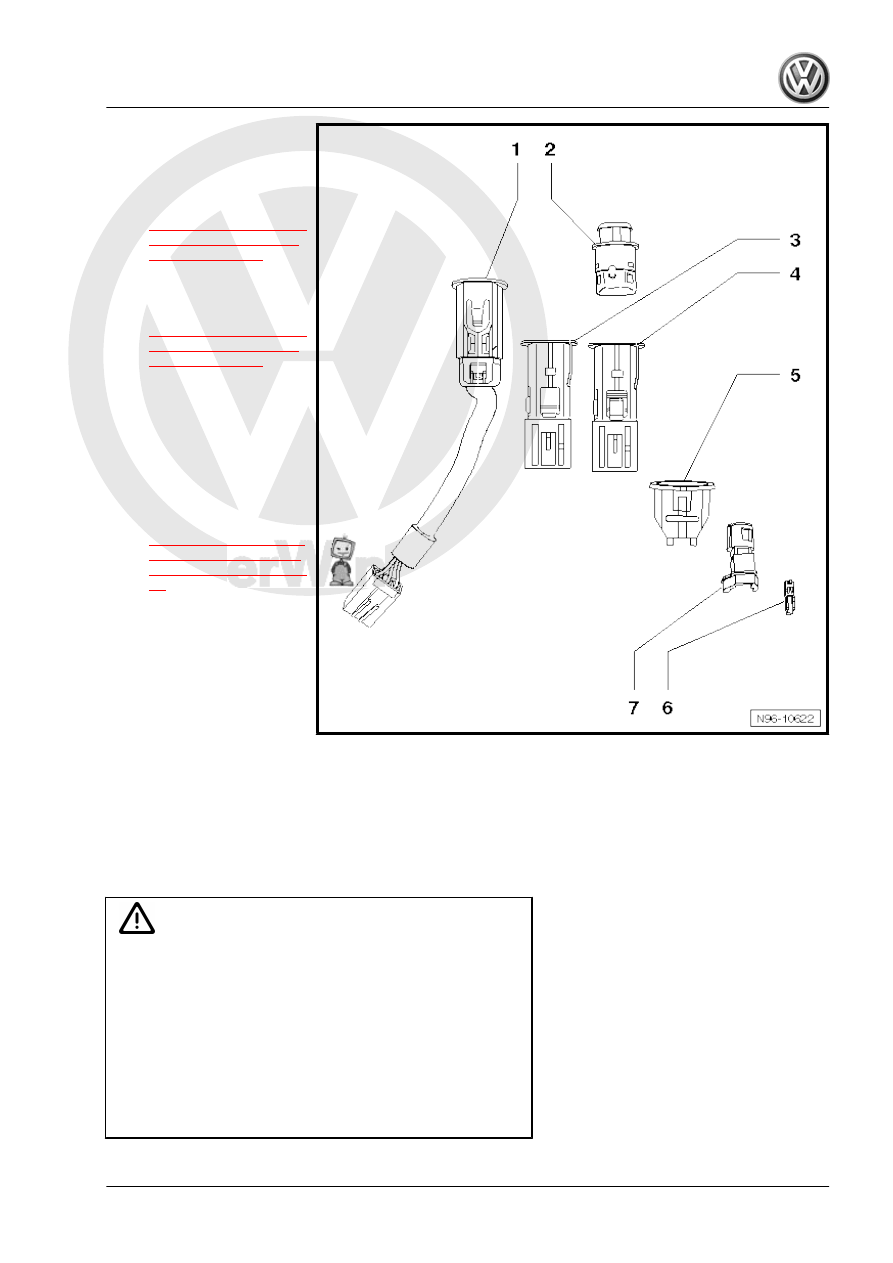

with Trailing Cable
2 - Cigarette Lighter - U1-

❑ Removing and instal‐

ling. Refer to

⇒ “1.2  Cigarette Lighter

U1 , Removing and In‐

stalling”, page 83

3 - Socket - U-

❑ Removing and instal‐

ling. Refer to

⇒ “1.2  Cigarette Lighter

U1 , Removing and In‐

stalling”, page 83

4 - Cigarette Lighter Recepta‐

cle
5 - Mounting Sleeve
6 - Socket Illumination Bulb -

L42-

❑ 12 V/1.2 W bulb
❑ Removing and instal‐

ling. Refer to

⇒ “1.3  Socket Illumina‐

tion Bulb L42 , Remov‐

ing and Installing”, page

86

7 - Bulb Holder

1.2

Cigarette Lighter - U1- , Removing and

Installing

Special tools and workshop equipment required
♦ Cigarette Lighter Release Tool - T40148-
♦ Cigarette Lighter Release Tool - Thrust Piece - T40148/1-

Caution

Using force to remove Sockets - U- without Socket Illumination

Bulb - L42- can result in damage to the mounting sleeve re‐

tainers.
Using the Cigarette Lighter Release Tool - T40148- , only the

Sockets - U- ( Cigarette Lighter - U1- ) with the Socket Illumi‐

nation Bulb - L42- can be removed.
The Cigarette Lighter Release Tool - T40148- cannot release

the tabs on Sockets - U- without illumination.
Sockets - U- without a Socket Illumination Bulb - L42- usually

get damaged when being removed.

Beetle 2012 ➤ , Golf 2015 ➤ , Golf Variant 2007 ➤ , Golf Variant 2010 ➤ ...

1. Cigarette Lighter and Socket

83
