Volkswagen Golf Variant / Jetta. Manual - part 463





Do not check or charge a Battery - A- when the visual indicator

has »no color or is bright yellow«. Jump starting must not be

used!
There is a risk of explosion during testing, charging or jump

starting.
These Batteries - A- must be replaced.

2.4

Battery Tester with Printer - VAS5097A-

⇒ “2.4.1 General Information”, page 12
⇒ “2.4.2  Battery Tester with Printer VAS5097A Device Descrip‐

tion”, page 13
⇒ “2.4.3 Battery Load Test”, page 13
⇒ “2.4.4 Cold Crank Amps Table”, page 15
⇒ “2.4.5 Battery Load Test Results”, page 16
⇒ “2.4.6 Printed Test Results Explanations”, page 17
⇒ “2.4.7 Test Result Evaluation”, page 17

2.4.1

General Information

WARNING

Risk of injury. Follow all warning messages and safety pre‐

cautions.

Refer

to

⇒ “1.3 Warnings and Safety Precautions”, page 3

 .

It is not necessary to disconnect or remove the Battery - A- when

using the Battery Tester with Printer - VAS5097A- .
The following Batteries - A- can be tested using the Battery Tester

with Printer - VAS5097A- :
♦ 80 to 499 A cold crank amps according to German Industry

Standardization DIN (Deutsche Industrie Norm). Refer to

1)

.

♦ 95 to 574 A cold cranking output according to IEC (Interna‐

tional Engineering Consortium)

♦ 136 to 855 A cold cranking output according to EN/ SAE (Eu‐

ropäische Norm/ Standard of Automotive Engineers)

1)  Batteries - A- with cold crank amps greater than 499 A according to DIN can

be tested with the setting for 499 A according to DIN.

The Batteries - A- are tested by being loaded with current that

corresponds to the starter current of a vehicle. Under this load,

the Battery - A- is evaluated and the measured results are output

through the printer.

Note

Read the Battery Tester with Printer - VAS5097A- Operating In‐

structions and Battery Tester with Printer - VAS5097A- Quick

Reference Guide label on the Battery Tester with Printer -

VAS5097A- and the cold crank amps table. Refer to

⇒ “2.4.4 Cold Crank Amps Table”, page 15

 .

Beetle 2012 ➤ , Golf 2015 ➤ , Golf Variant 2007 ➤ , Golf Variant 2010 ➤ ...

12

Refer to

⇒ “2.4.2  Battery Tester with Printer VAS5097A Device De‐

scription”, page 13

 .

♦ Battery load test. Refer to

⇒ “2.4.3 Battery Load Test”, page 13

 .

♦ Cold crank amps table. Refer to

⇒ “2.4.4 Cold Crank Amps Table”, page 15

 .

♦ Battery load test results. Refer to

⇒ “2.4.5 Battery Load Test Results”, page 16

 .

♦ Printed test results explanations. Refer to

⇒ “2.4.6 Printed Test Results Explanations”, page 17

 .

♦ Test result evaluation. Refer to

⇒ “2.4.7 Test Result Evaluation”, page 17

 .

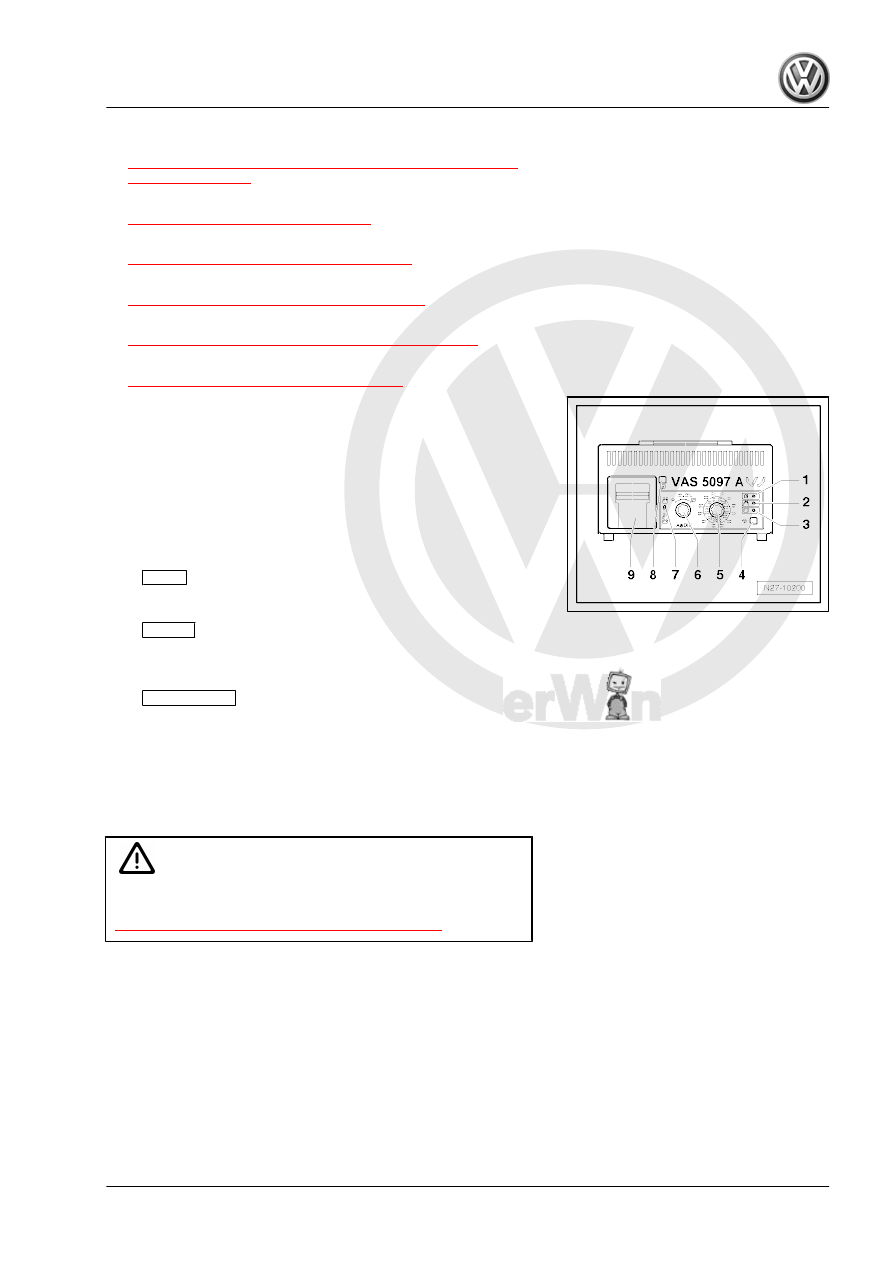

2.4.2

Battery Tester with Printer - VAS5097A-

Device Description

Battery Tester with Printer - VAS5097A-
1 - LED green, “Device in use”
2 - LED red, “Device connected with terminals reversed”
3 - LED red “Battery cannot be tested”, the Battery - A- must be

replaced.

4 -

Start

 button

5 - Cold cranking output selector switch
6 -

ON/OFF

 function switch

7 - Sliding switch (battery hook-up to the Battery - A- /at jump

start point)

8 -

Paper-feed

-button

9 - Printer

2.4.3

Battery Load Test

Special tools and workshop equipment required
♦ Battery Tester with Printer - VAS5097A-

WARNING

Risk of injury. Follow all warning messages and safety pre‐

cautions.

Refer

to

⇒ “1.3 Warnings and Safety Precautions”, page 3

 .

Always note the TPL 2012182.

Beetle 2012 ➤ , Golf 2015 ➤ , Golf Variant 2007 ➤ , Golf Variant 2010 ➤ ...

2. Battery, Checking

13

WARNING

Do not check or charge a Battery - A- when the visual indicator

has »no color or is bright yellow«. Jump starting must not be

used!
There is a risk of explosion during testing, charging or jump

starting.
These Batteries - A- must be replaced.

Note

The Battery - A- temperature must be at least 10 °C.

Caution

♦ Turn off the ignition and all electrical equipment.
♦ Remove the key.

– Check the visual indicator on Batteries - A- with visual indica‐

tor. Refer to

⇒ “2.1.1 Battery with Color Display, Visual Indicator, Check‐

ing”, page 7

 .

– Switch on the Battery Tester with Printer - VAS5097A- . Refer

to

⇒ “2.4.2  Battery Tester with Printer VAS5097A Device De‐

scription”, page 13

 .

– Determine the cold crank amps according to specifications on

the Battery - A- in ampere (A) according to DIN and determine

the Battery Tester With Printer - VAS5097A- adjustment range

using the table. Refer to

⇒ “2.4.4 Cold Crank Amps Table”, page 15

 .

Note

If the Battery - A- does not state this value in DIN but rather in IEC

or EN/SAE, then convert the value using the table (refer to

⇒ “2.4.4 Cold Crank Amps Table”, page 15

 ) or the table on the

Battery Tester with Printer - VAS5097A- .

– Set the cold crank amps with the cold crank amps selector

switch. Refer to

⇒ “2.4.2  Battery Tester with Printer VAS5097A Device De‐

scription”, page 13

 .

– Set the measuring range (80 to 379 A or 380 to 499 A) using

the

ON/OFF

 switch. Refer to

⇒ “2.4.2  Battery Tester with Printer VAS5097A Device De‐

scription”, page 13

 .

Note

Batteries - A- with cold crank amps greater than 499 A according

to DIN can be tested with the setting for 499 A according to DIN.

Beetle 2012 ➤ , Golf 2015 ➤ , Golf Variant 2007 ➤ , Golf Variant 2010 ➤ ...

14

Battery - A- .

– Connect the black terminal (-) to the negative terminal for the

Battery - A- .

Note

Make sure the test terminals make good contact!

Note TPL 2012182 for the Battery Tester with Printer -

VAS5097A- .

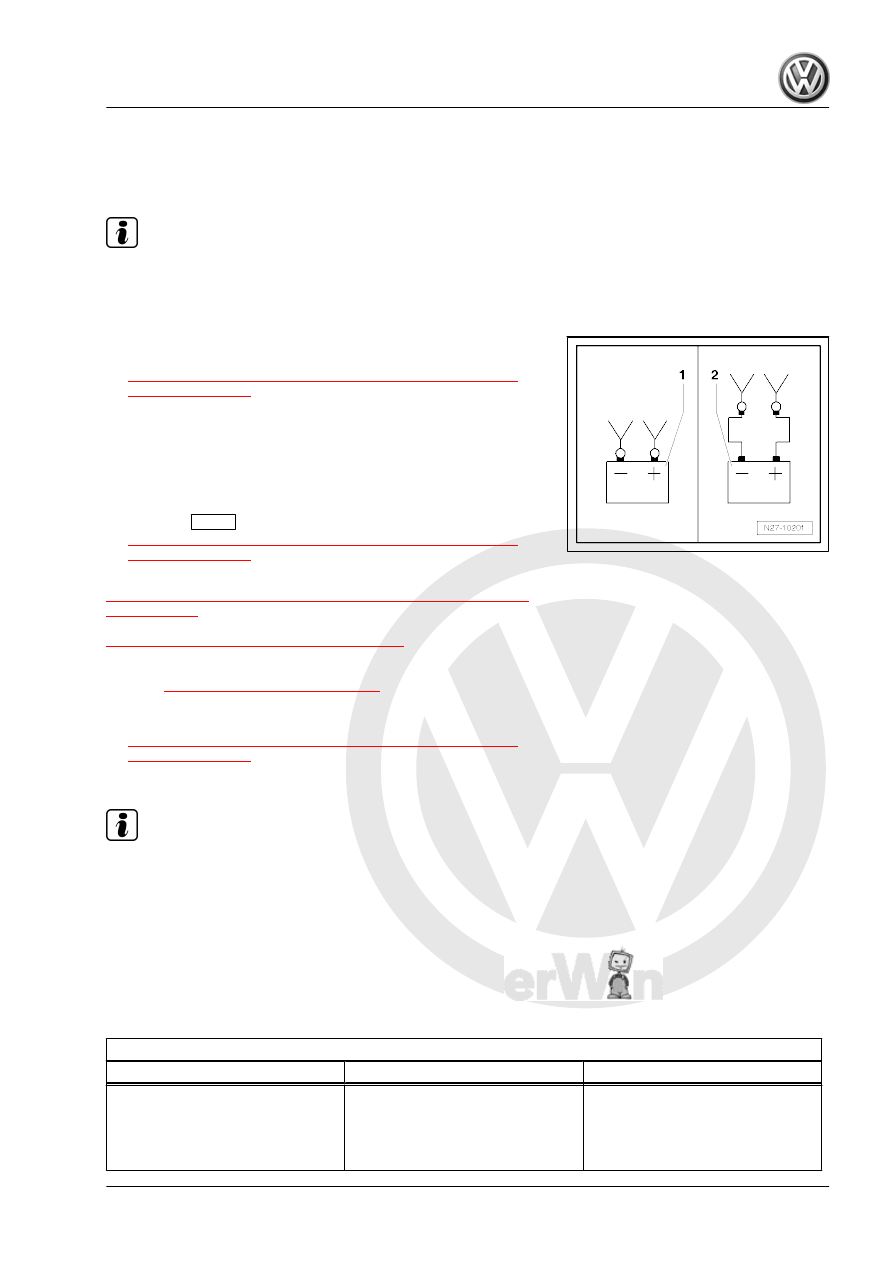

– Using the sliding switch, select the test clamp connection

point. Refer to

⇒ “2.4.2  Battery Tester with Printer VAS5097A Device De‐

scription”, page 13

 .

1 - Direct connection to the Battery - A-
2 - Connection on the battery jump start terminal
– Check if the cold crank amps indicated on the Battery - A-

matches the selected value on the Battery Tester with Printer

- VAS5097A- .

– Press the

Start

-button. Refer to

⇒ “2.4.2  Battery Tester with Printer VAS5097A Device De‐

scription”, page 13

 .

The green LED lights up. Refer to

⇒ “2.4.2  Battery Tester with Printer VAS5097A Device Descrip‐

tion”, page 13

 . The test program runs automatically. The test

results are output through the printer. Refer to

⇒ “2.4.5 Battery Load Test Results”, page 16

 . If the Battery

Tester with Printer - VAS5097A- does not start, (the LED does not

come on and there is no print out), then charge the Battery - A- .

Refer to

⇒ “3 Battery, Charging”, page 31

 .

– Switch off the Battery Tester with Printer - VAS5097A- . Refer

to

⇒ “2.4.2  Battery Tester with Printer VAS5097A Device De‐

scription”, page 13

 .

– Remove the test terminals.

Note

The test is over after approximately 20 seconds.

The results of the test are output through the printer.

Only perform the test once. Repeating the test will not produce

accurate results.

The Battery Tester with Printer - VAS5097A- needs 30 mi‐

nutes to cool off before it is ready for the next measurement.

2.4.4

Cold Crank Amps Table

Cold Crank Amps in A

EN/ SAE

IEC

DIN

136 – 177

95 – 124

80 – 104

178 – 219

125 – 154

105 – 129

220 – 261

155 – 184

130 – 154

262 – 303

185 – 214

155 – 179

Beetle 2012 ➤ , Golf 2015 ➤ , Golf Variant 2007 ➤ , Golf Variant 2010 ➤ ...

2. Battery, Checking

15
