Manual Transmission 02Q; Rep. Gr.  30 .

– Install the transmission shift mechanism and adjust it if nec‐

Gr.  34 .

Vehicles with DSG

®

 Transmission:

– Install the transmission selector lever cable and adjust it if

necessary. Refer to ⇒  6-Speed Dual Clutch Transmission

02E; Rep. Gr.  34 .

Continuation for All Vehicles:
The Additional Numbered Procedures Must Be Followed to En‐

sure the Particulate Filter with the NOx Reduction Catalytic Con‐

verter Is Installed without Tension:

Note

Make sure the particulate filter is not installed under tension

after assembly.

Always replace the self-locking nuts, seals, gaskets and

clamps.

Caution

The  decoupling  elements  between  the  particulate  filter  and

NOx reduction catalytic converter can be damaged. When re‐

moving and installing:

♦ Do not bend the decoupling element more than 10°.
♦ Do not stretch the decoupling element.
♦ Do not damage the wire mesh on the decoupling element.
♦ Use the Transportation Lock - T10404- to secure the de‐

coupling element from overbending.

– Install the particulate filter with NOx reduction catalytic con‐

verter and the EGR filter. Refer to

⇒ “1.4 Particulate Filter with NOx Absorption Catalytic Con‐

verter, Removing and Installing”, page 369

 .

– Attach the drive axles to the transmission. Refer to ⇒  Sus‐

pension, Wheels, Steering; Rep. Gr.  40 ; Drive Axles, Re‐

moving and Installing .

1. Engine, Removing and Installing

15

mission 02Q; Rep. Gr.  34 .

Vehicles with DSG

®

 transmission:

• Tightening specification. Refer to ⇒  6-Speed Dual Clutch

Transmission 02E; Rep. Gr.  34 .

Lock Carrier; Lock Carrier with Attachments, Removing and

Installing

– Secure the refrigerant lines on the A/C compressor and con‐

denser without tension. Refer to ⇒  Heating, Ventilation and

Air Conditioning; Rep. Gr.  87 .

– Fill the A/C system. Refer to ⇒  Heating, Ventilation and Air

Conditioning; Rep. Gr.  87 .

– Install the Battery - A- and the battery tray. Refer to ⇒  Electrical

System; Rep. Gr.  27 ; Battery; Battery Tray, Removing and

Installing .

– Observe the notes after connecting the Battery - A- . Refer to

⇒  Electrical Equipment; Rep. Gr.  27 ; Battery; Battery, Dis‐

connecting and Connecting .

– Fill with coolant. Refer to

⇒ “1.9 Coolant, Draining and Filling”, page 209

 .

– Fill the fuel system. Refer to

⇒ “3.9 Fuel System, Filling/Bleeding”, page 328

 .

– Check the DTC memories of all control modules and erase all

DTC entries which may have occurred during the assembly.

Refer to Vehicle Diagnostic Tester “Vehicle Self-Diagnosis”.

– Check the headlamp adjustment and adjust if necessary. Re‐

fer to ⇒ Maintenance ; Booklet  20.1 ; Procedure Descriptions .

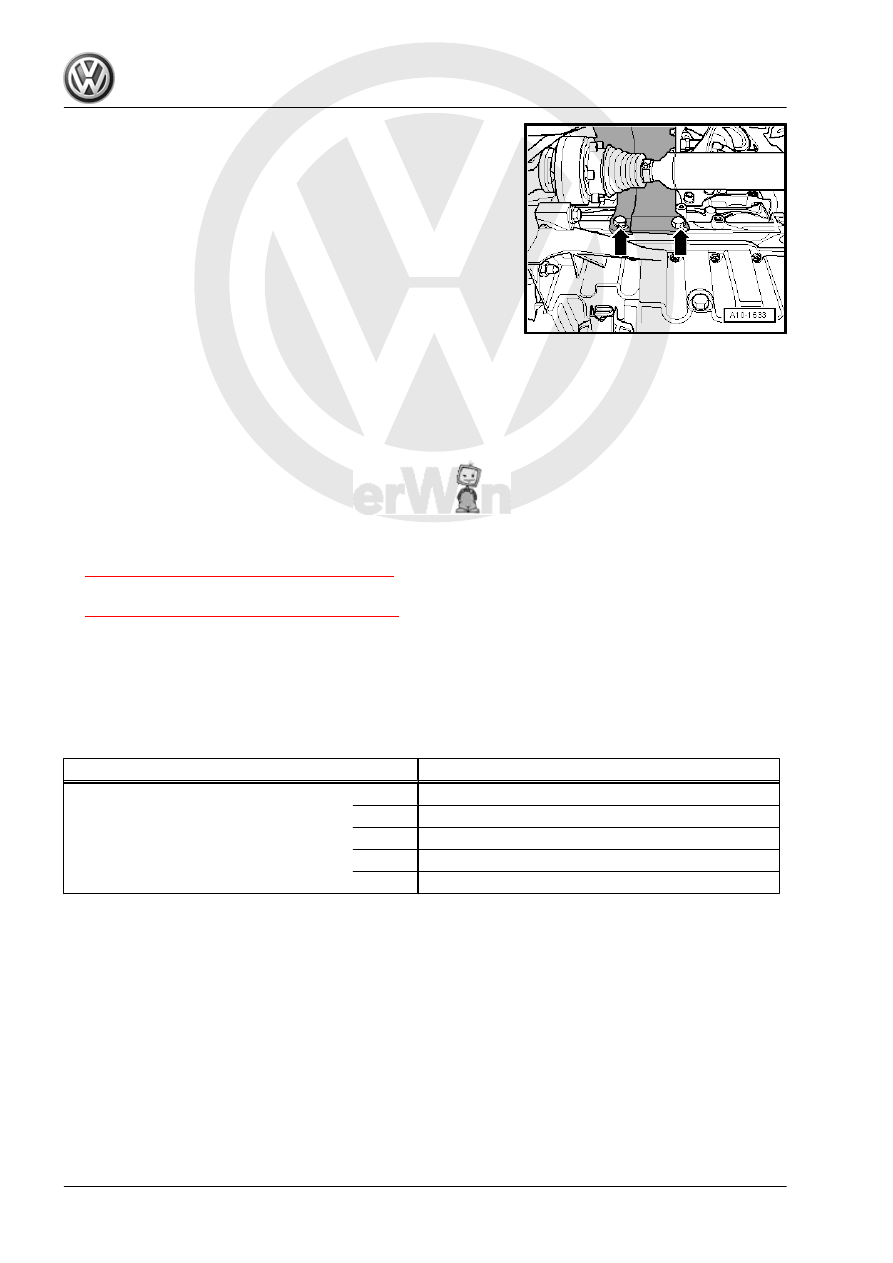

Tightening Specifications

Threaded Connection

Tightening Specification

Bolts and Nuts

M6

10 Nm



M7

15 Nm



M8

20 Nm



M10

40 Nm



M12

65 Nm. Refer to

1)

.

1) Tightening specification for the M12 collar bolt: 75 Nm

16

Subframe Mount, except Jetta from

MY 2011

⇒ “2.1 Overview - Subframe Mount”, page 17
⇒ “2.2 Engine-Subframe Mount Adjustment, Checking”,

page 19
⇒ “2.3 Subframe Mount, Adjusting”, page 19

2.1

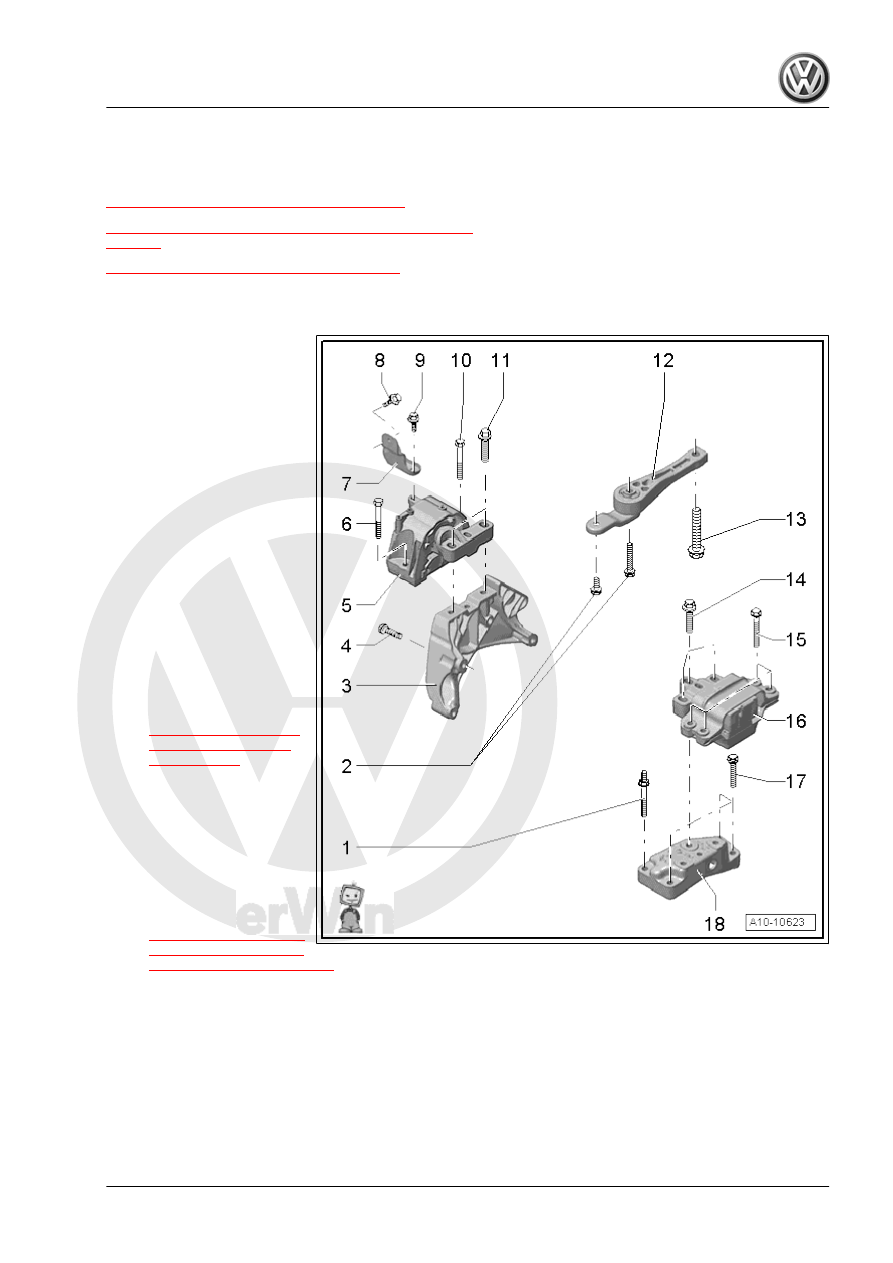

Overview - Subframe Mount

1 - Bolt

❑ For the transmission

holder to the transmis‐

sion

Tightening specification:

❑ Vehicles with a manual

transmission. Refer to

❑ Vehicles with DSG

®

transmission. Refer to

2 - Bolts

❑ 50 Nm +

1

/4 (90°) addi‐

tional turn

❑ Replace
❑ For pendulum support

to transmission

3 - Engine Bracket

❑ Removing and instal‐

ling. Refer to

⇒ “1.7 Engine Bracket,

Removing and Instal‐

ling”, page 52

 .

4 - Bolt

❑ 40 Nm +

1

/2 (180 °) ad‐

ditional turn

❑ Replace
❑ For engine bracket to

cylinder block

❑ Note the tightening se‐

quence. Refer to

⇒ Fig. ““Engine Bracket

to Cylinder Block Tight‐

ening Sequence”“ , page 19

 .

5 - Engine Mount
6 - Bolt

❑ 40 Nm +

1

/4 (90 °) additional turn

❑ Replace
❑ For engine mount to body

7 - Bracket
8 - Bolt

❑ 20 Nm +

1

/4 (90 °) additional turn

2. Subframe Mount, except Jetta from MY 2011

17

9 - Bolt

❑ 20 Nm +

1

/4 (90 °) additional turn

❑ Replace
❑ For bracket to body

10 - Bolt

❑ 40 Nm +

1

/4 (90 °) additional turn

❑ Replace
❑ For engine mount to body

11 - Bolts

❑ 60 Nm +

1

/4 (90 °) additional turn

❑ Replace
❑ For engine mount to engine bracket

12 - Pendulum Support
13 - Bolt

❑ 100 Nm +

1

/4 (90 °) additional turn

❑ Replace
❑ For pendulum support to subframe

14 - Bolt

❑ 60 Nm + 90° (

1

/4 turn) additional turn

❑ Replace
❑ For transmission mount to transmission holder

15 - Bolt

❑ 40 Nm +

1

/4 (90 °) additional turn

❑ Replace
❑ Transmission mount to body

16 - Transmission Mount

❑ The illustration shows the DSG

®

 transmission version

17 - Bolt

❑ For the transmission holder to the transmission

Tightening specification:

❑ Vehicles with manual transmission. Refer to ⇒  6-Speed Manual Transmission 02Q; Rep. Gr.  34 .
❑ Vehicles with DSG

®

 transmission. Refer to ⇒  6-Speed Dual Clutch Transmission 02E; Rep. Gr.  34 .

18 - Transmission Holder
