Sensor - G182- and Clutch Oil Temperature Sensor - G509-

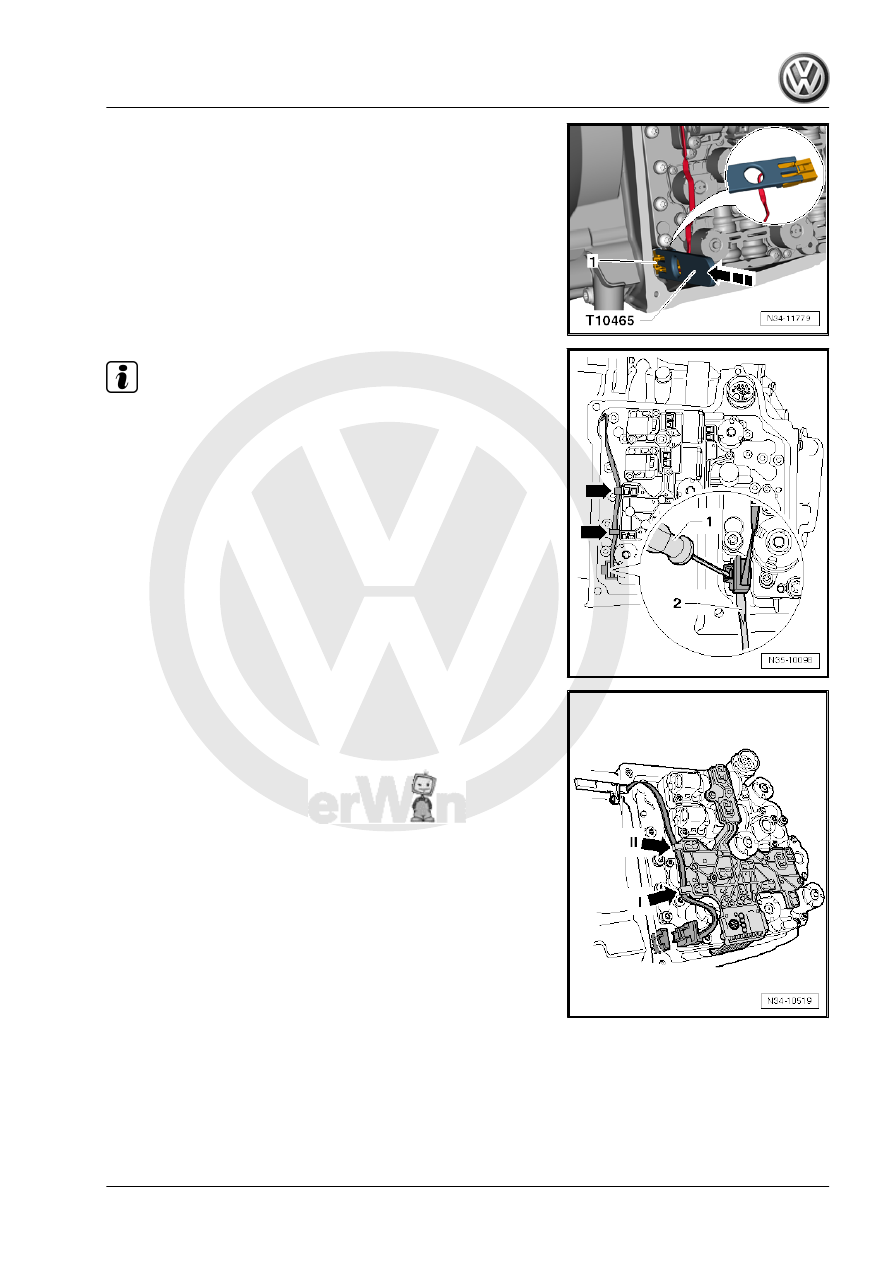

using the Speed Sensor Release Tool - T10465- .

Note

If the Speed Sender Release Tool - T10465- is not available,

the connector can be removed by carefully using two screw‐

drivers as follows:

Press only on the release with the screwdriver -1-. Do not use

a screwdriver as a lever.

Loosen the connector with the screwdriver -2-.

Be very careful. The connector locking mechanisms can

break. Replace the sensor if this happens.

Do Not Pull On the Wire
– Disconnect the connector.

– First remove line from lower clamp -arrow I-.
– Then remove it from the upper clip -arrow II- and move it to the

side. Do not kink line.

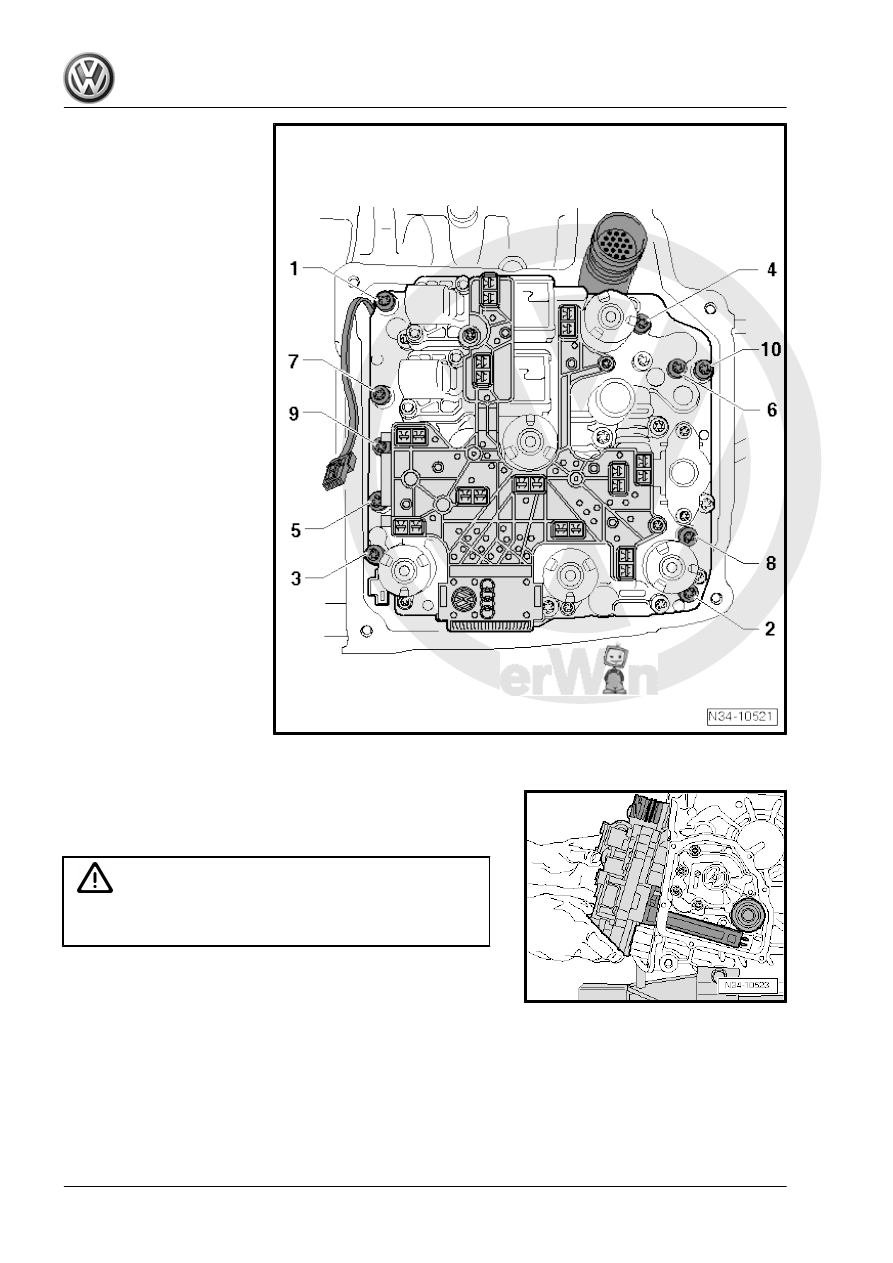

– Remove the bolts -1 through 10- is a diagonal sequence. Start

with the bolt -1-.

1. Electrical and Electronic Components, Component Locations in DSG® Transmission

47

»long« sensor arm.

Caution

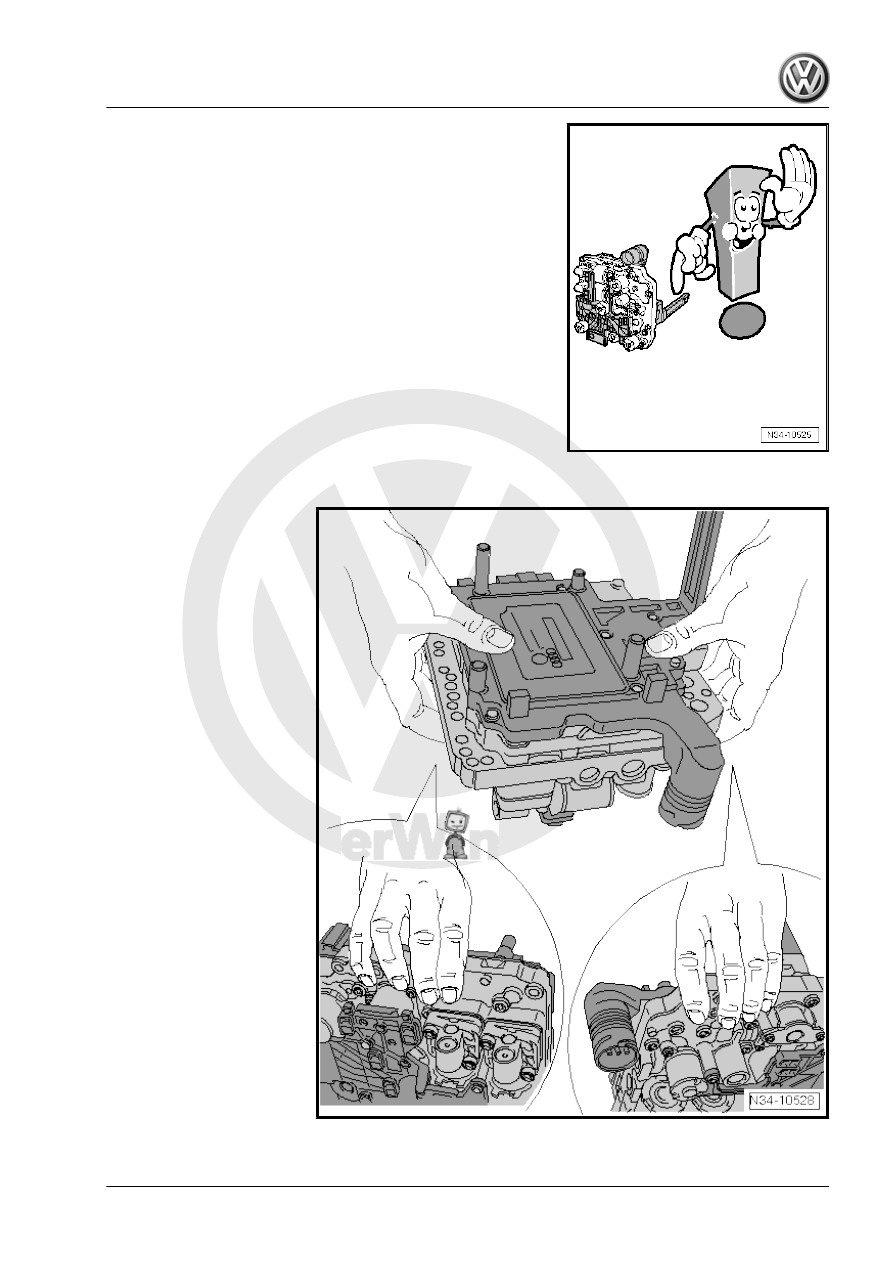

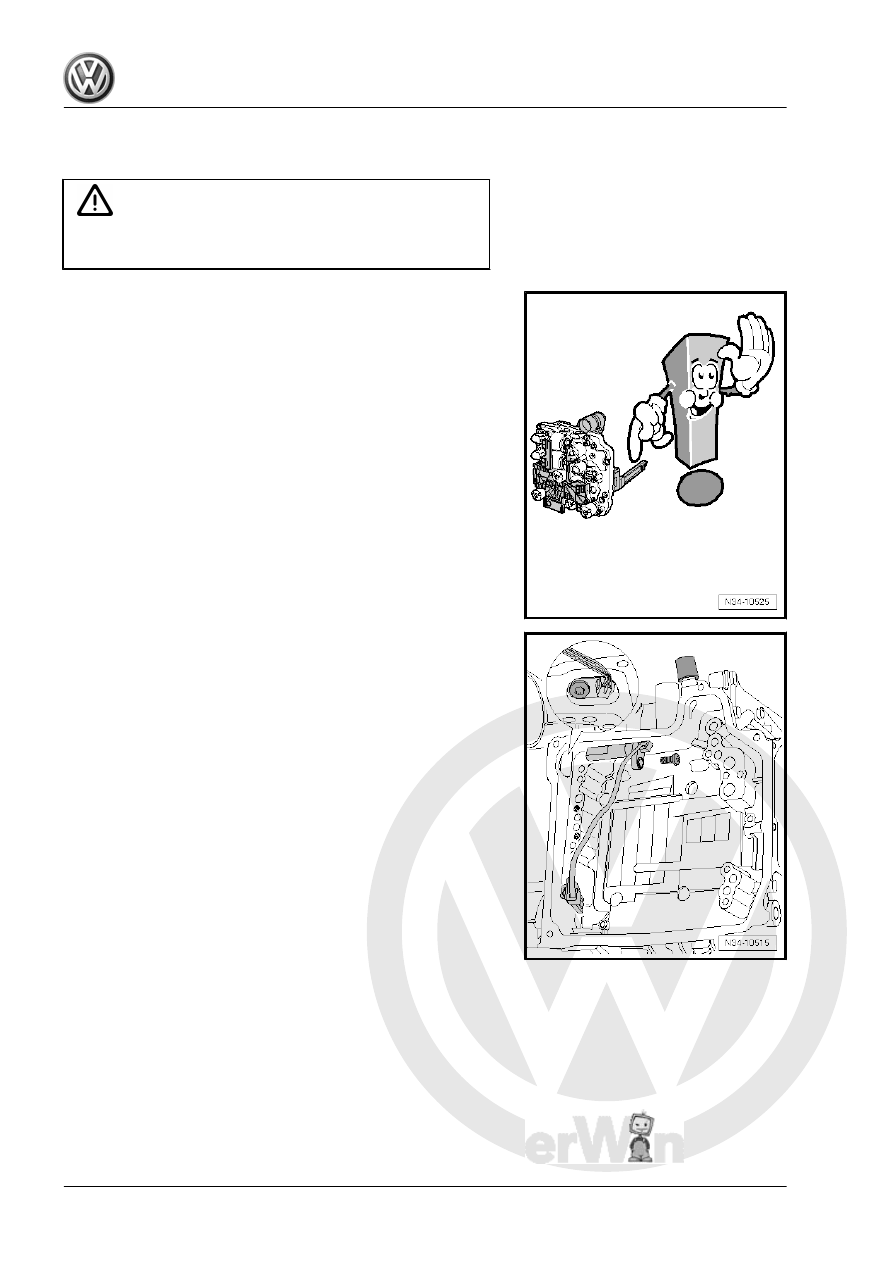

Never lift the Mechatronic by the »sensor arm« and never let

it rest on the arm.

48

Store the Mechatronic Properly

1. Electrical and Electronic Components, Component Locations in DSG® Transmission

49

Mechatronic, Installing, Transmission

Removed

Caution

Never lift the Mechatronic by the »sensor arm« and never let

it rest on the arm.

Replace the Mechatronic if the »arm« Gets Damaged.

– Make sure the Transmission Input Speed Sensor - G182- and

the Clutch Oil Temperature Sensor - G509- are installed.

50
