Volkswagen Golf Variant / Jetta. Manual - part 309

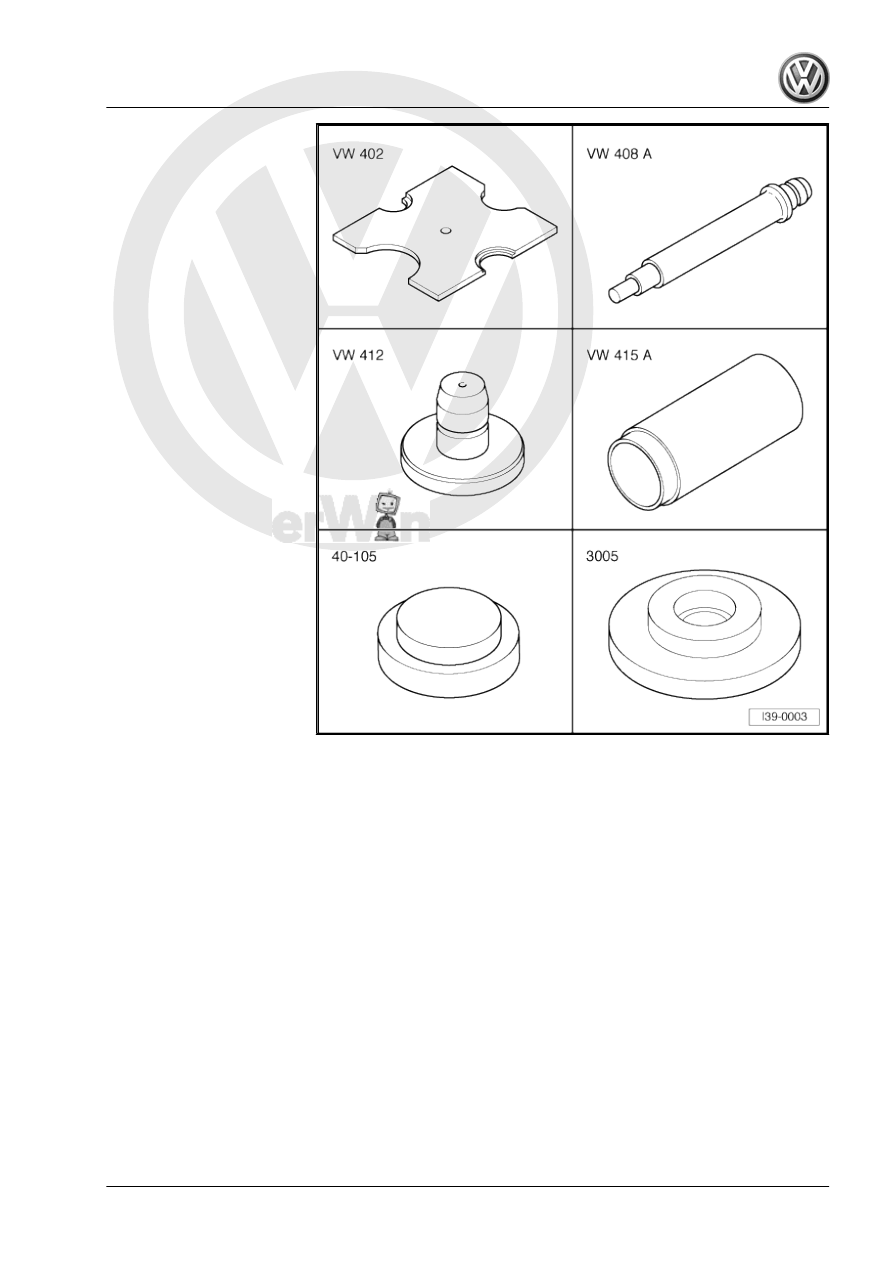

VW408A-

♦ Press Piece - Multiple Use

- VW412-

♦ Press Piece - 60mm -

VW415A-

♦ Press Piece - Multiple Use

- 40-105-

♦ Press Piece - Multiple Use

- 3005-

6. Special Tools

411

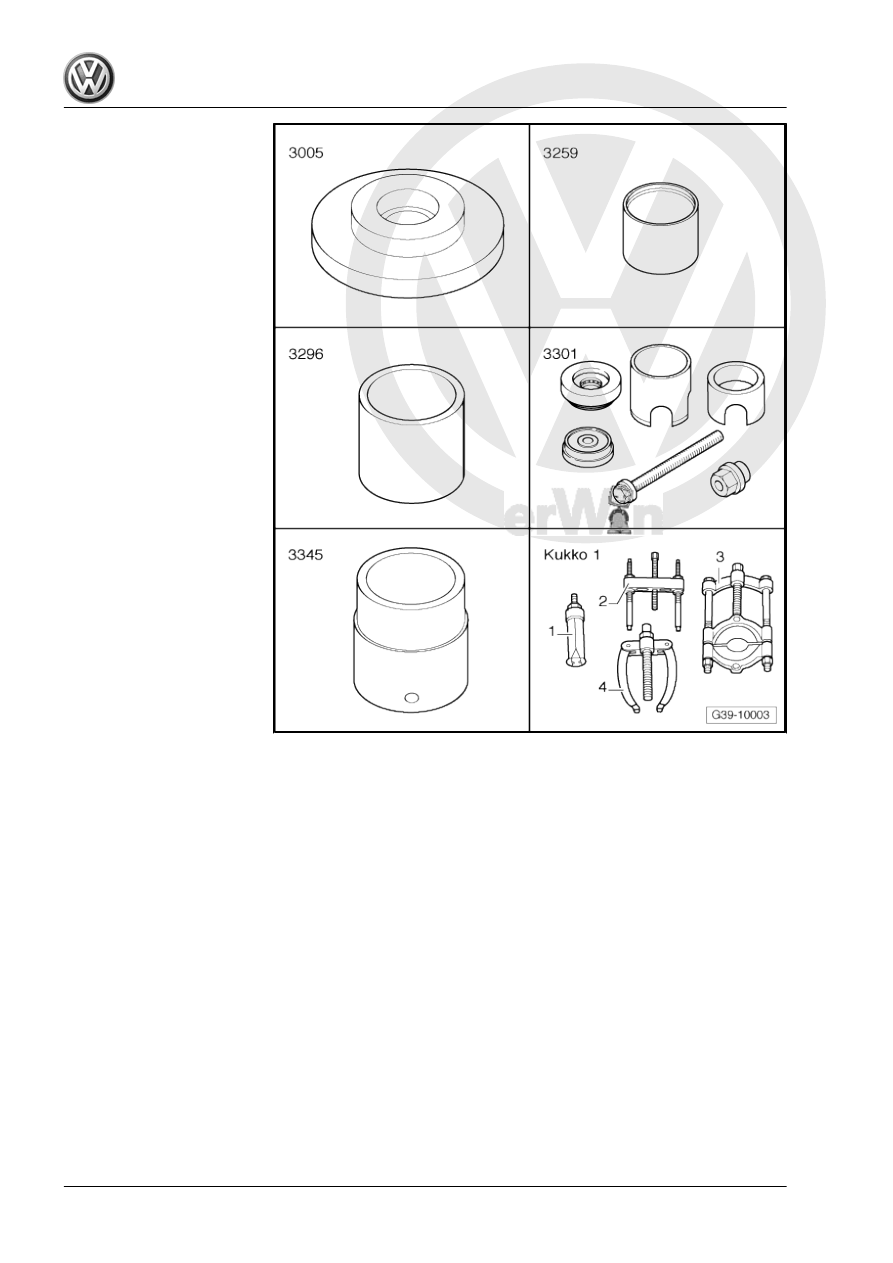

- 3005-

♦ Press Piece - Bushing -

3259-

♦ Press Piece - Reverse

Gear Syncro - 3296-

♦ Subframe Bushing Tool Kit

- 3301-

♦ Bearing Installer - Wheel

Bearing - 3345-

♦ -1- Puller - Kukko Internal -

46-56mm - 21/7-

♦ -2- Puller - Kukko Puller -

60-150mm Width, 200mm

Length - 18/1-

♦ -3- Puller - Kukko Quick Ac‐

tion Separating Tool -

12-75mm - 17/1-

♦ -4- Puller - Kukko Counter‐

stay - 22/2-

412

output flange

⇒ Fig. ““Output Flange Seal

-arrow- Removing and In‐

stalling:”“ , page 385

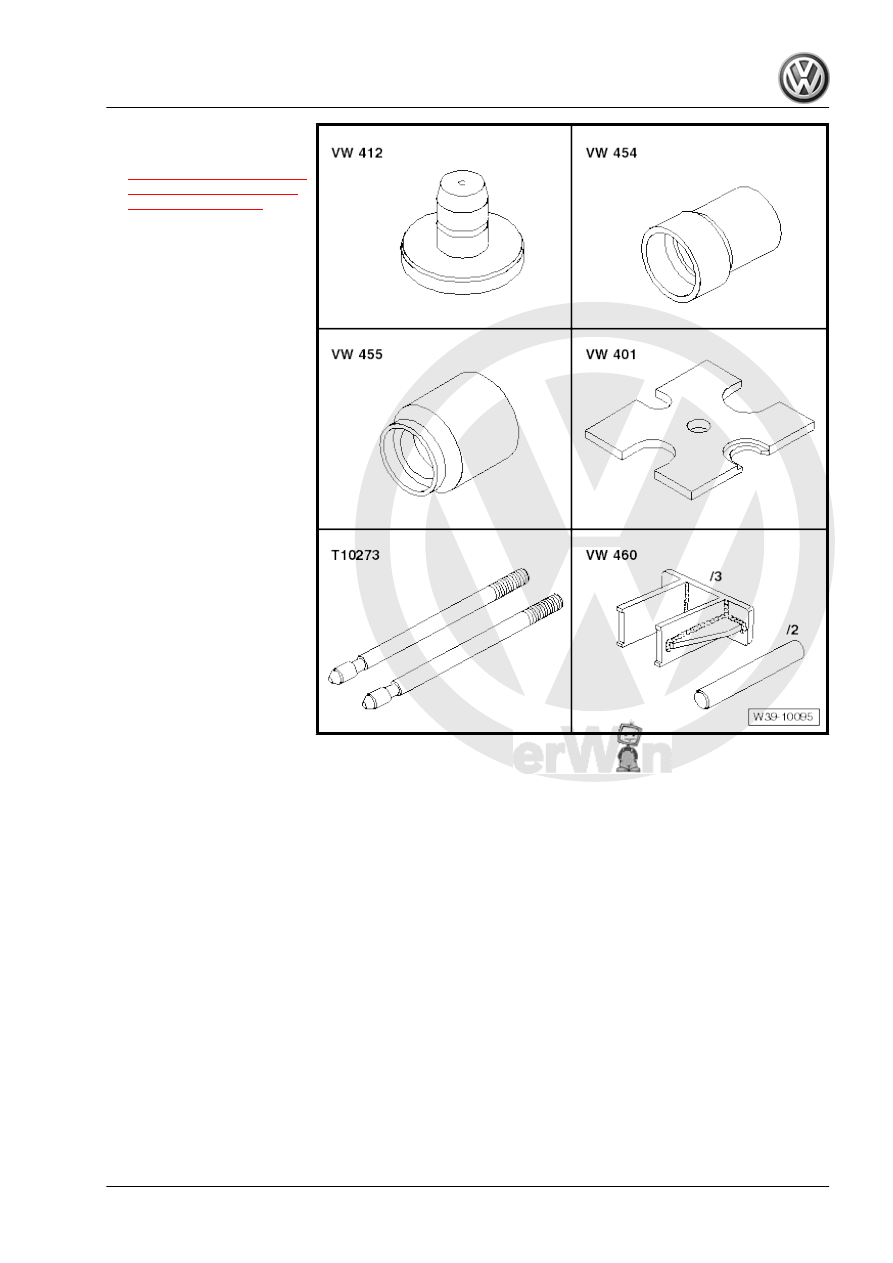

♦ Press Piece - Multiple Use

- VW412-

♦ Press Piece - Multiple Use

- VW454-

♦ Press Piece - Multiple Use

- VW455-

♦ Press Plate - VW401-
♦ Two M8 x 30 mm stud bolts

or Guide Pins - M8 -

T10273-

♦ Removal Device Pin 2 -

VW460/2-

6. Special Tools

413

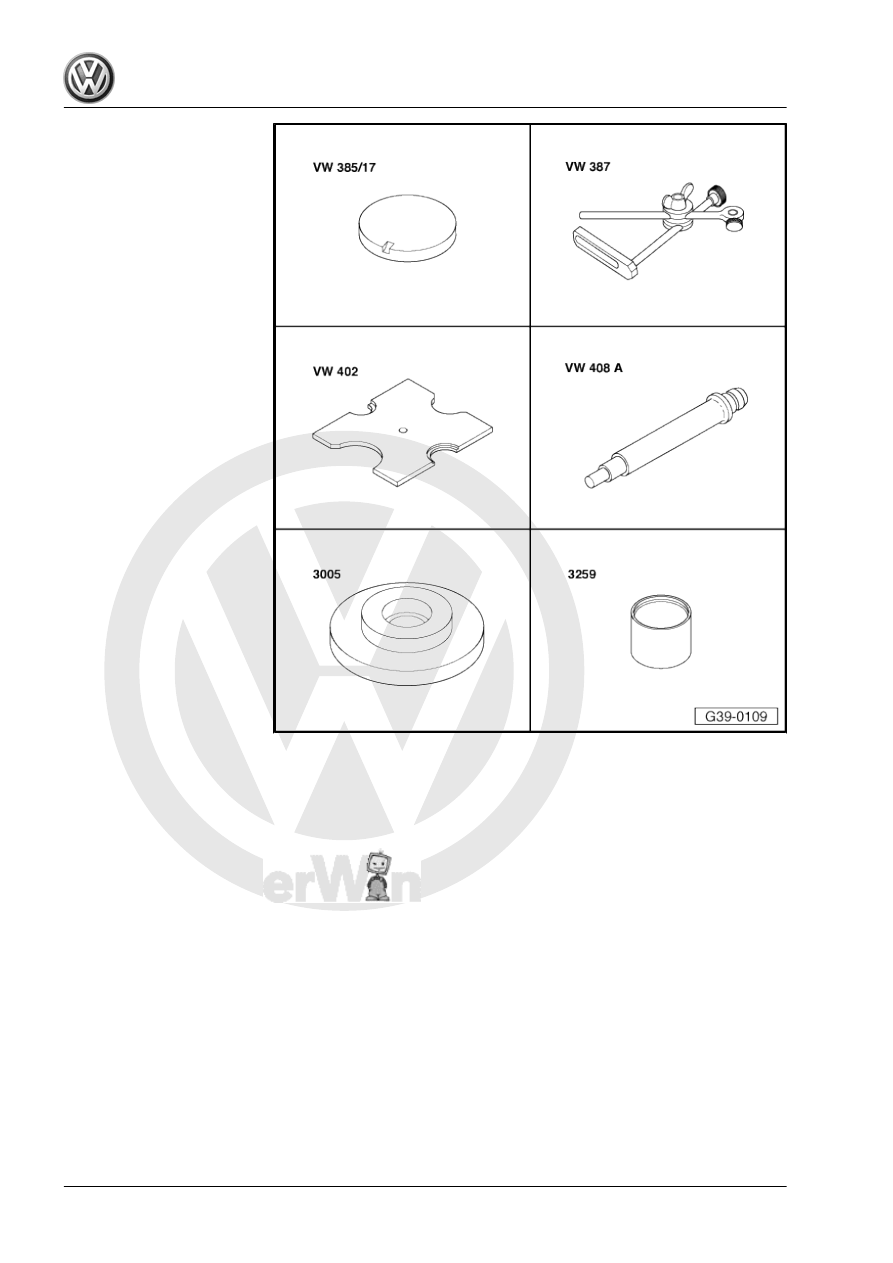

Plate - 50mm - VW385/17-

♦ Dial Gauge Holder -

VW387-

♦ Press Plate - VW402-
♦ Press Piece - Rod -

VW408A-

♦ Press Piece - Multiple Use

- 3005-

♦ Press Piece - Bushing -

3259-

414
