Volkswagen Golf Variant / Jetta. Manual - part 308





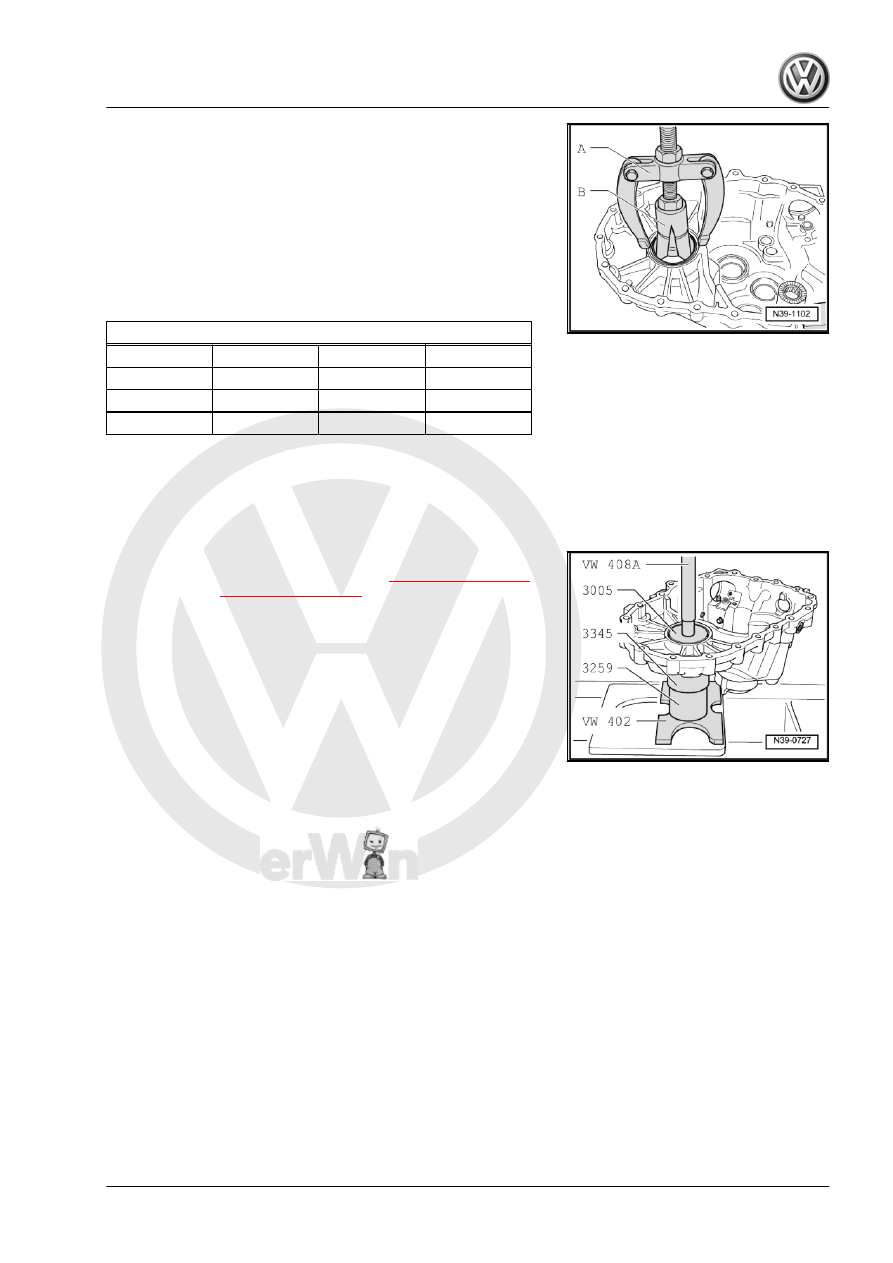

mission housing.

A - Counter Support , for example, Puller - Kukko Counterstay -

22/2-
B - Internal Puller 46 to 58 mm , for example, Puller - Kukko In‐

ternal - 46-56mm - 21/7-
– Shim part number. Refer to the Parts Catalog.
– Install the shim with the correct thickness, thickest shim first.
The following shims are available:

Shim Thickness (mm)

0.65

0.85

1.05

1.25

0.70

0.90

1.10



0.75

0.95

1.15



0.80

1.00

1.20



If the measured shim thickness is larger than those listed in the

table, then install two shims that add up to the necessary thick‐

ness. Insert the thicker shim first.
Tolerance variations make it possible to find the exact shim thick‐

ness required.

– Install the outer race and the transmission housing and tighten

to the tightening specification -item 13-

⇒ Item 13 (page 230)

and -item 14-

⇒ Item 14 (page 230)

 .

5. Differential

407

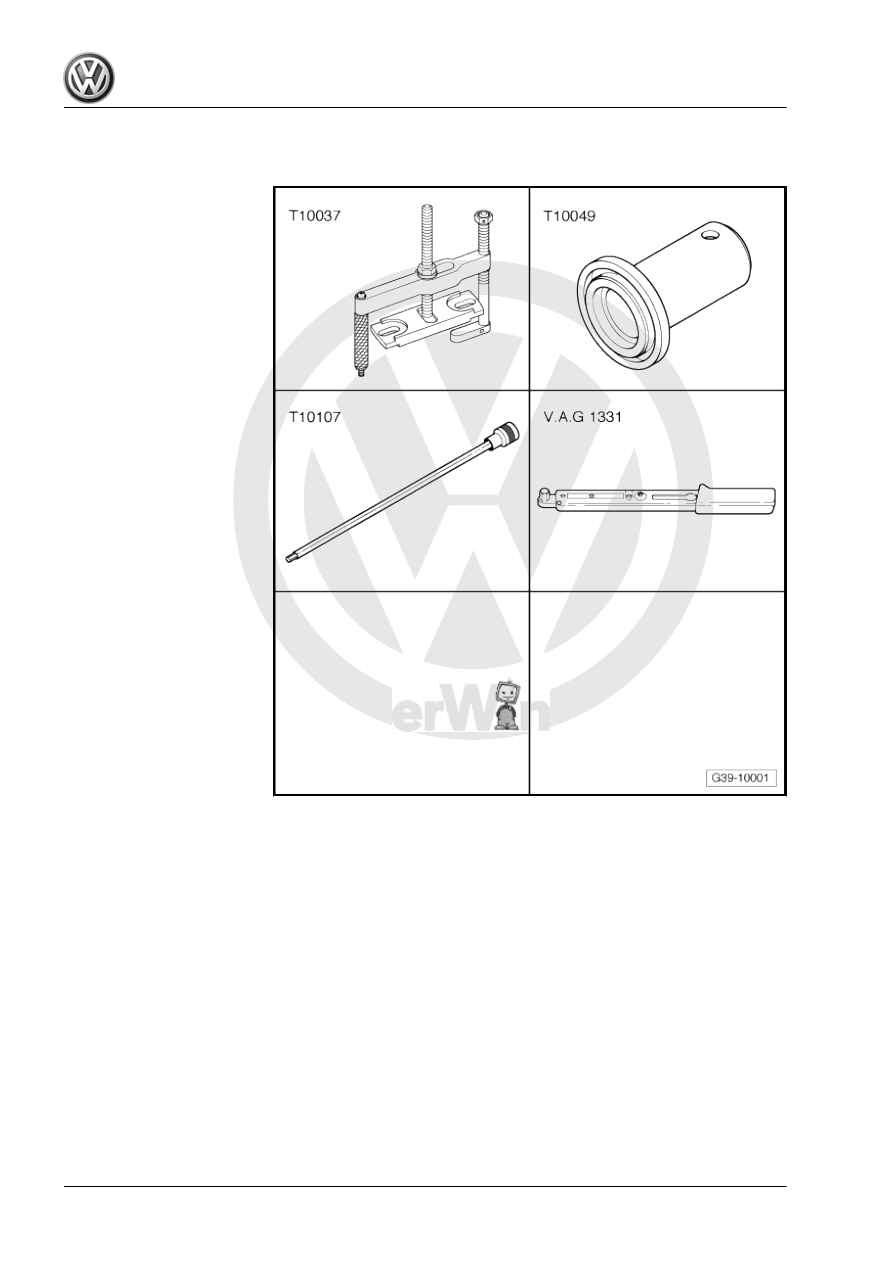

Special Tools

Special tools and workshop

equipment required
♦ Puller - Flanged Shaft -

T10037-

♦ Seal Installer - Flange Shaft

- T10049-

♦ Socket And Extended Bit -

T10107-

♦ or Socket And Extended Bit

- T10107A-

♦ Torque Wrench 1331

5-50Nm - VAG1331-

♦ Sealing Grease - G 052 128

A1-

408

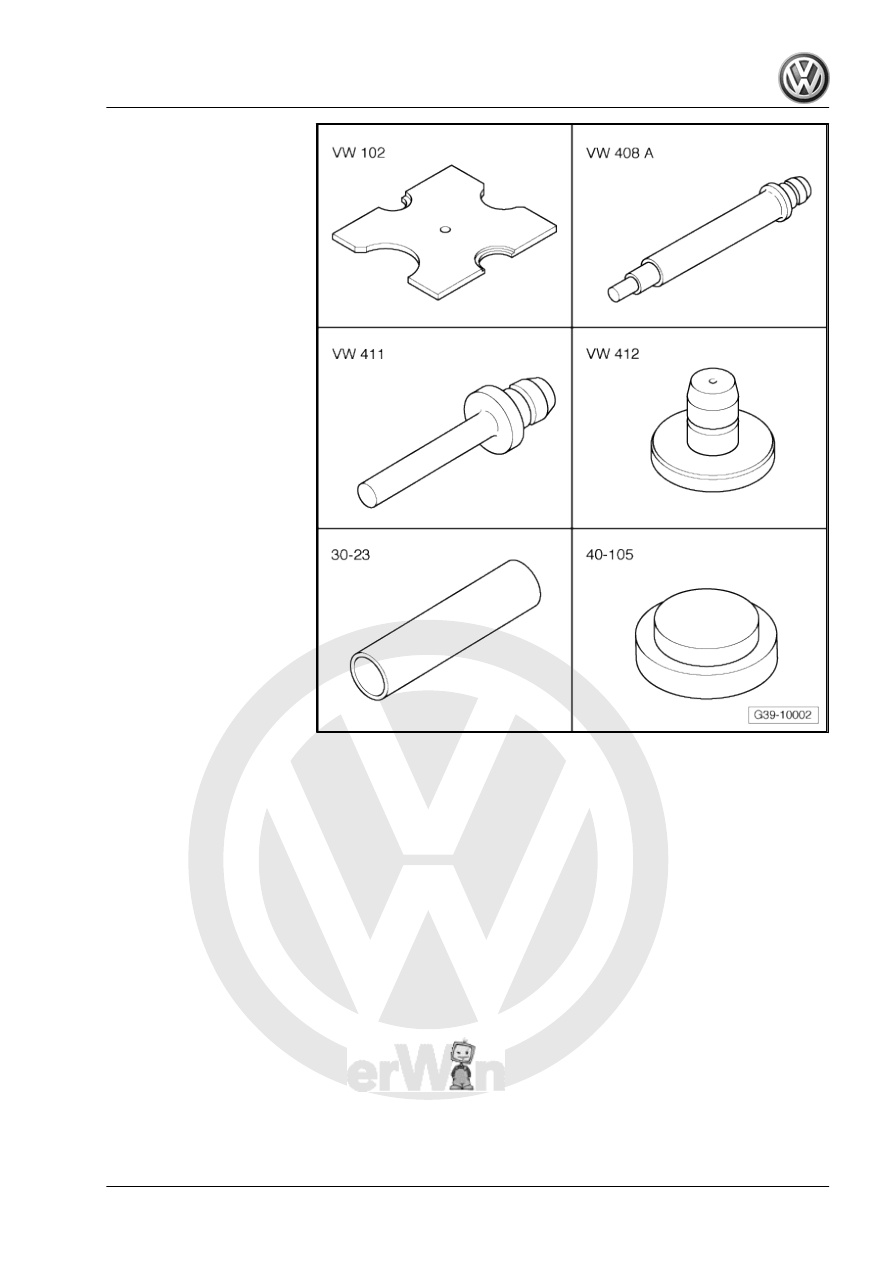

VW408A-

♦ Press Piece - Rod -

VW411-

♦ Press Piece - Multiple Use

- VW412-

♦ Press Piece - Multiple Use

- 30-23-

♦ Press Piece - Multiple Use

- 40-105-

6. Special Tools

409

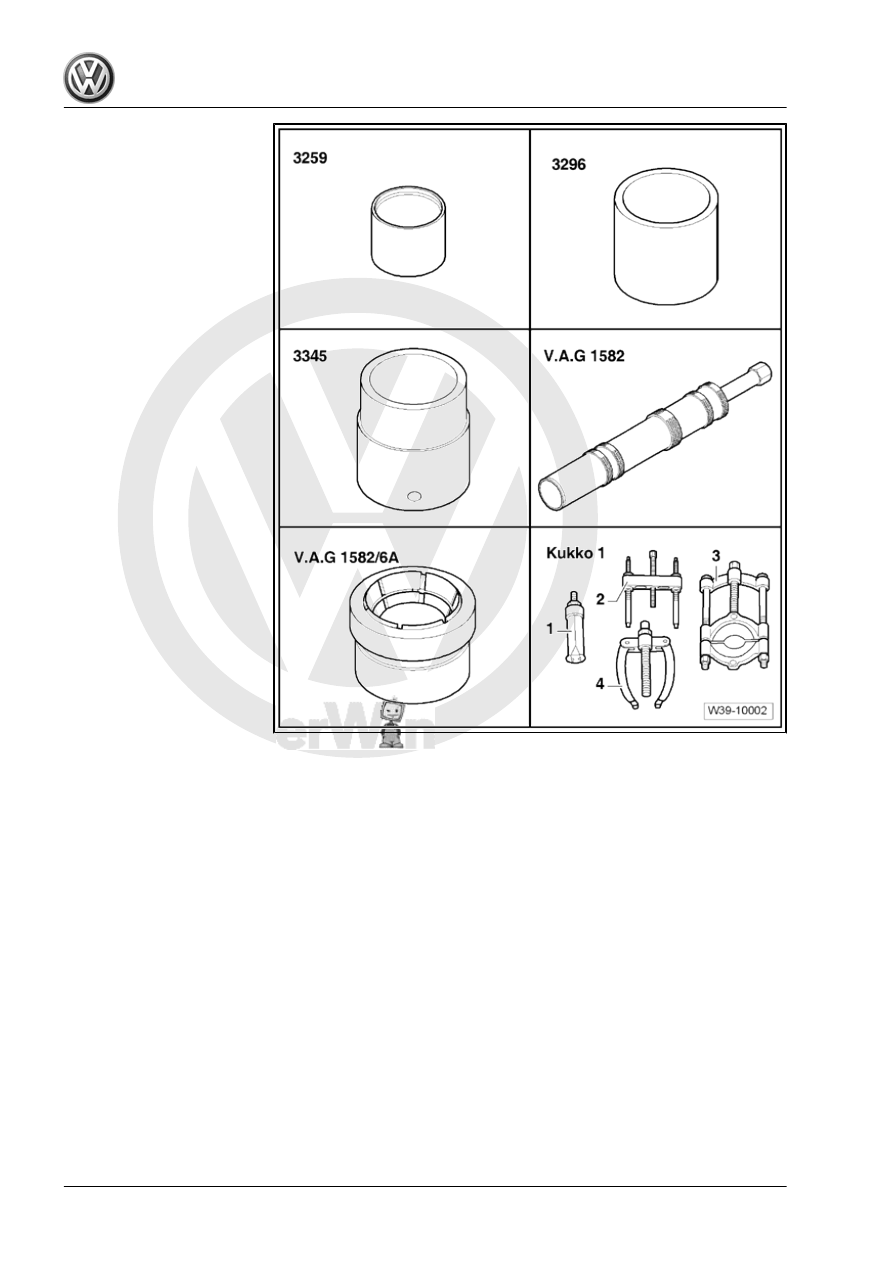

3259-

♦ Press Piece - Reverse

Gear Syncro - 3296-

♦ Bearing Installer - Wheel

Bearing - 3345-

♦ Puller - Taper Roller Bear‐

ing - VAG1582-

♦ Puller - Taper Roller Bear‐

ing - Adapter 6A -

VAG1582/6A-

♦ -1- Puller - Kukko Internal -

46-56mm - 21/7-

♦ -2- Puller - Kukko Puller -

60-150mm Width, 200mm

Length - 18/1-

♦ -3- Puller - Kukko Quick Ac‐

tion Separating Tool -

12-75mm - 17/1-

♦ -4- Puller - Kukko Counter‐

stay - 22/2-

410
