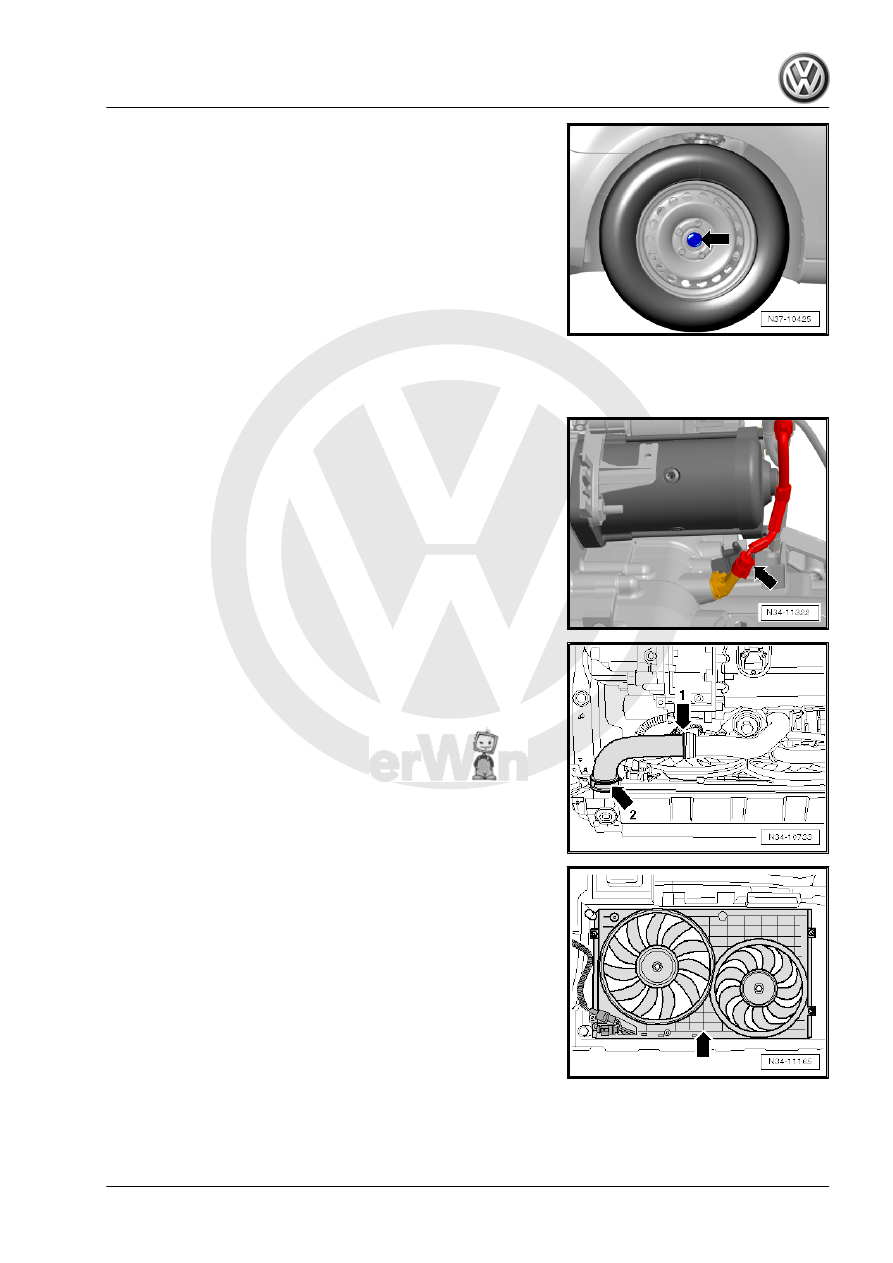

collar bolt -arrow- a maximum 90°, otherwise the wheel bear‐

ing will get damaged. Refer to ⇒  Suspension, Wheels, Steer‐

ing; Rep. Gr.  40 ; Drive Axles, Removing and Installing .

– Loosen the left front wheel bolts.
– Lift the vehicle, all four take-up points of lifting platform at the

same height.

– Remove the left front wheel.
– Remove the noise insulation. Refer to ⇒  Body Exterior; Rep.

Gr.  50 ; Noise Insulation .

– Remove the left front housing liner. Refer to ⇒  Body Exterior;

Rep. Gr.  66 ; Wheel Housing Liner; Front Wheel Housing Lin‐

er, Removing and Installing .

– Transmission on vehicles with Start/Stop System: disconnect

the connector -arrow- from the Transmission Neutral Position

Sensor - G701- .

27 ; Starter; Starter, Removing and Installing .

Gr.  21 .

Gr.  21 .

– Remove the right charge air hose from the charge air cooler.

– Remove the air shroud -arrow- and the radiator fans. Refer to

4. Transmission, Removing and Installing, Jetta from MY 11, Diesel and Gasoline

151

Vehicles with Diesel Engines

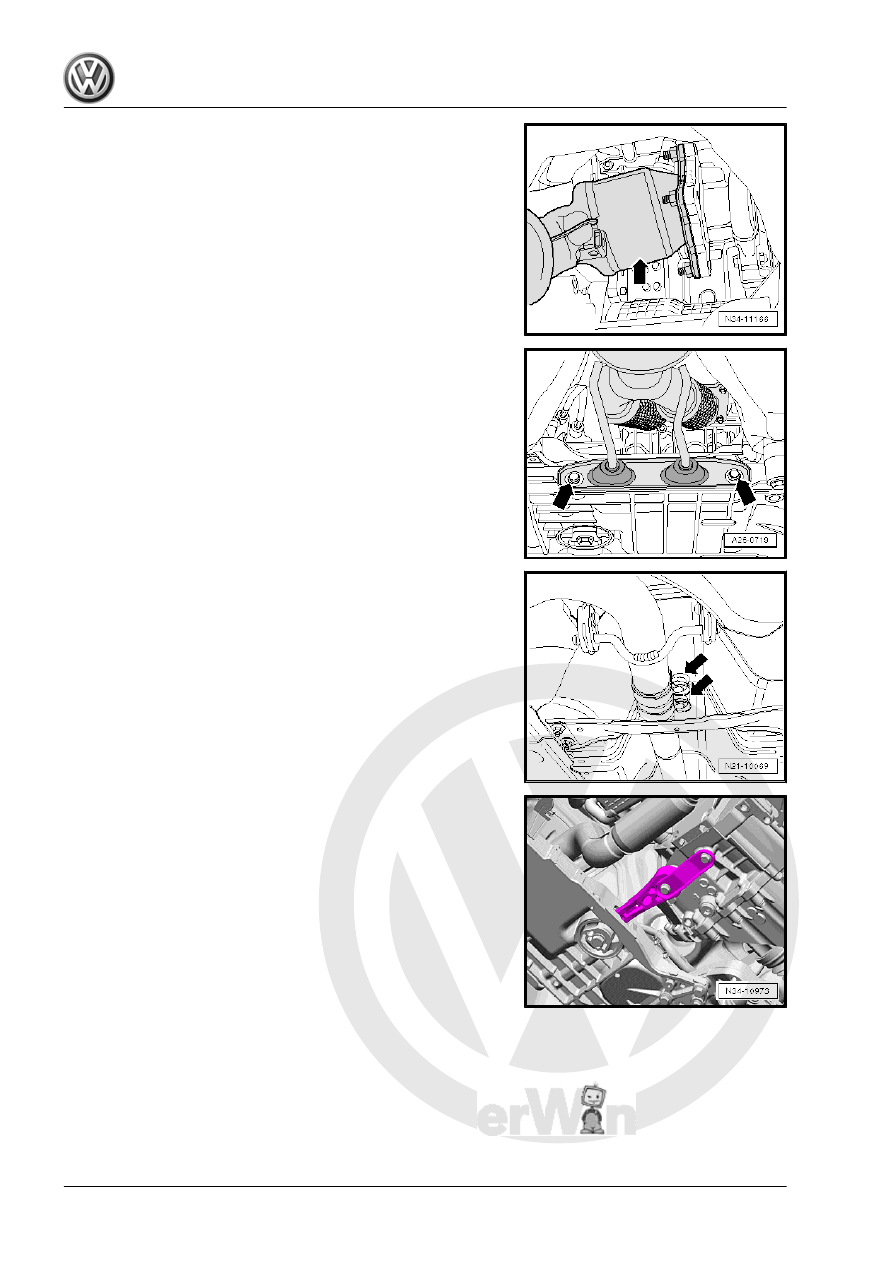

– Remove the exhaust system bracket from the subframe

– Disconnect the exhaust system at the double clamp -arrows-.
– Tie up the front exhaust pipe or lay it on the tunnel brace.
All Vehicles

– Remove the pendulum support.

152

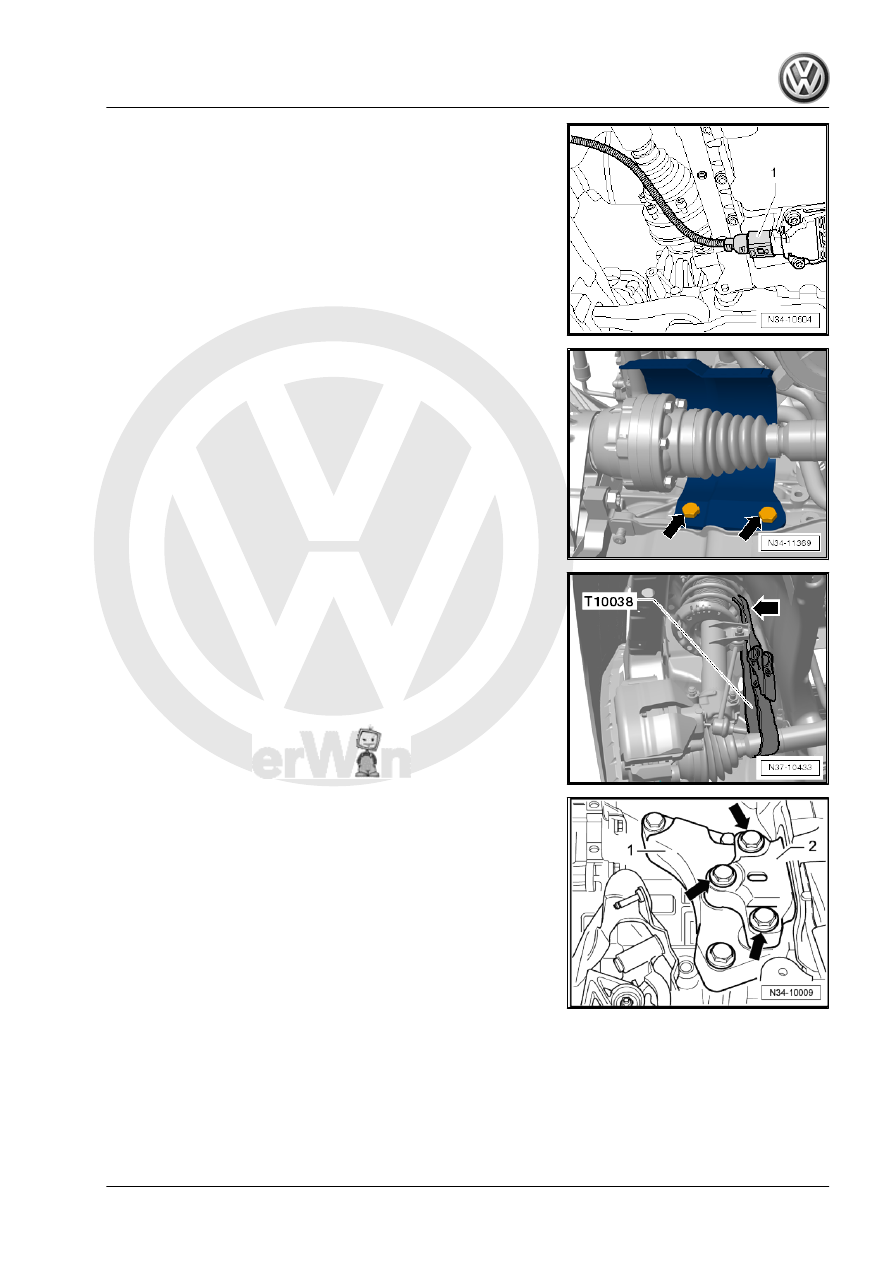

sor - G266- .

– Remove left coupling rod from stabilizer bar and set off to the

– Remove the left drive axle. Refer to ⇒  Suspension, Wheels,

– If equipped remove the drive axle heat shield -arrows-. Refer

Overview and Servicing; Drive Axle Heat Shield .

– Remove the right drive axle from the transmission and tie it up.

Axles, Removing and Installing .

– Remove the hex collar bolts -arrows- on the left subframe

mount -2- from the left bracket -1-.

4. Transmission, Removing and Installing, Jetta from MY 11, Diesel and Gasoline

153

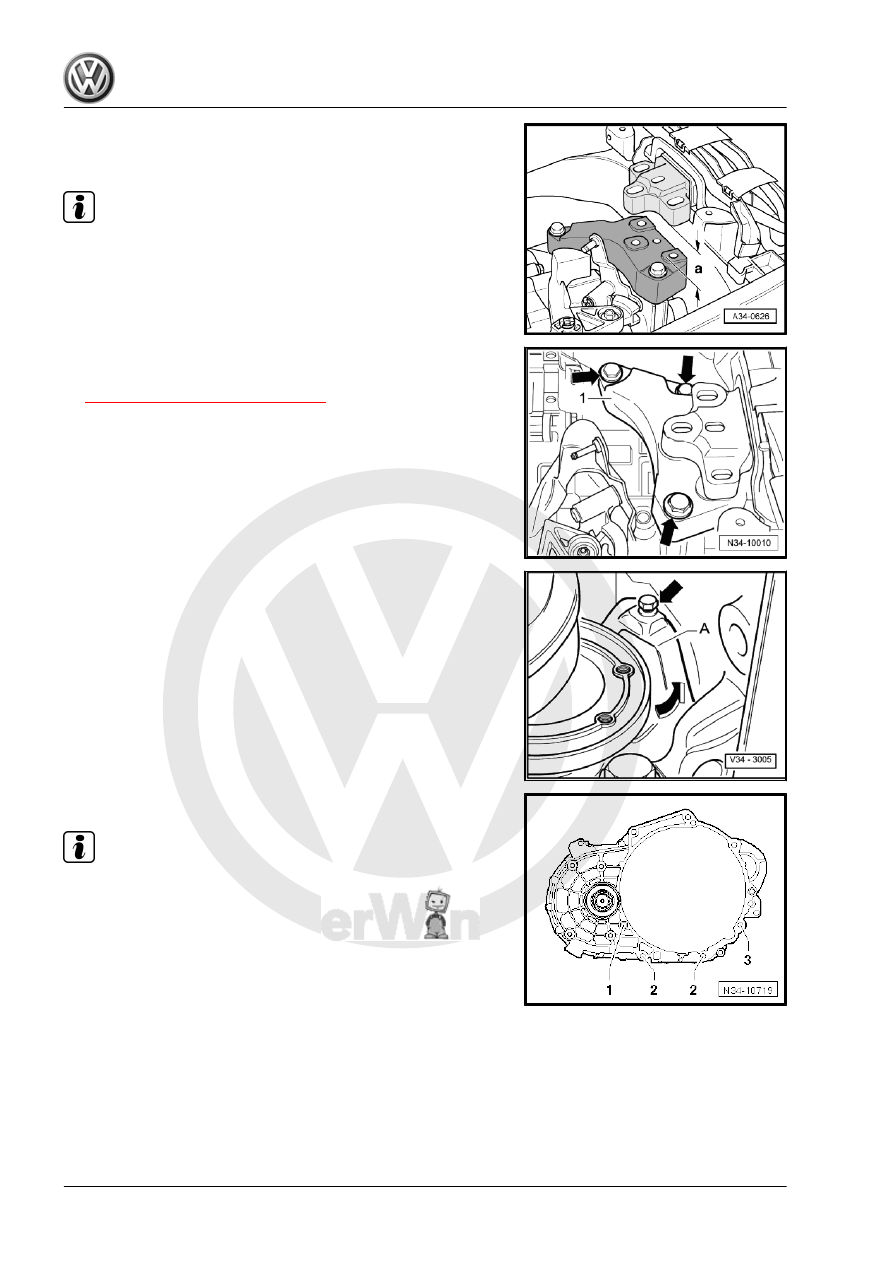

mension -a- using the spindles on the Engine Support Bridge

- 10-222A- .

Note

When moving the engine/transmission assembly, pay attention to

the connection lines, hoses and radiator.

– Remove the bracket -1- from the transmission -arrows-.
– Remove the relay lever with the cable retainer. Refer to

⇒ “1.8 Plastic Relay Lever”, page 89

 .

– Remove the gearshift lever from the gearshift shaft.

– Remove the small flywheel cover plate -A- -arrows-, if equip‐

ped.

– Remove the lower engine/transmission connecting bolts -2-.

Note

Loosen the engine/transmission connecting bolts -1 and 3- and

let them be hand-tight.

154
