Volkswagen Golf Variant / Jetta. Manual - part 208





Transmission Identification, AWD

⇒ “2.1 Location on Transmission”, page 7
⇒ “2.2 Code Letters, Transmission Allocation and Capacities,

AWD”, page 7

The 6 speed manual transmission 02Q AWD is installed along

with the 4 cylinder turbo diesel engine in the Jetta from MY 2005 ,

the Golf Wagon from MY 2007, and the Golf Wagon from MY

2010.

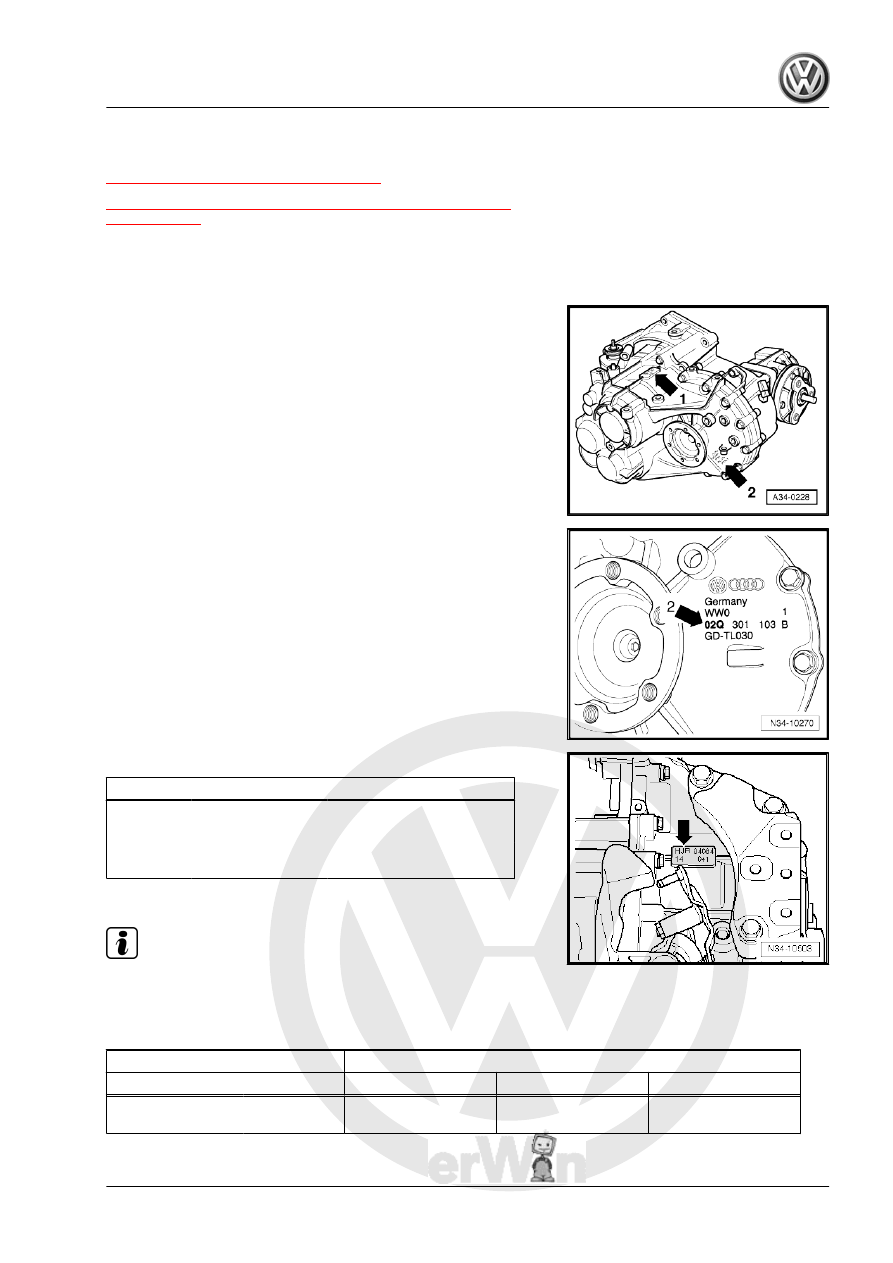

2.1

Location on Transmission

Code letters and build date -arrow 1- manual transmission 02Q,

AWD-arrow 2-

Manual Transmission 02Q AWD -arrow 2-

Engine Code and Build Date -arrow-

Example:

HJR

04

08

4



I

I

I

I



I

I

I

I



Codes

Day Month

Year (2004)

of manufacture

Additional data and information is provided by the factory.

Note

The transmission code is also listed in the vehicle data plates.

2.2

Code Letters, Transmission Allocation and Capacities, AWD

Manual Transmission

6-Speed 02Q AWD

Codes

FWZ

JLS

JYS

Manufactured

from

through

08/2004

07/2007

03/2006

05/2007

05/2007

11/2007

2. Transmission Identification, AWD

7

6-Speed 02Q AWD

Codes

FWZ

JLS

JYS

Allocation

Type Jetta from MY 2005

Golf Wagon from MY

2007

Golf Wagon from MY

07

Golf Wagon from MY

07



Engine

1.9L - 77 KW

Turbo diesel

1.9L - 77 KW

Turbo diesel

1.9L - 77 KW

Turbo diesel

Ratio: Z2 : Z1

Final drive I

1)

72 : 17 = 4.235

72 : 17 = 4.235

72 : 17 = 4.235



Final drive II

2)

72 : 22 = 3.273

72 : 22 = 3.273

72 : 22 = 3.273

Manual Transmission Capacity

Refer to ⇒  Fluid Capacity Tables; Rep. Gr.  03

Bevel box capacity

Refer to ⇒  Fluid Capacity Tables; Rep. Gr.  03

Driveshaft Flange Diameter

107 mm

1)

 Final drive for 1st to 4th gear

2)

 Final drive for 5th/6th and reverse gears

• Refer to the Parts Catalog for the following information.
♦ The individual gear ratios
♦ Transmission fluid specification
♦ Clutch disc and pressure plate allocation
♦ Bevel box axle oil
♦ Rear final drive allocation

Manual Transmission

6-Speed 02Q AWD

Codes

KDX

KNQ

KXV

Manufactured

from

through

05/2007

05/2008

02/2008

07/2009

Allocation

Type Golf Wagon from MY

07

Golf Wagon from MY

2007

2010

Golf Wagon from MY

07



Engine

1.9L - 77 KW

Turbo diesel

1.9L - 77 KW

Turbo diesel

1.6L - 77 KW

Turbo diesel

1.9L - 77 KW

Turbo diesel

Ratio: Z2 : Z1

Final drive I

1)

72 : 17 = 4.235

72 : 17 = 4.235

72 : 17 = 4.235



Final drive II

2)

72 : 22 = 3.273

72 : 22 = 3.273

72 : 22 = 3.273

Manual Transmission Capacity

Refer to ⇒  Fluid Capacity Tables; Rep. Gr.  03

Bevel box capacity

Refer to ⇒  Fluid Capacity Tables; Rep. Gr.  03

Driveshaft Flange Diameter

107 mm

1)

 Final drive for 1st to 4th gear

2)

 Final drive for 5th/6th and reverse gears

• Refer to the Parts Catalog for the following information.
♦ The individual gear ratios
♦ Transmission fluid specification
♦ Clutch disc and pressure plate allocation
♦ Bevel box axle oil
♦ Rear final drive allocation

8

6-Speed 02Q AWD

Codes

LNN





Manufactured

from

through

07/2009





Allocation

Type Golf Wagon from MY

2010







Engine

1.6L - 77 kW

turbo diesel





Ratio: Z2 : Z1

Final drive I

1)

72 : 17 = 4.235







Final drive II

2)

72 : 22 = 3.273





Manual Transmission Capacity

Refer to ⇒  Fluid Capacity Tables; Rep. Gr.  03

Bevel box capacity

Refer to ⇒  Fluid Capacity Tables; Rep. Gr.  03

Driveshaft Flange Diameter

107 mm

1)

 Final drive for 1st to 4th gear

2)

 Final drive for 5th/6th and reverse gears

• Refer to the Parts Catalog for the following information.
♦ The individual gear ratios
♦ Transmission fluid specification
♦ Clutch disc and pressure plate allocation
♦ Bevel box axle oil
♦ Rear final drive allocation

2. Transmission Identification, AWD

9

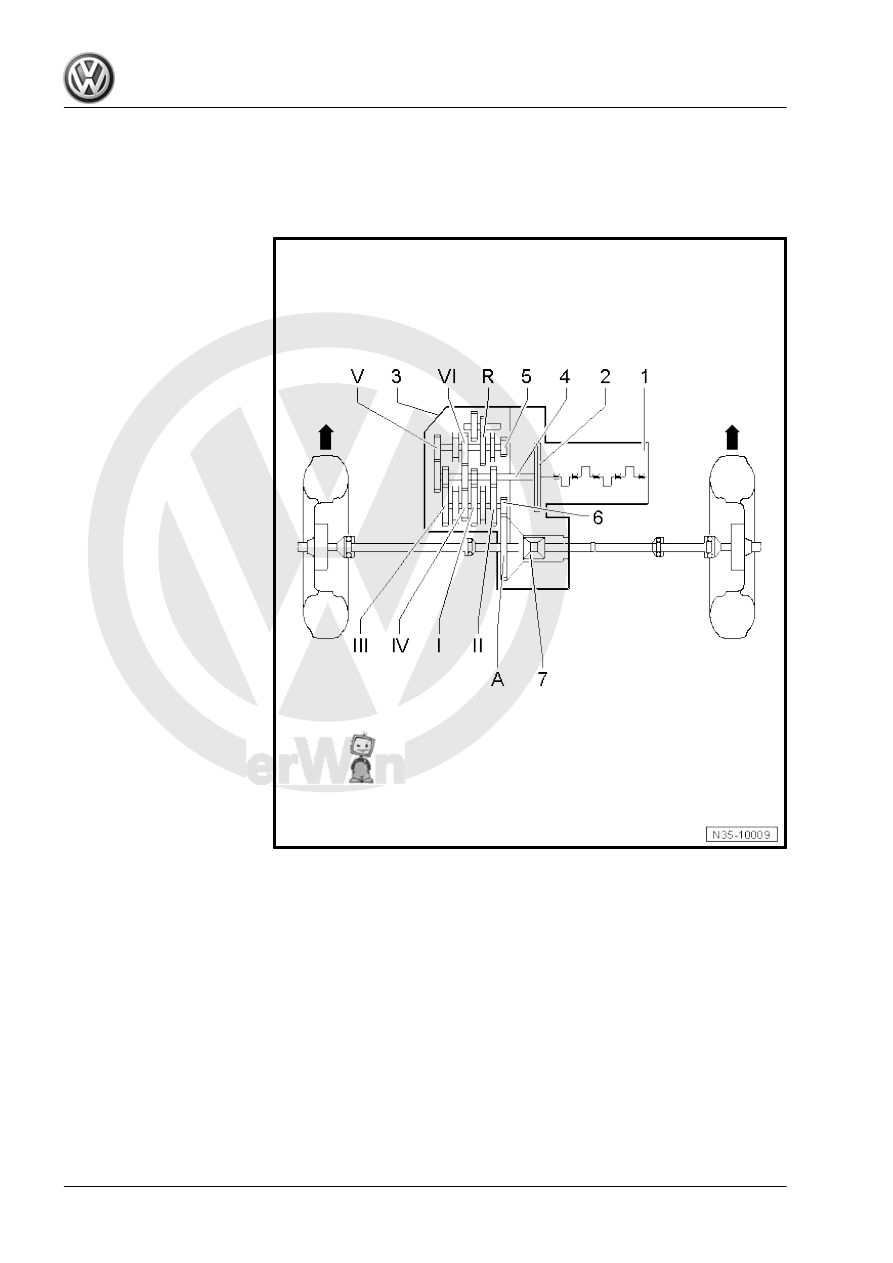

Overview - Transmission, FWD

Components
-Arrows- point in the direction of travel

1 - Engine
2 - Clutch
3 - Manual Transmission
4 - Input Shaft
5 - Output Shaft for 5th, 6th and

Reverse Gears (output shaft II)
6 - Output Shaft for 1st through

4th Gear (output shaft I)
7 - Differential

Ratio
-Arrows- point in the direction of travel

10
