Transmission Identification, FWD

⇒ “1.1 Location on Transmission”, page 1
⇒ “1.2 Codes Letters, Transmission Allocation and Capacities,

FWD”, page 2

The 6-speed manual transmission 02Q is installed with a 4-cylin‐

der engine in the Jetta from MY 2005, the Golf Wagon from MY

2007, the Golf Wagon from MY 2010 and the Jetta from MY 2011.
Allocation. Refer to

⇒ “1.2 Codes Letters, Transmission Allocation and Capacities,

FWD”, page 2

 .

1.1

Location on Transmission

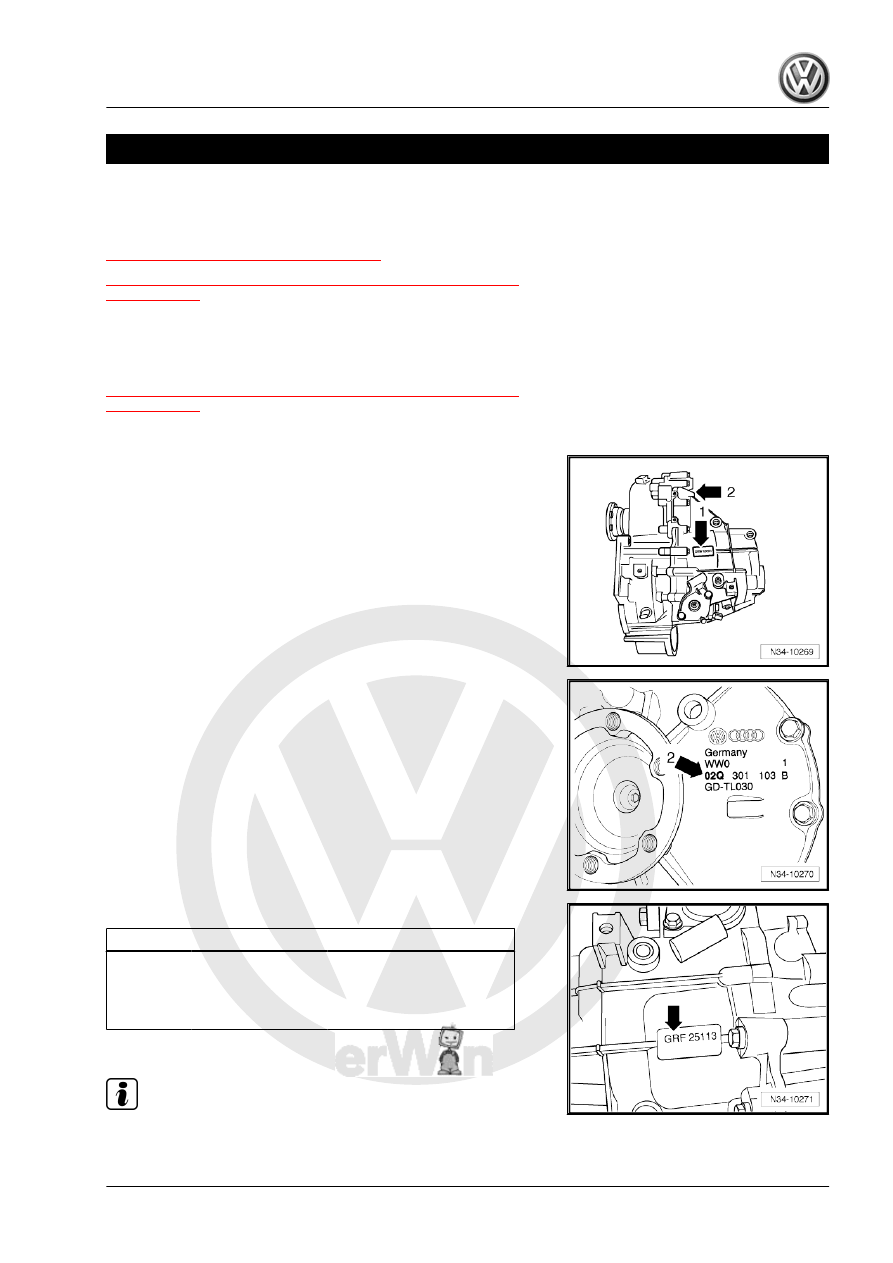

Code letters and build date -arrow 1- manual transmission 02Q

-arrow 2-

Manual Transmission 02Q -arrow 2-

Transmission Codes and Production Date-arrow-

Example:

GRF

25

11

3



I

I

I

I



I

I

I

I



Codes

Day Month

Year (2003)

of manufacture

Additional data and information is provided by the factory.

Note

The transmission code is also listed on the vehicle data label.

1. Transmission Identification, FWD

1

Codes Letters, Transmission Allocation and Capacities, FWD

Manual Transmission

6-Speed 02Q FWD

Codes

GRF

GVT

GXC

Manufactured

from

through

05/2005

11/2005

05/2005

11/2005

07/2006

07/2006

Allocation

Type Jetta from MY 2005

Golf Wagon from MY

2007

Jetta from MY 2005

Golf Wagon from MY

2007

Jetta from MY 2005

Golf Wagon from MY

2007



Engine

2.0L - 103 kW

Turbo-Diesel

2.0L - 147 kW

Turbo FSI

2.0L - 125 kW

Turbo-Diesel

Ratio: Z2 : Z1

Final drive I

1)

69 : 20 = 3.450

71 : 18 = 3.944

71 : 18 = 3.944



Final drive II

2)

69 : 25 = 2.760

71 : 23 = 3.087

71 : 23 = 3.087

Manual Transmission Capacity

Refer to ⇒  Fluid Ca‐

pacity Tables; Rep.

Gr.  03

Refer to ⇒  Fluid Ca‐

pacity Tables; Rep.

Gr.  03

Refer to ⇒  Fluid Ca‐

pacity Tables; Rep.

Gr.  03

Driveshaft Flange Diameter

107 mm

107 mm

107 mm

1)

 Final drive for 1st to 4th gear

2)

 Final drive for 5th/6th and reverse gears

• Refer to the Parts Catalog for the following information.
♦ The individual gear ratios
♦ Transmission fluid specification
♦ Clutch disc and pressure plate allocation

Manual Transmission

6-Speed 02Q FWD

Codes

HDV

HVS

JLU

Manufactured

from

through

05/2005

07/2006

05/2006

05/2007

Allocation

Type Jetta from MY 2005

Golf Wagon from MY

2007

Jetta from MY 2005

Golf Wagon from MY

2007

Jetta from MY 2005

Golf Wagon from MY

2007



Engine

2.0L - 96 kW

turbo diesel

2.0L - 100 kW

turbo diesel

2.0L - 103 kW

turbo diesel

2.0L - 125 kW

Turbo-Diesel

2.0L - 100 kW

turbo diesel

2.0L - 103 kW

turbo diesel

Ratio: Z2 : Z1

Final drive I

1)

69 : 20 = 3.450

70 : 19 = 3.684

72 : 17 = 4.235



Final drive II

2)

69 : 25 = 2.760

70 : 24 = 2.917

72 : 22 = 3.273

Manual Transmission Capacity

Refer to ⇒  Fluid Ca‐

pacity Tables; Rep.

Gr.  03

Refer to ⇒  Fluid Ca‐

pacity Tables; Rep.

Gr.  03

Refer to ⇒  Fluid Ca‐

pacity Tables; Rep.

Gr.  03

Driveshaft Flange Diameter

107 mm

107 mm

107 mm

1)

 Final drive for 1st to 4th gear

2)

 Final drive for 5th/6th and reverse gears

• Refer to the Parts Catalog for the following information.
♦ The individual gear ratios
♦ Transmission fluid specification
♦ Clutch disc and pressure plate allocation
