Volkswagen Golf Variant / Jetta. Manual - part 130





way into the transmission housing.

– Tighten the bolt -1- for the Transmission Input Speed Sensor

- G182- to the tightening specification. Refer to

⇒ “4.1.1 Tightening Specifications”, page 132

 .

– Install the valve body. Refer to

⇒ page 142

 .

4.6

Transmission Output Speed Sensor -

G195- , Removing and Installing

Removing
– Remove the valve body. Refer to

⇒ “4.2 Valve Body, Removing and Installing”, page 135

 .

– Remove the bolt -2- from the Transmission Output Speed

Sensor - G195- .

– Remove the Transmission Output Speed Sensor - G195- from

the transmission housing.

4. Valve Body

151

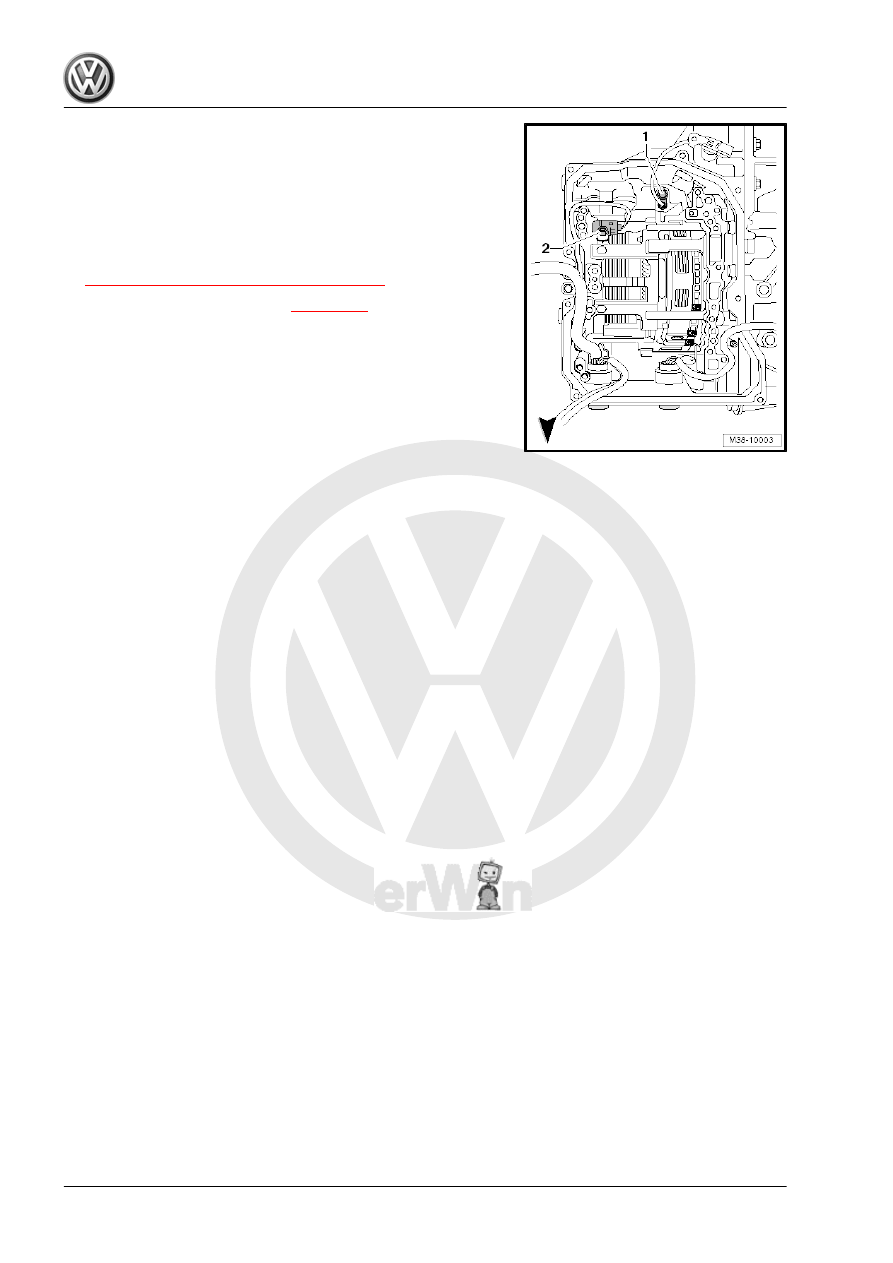

way into the transmission housing.

– Tighten the bolt -2- for the Transmission Output Speed Sensor

- G195- to the tightening specification. Refer to

⇒ “4.1.1 Tightening Specifications”, page 132

 .

– Install the valve body. Refer to

⇒ page 142

 .

152

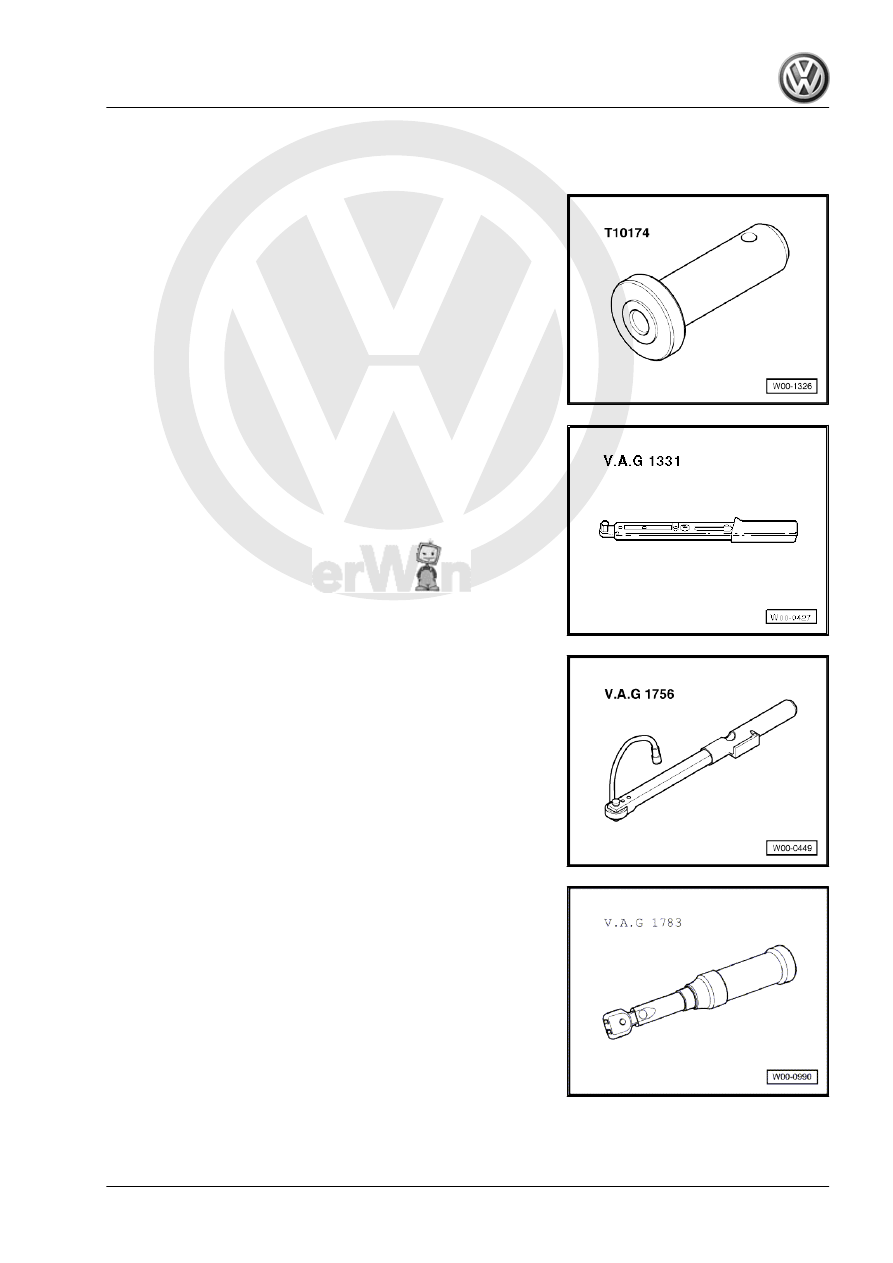

Special Tools

Special tools and workshop equipment required
♦ Seal Installer - Selector Shaft Oil Seal - T10174-

♦ Torque Wrench 1331 5-50Nm - VAG1331-

♦ Digital Torque Wrench - VAG1756A-

♦ Torque Wrench 1783 - 2-10Nm - VAG1783-

5. Special Tools

153

154
