Volkswagen Golf Variant / Jetta. Manual - part 96





⇒ Fig. ““Sensor Wiring Harness”“ , page 17

❑ Removing and installing. Refer to

⇒ “4.4 Sensor Wiring Harness (8-Pin Connector), Removing and Installing”, page 149

 .

❑ Allocation. Refer to the Parts Catalog.

6 - Transmission Fluid Temperature Sensor - G93-

❑ Component location. Refer to

⇒ Fig. ““Sensor Wiring Harness”“ , page 17

❑ Can be checked in “Guided Fault Finding” using the Vehicle Diagnostic Tester .

7 - Solenoid Valve Wiring Harness

❑ Wiring harness, 14-pin
❑ Component location. Refer to

⇒ Fig. ““Solenoid Valve Wiring Harness”“ , page 17

❑ Removing and installing. Refer to

⇒ “4.3 Solenoid Valve Wiring Harness (14-Pin Connector), Removing and Installing”, page 148

 .

❑ Allocation. Refer to the Parts Catalog.

8 - Automatic Transmission Hydraulic Pressure Sensor 1 - G193-

❑ Not installed in all transmissions
❑ Allocation. Refer to the Parts Catalog.
❑ Component location. Refer to

⇒ Fig. ““ Automatic Transmission Hydraulic Pressure Sensor 1 -G193- and Automatic Transmission Hy‐

draulic Pressure Sensor 2 -G194- ”“ , page 18

9 - Automatic Transmission Hydraulic Pressure Sensor 2 - G194-

❑ Not installed in all transmissions
❑ Allocation. Refer to the Parts Catalog.
❑ Component location. Refer to

⇒ Fig. ““ Automatic Transmission Hydraulic Pressure Sensor 1 -G193- and Automatic Transmission Hy‐

draulic Pressure Sensor 2 -G194- ”“ , page 18

10 - Transmission Input Speed Sensor - G182-

❑ Component location. Refer to

⇒ Fig. ““ Transmission Input Speed Sensor -G182- and Transmission Output Speed Sensor -G195- ”“ ,

page 18

❑ Removing and installing. Refer to

⇒ “4.5  Transmission Input Speed Sensor G182 , Removing and Installing”, page 150

 .

❑ Can be checked in “Guided Fault Finding” using the Vehicle Diagnostic Tester .

11 - Transmission Output Speed Sensor - G195-

❑ Component location. Refer to

⇒ Fig. ““ Transmission Input Speed Sensor -G182- and Transmission Output Speed Sensor -G195- ”“ ,

page 18

❑ Removing and installing. Refer to

⇒ “4.6  Transmission Output Speed Sensor G195 , Removing and Installing”, page 151

 .

❑ Can be checked in “Guided Fault Finding” using the Vehicle Diagnostic Tester .

12 - Shift Lock Solenoid - N110-

❑ Component location: the shift lock solenoid is located in the selector mechanism.
❑ Can be checked in “Guided Fault Finding” using the Vehicle Diagnostic Tester .

13 - Tiptronic Switch - F189-

❑ Component location. Refer to

⇒ Fig. ““ Tiptronic Switch -F189- ”“ , page 18

❑ Can be checked in “Guided Fault Finding” using the Vehicle Diagnostic Tester .

14 - Terminal 50 Power Supply Relay - J682-

❑ Inside the engine compartment E-box. Refer to ⇒ Wiring diagrams, Troubleshooting & Component lo‐

cations.

15 - Data Link Connector

❑ Component location. Refer to

⇒ Fig. ““Data Link Connector”“ , page 19

2. Electrical and Electronic Components and Component Locations

15

❑ Component location. Refer to

⇒ Fig. ““ Transmission Range Display -Y6- ”“ , page 19

❑ Removing and installing. Refer to ⇒  Electrical Equipment; Rep. Gr.  90 ; Instrument Cluster .

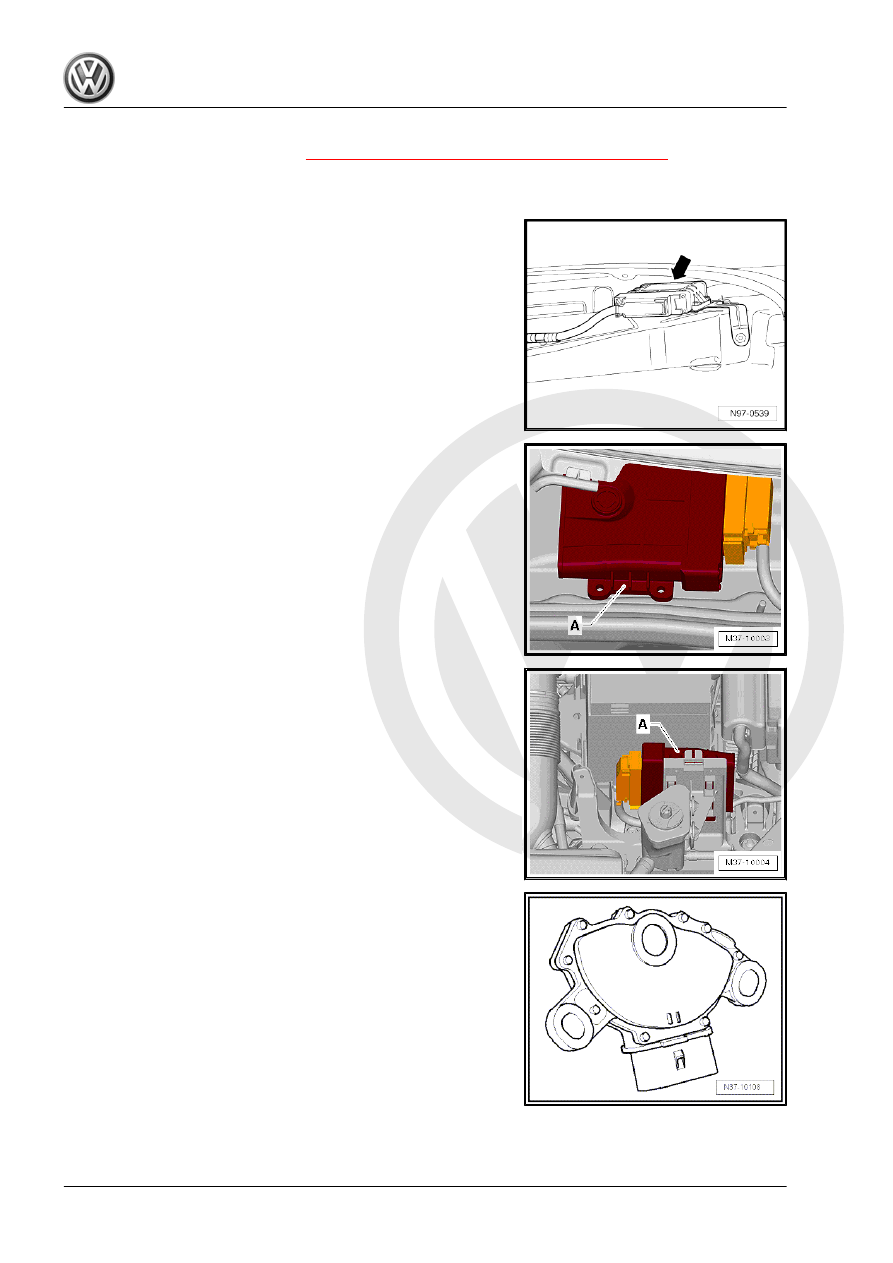

Transmission Control Module - J217- -arrow- on the Jetta from

MY 2005, the Bora from MY 2006, the Golf Wagon from MY 2007

and the Jetta Wagon from MY 2008
Component location: The control module is located in left front

wheel housing.
– The wheel housing liner must be removed for the removal and

installation.

Transmission Control Module - J217- -A- on the Jetta from MY

2011 with 2.0L - 85 kW and 1.8L - 125 kW Engine
Component location: The control module is located in the right

plenum chamber.
– For removing and installing the plenum chamber cover must

Chamber Cover; Plenum Chamber Cover, Removing and In‐

stalling .

Transmission Control Module - J217- -A- on the Jetta from MY

2011, with a 2.5L 125 kW Engine
Component location: The control module is located inside the en‐

gine compartment in the front and on left side next to the battery.

Multifunction Transmission Range Switch - F125-
Component location: The multifunction transmission range switch

is located on upper side of the transmission.

16

transmission housing and is covered by the transmission fluid

pan.
The Solenoid Valve 1 - N88- , Solenoid Valve 2 - N89- , Solenoid

Valve 3 - N90- , Solenoid Valve 4 - N91- , Solenoid Valve 5 - N92- ,

Solenoid Valve 6 - N93- , Solenoid Valve 9 - N282- and Solenoid

Valve 10 - N283- are secured on the valve body.

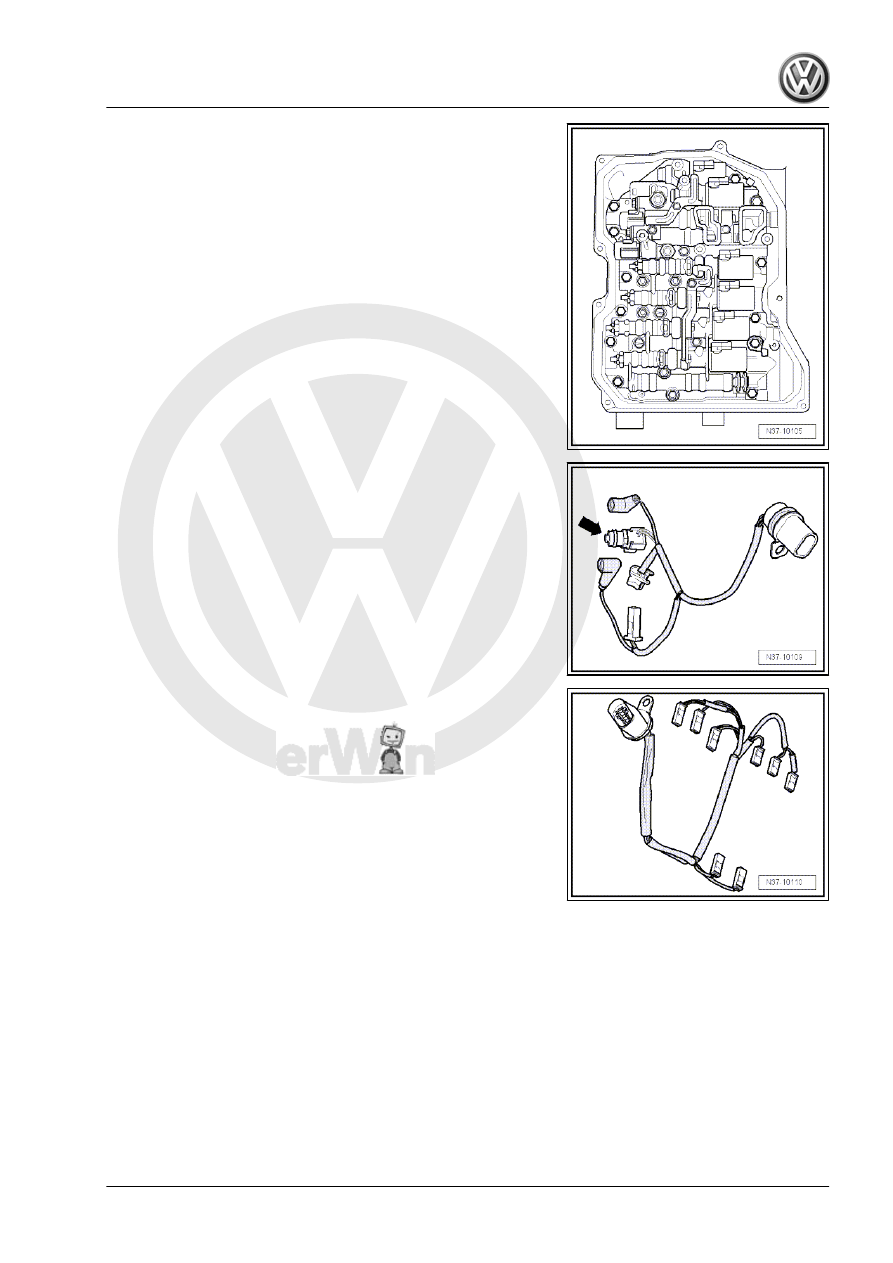

Sensor Wiring Harness
♦ 8-pin wiring harness
♦ With integrated Transmission Fluid Temperature Sensor -

G93- -arrow-.

Component location: the wiring harness is secured to valve body

in the transmission.

Solenoid Valve Wiring Harness
♦ Wiring harness, 14-pin
Component location: the wiring harness is secured to valve body

in the transmission.

2. Electrical and Electronic Components and Component Locations

17

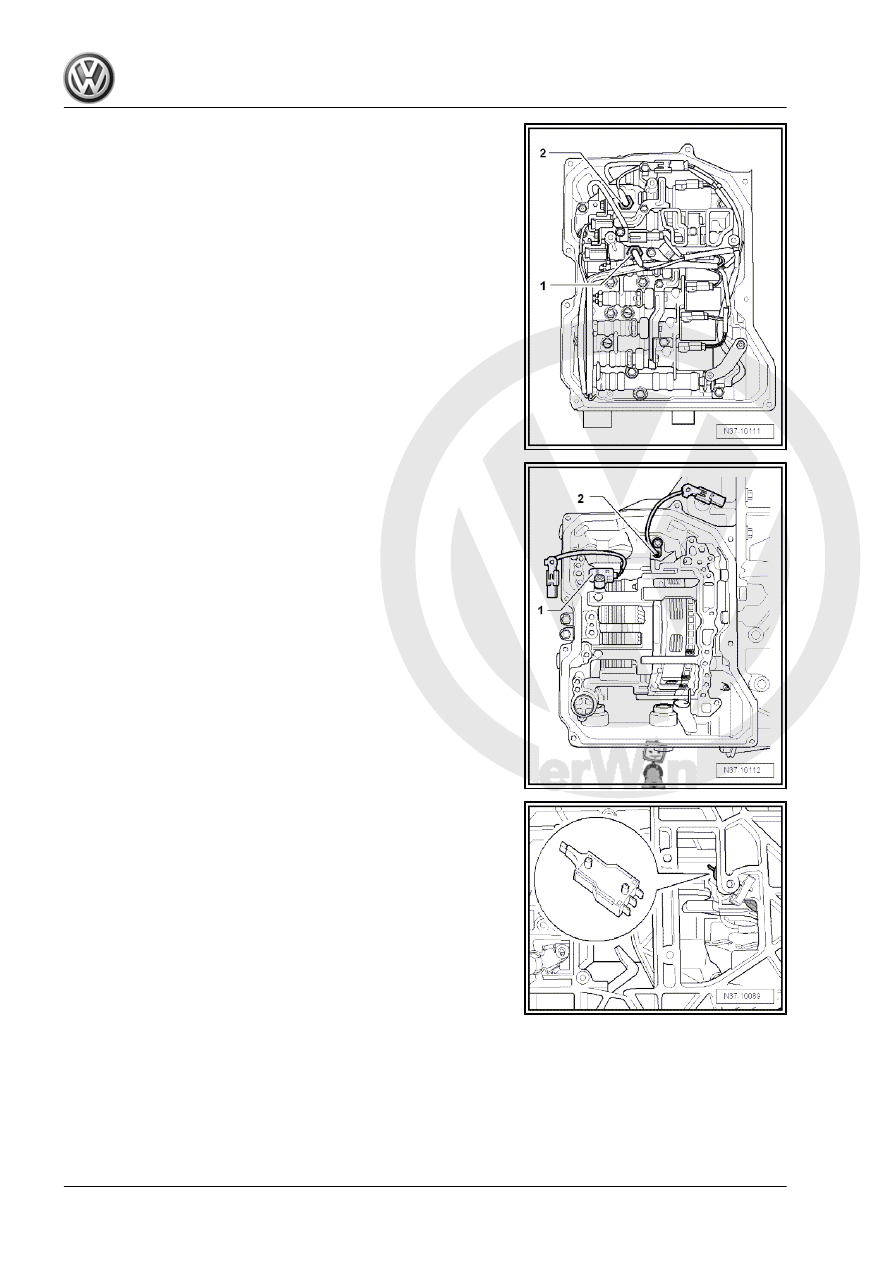

and Automatic Transmission Hydraulic Pressure Sensor 2 -

G194-
These sensor are not installed in all transmissions.
Component location:
Automatic Transmission Hydraulic Pressure Sensor 1 - G193-

-1- and Automatic Transmission Hydraulic Pressure Sensor 2 -

G194- -2- are inside the valve body.

Transmission Input Speed Sensor - G182- and Transmission

Output Speed Sensor - G195-
Component location: the sensors are installed above the valve

body in the transmission housing.
1 - Transmission Input Speed Sensor - G182-
2 - Transmission Output Speed Sensor - G195-

Tiptronic Switch - F189-
Component location: the tiptronic switch is integrated in selector

mechanism.
If the vehicle has a multifunction steering wheel, check the but‐

tons on the steering wheel and the corresponding wire connec‐

tions.

18
