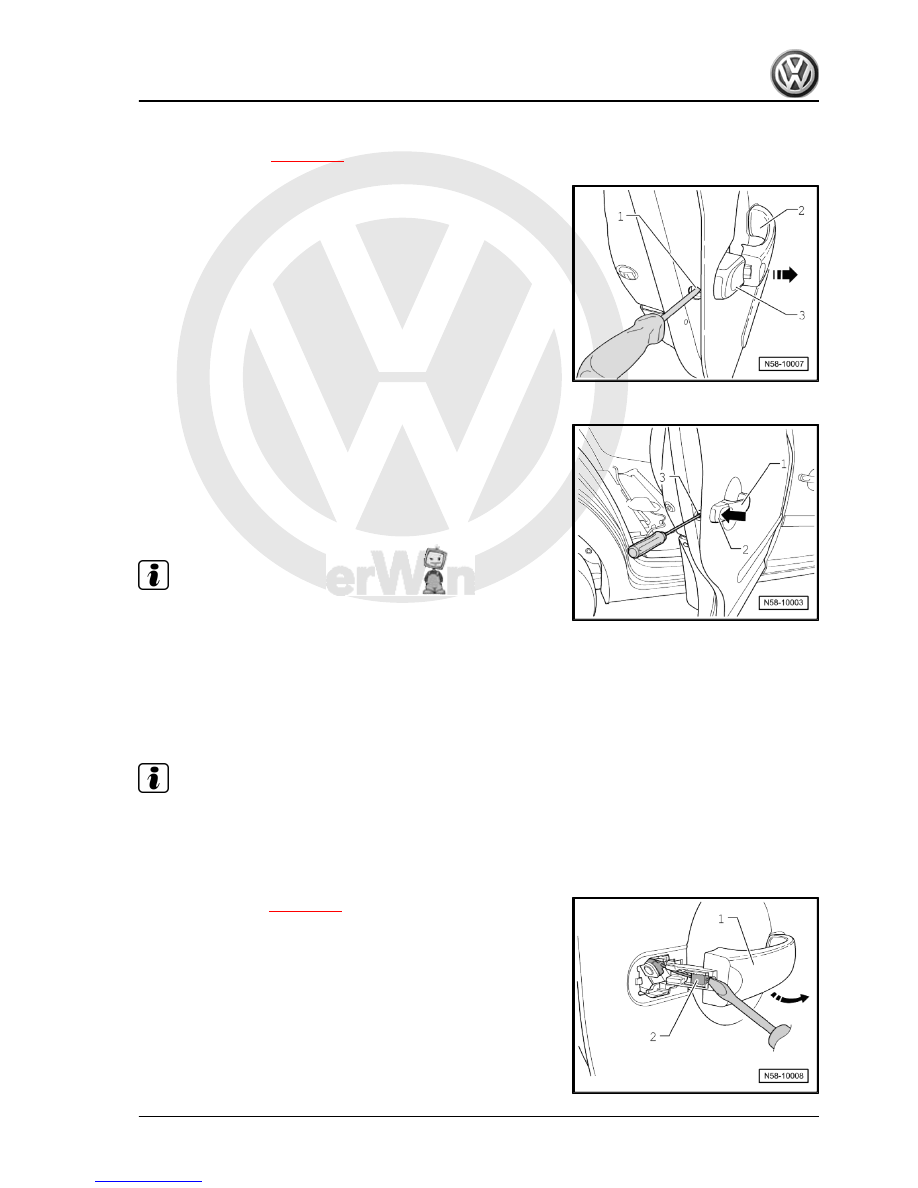

– Prise rear cover (

⇒ page 112

 Fig. M58-0054, item 2) off rear

door.

– Lever out caps in front of bolts -1-.
– Pull door handle -2- in direction of -arrow- and unbolt bolt -1-

onto stop using socket wrench -T10072- .

– Pull housing -3- out of door handle bearing bracket at right

angles to door.

1.15.2

Installing

– Fit housing -2- in door handle -1- bearing bracket at right an‐

gles -arrow-.

Door handle -1- must rest only lightly against door panel.
– Now tighten bolt -3- in bearing bracket using socket wrench -

T10072- .

The door handle engages in housing again with an audible click.

Note

During installation, housing must be pressed against door panel.

The door handle just rests lightly against the door panel.

Further installation is performed in reverse order of removal.
Then always check function while door is still open, as an incor‐

rectly fitted and adjusted Bowden cable cannot open the door.

1.16

Removing and installing door handle

Note

The removal and installation sequence is only for the right door

handle. The removal and installation of the left door handle is

similar.

1.16.1

Removing

– Remove housing

⇒ page 124

 .

– Lever clip -2- out of door handle -1-.
– Swivel door handle -1- out of door -arrow-.

1. Rear door (saloon)

125



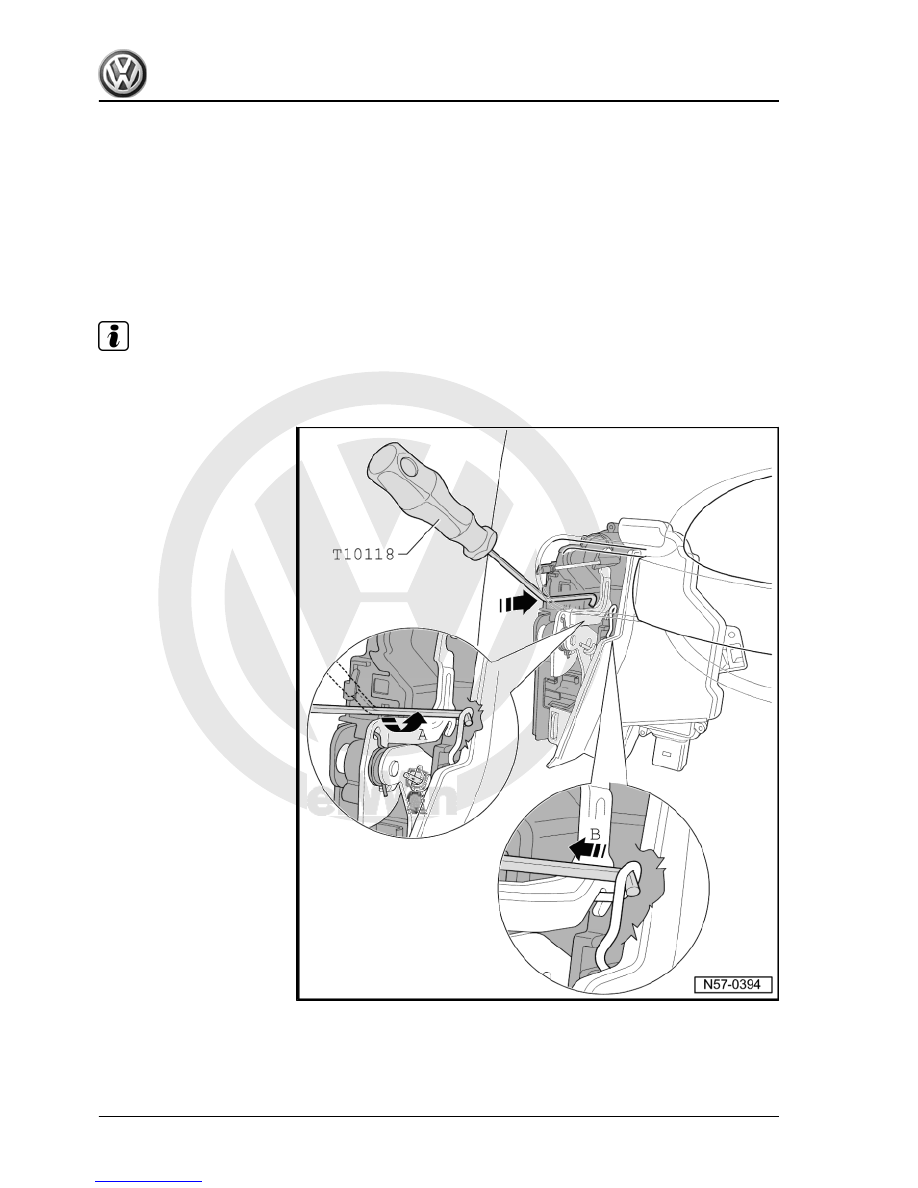

– Guide assembly tool -T10118- into door through opening in

door outer panel.

– Use a hand torch to illuminate inside of door for improved vis‐

ibility.

– Hook assembly tool -T10118- in spring -arrow A-.
– Hook spring onto door lock by pulling assembly tool -T10118-

-arrow B-.

The release lever is now secured.

Note

Hooking the spring into the operating lever secures the lock. This prevents incorrect attachment of the Bowden

cable to the door handle later.

126



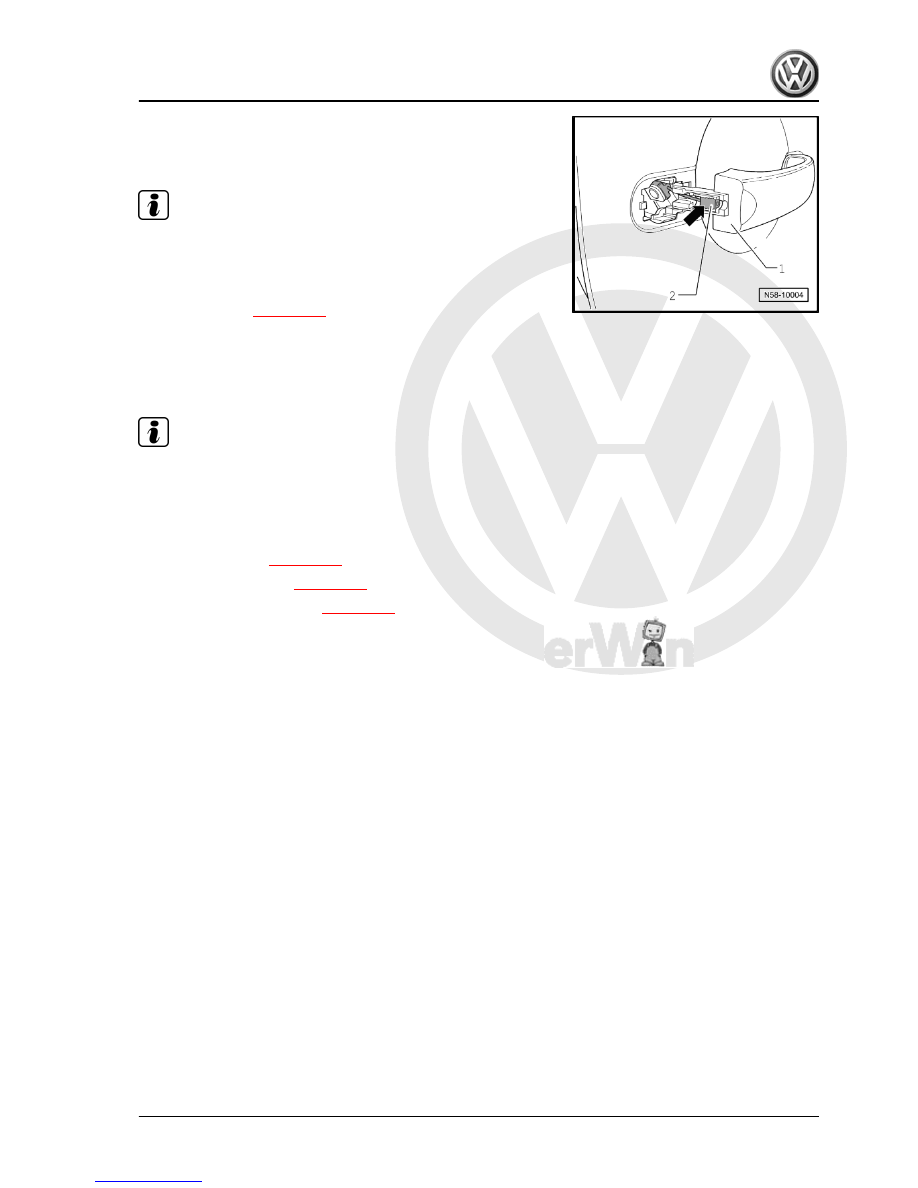

Note

Press door handle -1- against door panel when assembling.

Clip -2- must engage in door handle -1- with a clearly audible

click.

– Install housing

⇒ page 125

 .

Then always check function while door is still open, as an incor‐

rectly fitted and adjusted Bowden cable cannot open the door.

1.17

Removing bearing bracket

Note

Removal and installation are described only for the right bearing

bracket. The removal and installation of the left bearing bracket

is similar.

1.17.1

Removing

– Remove housing

⇒ page 124

 .

– Remove door handle

⇒ page 125

 .

– Remove door outer panel

⇒ page 112

 .

– Pull retaining rubber -4- off upwards from guide pins and re‐

taining pins on mounting.

1. Rear door (saloon)

127



1.17.2

Installing

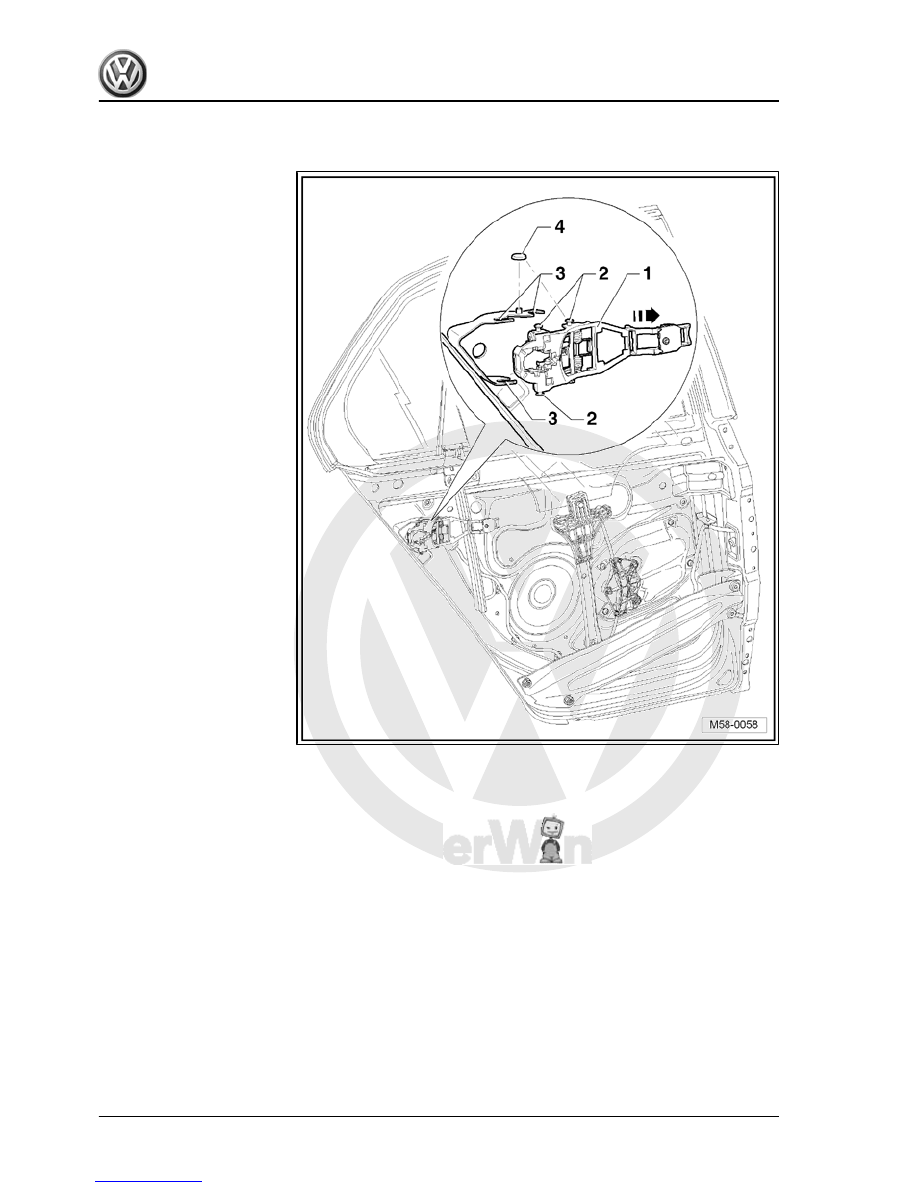

– Push bearing bracket -1- with guide pins -2- in mountings

-3-.

– Secure retaining rubber -4- to guide pin and retaining pin on

mounting.

128
