Volkswagen Golf Variant / Jetta. Manual - part 6





Installing

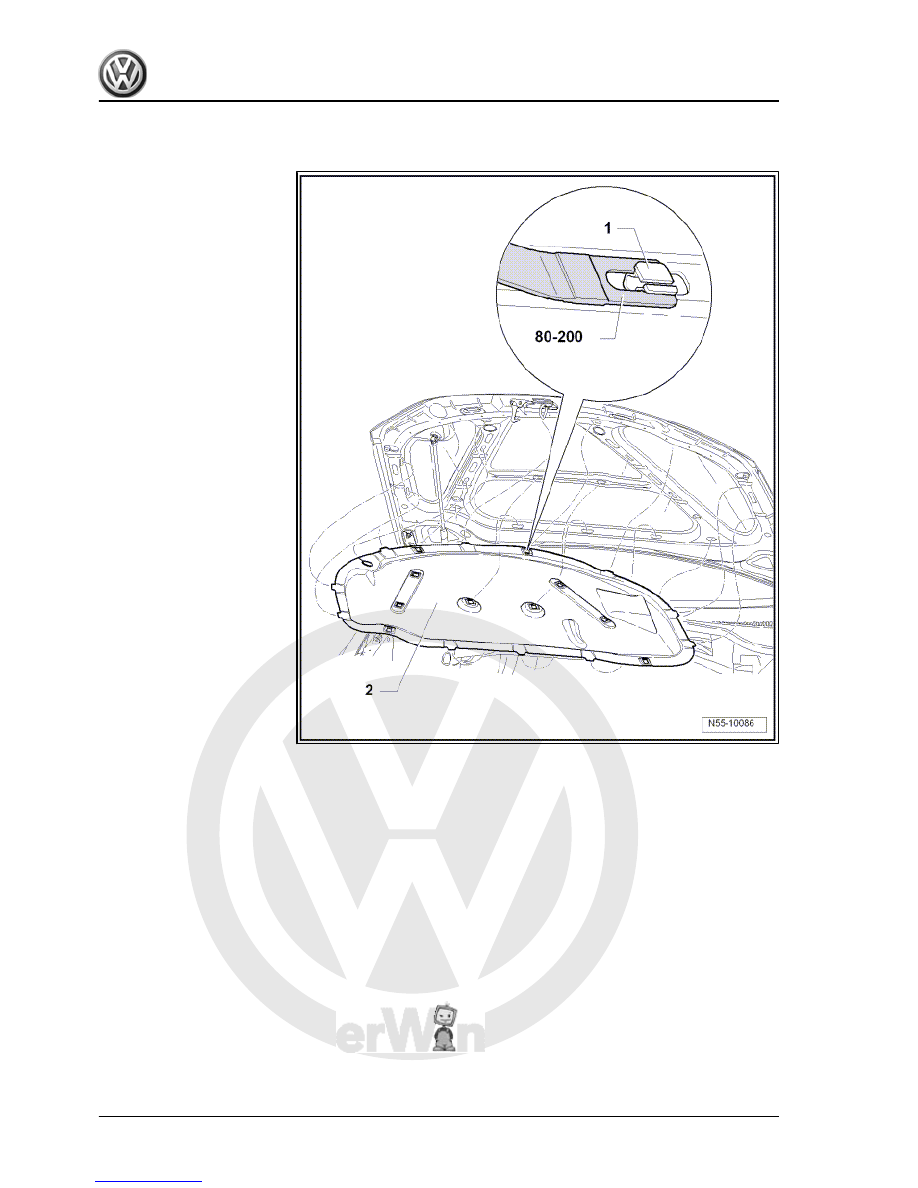

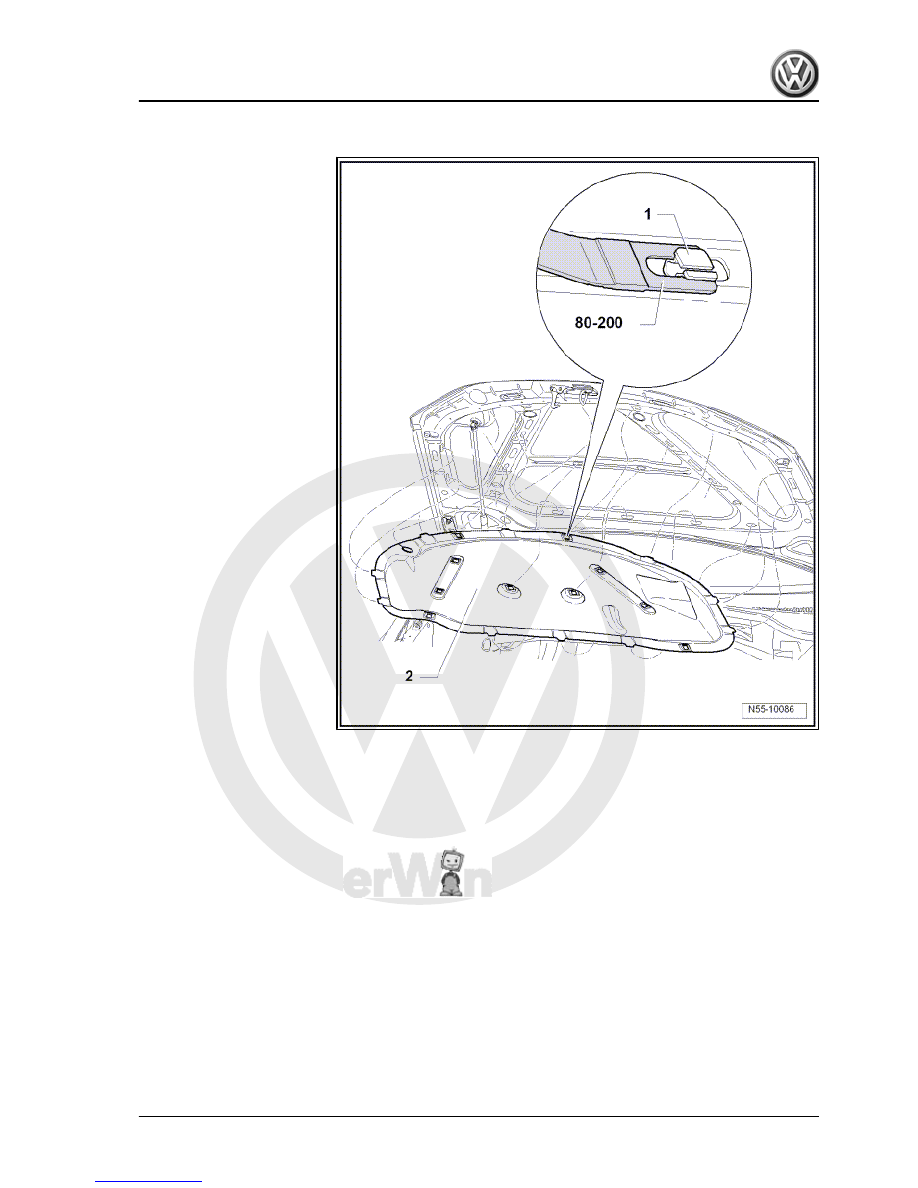

– Push insulation -2- underneath gas strut and place assembly

tongues in elongated holes.

– Engage all retaining clips -1- in insulation -2-.

1. Bonnet

21



22

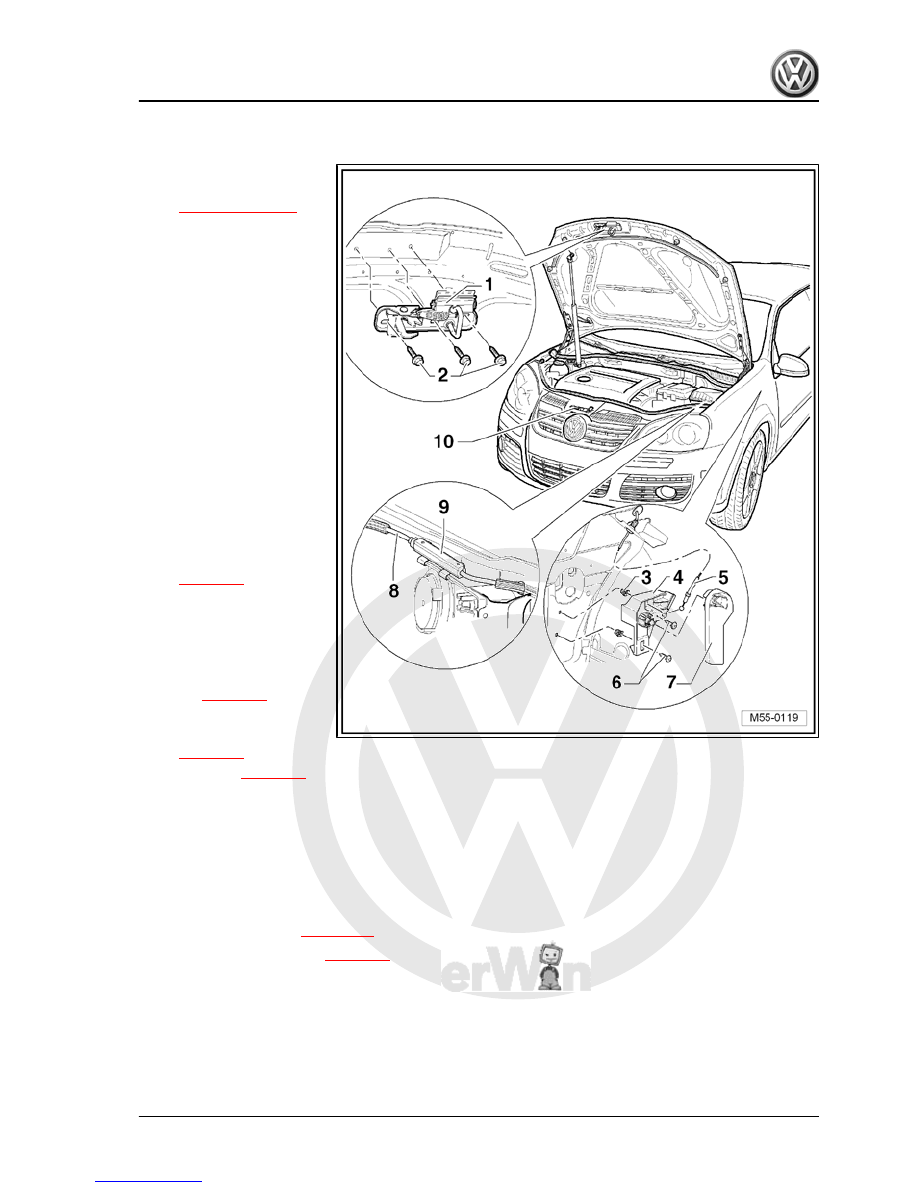

1 - Arrester

❑ To remove, unbolt bolts

⇒ Item 2 (page 23)

❑ Adjustment is carried

out by moving arrester

to left or right in elonga‐

ted holes.

2 - Bolt

❑ Qty. 3
❑ 10 Nm

3 - Expanding nut

❑ Qty. 2

4 - Mounting bracket
5 - Bowden cable

❑ Clipped into bearing

bracket

6 - Bolt

❑ Qty. 2
❑ 1.5 Nm

7 - Release lever

❑ Removing and installing

⇒ page 27

8 - Bowden cable

❑ Clipped onto wheel

housing and lock carrier

9 - Bowden cable coupling

❑ Separating Bowden ca‐

ble

⇒ page 24

10 - Lid lock

❑ Removing and installing

⇒ page 23

❑ Adjusting

⇒ page 26

1.9

Removing and installing bonnet lock

1.9.1

Removing

– Open bonnet.
– Remove radiator grille

⇒ page 337

 .

– Disconnect Bowden cable

⇒ page 24

 .

1. Bonnet

23

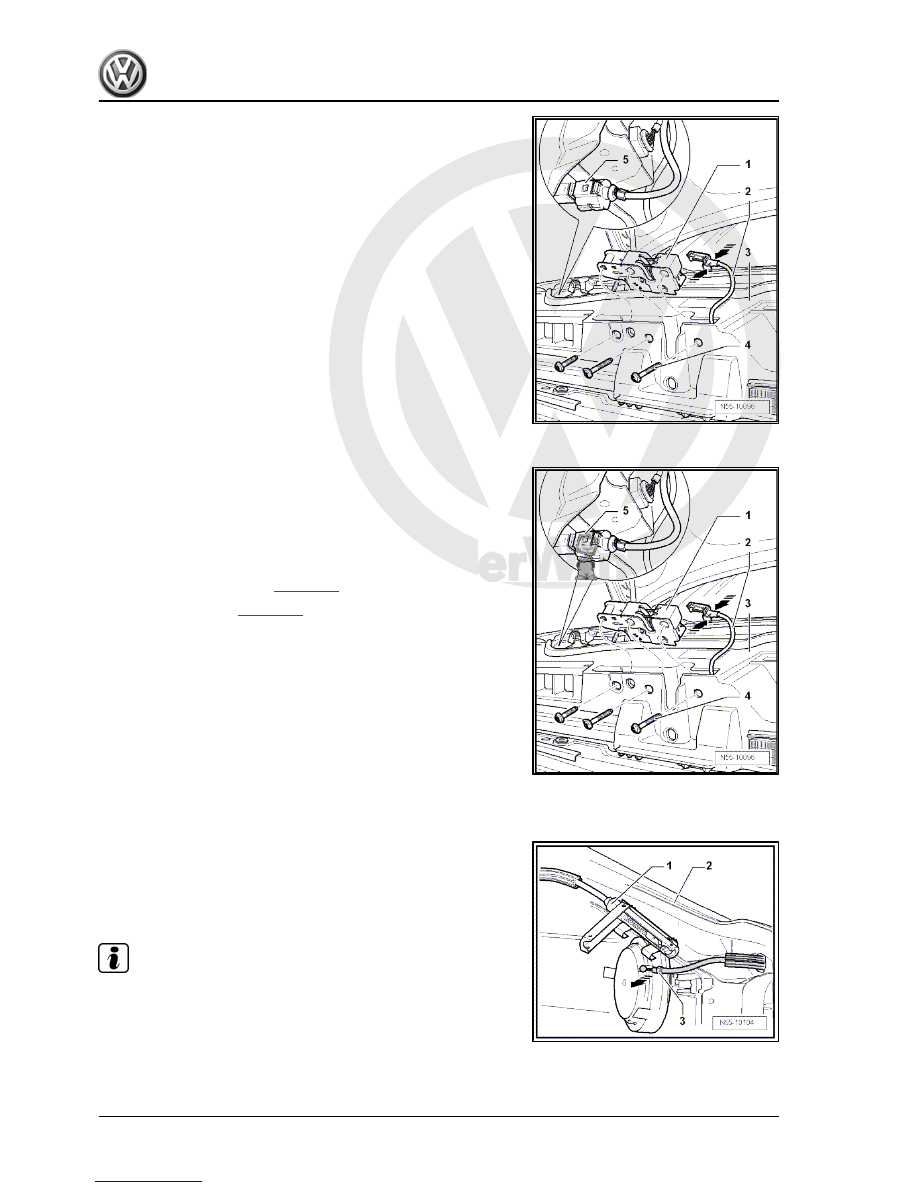

– Remove bolts -4- (Qty. 3) on lock carrier -3- and remove bon‐

net lock -1- upwards.

– To unclip Bowden cable -2-, press tabs on Bowden cable to‐

gether -arrows-.

– Fastener is released and Bowden cable -2- can be removed

from bonnet lock -1-.

1.9.2

Installing

– Clip Bowden cable -2- into bonnet lock -1-.
– Install bonnet lock -1- into lock carrier -3-.

Specified torque for bolts -4-: 12 Nm

– Reconnect connector -5- for bonnet contact switch -F266- and

clip wiring onto lock carrier -3-.

– Install Bowden cable -2-

⇒ page 24

 .

– Adjust bonnet lock

⇒ page 26

 .

Before closing bonnet, check function of release lever and Bow‐

den cable.

1.10

Disconnecting Bowden cable

– Open bonnet.
– Unclip Bowden coupling -1- above right headlight for lock car‐

rier -2-.

– Open Bowden cable coupling -1- upwards and remove Bow‐

den cable -3- in direction of -arrow- out of Bowden cable

coupling.

Note

When installing, ensure that the Bowden cable sleeve is inserted

correctly and the coupling engages.

Before closing bonnet, check function of release lever and Bow‐

den cable.

24
