Volkswagen Golf / Golf Plus. Manual - part 290





2.1

Assembly overview - oil pump, sump   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87

2.2

Removing and installing sump   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88

3

Oil filter bracket, oil pressure, engine oil cooler and oil supply line   . . . . . . . . . . . . . . . . . . 92

3.1

Assembly overview - oil filter bracket and engine oil cooler   . . . . . . . . . . . . . . . . . . . . . . . . 92

3.2

Checking oil pressure and oil pressure switch   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93

3.3

Assembly overview - oil supply line to turbocharger   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94

3.4

Removing and installing oil supply line to turbocharger   . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95

19 - Cooling   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97

1

Parts of cooling system   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97

1.1

Parts of cooling system, body side   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98

1.2

Parts of cooling system, engine side   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99

1.3

Coolant hose schematic diagram   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101

1.4

Draining and filling with coolant   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102

1.5

Removing and installing radiator   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105

1.6

Removing and installing coolant pump   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106

1.7

Removing and installing thermostat   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108

1.8

Checking cooling system for leaks   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110

1.9

Checking engine oil cooler for leaks   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112

20 - Fuel supply system   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114

1

Safety precautions when working on fuel supply system   . . . . . . . . . . . . . . . . . . . . . . . . . . 114

2

Rules for cleanliness   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115

3

Fuel tank, vehicles with front-wheel drive   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116

3.1

Assembly overview - fuel tank   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116

3.2

Emptying fuel tank   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117

3.3

Removing and installing fuel tank   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121

3.4

Removing and installing fuel delivery unit   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123

3.5

Removing and installing fuel gauge sender   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124

3.6

Checking fuel pump   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125

4

Fuel tank, vehicles with four-wheel drive   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127

4.1

Assembly overview - fuel tank   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127

4.2

Emptying fuel tank   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128

4.3

Removing and installing fuel tank   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132

4.4

Removing and installing fuel gauge sender 2 G169    . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135

4.5

Removing and installing suction-jet pump   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137

4.6

Checking fuel pump   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138

5

Repairing fuel supply system   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140

5.1

Assembly overview - fuel filter   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140

5.2

Removing and installing fuel cooler   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141

5.3

Assembly overview - accelerator mechanism   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142

5.4

Checking tandem pump   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143

5.5

Removing and installing tandem pump   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147

21 - Turbocharging/supercharging   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151

1

Charge air system with turbocharger   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151

1.1

Safety precautions   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151

1.2

Rules for cleanliness   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151

1.3

Assembly overview - turbocharger   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 152

1.4

Removing and installing turbocharger   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156

1.5

Assembly overview - parts of charge air cooling   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158

1.6

Hose connections   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161

1.7

Checking charge air system for leaks   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162

1.8

Vacuum hose schematic diagram   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 164

4-cylinder diesel engine (1.9 l engine) - Edition 01.2009

ii

    Contents



Diesel direct injection system   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 166

1.1

Safety precautions   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 166

1.2

Rules for cleanliness   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167

1.3

Assembly overview - unit injector   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167

1.4

Removing and installing unit injector   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169

1.5

Adjusting non-contact gap of unit injectors   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171

1.6

Removing and installing O-rings for unit injector   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172

1.7

Assembly overview - intake manifold   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174

1.8

Cleaning the intake manifold flap support, Engine code BLS and BXJ   . . . . . . . . . . . . . . . . 176

1.9

Assembly overview - air filter   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 177

2

Engine control unit   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178

2.1

Reading and erasing engine control unit fault memory   . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178

2.2

Adapting functions and components   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 179

2.3

Removing and installing engine control unit, Golf   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180

2.4

Removing and installing anti-theft engine control unit, Golf   . . . . . . . . . . . . . . . . . . . . . . . . 180

2.5

Removing and installing engine control unit, Golf Plus   . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183

2.6

Removing and installing anti-theft engine control unit, Golf Plus   . . . . . . . . . . . . . . . . . . . . 183

26 - Exhaust system   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186

1

Exhaust system   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186

1.1

Assembly overview - front exhaust pipe with catalytic converter   . . . . . . . . . . . . . . . . . . . . 186

1.2

Assembly overview - front exhaust pipe with particulate filter   . . . . . . . . . . . . . . . . . . . . . . 187

1.3

Assembly overview - silencer with mountings (vehicles with front wheel drive)   . . . . . . . . . . 189

1.4

Assembly overview - silencer with mountings (vehicles with four-wheel drive)   . . . . . . . . . . 191

1.5

Aligning exhaust system free of stress   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 192

2

Exhaust gas recirculation system   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 193

2.1

Assembly overview - parts of exhaust gas recirculation   . . . . . . . . . . . . . . . . . . . . . . . . . . . . 193

28 - Glow plug system   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 198

1

Checking glow plug system   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 198

1.1

Removing, installing and checking glow plugs   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 198

1.2

Characteristics of ceramic glow plugs   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 199

1.3

Removing, installing and checking ceramic glow plugs   . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200

4-cylinder diesel engine (1.9 l engine) - Edition 01.2009

Contents

iii



iv

    Contents



Technical data

Engine number

⇒ page 1

Engine data

⇒ page 1

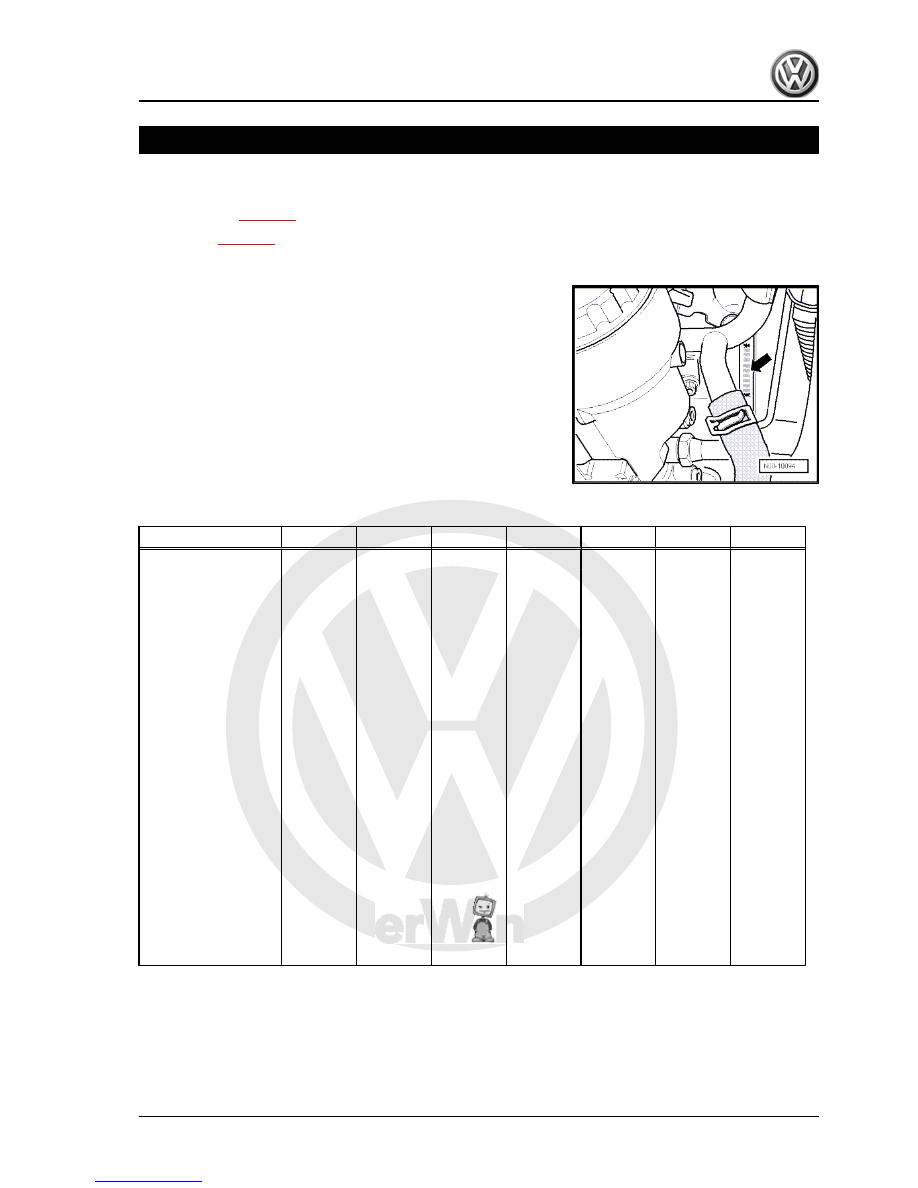

1.1

Engine number

The engine number (“code letters” and “serial number”) can be

found at the joint between engine and gearbox.
Additionally there is a sticker on the toothed belt guard with “en‐

gine code” and “serial number”.
The engine code is also included on the vehicle data sticker.

1.2

Engine data

Engine code

BJB

BKC

BRU

BLS

BXE

BXF

BXJ

Manufactured

10.03 ▸

10.03 ▸

04.04 ▸

02.06 ▸

03.06

03.06

11.07

Emissions fulfil

EU3

standard

EU4

standard

EU4

standard

EU4

standard

EU4

standard

EU4

standard

EU4

standard

Capacity

l

1.9

1.9

1.9

1.9

1.9

1.9

1.9

Output

kW at

rpm

77/

4000

77/

4000

66/

4000

77/

4000

77/

4000

66/

4000

66/

4000

Torque

Nm at

rpm

250/

1900

250/

1900

210/

1800...250

0

250/

1900

250/

1900

210/

1800

210/

1800...250

0

Bore

∅ mm

79.5

79.5

79.5

79.5

79.5

79.5

79.5

Stroke

mm

95.5

95.5

95.5

95.5

95.5

95.5

95.5

Valves per cylinder

2

2

2

2

2

2

2

Compression ratio

19.0

19.0

19.0

18.5

18.5

19.0

19.0

Fuel

accord‐

ing to

DIN EN

590

DIN EN

590

DIN EN

590

DIN EN

590

DIN EN

590

DIN EN

590

DIN EN

590

Firing order

  1-3-4-2

1-3-4-2

1-3-4-2

1-3-4-2

1-3-4-2

1-3-4-2

1-3-4-2

Catalytic converter

yes

yes

yes

yes

yes

yes

yes

Exhaust gas recircu‐

lation

yes

yes

yes

yes

yes

yes

yes

Turbocharging/super‐

charging

yes

yes

yes

yes

yes

yes

yes

Charge air cooler

yes

yes

yes

yes

yes

yes

yes

Particulate filter

no

no

no

yes

no

no

no

4-cylinder diesel engine (1.9 l engine) - Edition 01.2009

1. Technical data

1
