7.6

Side lettering dimensions - Individual

7.6.1

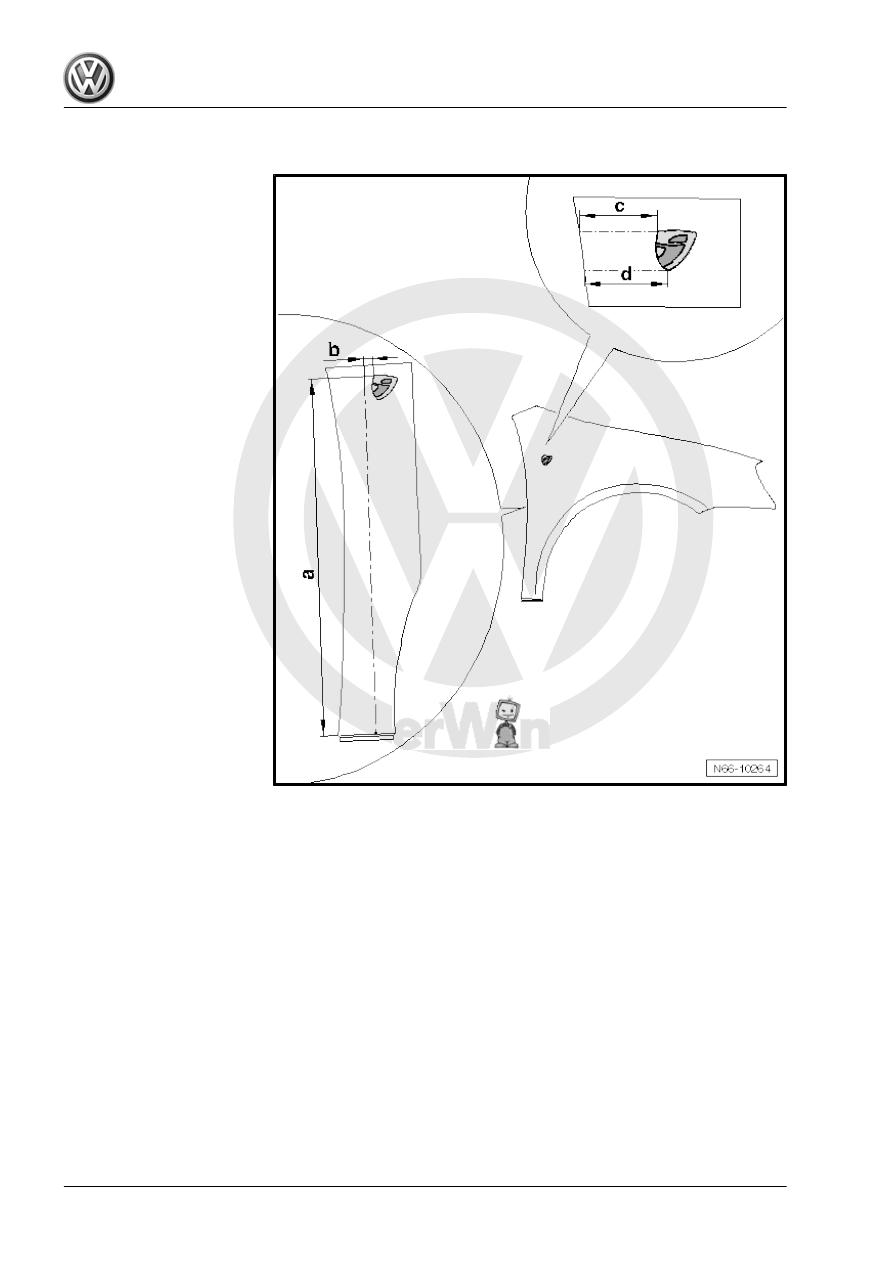

Dimensions of emblem, left wing

1 - Dimension a = 551 mm

❑ Transfer the

-dimension a - from the

underside of the wing to

the wing.

2 - Dimension b = 14 mm

❑ Transfer -dimension b-

from end point of dimen‐

sion a to end point of

emblem.

3 - Dimension c = 70 mm

❑ Use -dimension c- to

check distance from up‐

per edge of emblem to

the edge of wing.

4 - Dimension d = 92 mm

❑ Use -dimension d- to

check distance from

lower edge of emblem to

edge of wing.

General body repairs, exterior - Edition 04.2008

7. Lettering

273

s

p

e

c

t

 t

o



th

e

 c

o

rr

e

c

t

n

e

s

s



o

f

in

fo

r

m

a

tio

n

 in

 th

is

 d

o

c

um

en

t.

C

o

py

rig

ht b

y



V

olk

sw

a

ge

n



A

G.

7.6.2

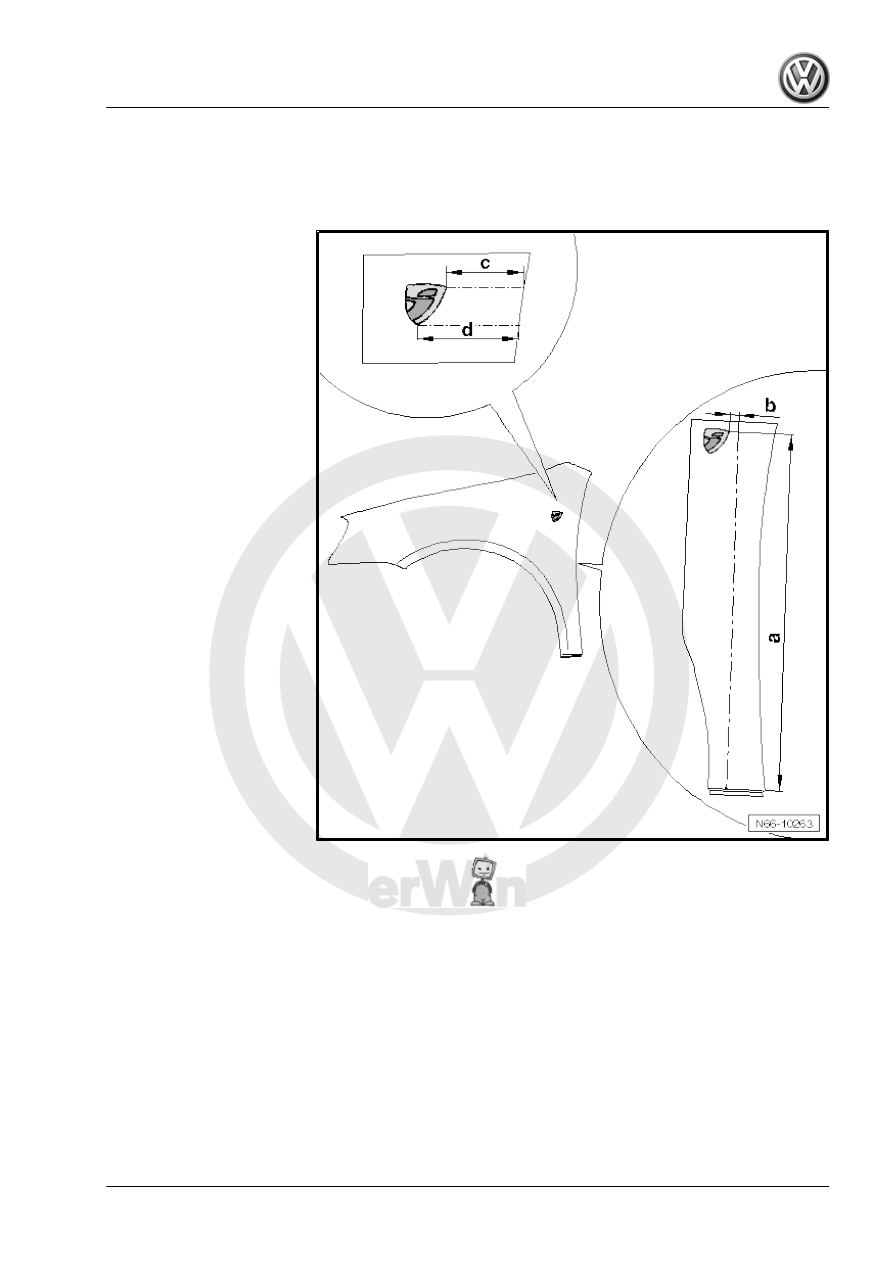

Dimensions of emblem, right wing

1 - Dimension a = 550 mm

❑ Transfer the

-dimension a - from the

underside of the wing to

the wing.

2 - Dimension b = 30 mm

❑ Transfer -dimension b-

from end point of

-dimension a- to corner

point of emblem.

3 - Dimension c = 86 mm

❑ Use -dimension c- to

check distance from up‐

per edge of emblem to

the edge of wing.

4 - Dimension d = 92 mm

❑ Use -dimension d- to

check distance from

lower edge of emblem to

edge of wing.

General body repairs, exterior - Edition 04.2008

274

     Rep. Gr.66 - Exterior equipment

s

p

e

c

t

 t

o



th

e

 c

o

rr

e

c

t

n

e

s

s



o

f

in

fo

r

m

a

tio

n

 in

 th

is

 d

o

c

um

en

t.

C

o

py

rig

ht b

y



V

olk

sw

a

ge

n



A

G.

7.6.3

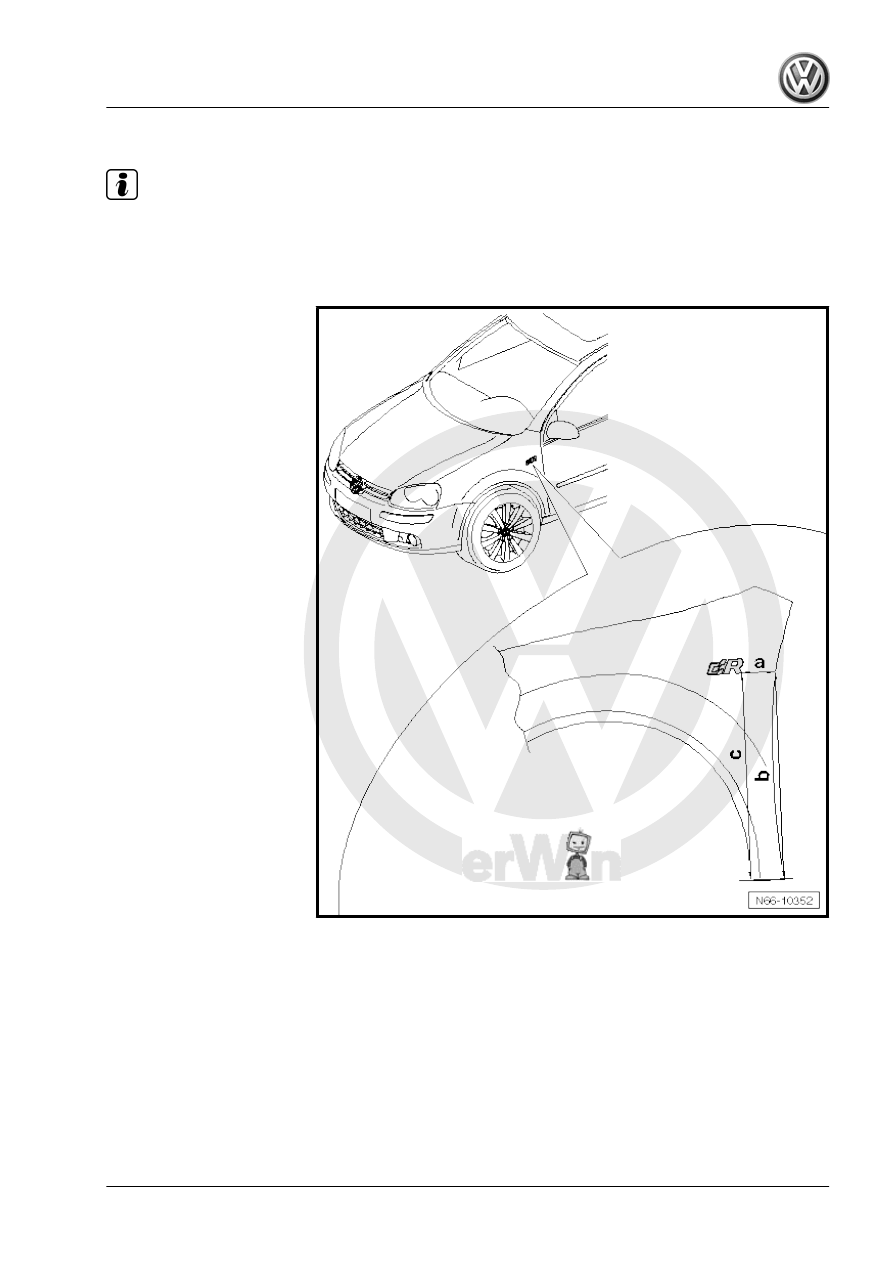

Dimensions of R-line emblem

Note

The dimensions of the R-line emblem are described only for the left side. The right side is similar.

The dimensions -b- and -c- indicate the inclination of the logo. The logo must be bonded parallel to the lower

edge of the wing.

1 - Dimension a = 91 mm

❑ From lower edge of wing

to corner point of em‐

blem

2 - Dimension b = 510 mm

❑ From rear lower wing

corner to -dimension a-

3 - Dimension c = 510 mm

❑ From front lower wing

corner to corner point of

emblem

General body repairs, exterior - Edition 04.2008

7. Lettering

275

s

p

e

c

t

 t

o



th

e

 c

o

rr

e

c

t

n

e

s

s



o

f

in

fo

r

m

a

tio

n

 in

 th

is

 d

o

c

um

en

t.

C

o

py

rig

ht b

y



V

olk

sw

a

ge

n



A

G.

8

Vermin repellent system

Volkswagen Individual optional equipment

8.1

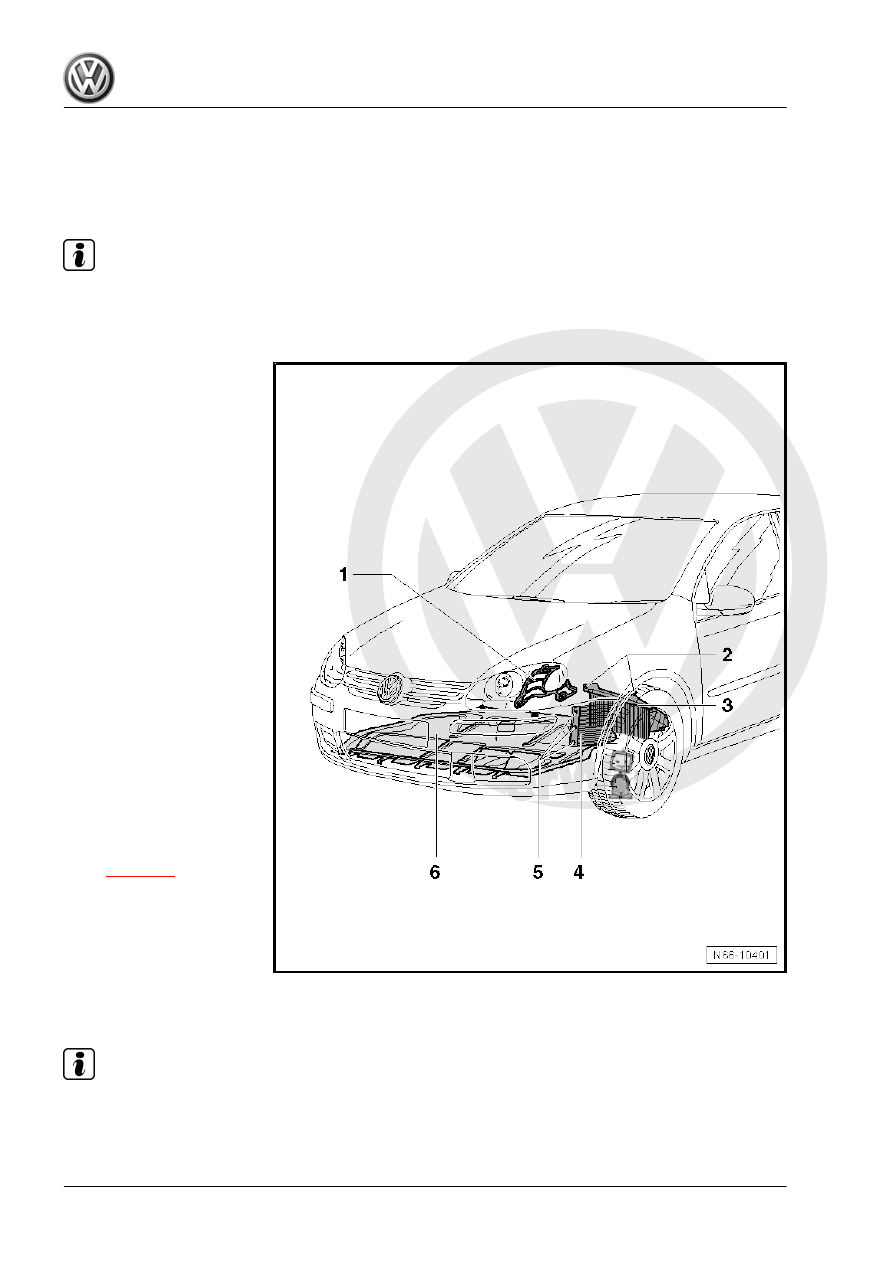

Assembly overview - vermin repellent system

Note

The items 2 to 5 are also installed on the passenger side.

The system prevents access for vermin.

1 - Protective part for vermin

repellent system

❑ Various versions de‐

pending on engine type

2 - Bolt

❑ Qty. 2
❑ 2 Nm
❑ 5 x 20

3 - Upper protective part for

vermin repellent system

❑ Material: PP (polypropy‐

lene) in brush form

4 - Front protective part for ver‐

min repellent system

❑ Material: PP (polypropy‐

lene) in brush form

❑ With 3 speed nuts

5 - Bolt

❑ Qty. 3
❑ 2 Nm
❑ 5 x 16

6 - Noise insulation

❑ Material: PP (polypropy‐

lene)

❑ Removing and installing

⇒ page 13

8.1.1

Removing

Note

The suspension strut is not shown in the illustration for reasons

of clarity.
