Volkswagen Golf / Golf Plus. Manual - part 259





s

p

e

c

t

 t

o



th

e

 c

o

rr

e

c

t

n

e

s

s



o

f

in

fo

r

m

a

tio

n

 in

 th

is

 d

o

c

um

en

t.

C

o

py

rig

ht b

y



V

olk

sw

a

ge

n



A

G.

2.12

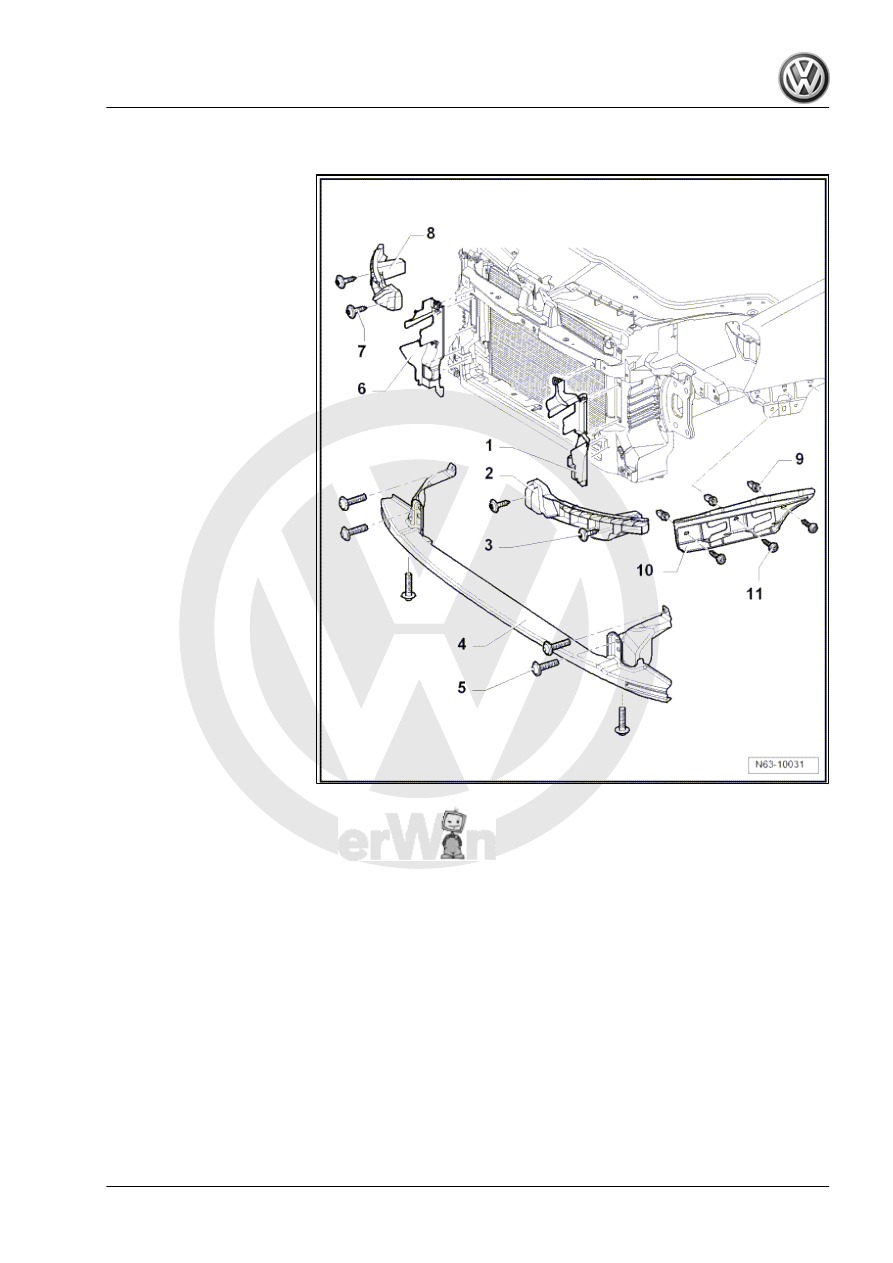

Front bumper substructure

1 - Left air duct

❑ Engages in lock carrier.

2 - Left guide

❑ Bolted to lock carrier.

3 - Bolt

❑ Qty. 2 per retainer.
❑ 2 Nm

4 - Transverse member for pe‐

destrian protection

❑ Not for all countries

5 - Bolt

❑ Qty. 6
❑ 8 Nm

6 - Right air duct

❑ Engages in lock carrier.

7 - Bolt

❑ Qty. 2 per retainer
❑ 2 Nm

8 - Right guide

❑ Bolted to bumper carrier

9 - Spreader nut

❑ Qty. 3

10 - Guide

❑ Left and right
❑ Removing:
– On side of wing, remove

together with bolts -11-.

11 - Bolt

❑ Qty. 3
❑ 2 Nm

General body repairs, exterior - Edition 04.2008

2. Front bumper for GTI, GTI special models, GT, R32

157

s

p

e

c

t

 t

o



th

e

 c

o

rr

e

c

t

n

e

s

s



o

f

in

fo

r

m

a

tio

n

 in

 th

is

 d

o

c

um

en

t.

C

o

py

rig

ht b

y



V

olk

sw

a

ge

n



A

G.

2.13

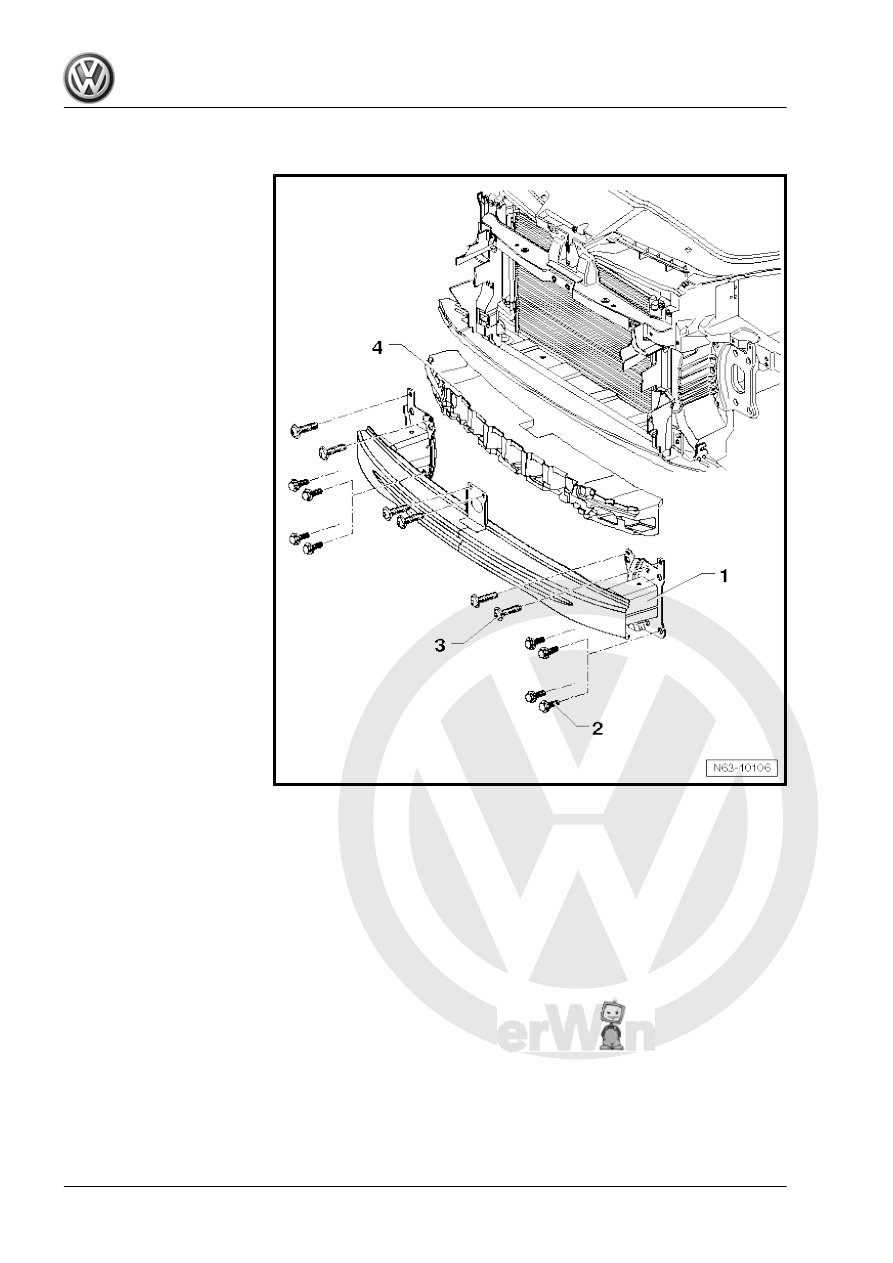

Assembly overview - bumper carrier

1 - Bumper carrier
2 - Bolt

❑ Qty. 4 per side.
❑ 60 Nm

3 - Bolt

❑ Qty. 6
❑ 8 Nm

4 - Foam piece

❑ Self-adhesive
❑ Available in various

shapes

General body repairs, exterior - Edition 04.2008

158

     Rep. Gr.63 - Bumpers

s

p

e

c

t

 t

o



th

e

 c

o

rr

e

c

t

n

e

s

s



o

f

in

fo

r

m

a

tio

n

 in

 th

is

 d

o

c

um

en

t.

C

o

py

rig

ht b

y



V

olk

sw

a

ge

n



A

G.

3

Rear bumper

3.1

Tools

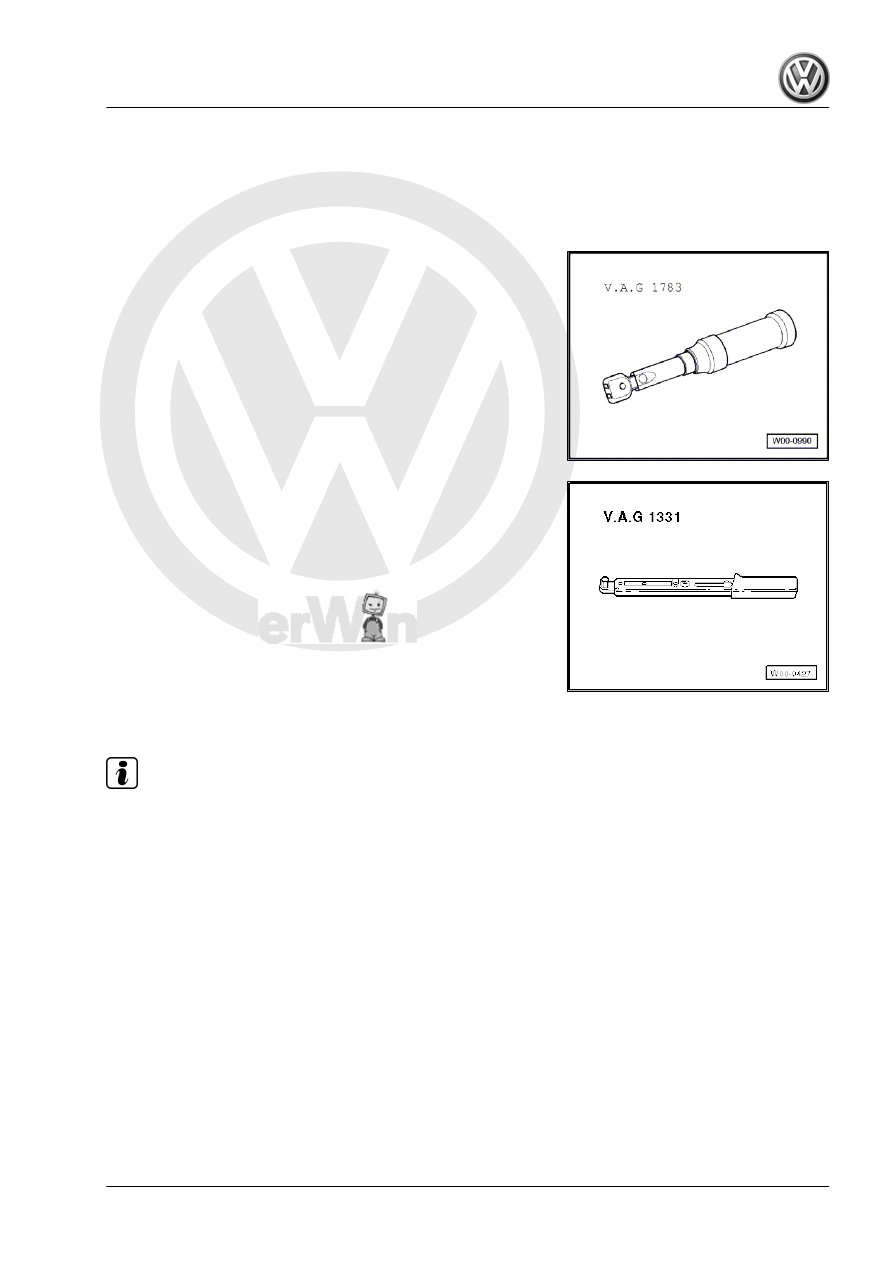

Special tools and workshop equipment required
♦ Torque wrench -V.A.G 1783-

♦ Torque wrench -V.A.G 1331-

3.2

Repairing bumper cover

Note

If bumper cover is damaged, determine whether plastic can be

repaired before renewing bumper

Details can be found under: ⇒ General Information; Body Repairs,

General Body Repairs ; Work procedures; Plastic repair proce‐

dures .

General body repairs, exterior - Edition 04.2008

3. Rear bumper

159

s

p

e

c

t

 t

o



th

e

 c

o

rr

e

c

t

n

e

s

s



o

f

in

fo

r

m

a

tio

n

 in

 th

is

 d

o

c

um

en

t.

C

o

py

rig

ht b

y



V

olk

sw

a

ge

n



A

G.

3.3

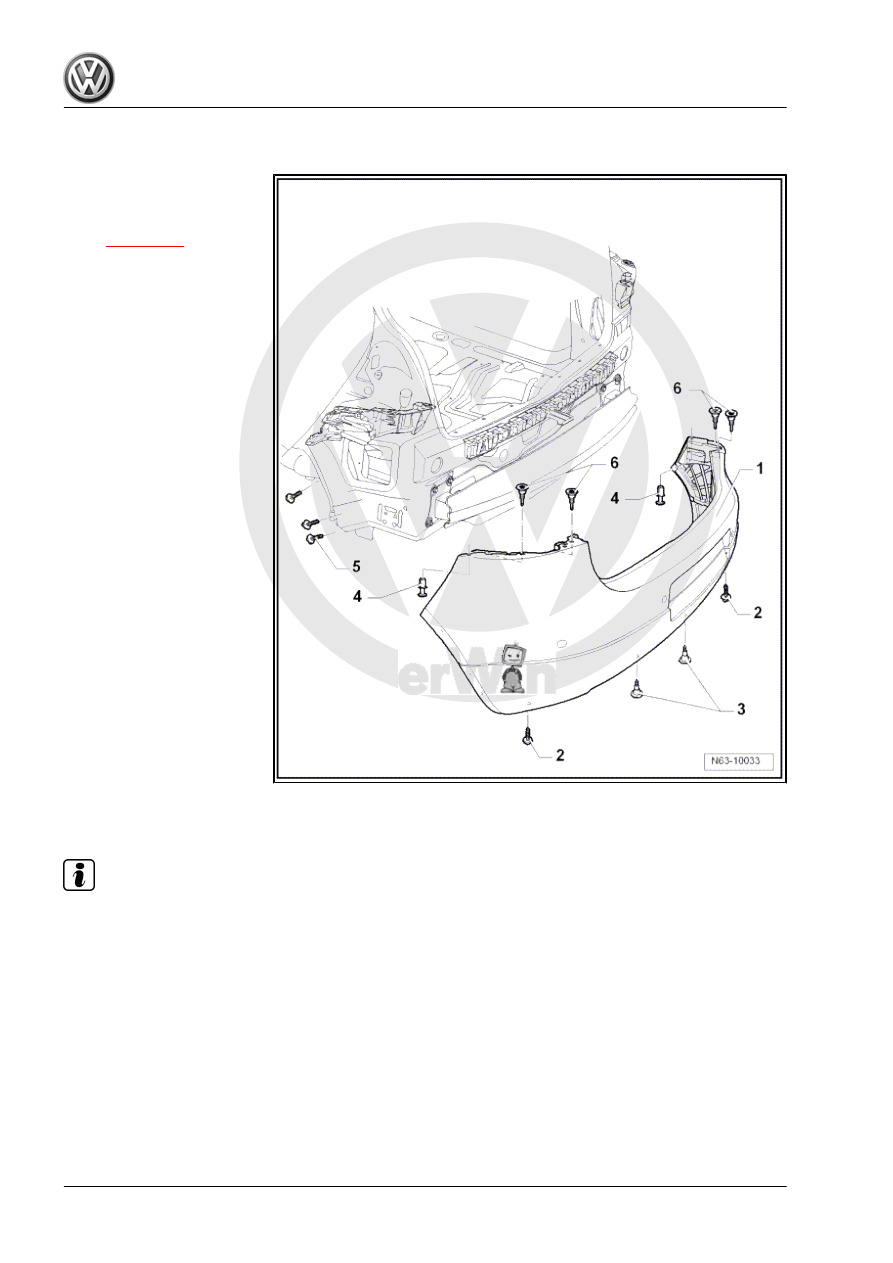

Assembly overview - bumper cover

1 - Cover

❑ Material PP/EPDM
❑ Removing and installing

⇒ page 160

2 - Bolt

❑ Qty. 2
❑ 5 Nm

3 - Bolt

❑ Qty. 4
❑ 5 Nm

4 - Spreader rivet

❑ Qty. 2

5 - Bolt

❑ Qty. 3 per side
❑ 2 Nm

6 - Bolt

❑ Qty. 4
❑ 5 Nm

3.4

Removing and installing bumper cover

Note

The removal and installation procedures may have to be modified

slightly depending on version.

General body repairs, exterior - Edition 04.2008

160

     Rep. Gr.63 - Bumpers
