Tank flap unit

3.1

Tools

Special tools and workshop equipment required
♦ Socket -T 10010-

3.2

Assembly overview - tank flap unit

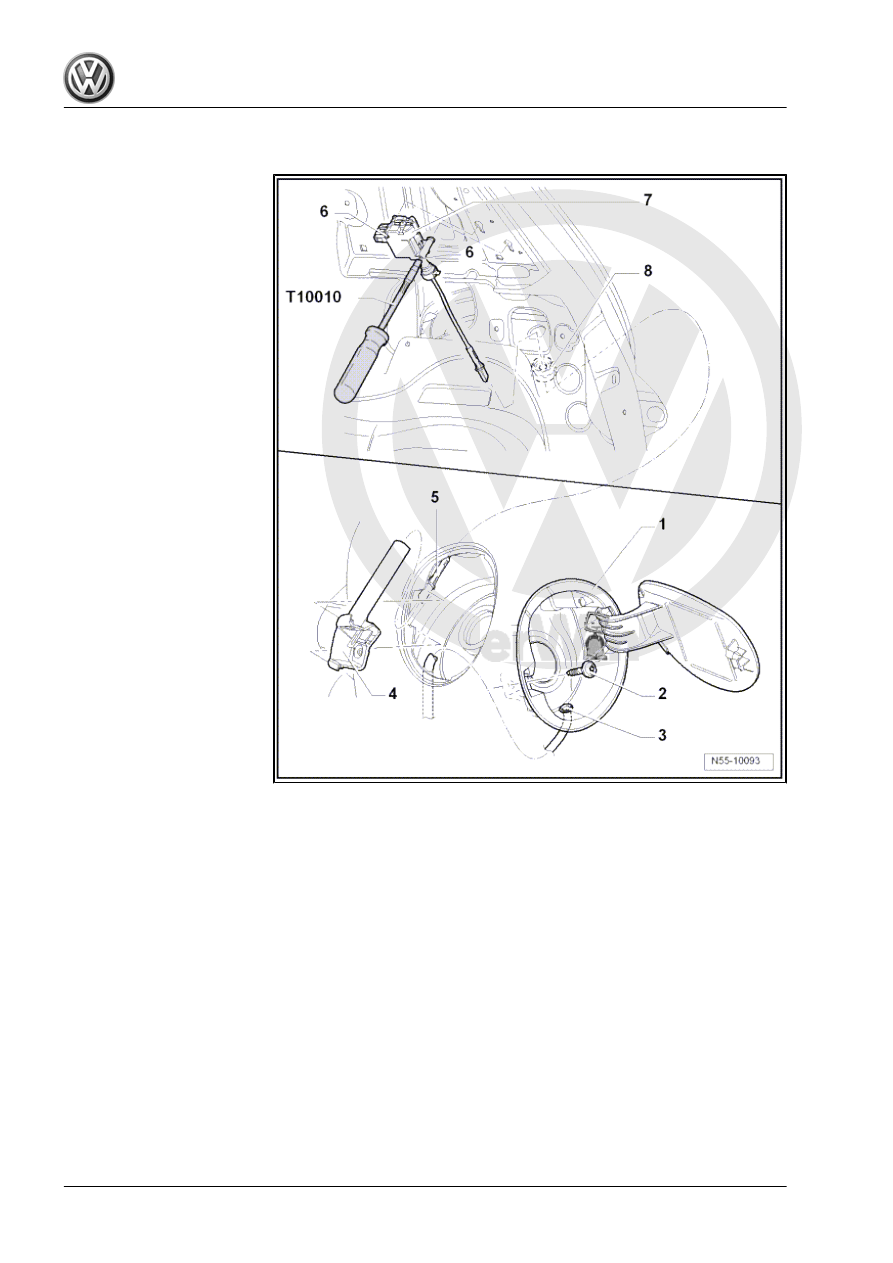

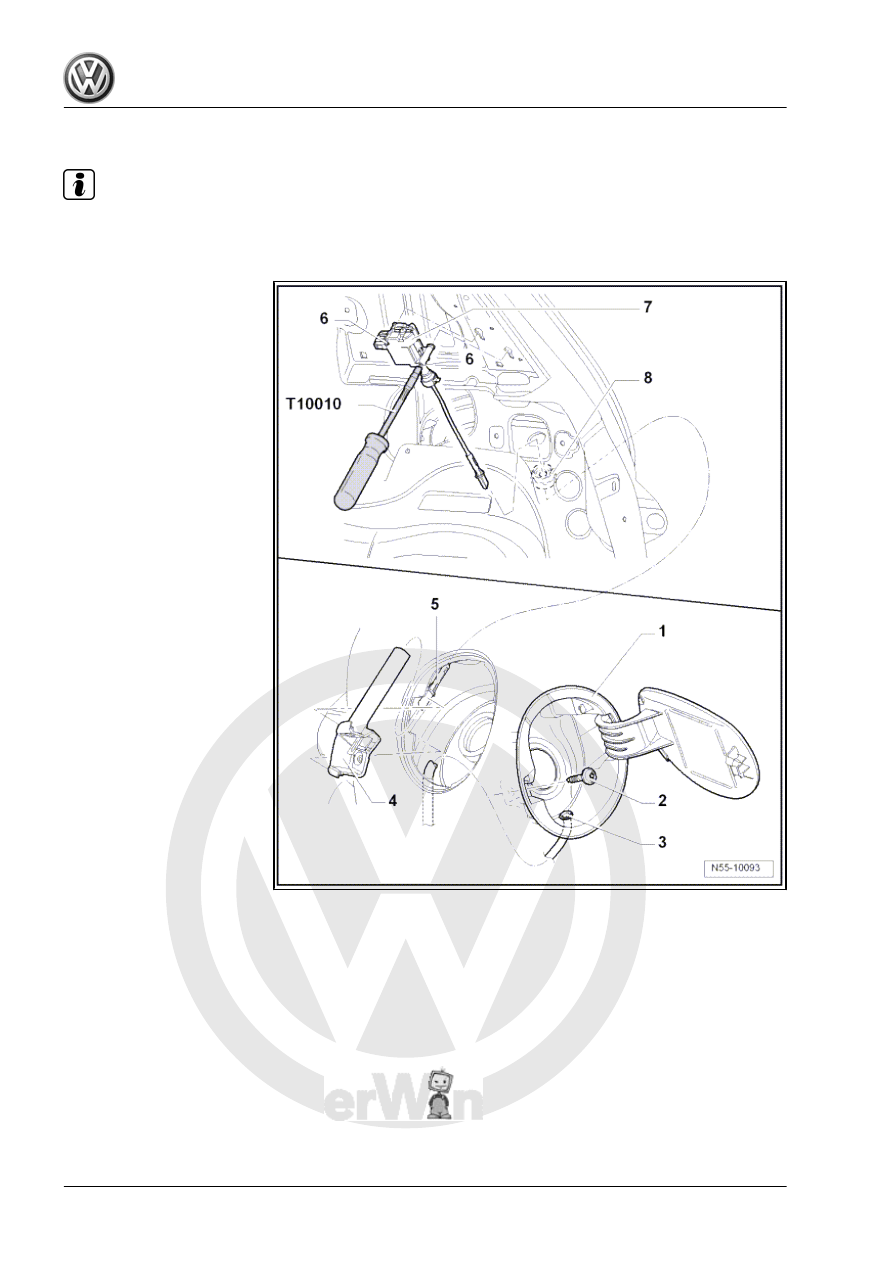

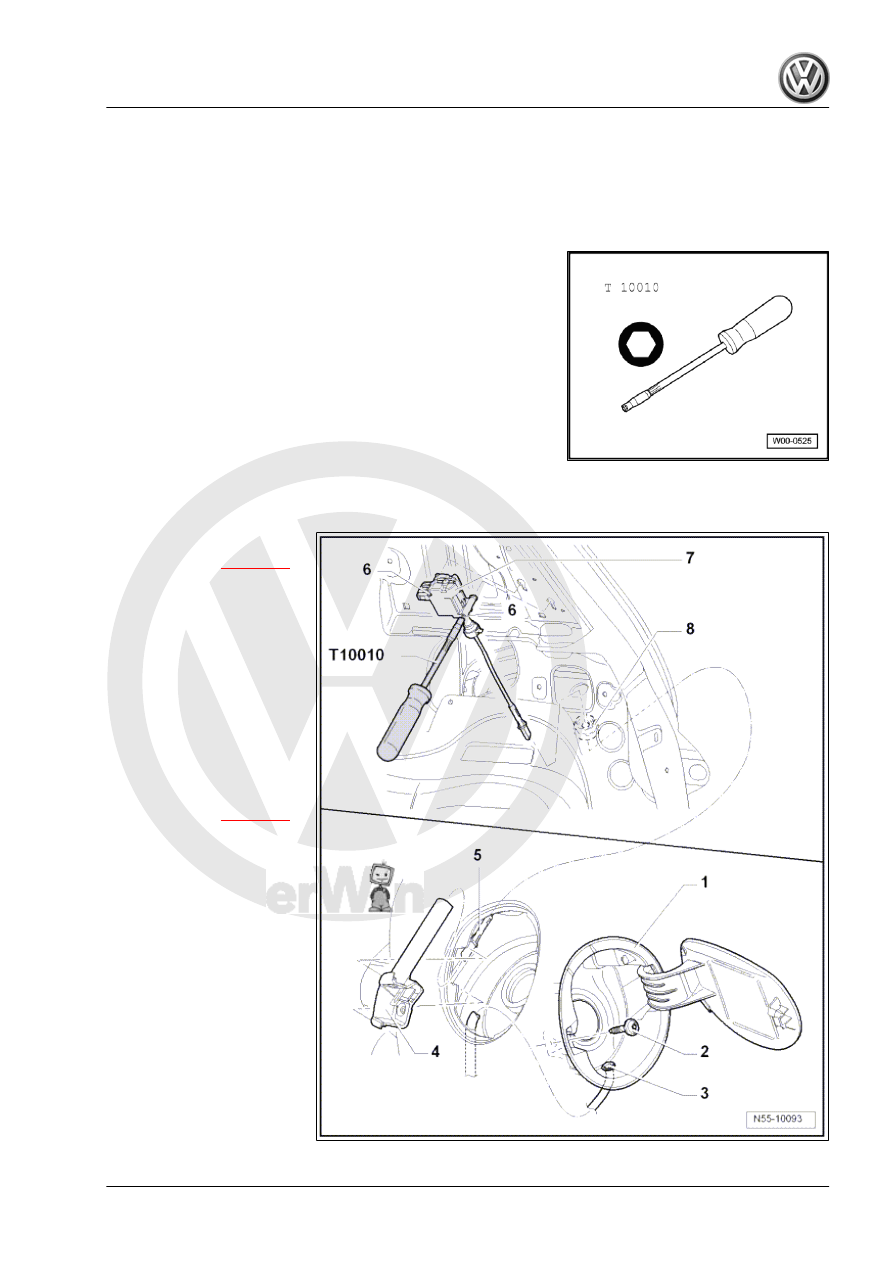

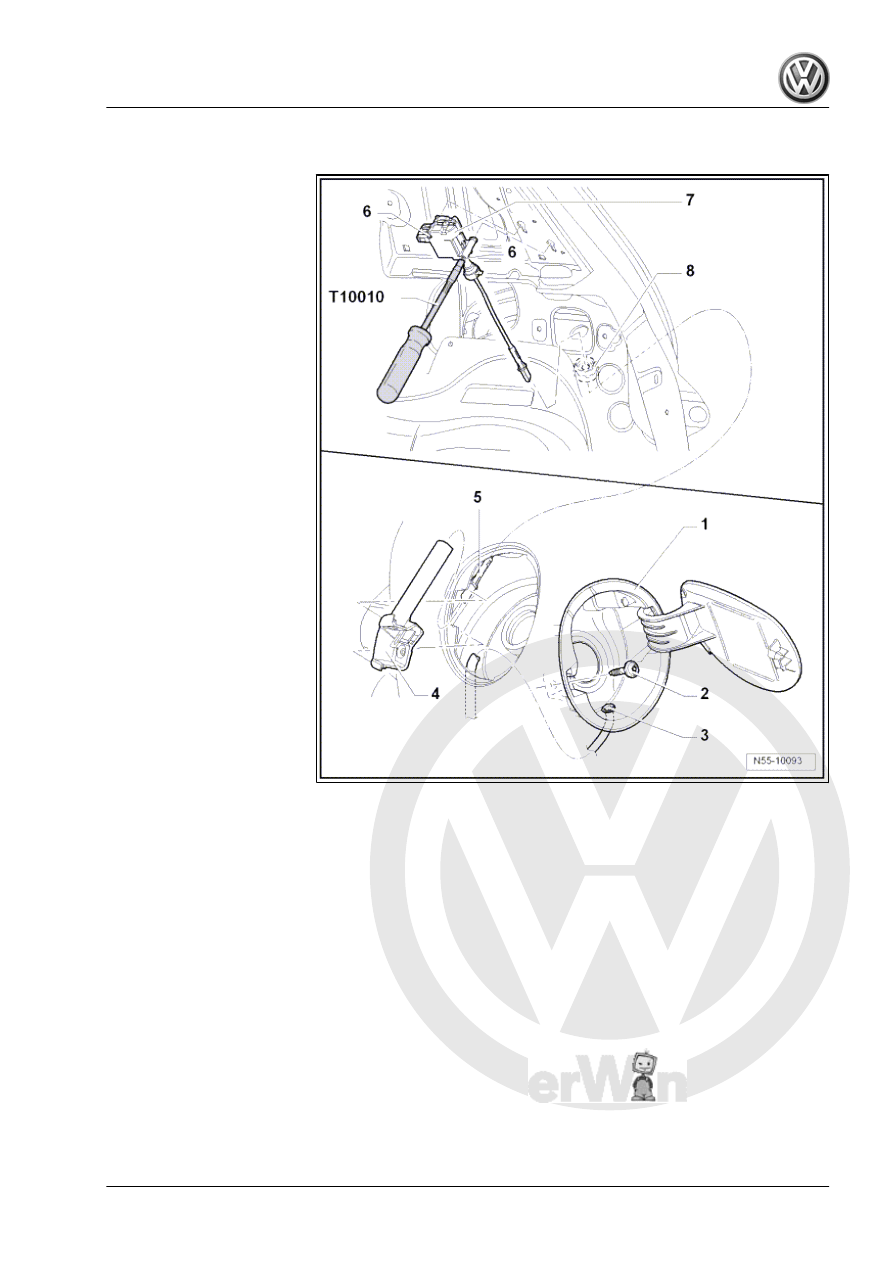

1 - Tank flap unit

❑ Removing

⇒ page 42

2 - Bolt

❑ 1.5 Nm

3 - Drain hose
4 - Assembly piece
5 - Release rod
6 - Securing bolt for actuator

❑ Qty. 2
❑ 1.5 Nm

7 - Fuel tank filler flap actuator

(F219)

❑ Removing

⇒ page 44

8 - Seal

General body repairs, exterior - Edition 04.2008

3. Tank flap unit

41

s

p

e

c

t

 t

o



th

e

 c

o

rr

e

c

t

n

e

s

s



o

f

in

fo

r

m

a

tio

n

 in

 th

is

 d

o

c

um

en

t.

C

o

py

rig

ht b

y



V

olk

sw

a

ge

n



A

G.

3.2.1

Removing tank flap unit

Note

If the fuel tank filler flap does not open, open by hand using the release rod -5-. The side trim must be removed

to do this.

– Open fuel tank flap.
– Remove fuel filler cap.
– Remove bolt -2-.
– Pull rubber part off fuel tank filler neck.
– Pull fuel tank flap unit -1- with drain hose -3- to rear and swing

fuel tank flap unit out of side panel.

– Unclip assembly part -4- out of side panel and pull assembly

part off release rod -5-.

General body repairs, exterior - Edition 04.2008

42

     Rep. Gr.55 - Bonnet, rear lid

s

p

e

c

t

 t

o



th

e

 c

o

rr

e

c

t

n

e

s

s



o

f

in

fo

r

m

a

tio

n

 in

 th

is

 d

o

c

um

en

t.

C

o

py

rig

ht b

y



V

olk

sw

a

ge

n



A

G.

3.2.2

Installing tank flap unit

• The mounting part -4- has been pushed in.
– Pass drain hose -3- through the opening in tank flap unit and

pull hose through as far as possible.

– Guide drain hose into side panel.
– With hinge side leading guide tank flap unit -1- into side panel.
– Then swivel tank flap unit completely into side panel, ensure

that the locating hooks at top and bottom properly locate in

side panel.

– Pull rubber part over filler neck and tighten bolt -2-.
Specified torque for bolt -2-: 1.5 Nm.

General body repairs, exterior - Edition 04.2008

3. Tank flap unit

43

s

p

e

c

t

 t

o



th

e

 c

o

rr

e

c

t

n

e

s

s



o

f

in

fo

r

m

a

tio

n

 in

 th

is

 d

o

c

um

en

t.

C

o

py

rig

ht b

y



V

olk

sw

a

ge

n



A

G.

3.2.3

Removing actuator

– Remove luggage compartment side panel trim ⇒  General

body repairs, interior; Rep. Gr.  70 ; Trims, insulation; Luggage

and load compartment trims .

– Disconnect connector on actuator -7-.
– Release actuator -7- using hexagon socket screwdriver -T

10010- .

– Pull actuator -7- together with release rod -5- out of seal -8-.

3.2.4

Installing actuator

Installation is carried out in reverse order of removal.

General body repairs, exterior - Edition 04.2008

44

     Rep. Gr.55 - Bonnet, rear lid
